Shure SLXD15-H55 Portable Digital Wireless Bodypack System - SLXD1 Bodypack Tx - SLXD5 Single-Channel Rx - 514-558MHz

ITEM #: SH-SLXD15-H55 MFG #: SLXD15-H55

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    SLXD15-H55 - Overview

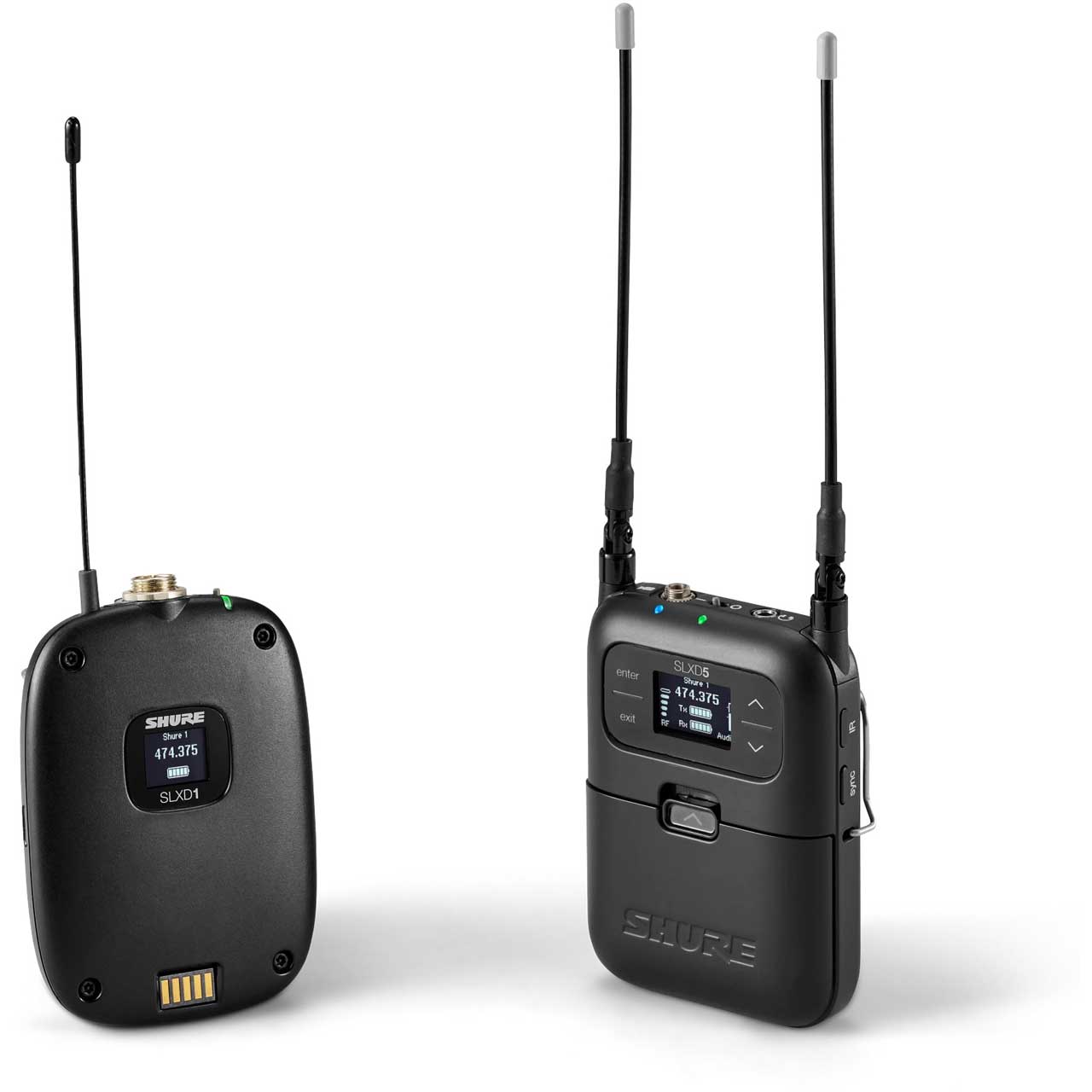

    The Shure SLXD15-H55 is a SLXD15 Portable Digital Wireless Bodypack System with a SLXD1 Bodypack Wireless Transmitter and SLXD5 Single-Channel Portable Receiver (514-558MHz). Microphone Sold Separately.

    Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

    Always Come Through Clear - In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >118 dB dynamic range.

    Dropouts Are Out - From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

    Keep The Show Going - Ready to perform for all-day conferences and nighttime performances up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

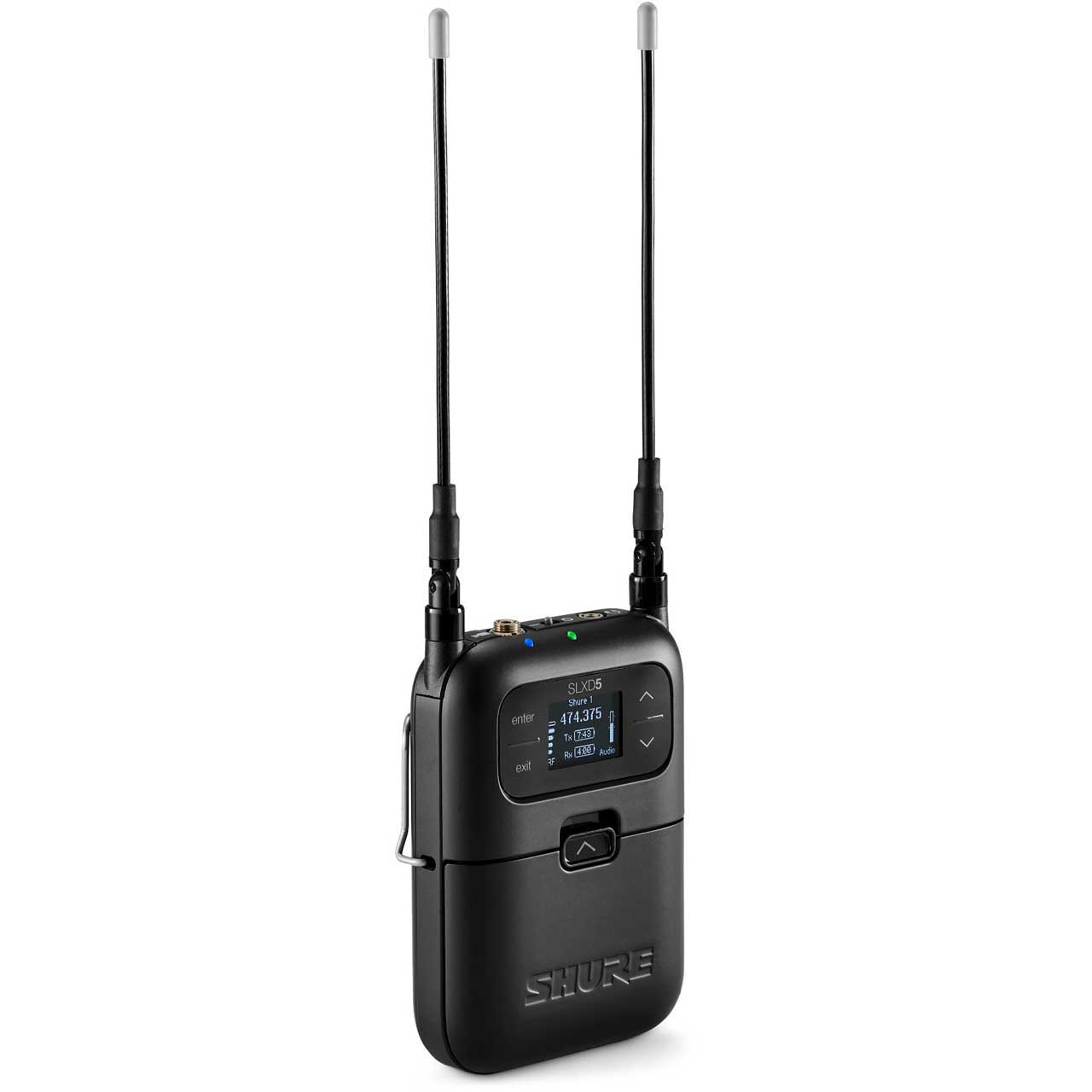

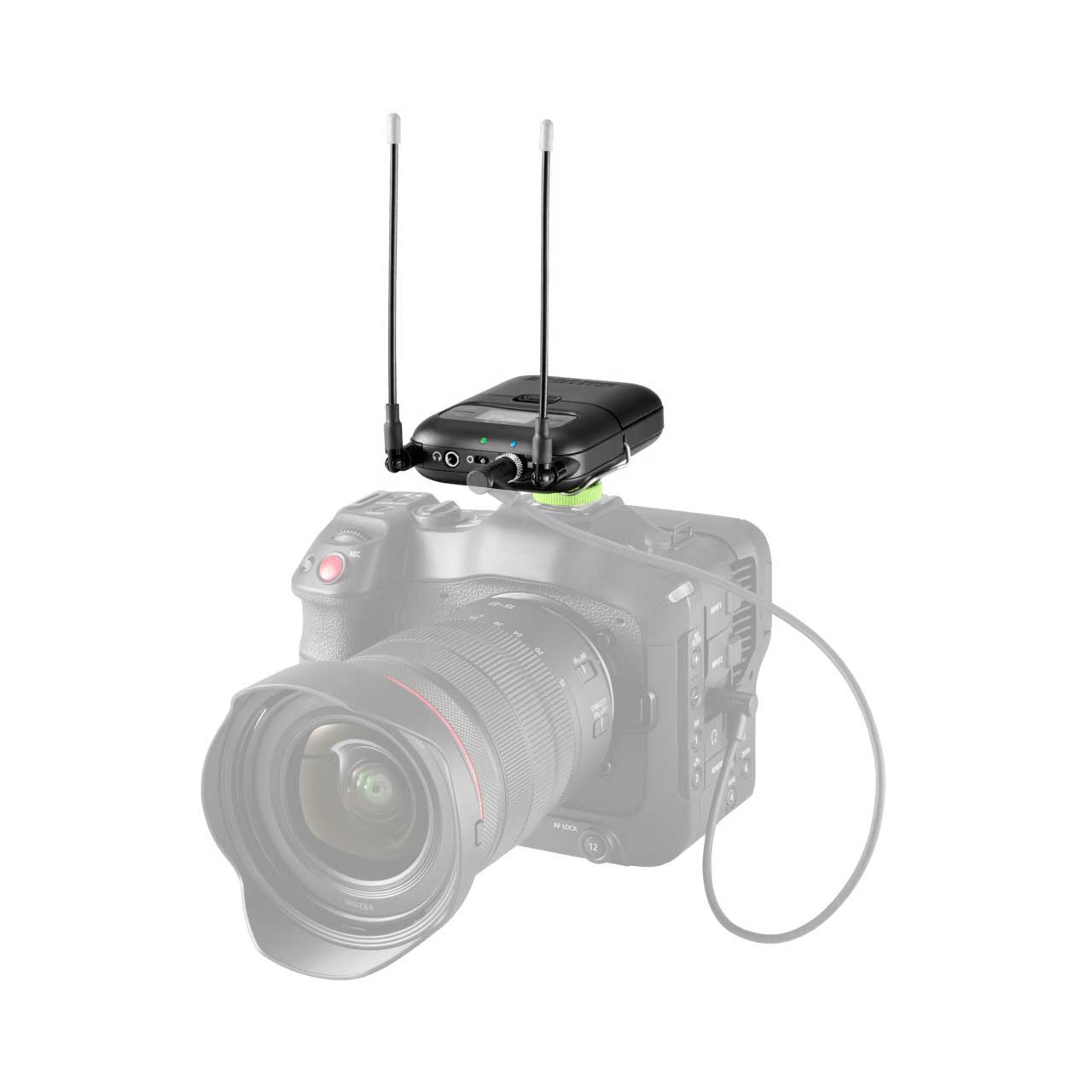

    The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long-range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode.

    • Features:

      • 118 dB dynamic range
      • Digital predictive switching diversity
      • 44 MHz tuning bandwidth (region dependent)
      • 32 available channels per frequency band (region dependent)
      • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
      • Easy pairing of transmitters and receivers over IR scan and sync
    • Specifications:

      • System Specs
      • RF Carrier Frequency Range: 514-558MHz
      • Working Range: 100 m (328 ft)
      • RF Tuning Step Size: JB Band: 125 kHz All Other Bands: 25 kHz
      • Image Rejection: >70 dB
      • RF Sensitivity -97 dBm at 10-5 BER

      • Latency 3.2 ms
      • High-Pass/Low Cut Filter: 150 Hz, -12 dB/octave
      • Audio Frequency Response: 20 Hz-20 kHz (+1, -2 dB)
      • Audio Dynamic Range: 118 dB @1% THD
      • Total Harmonic Distortion: <0.02%

        Temperature Range
      • Operating Temperature Range: 0 °F to 122 °F (-18 °C to 50 °C)
      • Storage Temperature Range: -20 °F to 165 °F (-29 °C to 74 °C)

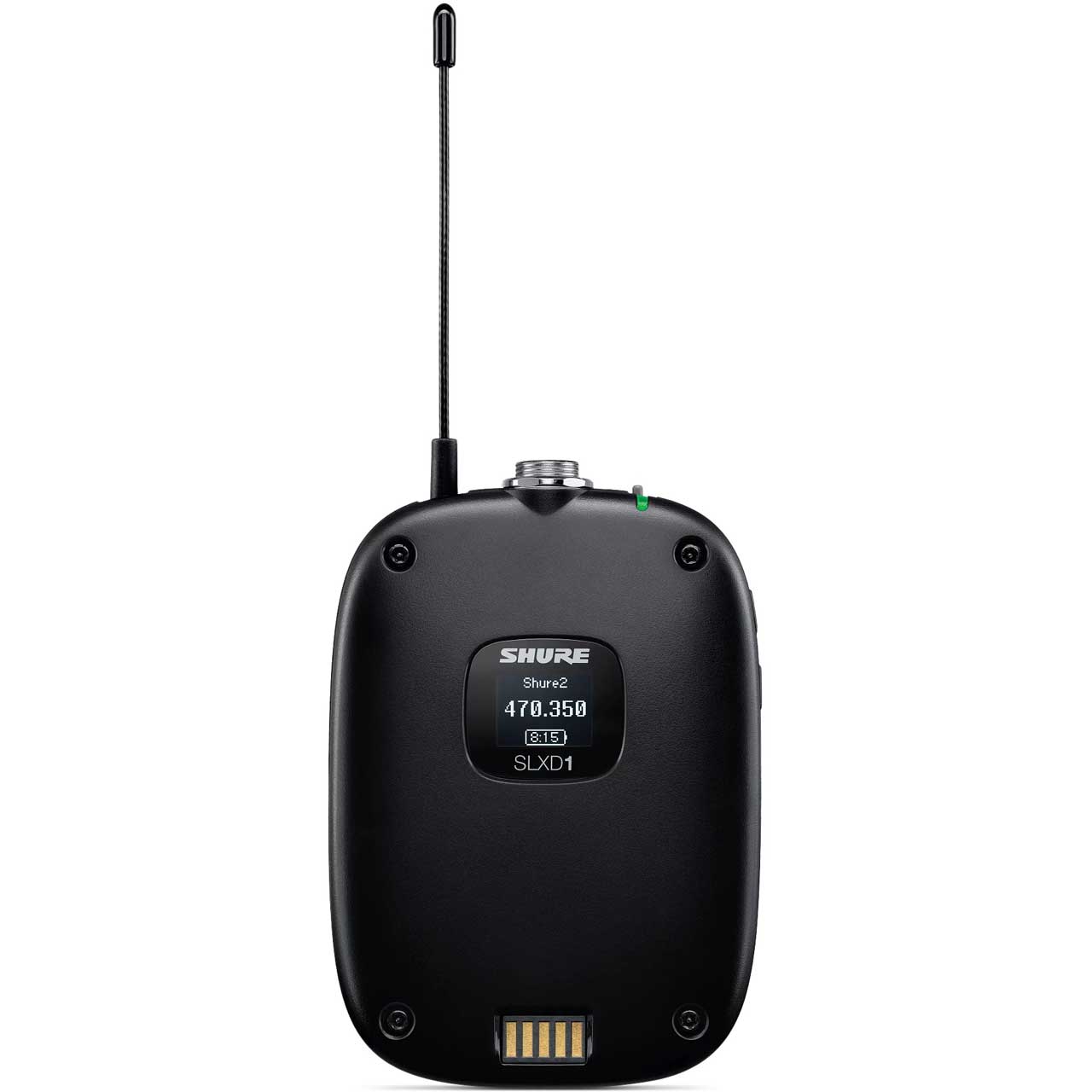

        SLXD1 Digital Wireless Bodypack Transmitter Specifications
      • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
      • Dimensions (HxWxD): 3.86" x 2.68" x 1.0" (98mm x 68mm x 25.5mm)
      • Weight: .19lbs (3.1oz)
      • Housing: PC/ABS

        Audio Input
      • Connector: 4-Pin male mini connector (TA4M)
      • Configuration: Unbalanced
      • Impedance: 1 Mω
      • Maximum Input Level: 8.2 dBV
      • Preamplifier Equivalent Input Noise (EIN): -118 dBV

        RF Output
      • Antenna Type: 1/4 Wave
      • Occupied Bandwidth: <200 kHz
      • Modulation Type: Shure Propietary Digital
      • Power: 1 mW/10 mW

        SLXD5 Portable Digital Wireless Receiver Specifications
      • Dimensions (HxWxD): 4.21" x 2.68" x 1.0" (107mm x 68mm x 25.3mm)
      • Weight: 1.8lb (182g)
      • Housing: Aluminum
      • Power Requirements: Battery: Rechargeable Li-Ion or 1.5 V AA batteries
      • Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

        RF Input
      • Spurious Rejection: >75 dB
      • Impedance: 50 Ω
      • Phantom Power Protection: Yes
      • Antenna Type: 1/4 Wave Whip

        Audio Output:
      • Audio Frequency Response: 20 Hz - 20 kHz
      • Connector Type: 1/8" (3.5 mm), x2
      • Full Scale Output: Camera (Balanced Line): 15 dBV Headphone: 13 mW @ 64 ω Load
    • Item Includes:

      • 1x Shure SLXD1 Digital Wireless Bodypack Transmitter
      • 1x Shure SLXD5 Single-Channel Portable Digital Wireless Receiver
    • Warranty:

      • 1-Year Limited Warranty
    • GTIN:
