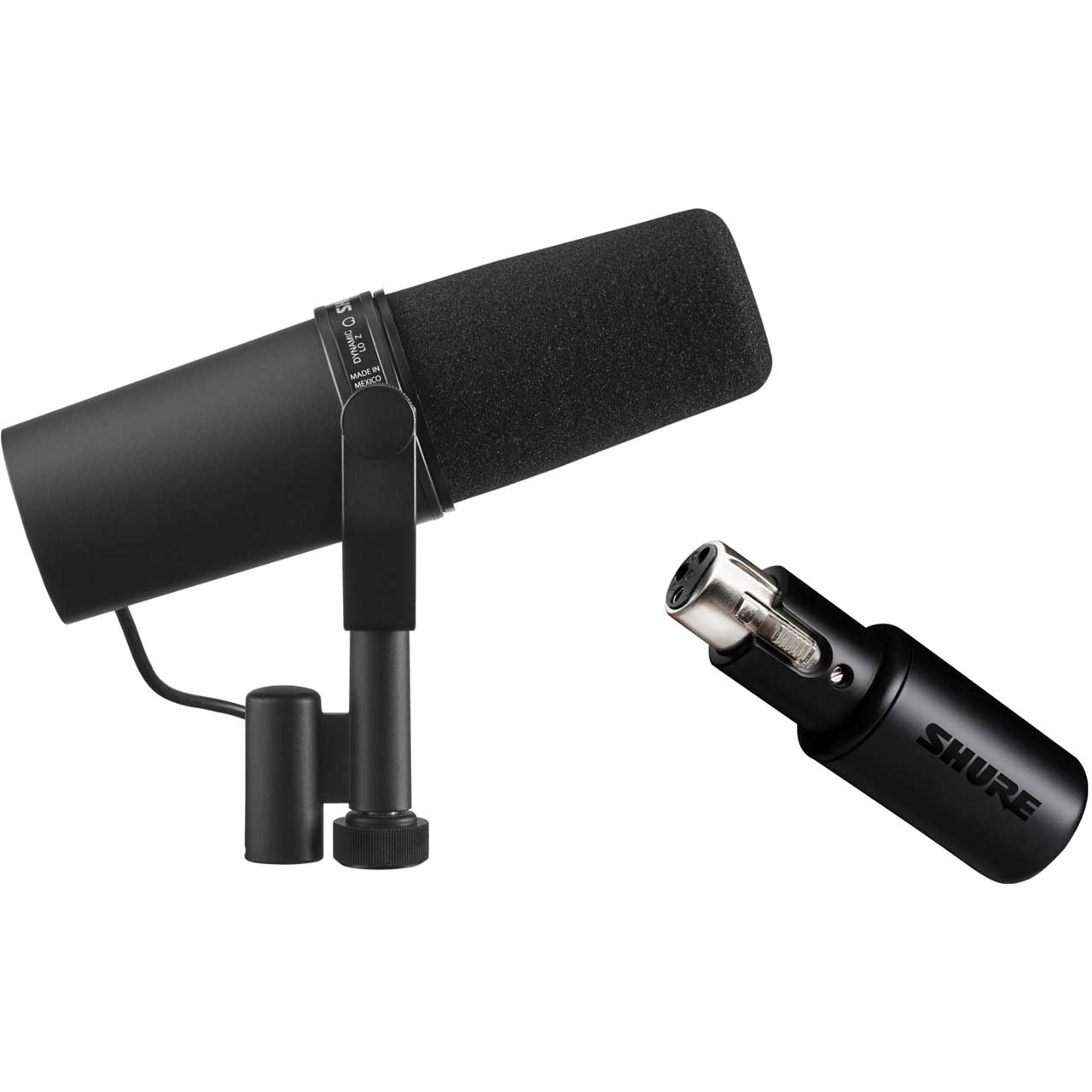

Shure MVX2U MOTIV XLR to USB/Analog to Digital Adapter Interface Kit with SM7B Dynamic Cardioid Microphone

SM7BMVX2U-KIT - Overview

• Features:

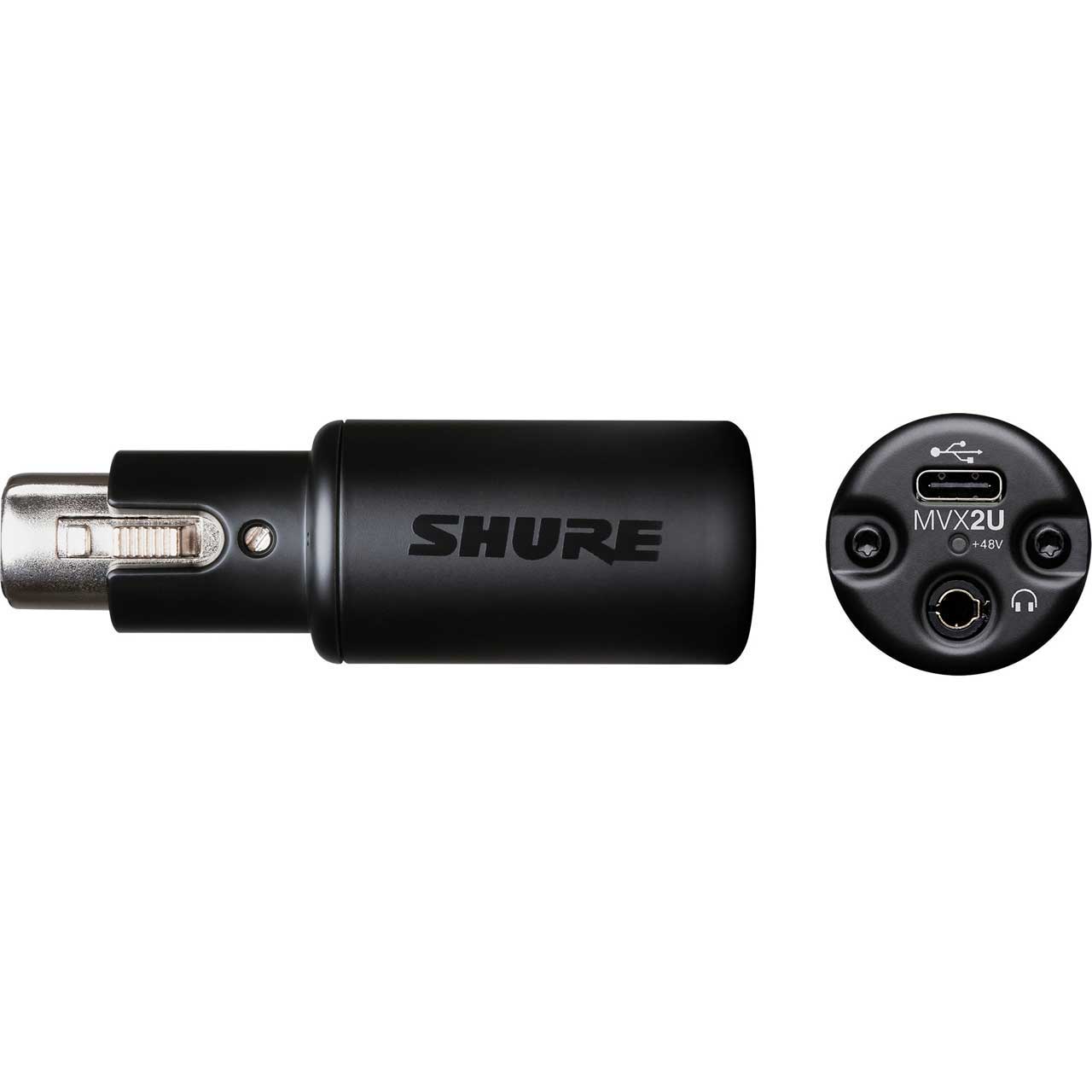

  • MVX2U
  • XLR to USB adapter for recording and streaming directly to a computer with an XLR microphone
  • Intelligent DSP with Auto Level mode that automatically adjusts mic gain for consistent audio output
  • Access to the full features of ShurePlus MOTIV Desktop App, including a customizable sound signature with both Auto Level Mode or Manual Mode, as well as updatable firmware
  • Configurable DSP features via Manual Mode: Adjust gain, Limiter, Compressor, EQ, or use your saved presets
  • Supplies phantom power up to 48v for condenser mics
  • Up to +60dB gain to amplify signals for microphones such as the SM7B
  • Built-in 3.5mm headphone jack for zero-latency monitoring and playback
  • Sleek and portable rugged build for plugging into an XLR microphone, or use in-line with XLR cables
  • Compatible with both Mac and Windows USB connectivity, with a USB-C to USB-C cable included in the box

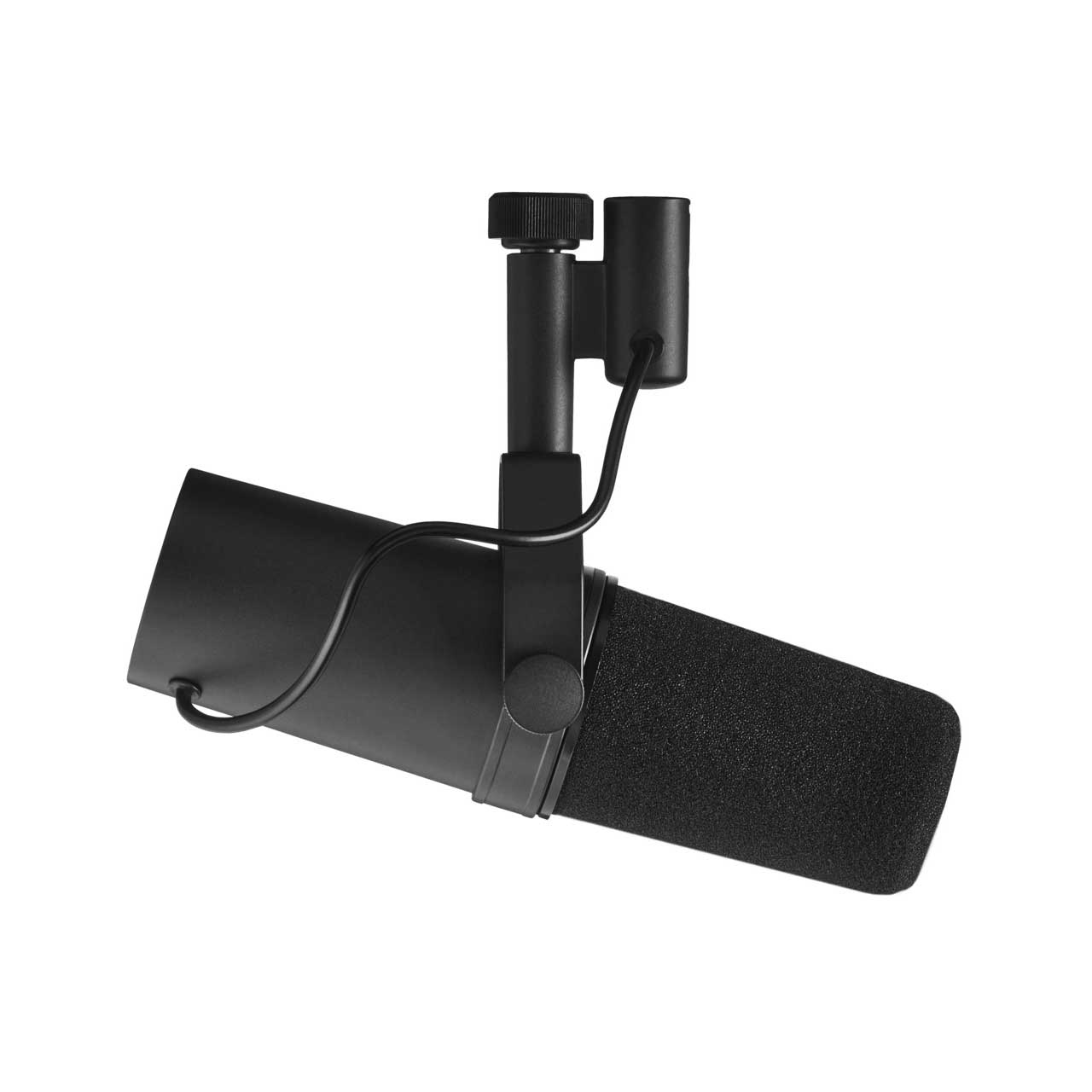

    SM7B
  • Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech
  • Bass rolloff and mid-range emphasis (presence boost) controls with graphic display of response setting
  • Improved rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors
  • Internal "air suspension" shock isolation virtually eliminates mechanical noise transmission
  • Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close-up vocals or narration
  • Now shipping with the A7WS detachable windscreen, designed to reduce plosive sounds and gives a warmer tone for close-talk vocals
  • Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position
  • A cardioid polar pattern is used to provide maximum sound rejection and minimal distortion from off-axis sound. This pattern is consistent across frequencies and symmetrical around the axis.
  • Rugged construction and excellent cartridge protection for outstanding reliability


• Specifications:

  • MVX2U

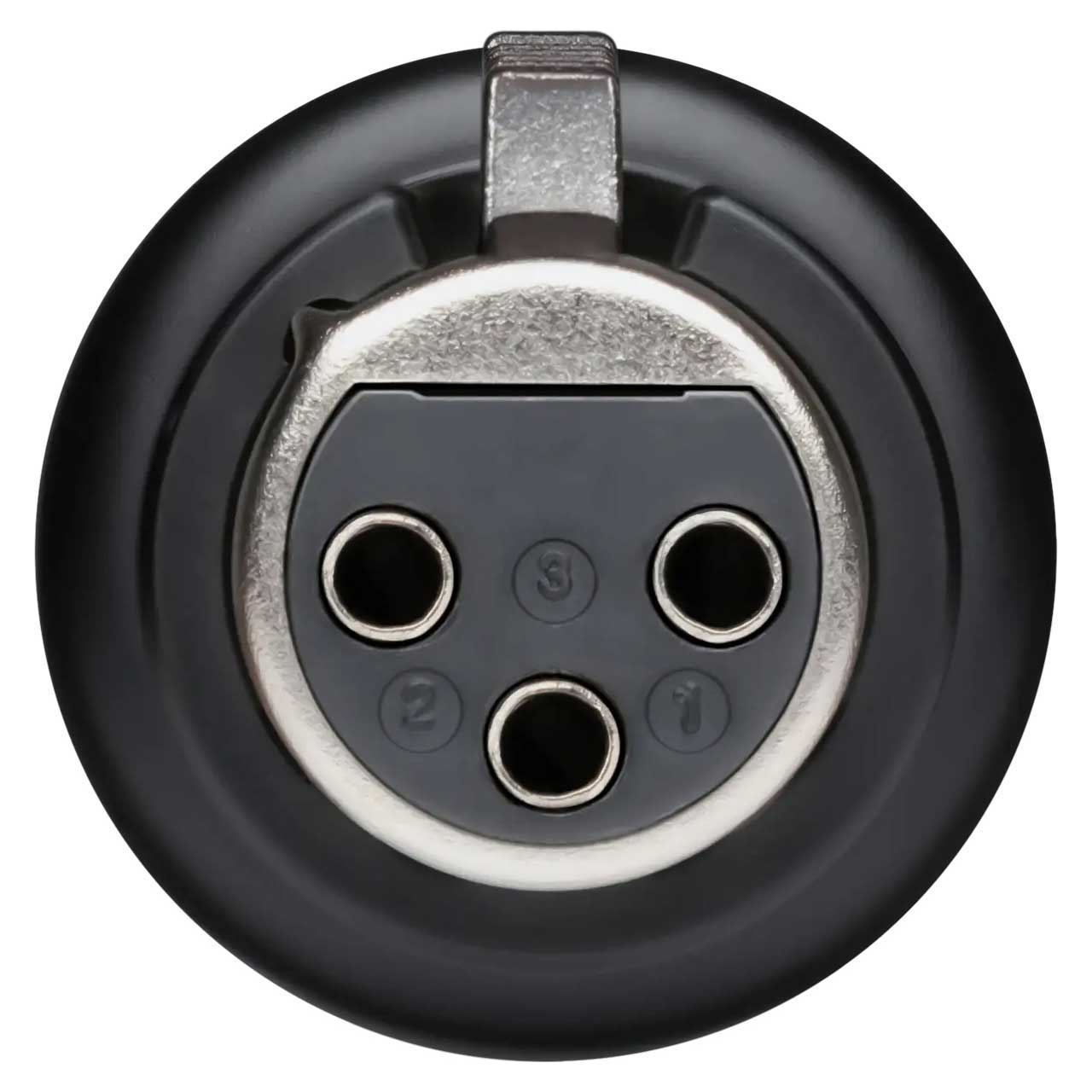

  • Input: XLR
  • Input impedance: 5.8kΩ
  • Bit Depth: 16-bit/24-bit
  • Sampling Rate: 48kHz
  • Frequency Response: 20Hz to 20,000Hz
  • Adjustable Gain Range: 0 to +60dB
  • Maximum Input Level: 7dBV
  • Power Requirements: Powered through USB-C
  • Phantom Power: +48VDC
  • Digital Noise Floor (20 Hz to 20 kHz, A-weighted): -117dBFS
  • LED Indicator (Tricolor): Green = Ready / Amber = Error / Red = Mute
  • Housing: All Metal
  • Net Weight: 100 g (3.5 Oz.)
  • Dimension: 44 x 140 x 158mm H x W x D
  • Headphone Output: 3.5 mm (1/8 inch) 20 mW @ 32Ω
  • Cable: 1M USB-C to USB-C cable

    SM7B
  • Mic Type: Dynamic (moving coil)
  • Frequency Response: 50Hz - 20kHz
  • Polar Pattern: Cardioid
  • Output Impedance: 150Ω
  • Sensitivity: -59dBV/Pa[1] (1.12mV)(@ 1 kHz, open circuit voltage)
  • Hum Pickup: 11dB (typical, @ 60Hz, equivalent SPL/mOe)
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Net Weight: 1.69lbs (0.764kg)

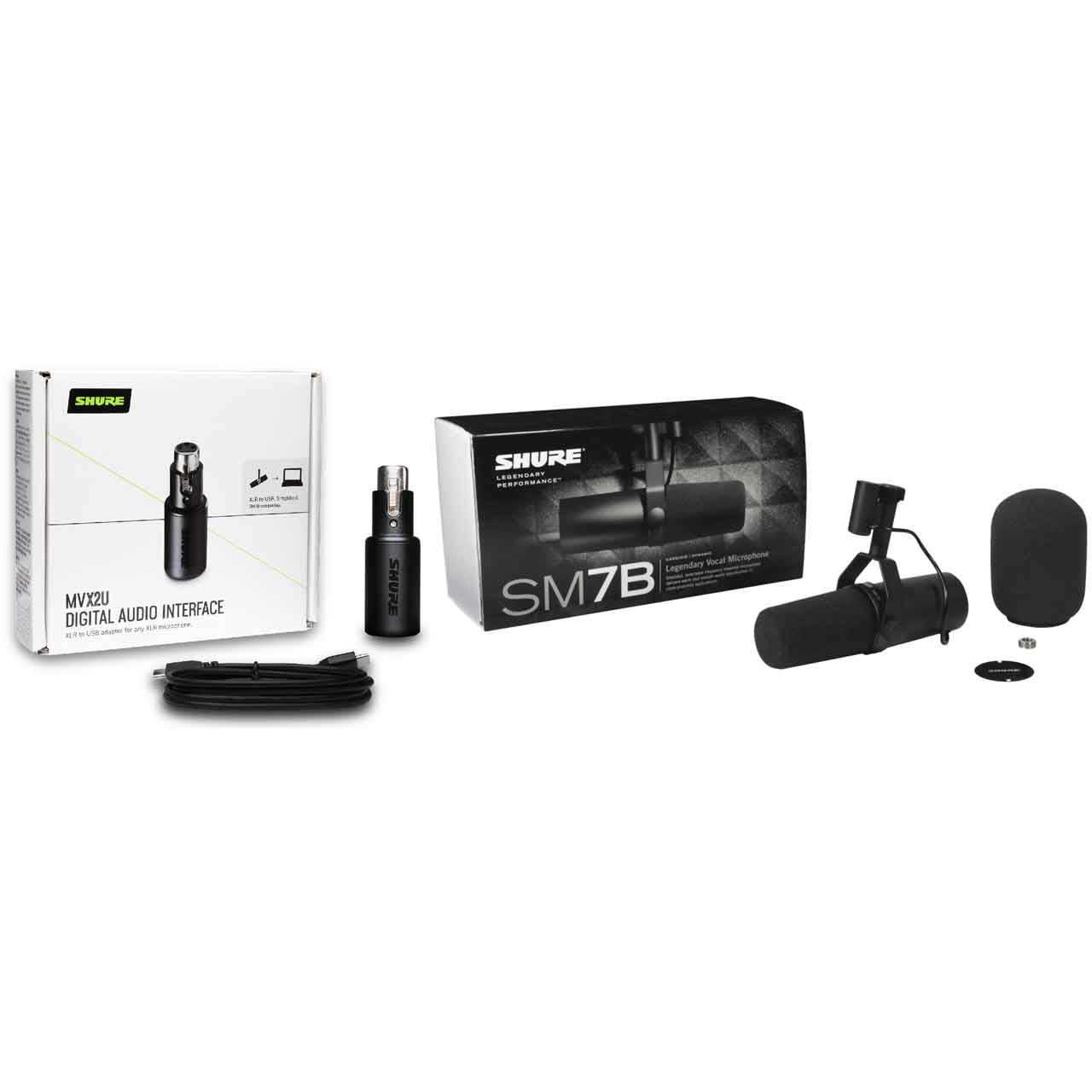

• Item Includes:

  • 1x Shure MVX2U MOTIV XLR to USB Interface
  • 1x Shure SM7B Dynamic Cardioid Microphone


• GTIN:

  0042406780308
