Shure ULXD12487-G50 Wireless Mic System - ULXD2/B87A Mic/ULXD1 w/ WL185MB/C-TQG Lav Mic - G50 - 470MHz - 536MHz

ITEM #: SH-ULXD12487-G50 MFG #: SH-ULXD12487-G50

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3,875.00

Our Price:

$2,680.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SH-ULXD12487-G50 - Overview

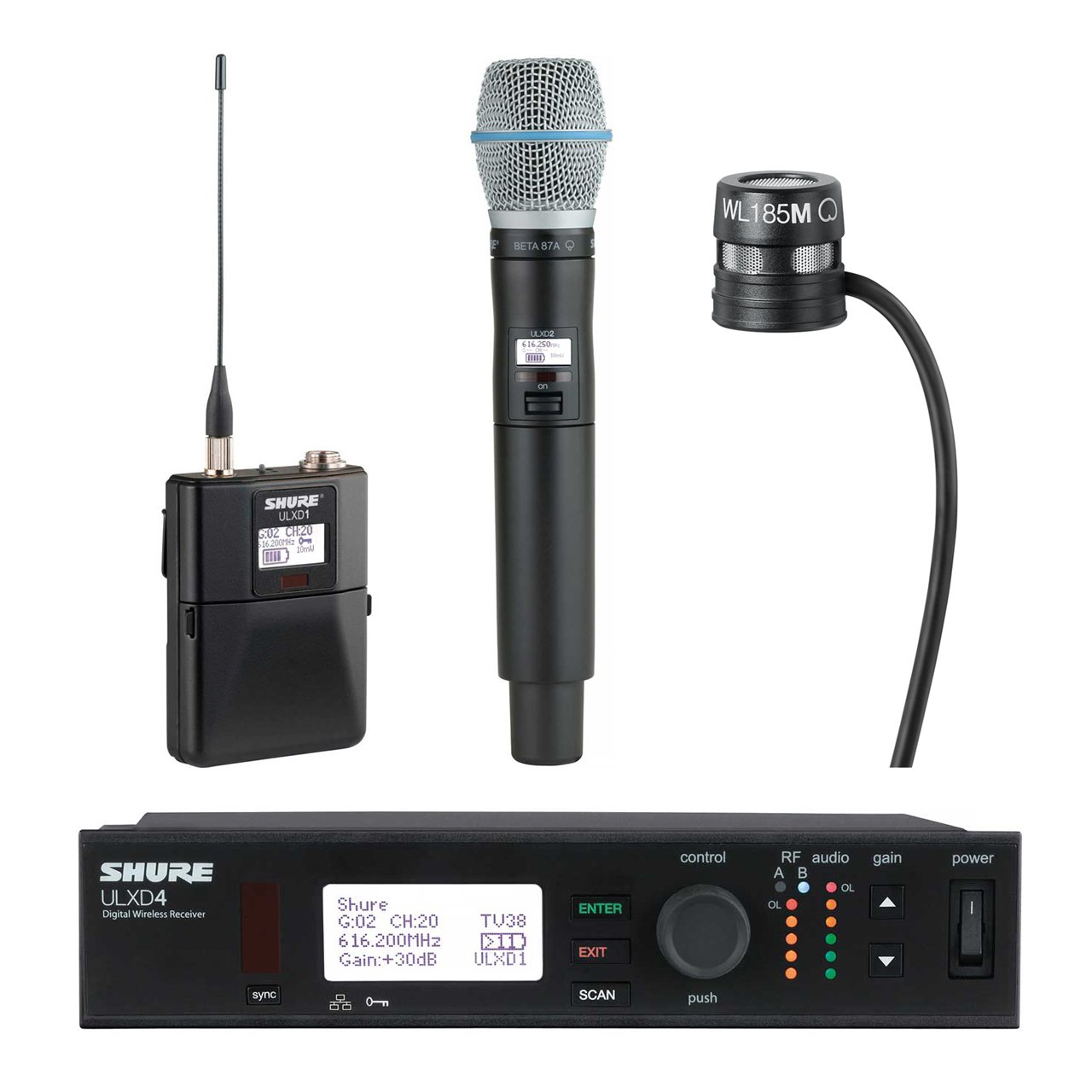

This Shure ULXD12487-G50 kit is a professional-grade wireless microphone system for live performances and presentations, combining components from Shure's ULX-D Digital Wireless series. It offers two different types of wireless microphones - a handheld for performers and a lavalier for presenters - that feed into a single receiver.

The Shure ULXD4 Digital Wireless Receiver is a half-rack, single-channel receiver that is the heart of the system. It offers transparent 24-bit digital audio, efficient RF performance, AES-256 encryption, and intelligent scanning to find the clearest frequencies.

The Shure ULXD2/B87A Handheld Transmitter consists of the ULXD2 handheld transmitter and an integrated Beta 87A supercardioid condenser microphone capsule. It is designed for lead vocalists and performers who need a high-quality, directional microphone to reject background noise and feedback.

The Shure WL185MB/C-TQG Lavalier Microphone is a low-profile, cardioid condenser lavalier microphone with a TA4F connector. It is well-suited for presenters and broadcasters who need a discreet, hands-free option for clear voice reproduction.

And finally, the Shure ULXD1 Bodypack Transmitter is a compact and durable metal bodypack transmitter that works with the WL185 lavalier microphone. It features the same advanced ULX-D digital technology as the handheld transmitter, including high-quality audio, AES-256 encryption, and optional advanced rechargeable batteries.

  • Features:

      ULXD4
    • Predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 98.4ft
    • Intelligent scanning automatically finds and deploys the cleanest frequencies
    • Interference detection and alerts on receiver and Wireless Workbench 6
    • Up to 60dB additional gain
    • AES 256-bit encryption
    • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
    • Support for frequency coordination with the Axient Spectrum Manager

      ULXD2/B87A
    • 30Hz-20kHz range with flat frequency response
    • AES 256-bit encryption
    • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source
    • Transmitter Mute Mode repurposes the On/Off switch into a mute switch

      ULXD1
    • AES 256-bit encryption
    • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source
    • Backlit LCD with easy to navigate menu and controls
    • Detachable ¼" wave antenna

      WL185MB/C-TQG
    • Professional low-profile lavalier condenser microphone
    • Cardioid polar pattern
    • Higher dynamic range with improved max SPL, self-noise, and general sound quality

  • Specifications:

      ULXD4
    • RF Input
    • Spurious Rejection: >80dB, typical
    • Connector: BNC
    • Impedance: 50Ω
    • Bias Voltage: 12V - 13V DC; 170mA max, per antenna

      Audio Output
    • Gain Adjustment Range: -18dB - +42dB in 1dB steps (plus Mute setting)
    • Configuration:
      - ¼": Impedance balanced
      - XLR: Balanced
    • Impedance:
      - ¼": 100Ω (50Ω Unbalanced)
      - XLR: 100Ω
    • Full Scale Output:
      - ¼": +12dBV
      - XLR: LINE setting = +18dBV, MIC setting = -12dBV
    • Mic/Line Switch: 30dB pad

      Networking
    • Power Over Ethernet (PoE): No, protected
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 328ft

    • RF Carrier Frequency Range: 470MHz - 932MHz, varies by region
    • Working Range: 330ft (100m)
    • RF Tuning Step Size: 25kHz, varies by region
    • Image Rejection: >70dB, typical
    • RF Sensitivity: -98dBm at 10-5 BER
    • Latency: <2.9ms
    • Audio Dynamic Range: A-weighted, typical, System Gain @ +10
      - XLR Analog Output: >120dB
      - Dante Digital Output: 130dB
    • Total Harmonic Distortion:
      - -12dBFS input, System Gain @ +10
      - <0.1%
    • Operating Temp: 0°F - 122°F
    • Storage Temp: -20°F - 165°F
      *Note: Battery characteristics may limit temperatures ranges.
    • Receiver Output Gain:
      - ¼" TRS: +18dB
      - XLR (Line setting): +24dB
      - XLR (Mic setting): -6dB*
      *Note: This setting matches a typical wired SM58 audio signal level.
    • Power: 15V DC @ 0.6A, supplied by external power supply
    • Dimensions (HxWxD): 1.65" x 7.75" x 6.75"
    • Weight: 2.0lbs (913g), without antennas

      ULXD2/B87A
    • Audio Input
    • Configuration: Unbalanced
    • Max Input Level: 1kHz @ 1% THD145dB SPL, typical
      *Note: Dependent on microphone type.

      RF Output
    • Antenna: Integrated Single Band Helical
    • Occupied Bandwidth: <200kHz
    • Modulation: Shure proprietary digital
    • Power: 1mW, 10mW, 20mW; varies by region

    • Transducer: Condenser
    • Polar Pattern: Supercardioid
    • Frequency Range: 20Hz - 20kHz
    • Sensitivity:
      - -52.50dBV/Pa
      - 2.37mvpa
    • Mic Offset Range: 0dB - 21dB (in 3dB steps)
    • Battery: Shure SB900-series Rechargeable Li-Ion or LR6 AA batteries 1.5V
    • Battery Runtime: @ 10mW
      - Shure SB900C: >11 hours
      - Alkaline: 9 hours
    • Dimensions (LxDia.): 10.1" x 2.0"
    • Weight: 12.0oz (340g), without batteries

      ULXD1
    • Mic Offset Range: 0dB - 21dB (in 3dB steps)
    • Audio Frequency Response: 20Hz - 20kHz (±1dB)
    • Battery: Shure SB900B Rechargeable Li-Ion or LR6 AA batteries 1.5V
    • Battery Runtime: @ 10mW
    • Dimensions (HxWxD): 3.4" x 2.6" x 0.9"
    • Weight: 5.0oz (142g), w/o batteries
    • Audio Input Connector: TA4M
    • Configuration: Unbalanced
    • Impedance: 1MΩ
    • Max Input Level: 1kHz @ 1% THD
    • Preamplifier EIN: System Gain Setting = +20dBv - 120dBV, A-weighted, typical
    • RF Output Connector: SMA
    • Antenna: ¼" wave
    • Impedance: 50Ω
    • Occupied Bandwidth: <200kHz
    • Modulation: Shure proprietary digital
    • Power: 1mW, 10mW, 20mW

      WL185MB/C-TQG
    • Mic Capsule: Condenser
    • Polar Pattern: Cardoid
    • Frequency Response: 70Hz - 20kHz
    • Sensitivity: -43.0dBV/Pa
    • Dynamic Range: 120.5dB

  • Item Includes:

    • 1x Shure ULXD4 Single Digital Wireless Receiver
    • 1x Shure ULXD2/B87A Beta 87A Handheld Transmitter
    • 1x Shure ULXD1 Digital Wireless Bodypack Transmitter
    • 1x Shure WL185m Cardioid Low Profile Lavalier Mic

  • GTIN:

    0042406214148
