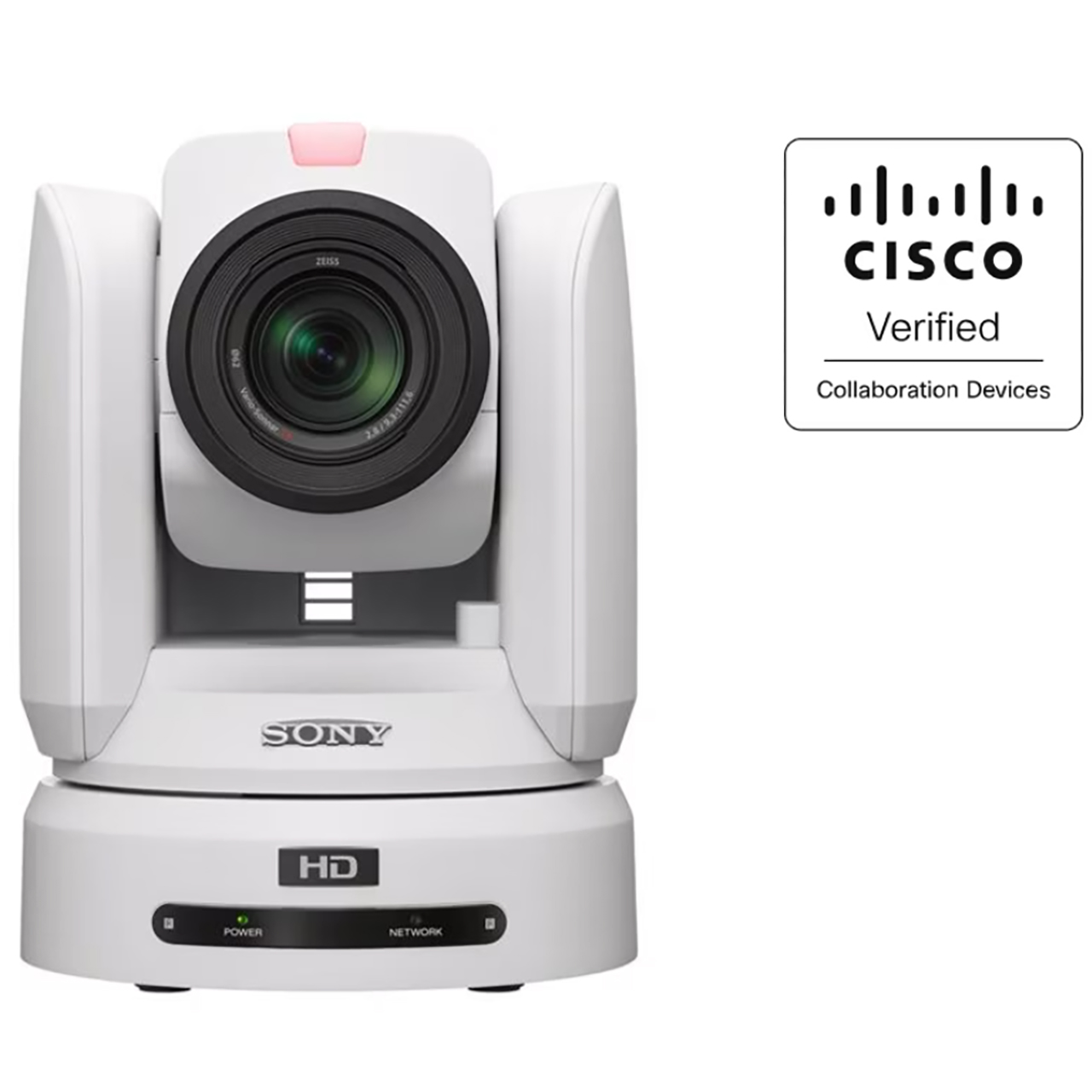

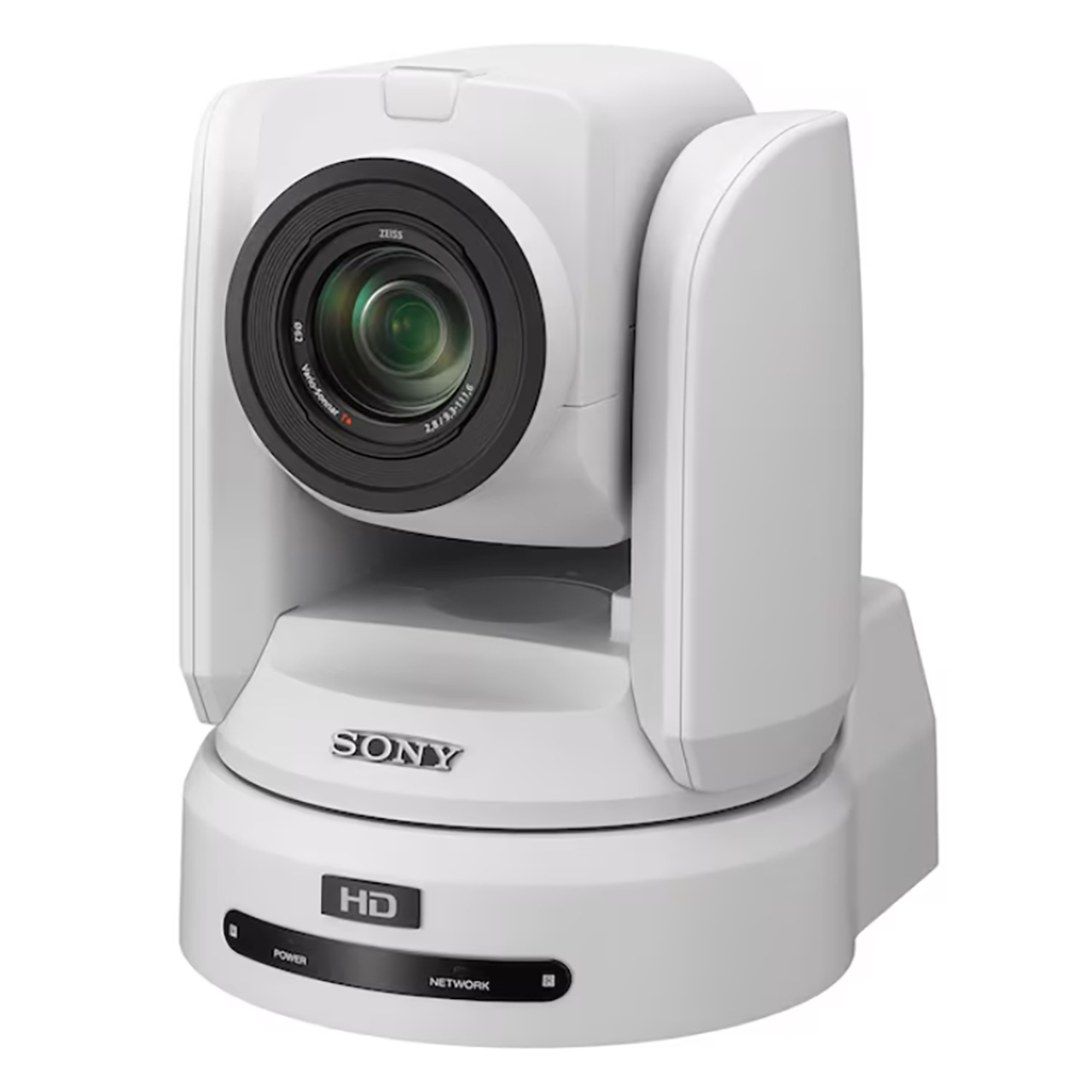

Sony BRCH800/WPW 12x Zoom Full HD PTZ Camera with 1-Inch CMOS Sensor and PoE+ - Cisco Certified - White

ITEM #: SNY-BRCH800-WPW MFG #: BRCH800-WPW

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$8,600.00

Our Price:

$7,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BRCH800-WPW - Overview

Designed for unattended operation - Remotely Capture Broadcast Quality Full HD Images with Smooth, Silent PTZ and Excellent Low-light Sensitivity

The Sony BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of faith, courtrooms, classrooms, or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1.0-type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x (HD) extending this range even further without visible loss of resolution. In Tele Convert Mode, 24x zoom can be further doubled to 48x without losing HD resolution.

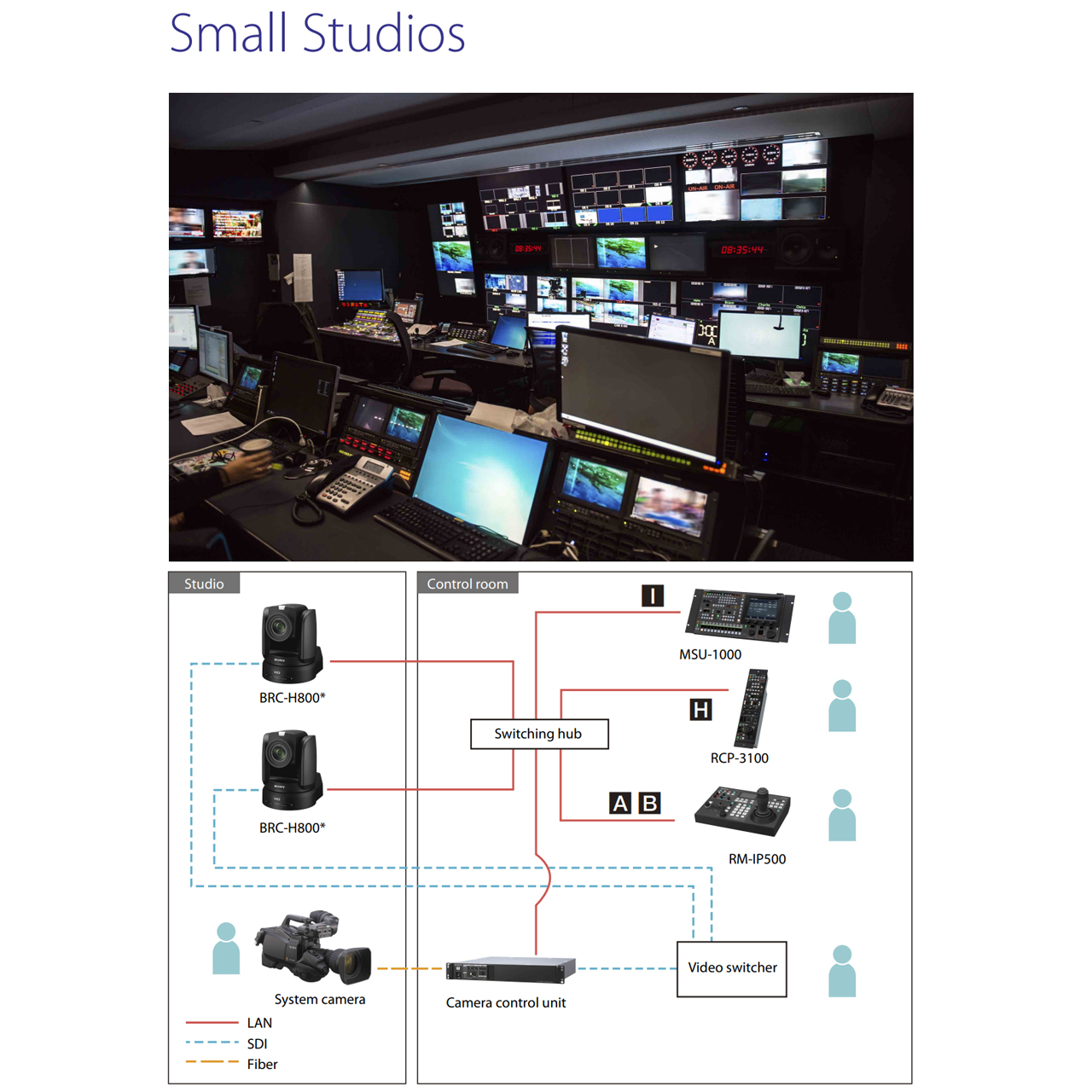

Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table-top, or tripod mounting. There's also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock for smooth integration into any broadcast, professional, or corporate AV environment.

  • Features:

    • Enhanced Pan/Tilt/Zoom (PTZ) operation
    • Remote operation
    • Broadcast quality Full HD 60p images
    • Cinematic 24p pictures
    • High quality 12x optical zoom and 24x(HD) with Clear Image Zoom
    • Excellent low light sensitivity
    • Flexible installation
    • RCP/MSU Connectivity
    • Genlock
    • Versatile video outputs
    • Front and rear tally lamps
    • Simplified construction of VR/AR systems

  • Specifications:

      Camera
    • Image Sensor:
      - 1.0-type back-illuminated Exmor R CMOS sensor
      - Number of Effective Pixels: Approx. 14.2MP
      - Total Number of Pixels: Approx. 20.4MP
    • Signal System:
      - 1080/59.94p
      - 1080/59.94i
      - 720/59,94p
      - 1080/50p
      - 1080/50i
      - 720/50p
      - 1080/23.98p
    • Minimum Illumination (50IRE): 1.7 lux (50IRE, F2.8, 1/30s, Max.Gain)
    • Horizontal Resolution: 850 TV line (in 3G-SDI output)(center)
    • Gain: Auto/Manual (-3dB - +33dB)
    • Shutter Speed:
      - 1/10000s to 1/8 (59.94/29.97)
      - 1/10000s to 1/6 (50/25/23.98)
    • Exposure Control: Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light
    • White Balance: Auto1/Auto2/One Push/Indoor/Outdoor/Manual
    • Optical Zoom: 12x
    • Clear Image Zoom: 2x
    • Digital Zoom: No
    • Tele Convert Mode: Off, 2x (1920x1080 only)
    • Focusing System: Auto/Manual
    • Horizontal Viewing Angle: Typ. 64.6° (Wide-end)
    • Focal Length:
      - f=9.3mm - 111.6mm
      - F2.8 (Wide), F4.5 (Tele)
    • Minimum Object Distance:
      - 1000mm (Tele)
      - 80mm (Wide)
    • Pan/Tilt Angle:
      - Pan: ±170°
      - Tilt: +90°/-30°
    • Pan Speed:
      - 0.3°/s - 60°/s
      - 0.05°/s - 60°/s
      - 0.02°/s - 60°/s
    • Tilt Speed:
      - 0.3°/s - 60°/s
      - 0.05°/s - 60°/s
      - 0.02°/s - 60°/s
    • Pan/Tilt Slow Mode: Yes
    • Pan/Tilt Operation Noise: NC30 or less (Sony measurement conditions)
    • Preset Position: 100
    • PTZ Trace Memory: 16
    • PTZ Motion Sync: Yes
    • Camera Tracking Data Output: Yes (Requires firmware V2.10)

      Camera Features
    • Day/Night: Yes
    • Visibility Enhancer: Yes
    • Image Flip: On/Off
    • Picture Profile Preset: Yes
    • ND Filter: Off, 1/4, 1/16, 1/64 switchable in menu
    • Color Gain: 15 step
    • Color Hue: 15 step
    • Color Matrix: Off/Standard/High Saturation/FL light/MOVIE/STILL/CINEMA/PRO/ITU709/BW
    • Gamma: Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
    • Gamma Level: 15 step
    • Black Level: 97 step
    • Black Gamma: 15 step
    • Knee Point: 13 step
    • Knee Slope: 15 step
    • Flicker Cancel: On/Off

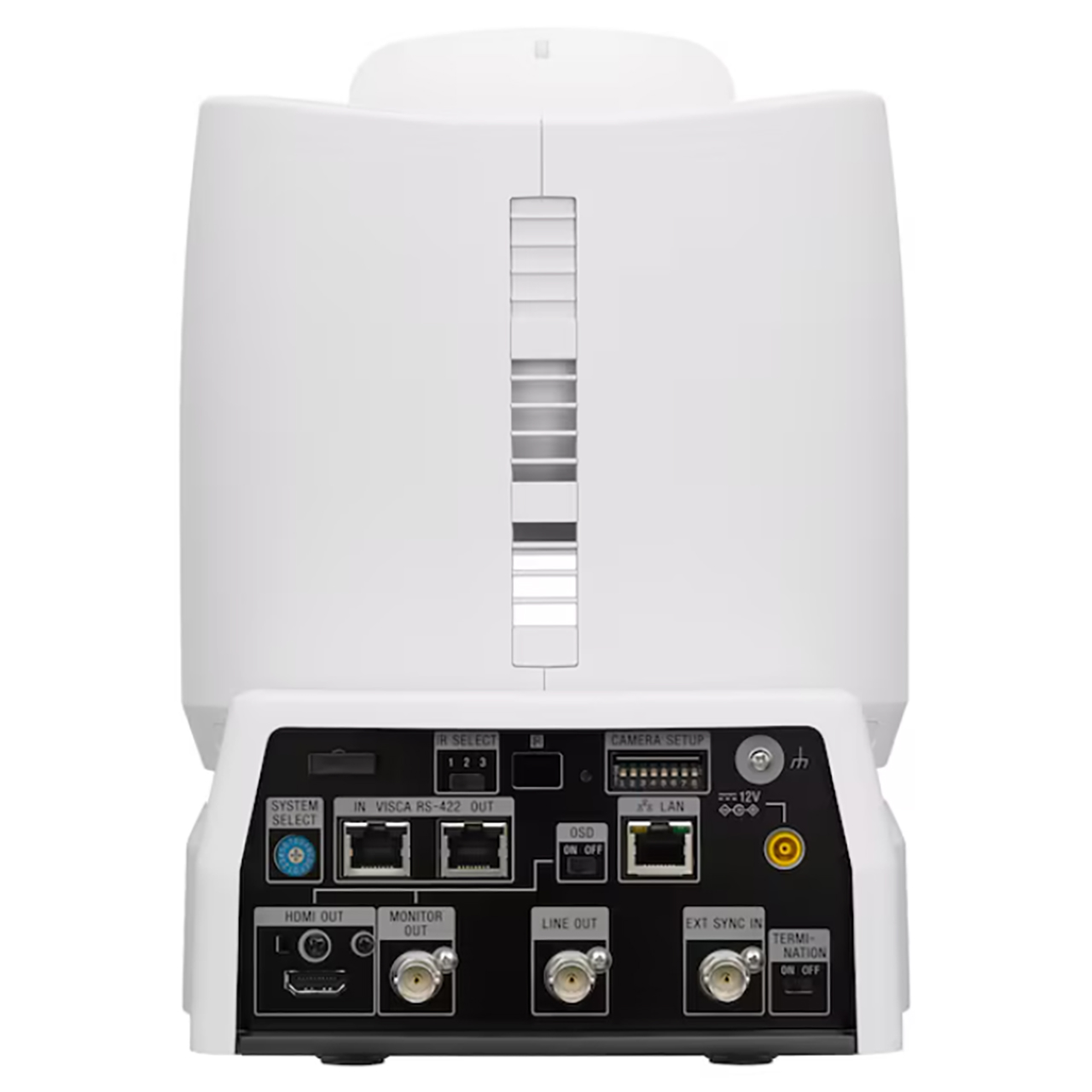

      Interface
    • 4K Video Output: No
    • HD Video Output:
      - 2x 3G-SDI
      - 1x HDMI
    • HDMI Color Space:
      - YCbCr, 4:2:2
      - RGB, 4:4:4
    • Camera Control Interface:
      - VISCA RS-422
      - RJ45 (In/Out)
      - VISCA over IP RJ45
    • External Sync. Input: BNC, 75Ω, HD 3-level sync, SD Black Burst
    • Power Connector Type:
      - IEC60130-10 (JEITA standard RC-5320A)
      - TYPE4

      General
    • Power Requirements: DC 10.8V to 13.2V, PoE+ (IEEE802.3at compliant)
    • Power Consumption:
      - DC12V: 19.0W (Max)
      - PoE+: 23.0W (Max)
    • Operating Temperature: 32°F - 104°F
    • Storage Temperature: -4°F - +140°F
    • Dimensions (WxHxD): Approx. 7-7/8" x 10-1/4" x 9-3/8" (without projecting object)
    • Mass: Approx. 9lbs 7.7oz
    • Optional Card Slots: Not needed
    • Body Color: White
    • Size of Screw Hole for Tripod: 2x 1/4"-20UNC
    • Mountable Angle: Less than ±15°
    • Ceiling Mount: Yes

  • Item Includes:

    • 1x IR Remote Commander Unit
    • 2x Ceiling bracket
    • 1x Wire rope
    • 7x Screws (M3 x 8)
    • 1x Screws (M4 x 8)
    • 1x HDMI cable fixing plate
