Sony C-80 Uni-Directional Condenser Microphone - 20Hz-20kHz

ITEM #: SNY-C80 MFG #: C-80

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$484.10

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    C-80 - Overview

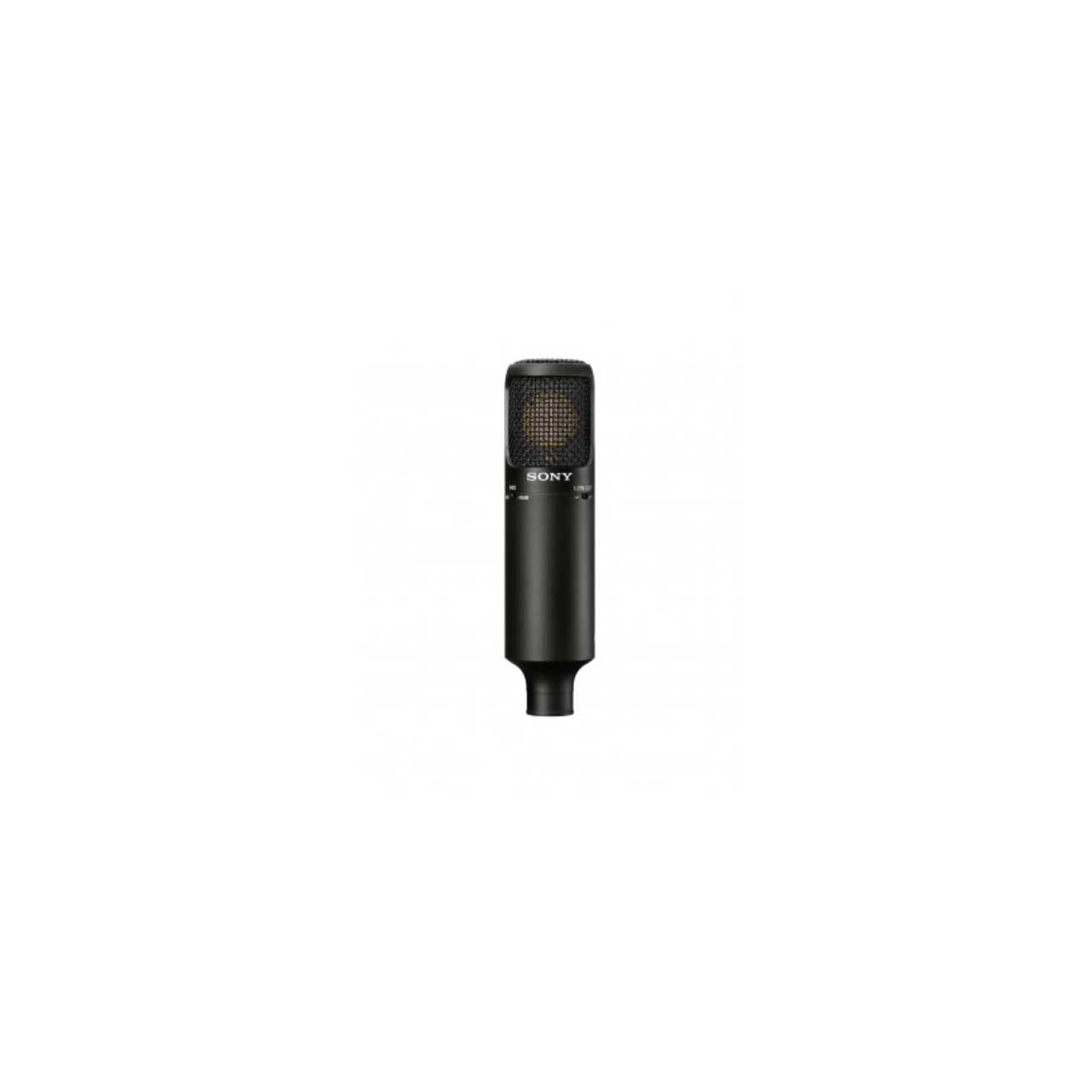

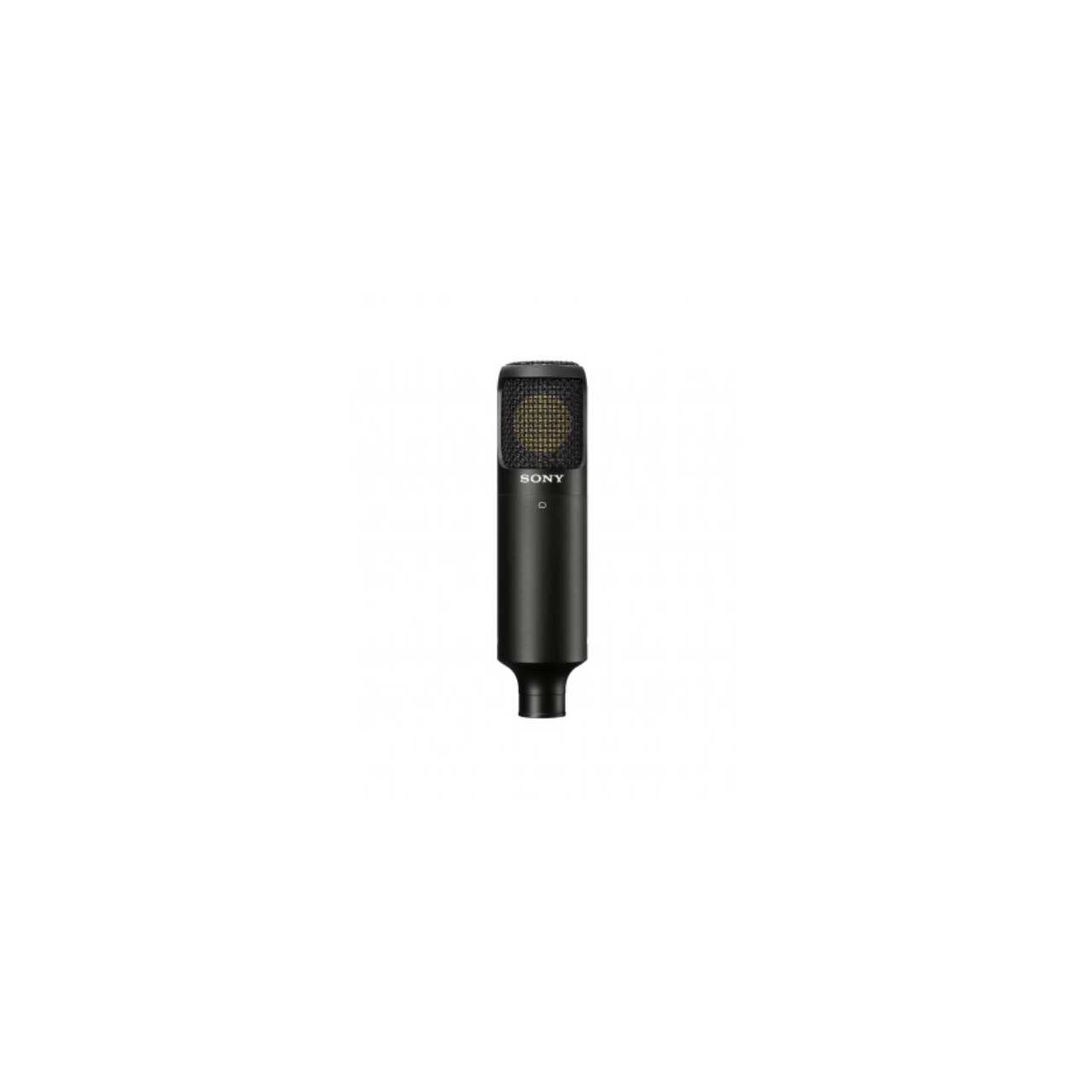

    Sony C80 is a uni-directional condenser microphone suitable for vocal/voice recording. Inheriting the microphone capsule used in the C-100 and using the same material as the C-800G for the diaphragm, this microphone inherits the essence of the predecessors. The dual diaphragm configuration suppresses sound characteristics changes with distance (proximity effect), enabling stable recording/distribution. "Noise Elimination Construction" succeeded from C-800G/C-100 prevents acoustic vibration resulting in low noise and clear sound.

    Excellent Sound Quality
    A powerful and rich mid-low frequency range provides vocals and voice recordings with a core sound and presence.

    Dual Diaphragm Configuration
    The dual diaphragm configuration realizes stable recording/distribution by suppressing sound characteristic changes with distance (proximity effect).

    Noise Elimination Construction
    The two-part metallic body structure succeeded from the C-800G/C-100 microphone prevents acoustic vibration, resulting in low noise and clear sound.

    Low-Cut Filter
    The low-Cut filter switch helps eliminate the low-frequency noise and proximity effect.

    Pad Switch
    An -10dB pad switch on the microphone provides added headroom and minimizes distortion caused by transient peaks.

    • Features:

      • Excellent Sound Quality
      • Noise Elimination Construction
      • Dual Diaphragm Configuration
      • Low-Cut Filter
      • Pad Switch

    • Specifications:

      • Audio Section
      • Capsule Type: Condenser Microphone
      • Frequency Response: 20Hz-20kHz
      • Directivity: Uni-directional
      • Sensitivity *[1]: -30 dB (deviation ±3 dB), (0 dB=1 V/Pa, 1 kHz)
      • Output Impedance *[2]: 90Ω±15%, Balanced
      • Dynamic Range: More than 125.5 dB
      • Signal-to-Noise Ratio *[3]: 81.5dB
      • Inherent Noise *[4]: Less than 12.5 dB SPL, (0 dB=2 x 10-5 Pa), (IEC* 61672-1 A-Weighted, 1 kHz, 1 Pa)
      • Maximum Input Sound Pressure Level *[5]: More than 138 dB SPL (output level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2 x 10-5 Pa)

        General Section
      • Connector: XLR-3-12C (male)
      • Mic Cable: XLR 3-pin Cable Required (Not Supplied)
      • Power Requirements: DC 44 to 52 V
      • Dimensions *[6]: Approx. 40 mm (1.57 in.) dia. x 158 mm (6.22 in.)
      • Mass: Approx. 215 g (7.6 oz)

        *[1] 0 dB = 1 V/Pa, at 1 kHz
        *[2] Output impedance at 1 kHz
        *[3] A-weighted, 1 kHz, 1 Pa.
        *[4] 0dB SPL = 20µPa.
        *[5] 0 dB SPL = 20µPa.
        *[6] The values for dimensions are approximate.

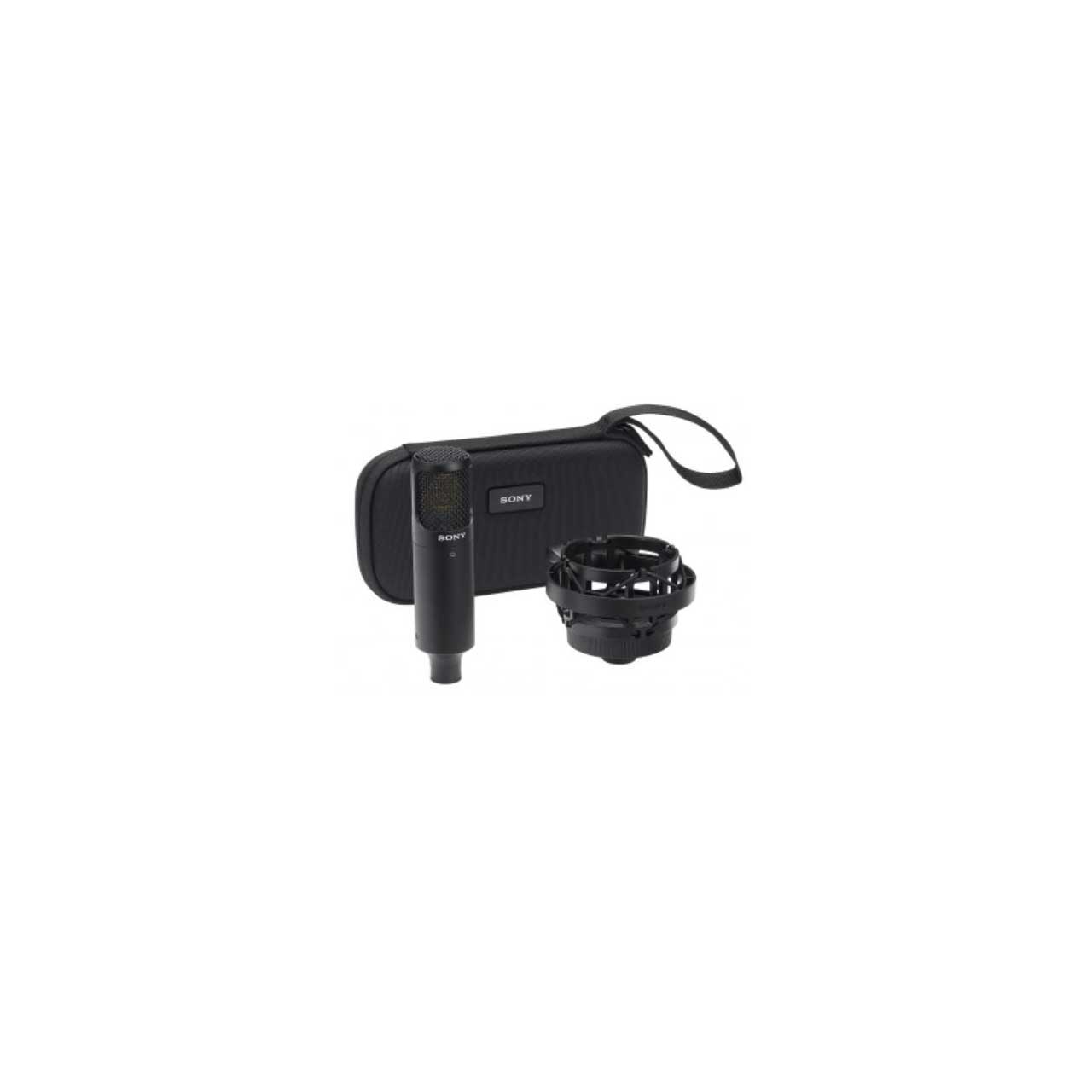

    • Item Includes:

      • 1x C80 Mic

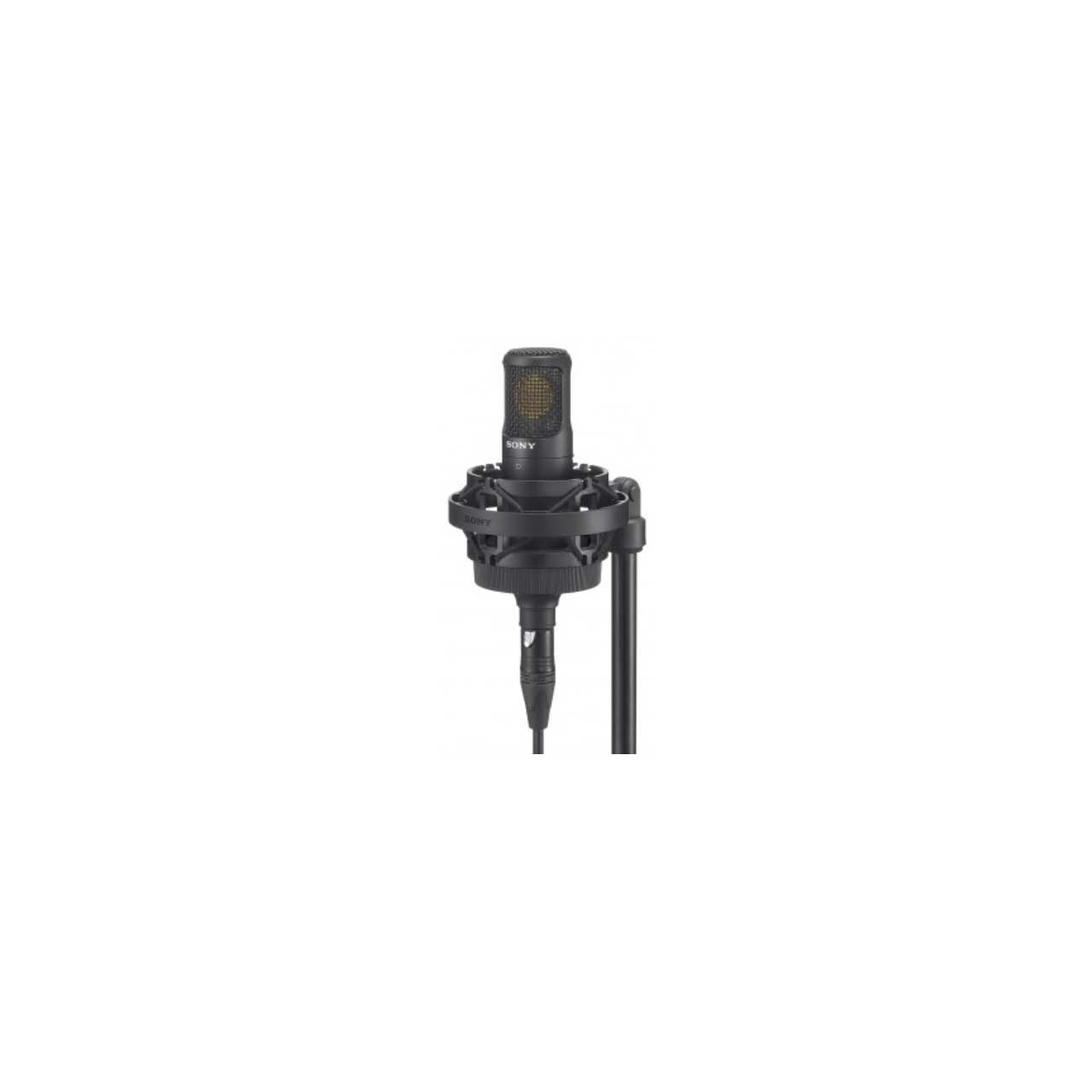

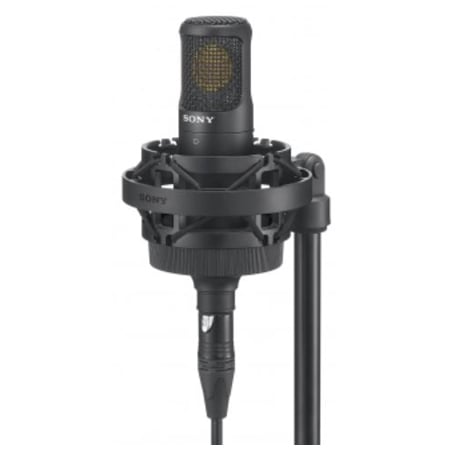

      • 1x Cradle suspension
      • 1x Operating instructions
      • 1x Carrying case
