Sony DVF-EL1B Detachable Tilt-Type 0.58-Inch OLED Viewfinder for ILME-FX5 Cinema Camera

DVF-EL1B - Overview

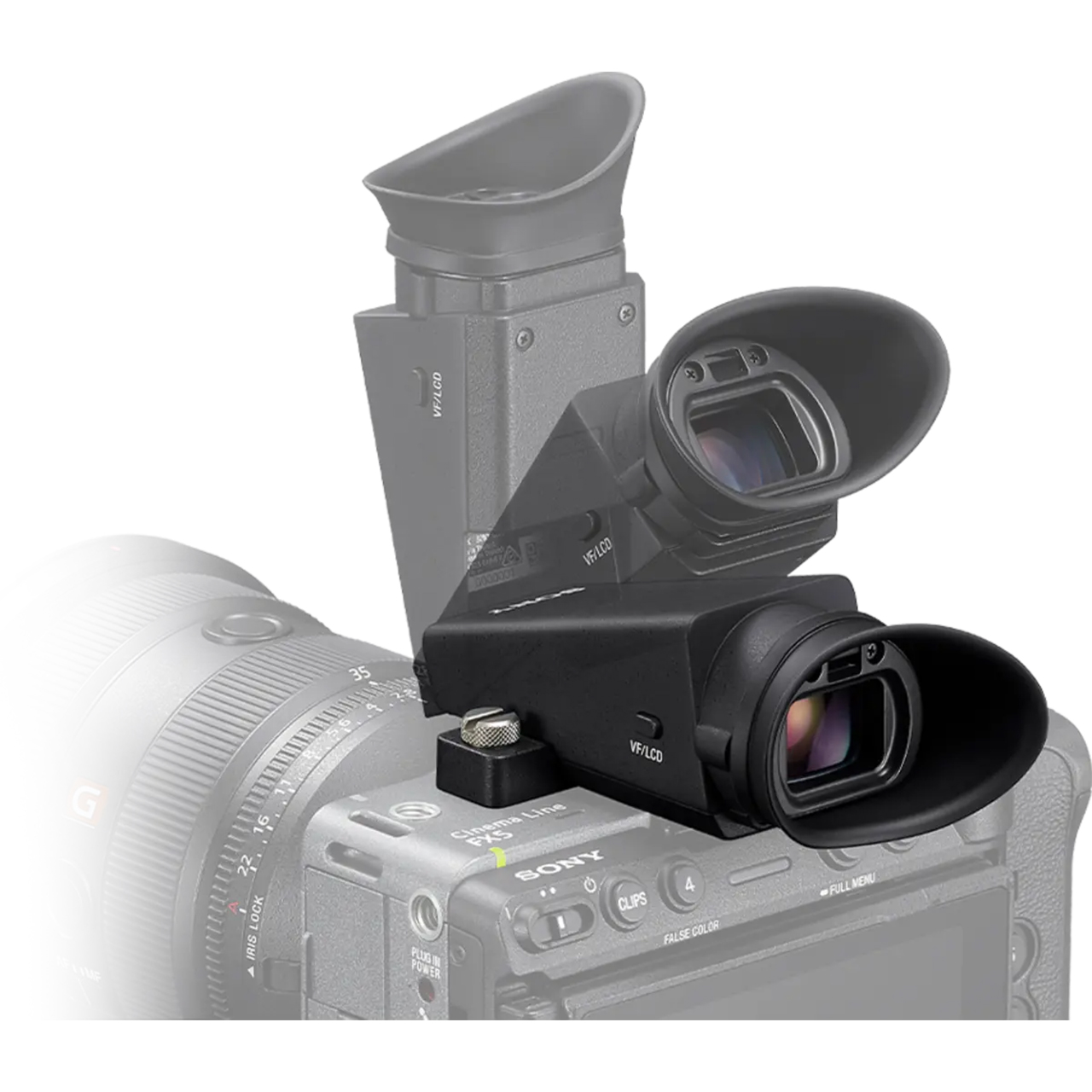

Features a vertical tilt mechanism adjustable from 0° to 90° upwards for flexible high- and low-angle monitoring!

• Features:

  • High-resolution, wide color gamut panel
  • Two magnification display modes

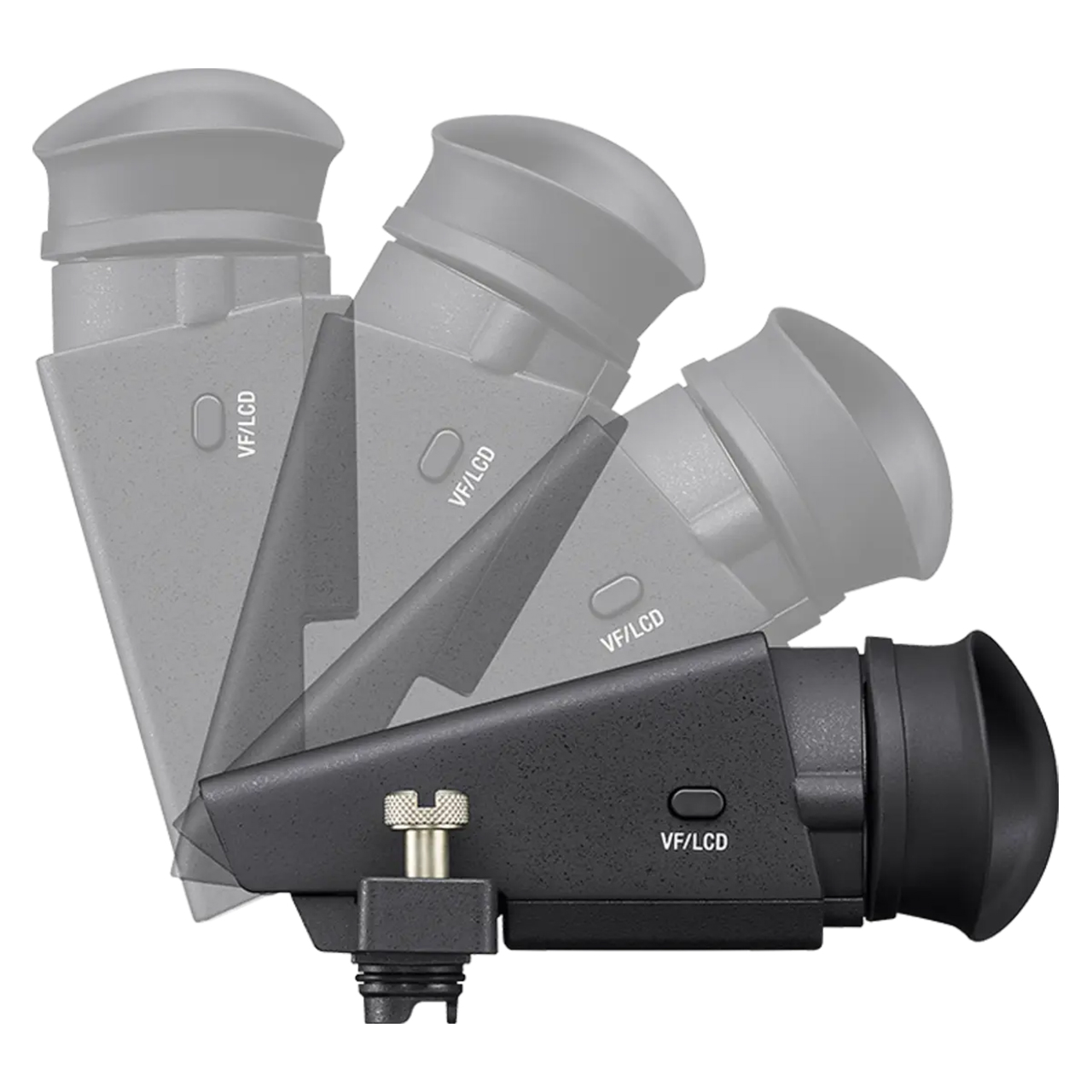

  • Vertical tilt mechanism for easy shooting
  • Integrated storage for VF terminal cap


• Specifications:

  • Diopter Adjustment: -4.0-+3.0 m-1
  • Eye Point: 27.5 mm from the eyepiece lens, 21.8 mm from the eyepiece frame at -1 m-¹ (CIPA standard)
  • Magnification: .0.90x (with 50 mm lens at infinity, -1 m-¹)
  • Viewfinder Type: 0.58-type (1.5 cm) electronic viewfinder (OLED)
  • Number of Dots: 7 077 888 dots
  • LED: The 0.58-type OLED panel features approx. 7.07 million dots
  • Lens: 0.90x (with a 50 mm lens, at infinity, -1 m-¹)
  • Color: A wide color gamut equivalent to DCI-P3, and 10-bit support
  • VF Terminal: Yes
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Storage Temperature: -4 to 131 °F (-20 to 55 °C)
  • Maximum Power Consumption: 1.6 W


• Item Includes:

  • 1x Eyepiece cup
  • 1x Terminal protect cap


• GTIN:

  0027242936096
