Sony PXW-Z750 XDCAM 4K HDR 2/3-Type 3-Chip CMOS Shoulder Mount Camcorder - 120p HFR in HD - Body Only

ITEM #: SNY-PXWZ750 MFG #: PXW-Z750

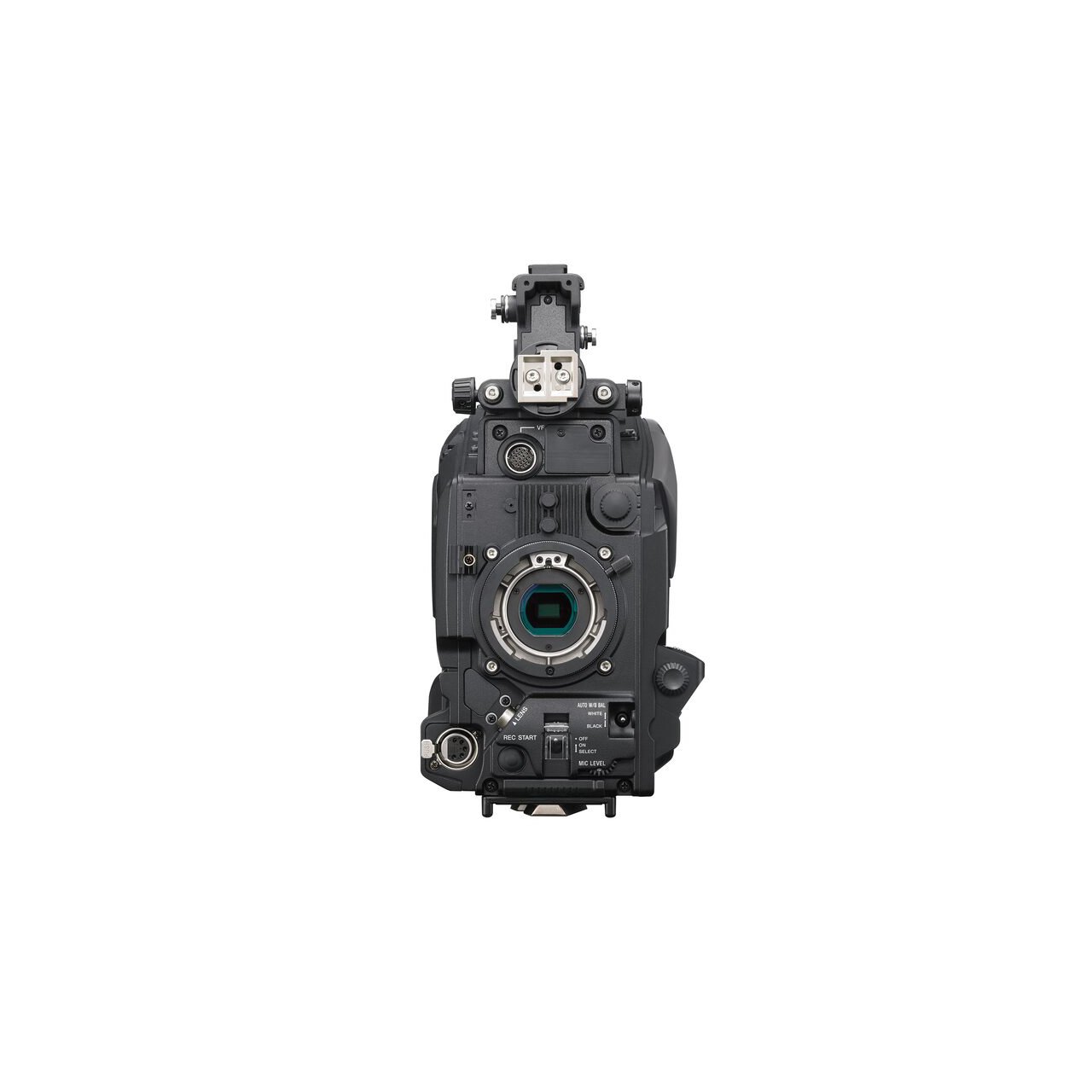

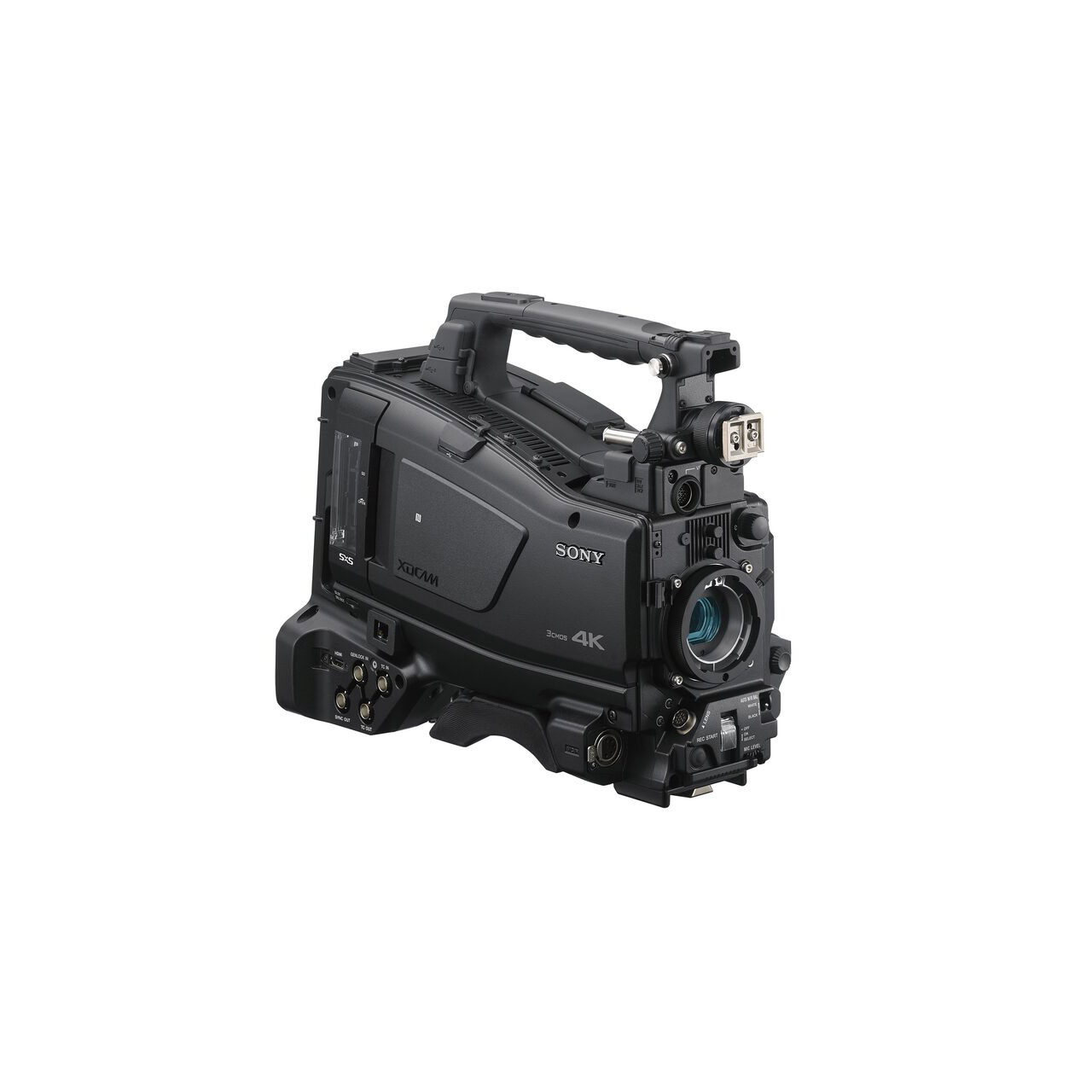

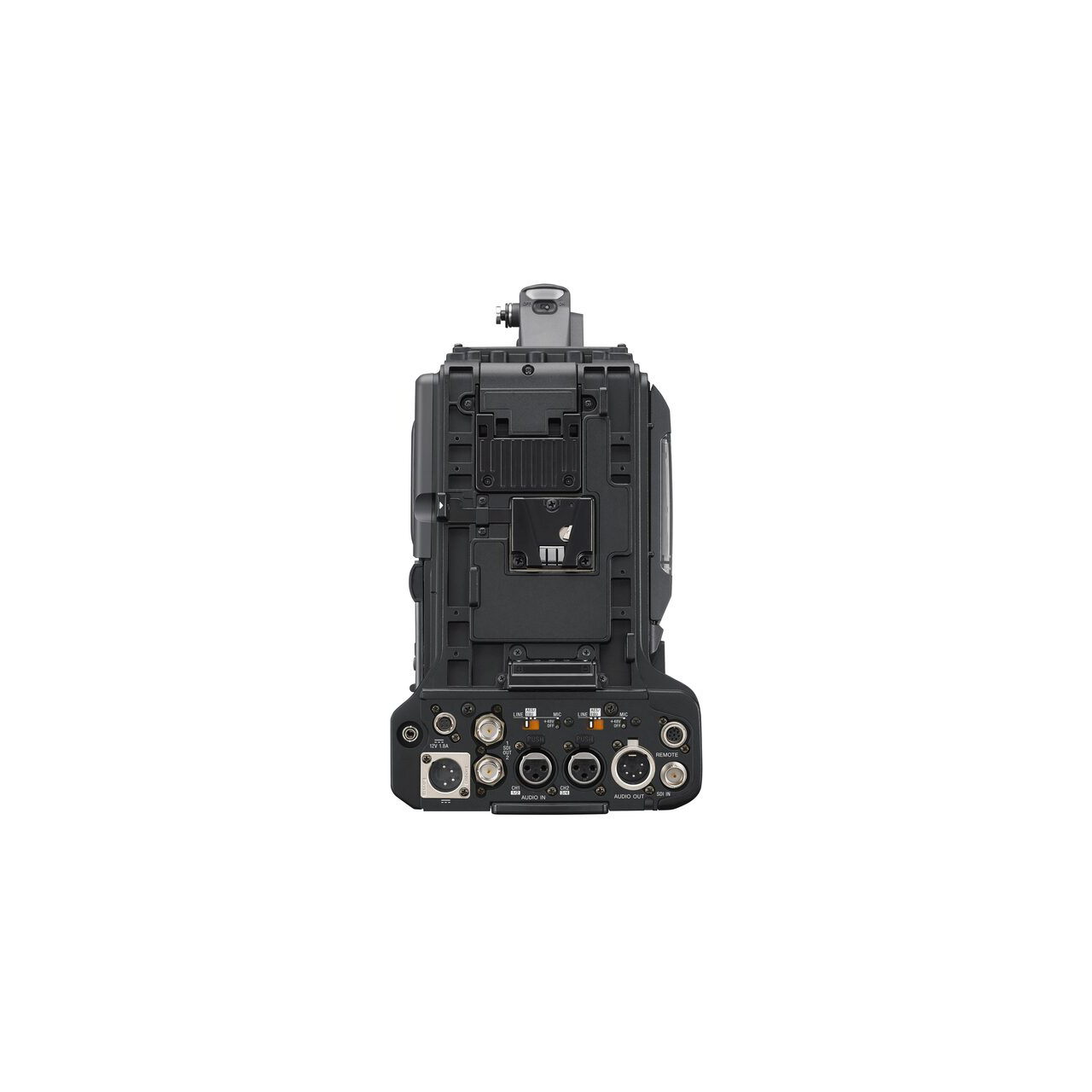

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$35,995.99

Our Price:

$34,209.08

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PXW-Z750 - Overview

New benchmark for 4K, HDR and HD image quality
Capture beautiful 4K images with the deep of depth of field made possible by 3-chip 2/3-type CMOS sensor. The Sony Z750 is Sony's first shoulder-mount camcorder with a global shutter to eliminate flash banding and "jello" effects. It sets a new class-leading standard for 4K, HDR and HD image quality for reality TV, documentary, news and sports production. In fast-moving applications where a second take is impossible, Z750 is the ideal choice.

Saving time and money
Delivering highest quality 4K with HD era workflows wastes time and money. The Z750's latest generation XAVC-L422 QFHD 200 codec combined with high-speed SxS Pro media radically reduce real-world turnaround times. Premium 4K becomes deliverable on almost any project using the PXW-Z750.

Transformative cloud-based collaboration
Z750 is at the vanguard of seamlessly integrating Cloud-based production tools with familiar, easy-to-use interfaces and proven Sony reliability. Build stories fast, with secure, direct access from the studio to camcorders out in the field with XDCAM air. Distribute content for preview and editing with stakeholders across the world using Sony's Ci Media Cloud.

3-chip 2/3-type CMOS Sensor with Global Shutter
The PXW-Z750 incorporates a newly developed 3-chip 2/3" 4K CMOS sensor optical block with a wide color gamut provides exquisite picture quality with true-to-life color reproduction, high sensitivity and low noise level for a wide range of shooting scenarios.

Versatile B4 lens options
The 3-chip 2/3-type size sensor block of the Z750 matches the rugged, dependable B4 lens mount system, allowing you to use a wide variety of commercially-available B4 4K/HD lenses. This flexibility supports a variety of shooting applications while reducing cost by leveraging your existing lens investments.

Seamless wireless audio integration
PXW-Z750 is compatible with Sony's DWX series of digital wireless microphone systems offering ENG and documentary teams the benefits of an all-digital audio workflow, including robust end-to-end encryption for truly secure operation.

Familiar refinement, evolved
The Z750 is lighter than the previous generation PDW-700, while also being more ergonomically balanced so it's considerably less fatiguing for longer shooting days. All the controls and interfaces are a subtle refinement of previous shoulder camcorders, ensuring that shooting with this camcorder is easy and hassle-free. From power-on, it's a matter of seconds to be shooting highest quality footage while advanced new features are easy to learn and utilize.

  • Features:

    • High Dynamic Range and wider, richer colors
    • Superb slow motion
    • Cache recording
    • High quality at lower bitrates
    • Lightning-fast transfers with latest generation media
    • Next generation wireless workflow

  • Specifications:

    • Camera
    • Imager: 2/3-type 3-chip 4K CMOS
    • Effective Resolution: 3840 (H) x 2160 (V)
    • Built-in Optical Filters: 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
    • Shutter Speed (Slow Shutter(SLS)): 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation
    • Slow & Quick Motion:
      - 2160p: Frame rate selectable from 1fps to 60fps
      - 1080p: Frame rate selectable from 1fps to 60fps /72/75/80/90/96/100/110/120 fps
    • Sensitivity (2000 lx, 89.9% reflectance)
      - F12 (1080/59.94i), F13 (1080/50i) High Sense Mode ON (Typical)
      - F12 (2160/59.94p), F13 (2160/50p) High Sense Mode ON (Typical)
    • Minimum Illumination: 0.019 lx (F1.4, +42 dB, 16-frame accumulation)
    • White Balance: Preset (3200K), Memory A, Memory B/ATW
    • Gain Selection: -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB
    • S/N Ratio: 62 dB (Noise Suppression ON, 1920 x 1080 59.94i) (Typical)
    • Horizontal Resolution:
      - 2,000 TV lines or higher (3840 x 2160p mode)
      - 1,000 TV lines or higher (1920 x 1080i mode)

      Input/Output
    • Genlock Input: BNC (x1), 1.0 Vp-p, 75 Ω, unbalanced
    • Timecode Input: BNC (x1), 0.5 V to 18 Vp-p, 10 kΩ
    • SDI Input:
      - SMPTE ST292/ST259 standard compliant, 4-channel audio
      - 1.5G
      - Poolfeed Recording (upto 1080 59.94i)
    • Audio Input:
      - CH1/CH2: XLR-type 3-pin (female) (x2), Line/AES/EBU/Mic +48 V selectable
      - LINE: +4, 0, -3 dBu
      - AES/EBU: AES3 compliant
      - MIC: -70 dBu to -30 dBu
    • Mic In: XLR-type 5-pin, female: -70 dBu to -30 dBu
    • WRR (Wireless Microphone Receiver):
      - D-sub 15-pin
      - Analog CH1: -40 dBu
      - Digital CH1/CH2: -40 dBFS
    • SDI Output:
      - BNC x2 (Both SDI are selectable from 12G, 3G and 1.5G)
      - 4ch Embedded Audio
    • Sync Output: BNC, SD analog composite/HD-Y selectable
    • Audio Output: XLR-type 5-pin, female: +4/0/-3 dBu
    • Timecode Output: BNC, 1.0 Vp-p, 50 Ω
    • Earphone Output:
      - Stereo mini jack (x1)
      - -12 dBu (reference level output, maximum monitor volume, 16 Ω load)
    • DC Input: XLR-type 4-pin, male, 11 V to 17 V DC
    • DC Output: Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current
    • Lens: 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current)
    • Remote: 8-pin
    • Light: 2-pin
    • Camera Adapter: D-sub, 50-pin (x1) (only for Japan model)
    • Ethernet: RJ-45 (x1), 100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3
    • USB: 4-pin (A type) x2, 4-pin (B type)
    • HDMI: A type, 19-pin (x1) output up to 3840 x 2160
    • Viewfinder: 20-pin IF for HDVF Series Viewfinder

      Audio Performance
    • Frequency Response: 20 Hz to 20 kHz (±3 dB or less)
    • Dynamic Range: 90 dB (typical)
    • Distortion: 0.08% or lower (-40 dBu input level)
    • Headroom: 20 dB (factory default) (20, 18, 16, 12 dB), EBUL

  • Item Includes:

    • 1x Shoulder Belt
    • 1x Cold Shoe Kit
    • 1x Lens Mount Cap
    • 1x USB wireless LAN module (IFU-WLM3)
    • 1x Protective Cap
    • 1x Operating Instructions (CD-ROM)
    • 1x Before using this unit
