Sony RCP3500 Remote-control Panel for HDC/HSC/HXC Series Cameras

ITEM #: SNY-RCP3500 MFG #: RCP3500

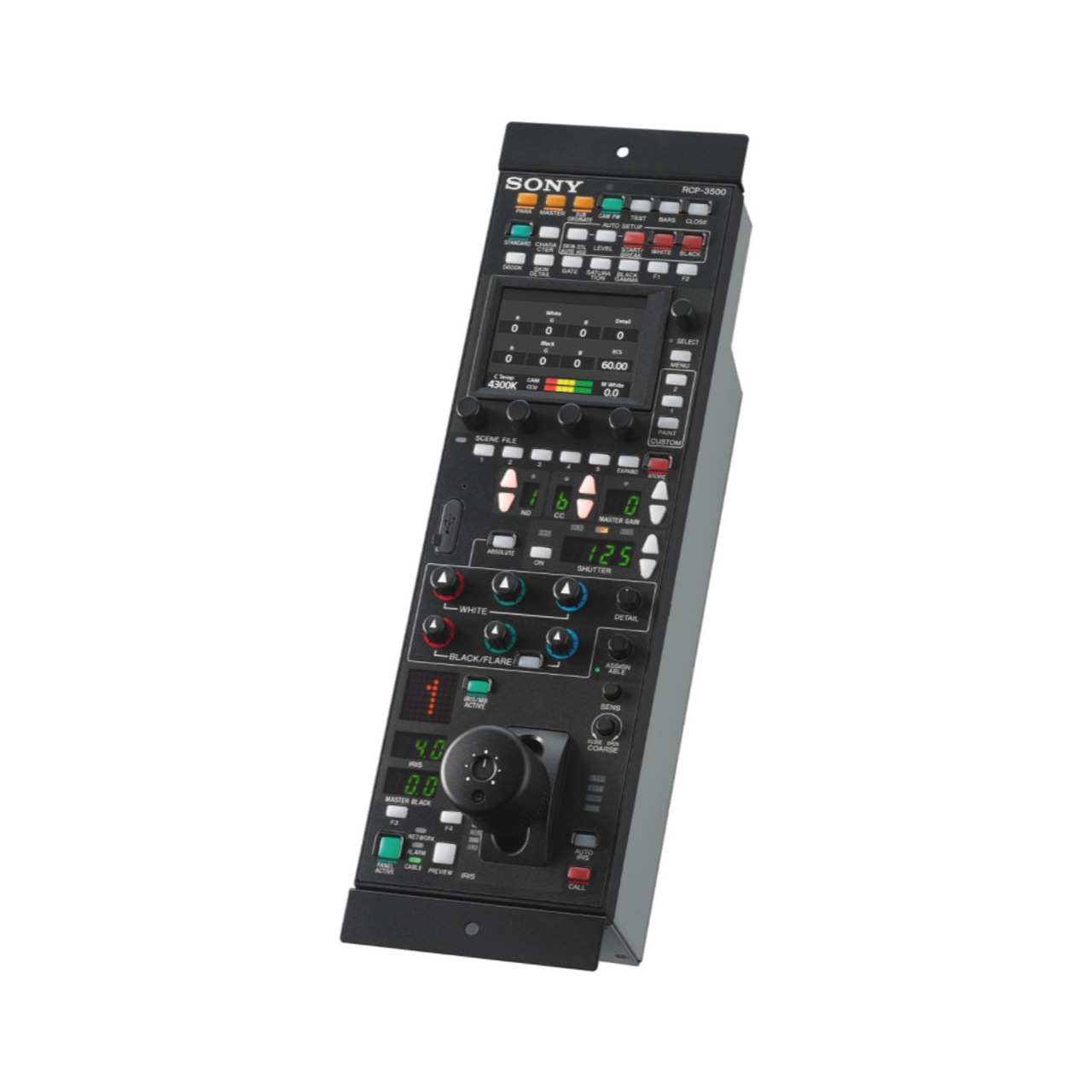

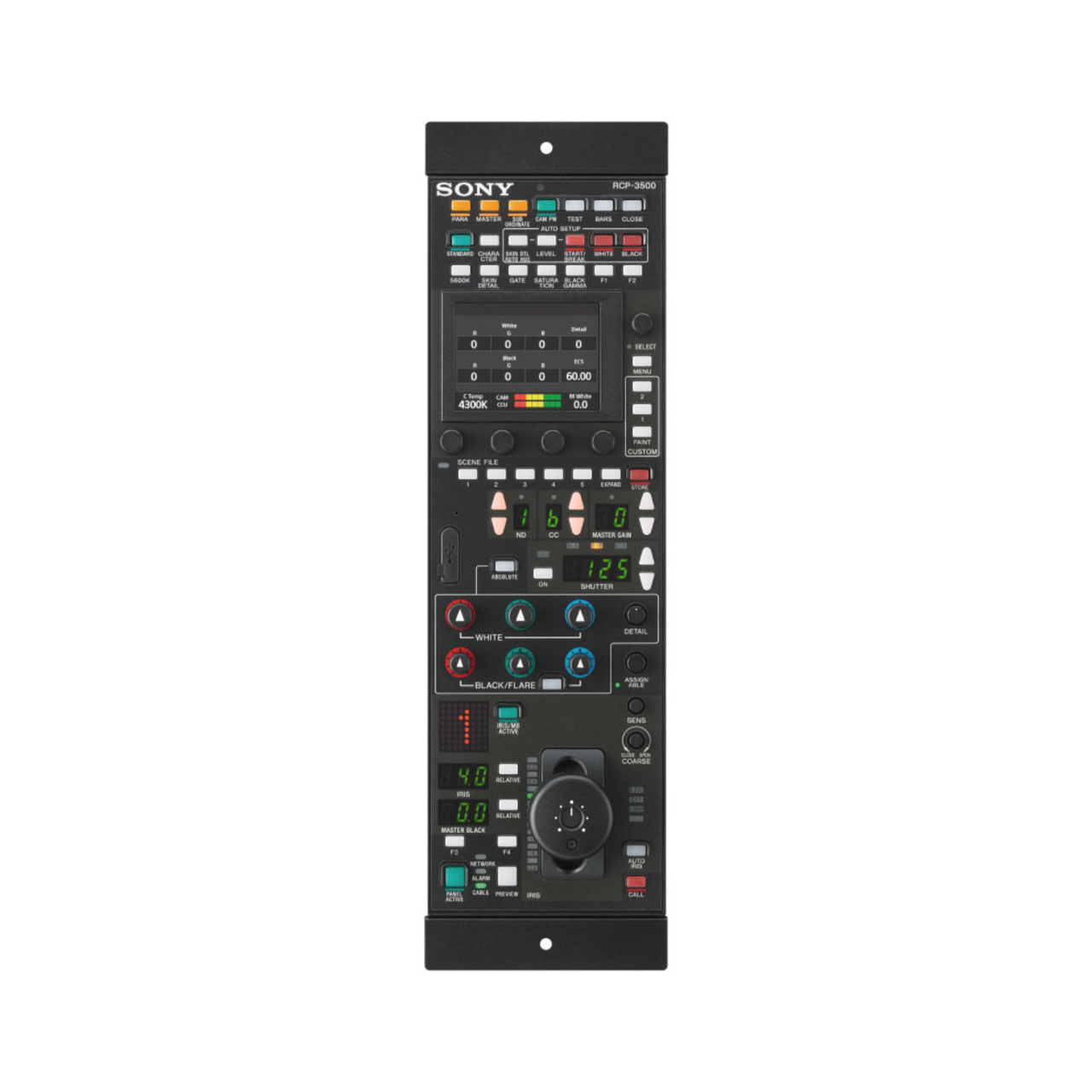

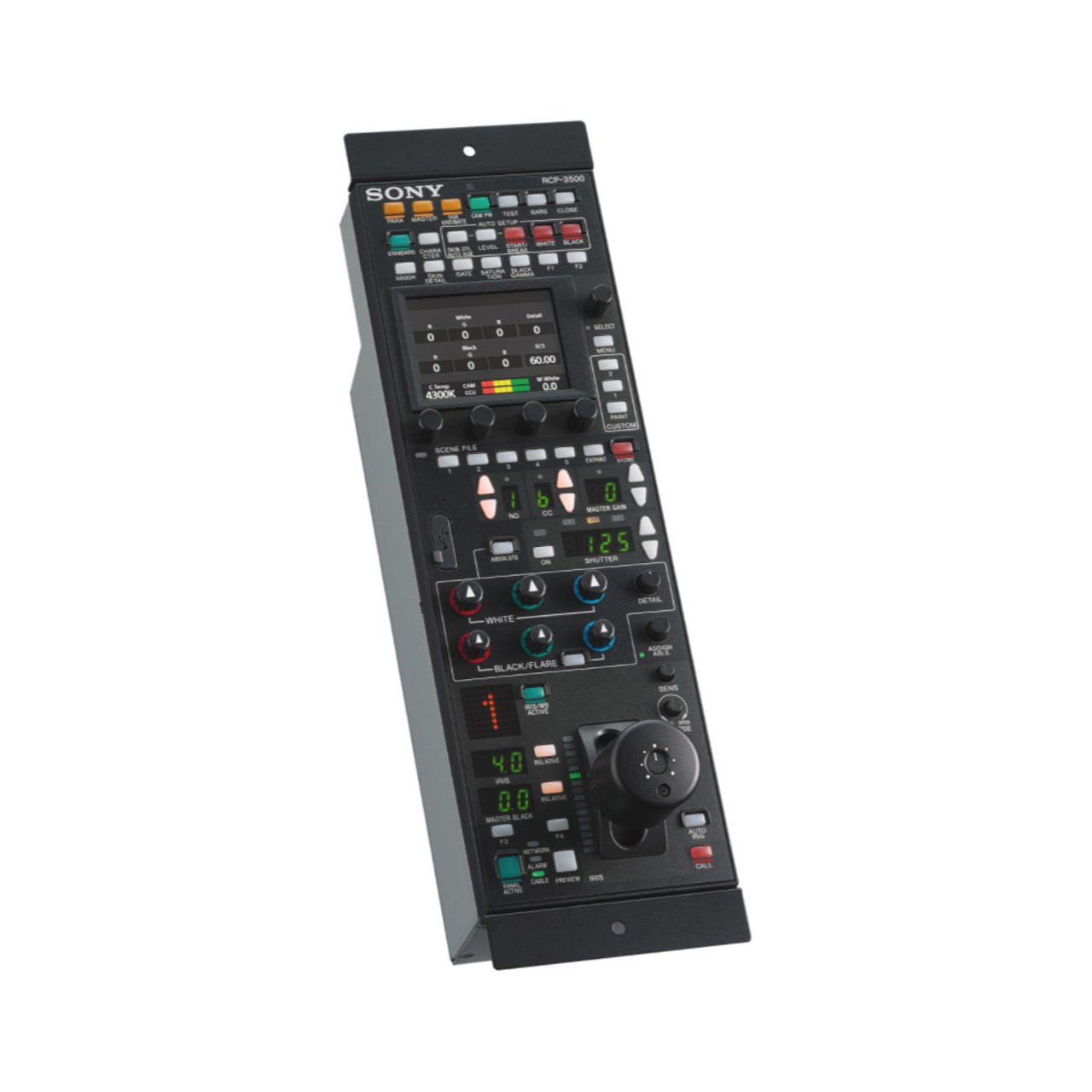

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$6,620.00

Our Price:

$5,958.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    RCP3500 - Overview

    The Sony RCP-3500 is the successor model of the RCP-1500, but keeps the same dimensions and the same basic functions. The RCP-3500 remote-control panel incorporates direct operation switches and a touch panel, and offers improved visibility with a higher-resolution and brighter LCD display. These factors make it a remote-control panel that offers both ease of operation and multi-functionality that compares favorably with the MSU. The iris and master black adjustment block use joystick-type control. Up to four units can be mounted in a 19-inch EIA rack.

    Touch Panel and Many Direct Access Switches Suitable for Various Camera Operations
    This remote-control panel is equipped with the control functions required to perform various camera operations, enabling simple and accurate operation. The operation buttons, adjustment knobs, and other controls are arranged on the panel according to function and frequency of use. Guard frames are provided around buttons that are vital for camera operation and setup, in order to prevent the buttons from being unintentionally operated.

    LAN Connection Capability
    It is possible to connect it using a LAN cable, in addition to a CCA-5 cable. The system can be built using a 1000Base-T LAN connection with PoE support.

    HDR Operation Support
    The RCP-3500 supports the HDR-related File Names of "All-Setting-File" of HDRC-4000 that can be organized on the RCP's display panel. The SR Live MetaFile is also supported with HDRC-4000 to link the HDR metadata in addition to SDI connection path.

    USB Flash Drive
    The RCP's settings can be saved or loaded via USB flash drive. CAM/CCU/BPU Scene files/Reference files can also be saved, and for the HDRC-4000's HDR Production Converter Unit the All Setting file can be saved.

    • Features:

      • Assignable Keys
      • Customizable Switches
      • Direct Scene File Control

    • Specifications:

      • General
      • Power Supply:
        - DC 10.5V to 17V (for EXT I/O connector)
        - PoE 36V to 57V (IEEE802.3af class 2-compliant)
      • Power Consumption: 10W (including AUX connector output)
      • Operating Temperature: 41°F to 104°F (5°C to 40°C)
      • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
      • Dimensions: 4.02" x 12.2" x 2.64" (102mm x 310mm x 67mm) (excluding protrusions)
      • Weight: 3.75lbs (1.7kg

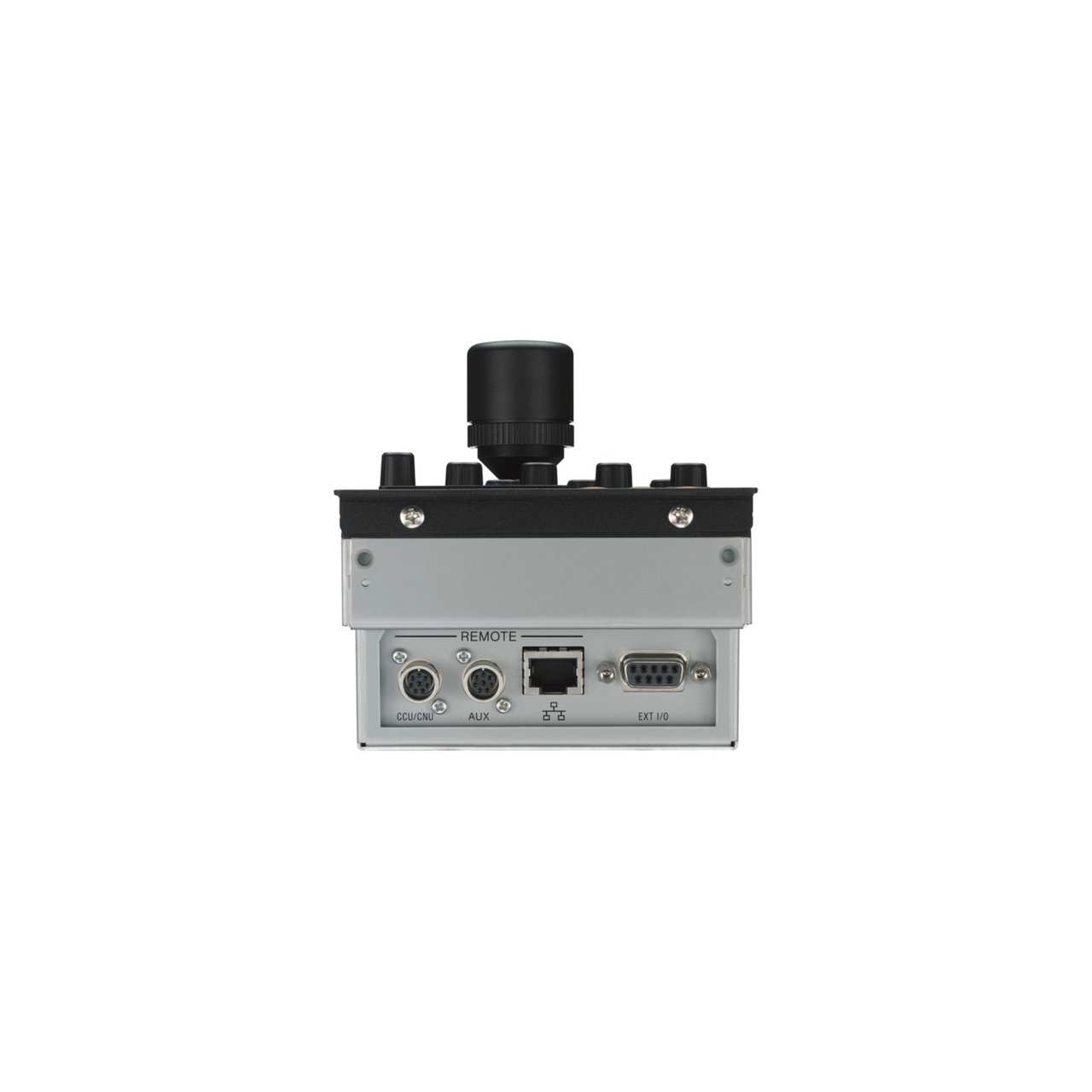

        Input/Output
      • LAN: 1x RJ-45 8-pin 1000BASE-T, 100BASE-TX, 10BASE-T
      • CCU/CNU: 1x Multi-connector 8-pin, female
      • AUX: 1x Multi-connector 8-pin, female
      • EXT I/O: 1x D-sub 9-pin, female

    • Item Includes:

      • 1x Sony RCP-3500 Remote Control Panel

    • Warranty:

      • 1-Year Limited Warranty


    RCP3500 - Required Accessories
