    10-2300-V - Overview

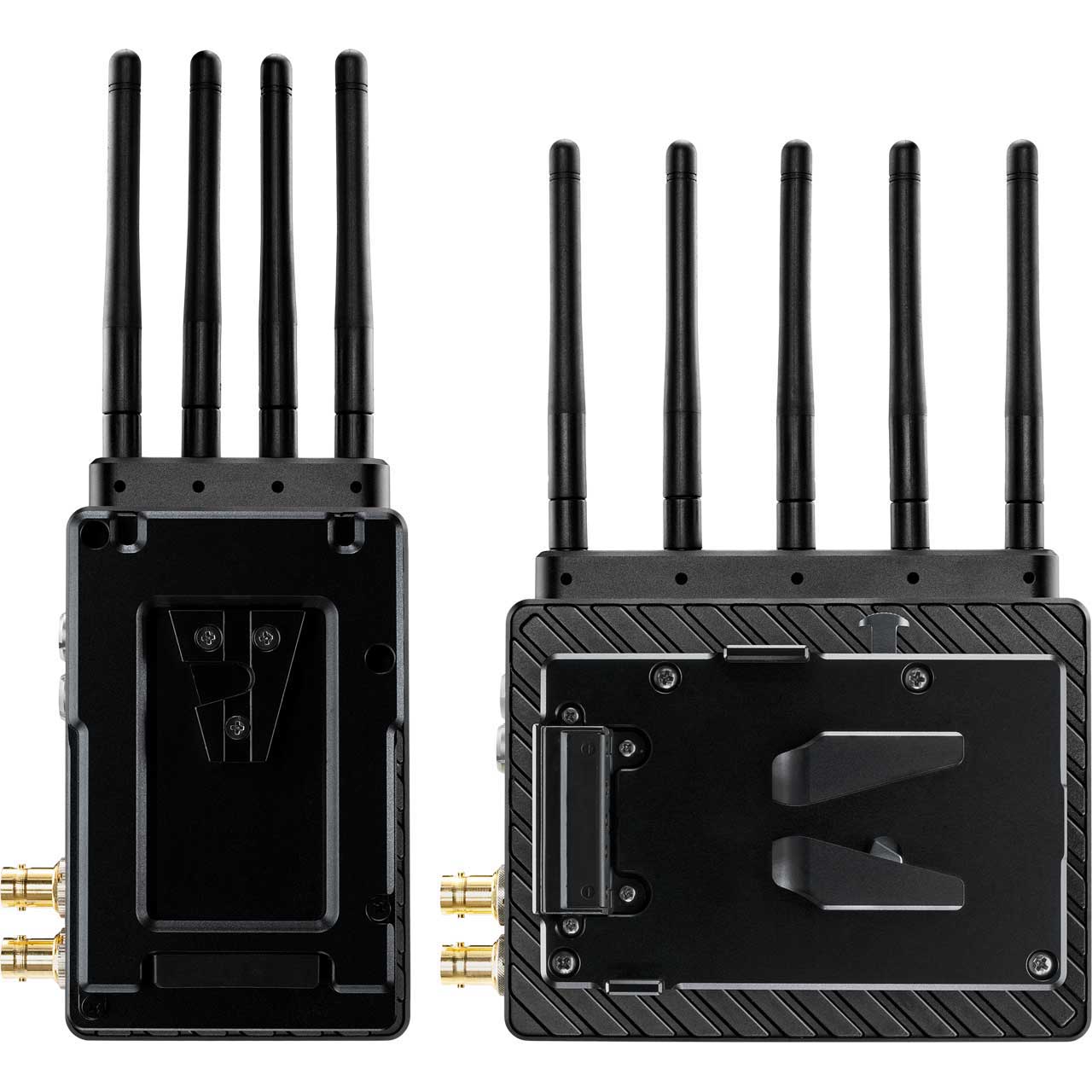

    Teradek Bolt 6 XT 750 is a 12G-SDI/HDMI Wireless Video Transmitter & Receiver Deluxe Set with V-Mount Battery Plate. The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek's patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set's included Bolt 6 XT video Transmitter and Receiver.

    Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

    The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

    Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

    • Features:

      • Zero Delay
      • 6GHz Wireless Frequency
      • Bolt 4K Cross-Compatibility
      • Lightweight and Quiet
      • Built in 5-pin USB for camera control
      • Inputs: 12G-SDI, HDMI 2.0
      • Outputs: 12G-SDI, HDMI 2.0

    • Specifications:

      • Bolt 6 XT 750 12G-SDI/HDMI Wireless TX
      • Video Inputs: 12G-SDI SMPTE 2082-1 standard/75Ω (BNC x1) 1x HDMI 2.0 Type-A receptacle
      • Video Outputs: 12G-SDI SMPTE 2082-1 standard/75Ω (BNC x1)
      • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
      • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
      • Delay Tx To Rx: <0.001sec
      • Input Cross Conversion: HDMI to SDI
      • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
      • Video Compression: Visually Lossless
      • Color Correction: None
      • Audio Compression: 48kHz 24-bit PCM
      • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
      • Dimensions: 5.19 x 3.58 x 1.06"
      • Weight: 12.1oz
      • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

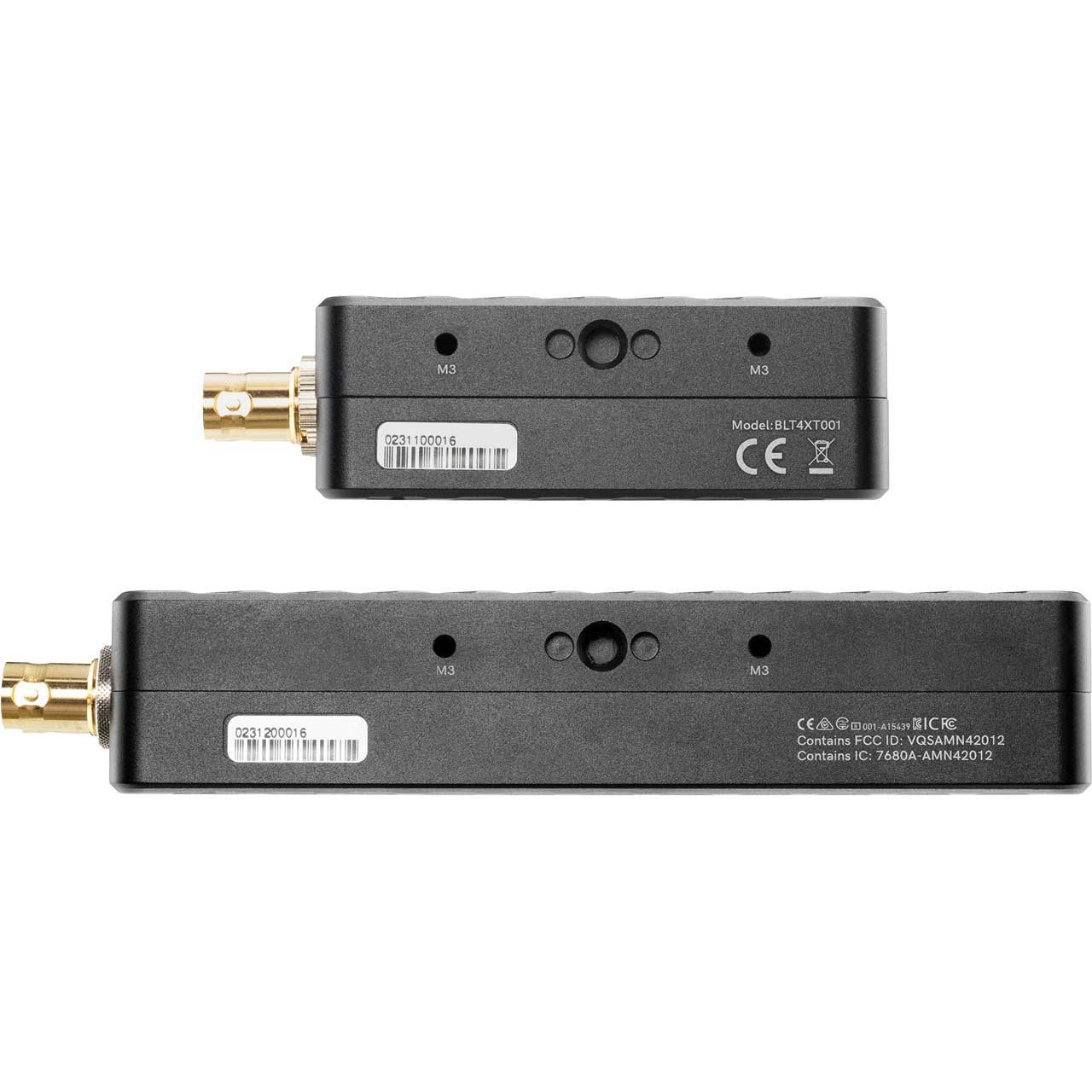

      • Mountability: Multiple mounting options with 1/4"x20 and M3 holes
      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • USB Interface Functionality: Upgrade via USB-C and 5pin Locking Connector CCU
      • Bluetooth: 2.4 GHz
      • Antennas: 4 External 2dBi antennas (included)
        Wireless
      • Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
      • DFS Frequencies: 5.270 ~ 5.670 GHz
      • Rf Channel Selection: Auto, Manual
      • Encryption: AES-256, RSA-1024 key exchange
      • Rf Power: 23 dbm EIRP
      • Range: Up to 750 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
      • Power Input: 2-Pin Circular locking Connector 6-28 VDC
      • Battery: None, optional Sony/Canon dual battery plate
      • Battery Runtime: 20 Watts
      • Operating Temperature: 32° to 104°F

        Bolt 6 XT 750 12G-SDI/HDMI Wireless RX
      • Video Outputs: 12G-SDI SMPTE 2082-1 standard /75Ω (BNC x1) 1x HDMI 2.0 Type-A receptacle
      • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
      • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
      • Delay Tx To Rx: <0.001sec
      • Output Video Scaling: Yes, Framerate and Resolution Scaling
      • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
      • Video Compression: Visually Lossless
      • Color Correction: 17x17x17 3D LUT (supports 10-bit color)
      • Audio Compression: 48kHz 24-bit PCM
      • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
      • Dimensions: 4.41 x 5.47 x 1.06"
      • Weight: 15.2Oz
      • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
      • Mountability: Multiple mounting options with 1/4" x20 and 3/8" x16 holes
      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • USB Interface Functionality: Upgrade via USB-C and 5pin Locking Connector CCU
      • Bluetooth: 2.4 GHz
      • Antennas: 5 External 2 dBi antennas (included)
        Wireless
      • Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
      • DFS Frequencies: 5.270 ~ 5.670 GHz
      • Rf Channel Selection: Auto, Manual
      • Encryption: AES-256, RSA-1024 key exchange
      • Rf Power: 21 dbm EIRP
      • Range: Up to 750 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
      • Power Input: 2-Pin Circular locking Connector 6-28 VDC
      • Battery: None, optional Gold or V mount battery plate
      • Battery Runtime: 18 Watts
      • Operating Temperature: 32° to 104°F

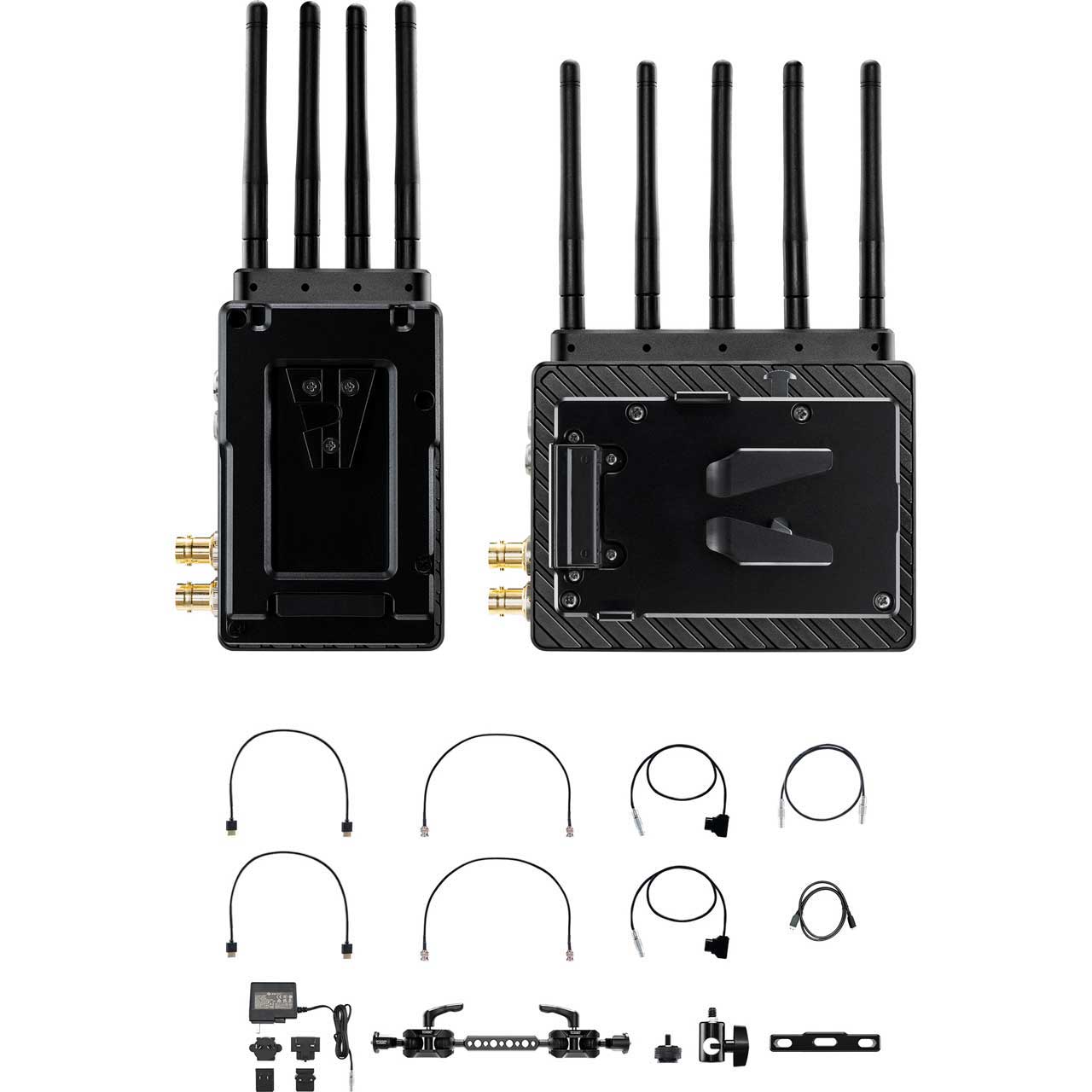

    • Item Includes:

      • 1x Bolt 6 XT 750 TX V-Mount
      • 1x Bolt 6 XT 750 RX V-Mount
      • 2x Bolt 6 XT Battery Cover Plate Front
      • 1x Bolt 4K TX Mounting Bracket
      • 1x Lightstand Adapter 3/8in
      • 1x Hot Shoe Adapter
      • 4x Screw Flat Head Phillips
      • 2x Screw Socket Cap A S, M3 x 16mm
      • 1x Hex L key 2.5mm size 3-5/8" length
      • 2x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
      • 1x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
      • 2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
      • 2x SDI 12G BNC to BNC 18in/46cm Cable
      • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
      • 9x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
      • 1x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5")
      • 1x USB 2.0 Type A Male to USB Type C Male - 1m Cable
      • 2x Bolt 6 XT Battery Cover Plate Rear

    • GTIN:

      0818264027103
