Sonifex AVN-CU1 Configurable Dante Commentary Unit for a Single Commentator

AVN-CU1 - Overview

• Features:

  • Potentiometers control mix levels of the five sources into the user's headphones: Sidetone, Programme, Talkback A, B and C.
  • Two EtherCON RJ45s provide network connectivity and PoE power with redundancy.
  • Two SFP ports provide alternative redundant network connectivity.
  • 4 pin XLR provides 12V DC power input.
  • 15 pin D-Type provides GPIO connectivity
  • 3 pin XLR socket providing a mic/line input with a wide, adjustable gain range and compressor/limiter
  • 3 pin XLR plug provides a line level direct output of the mic/line input which is active when the ON AIR button is active


• Specifications:

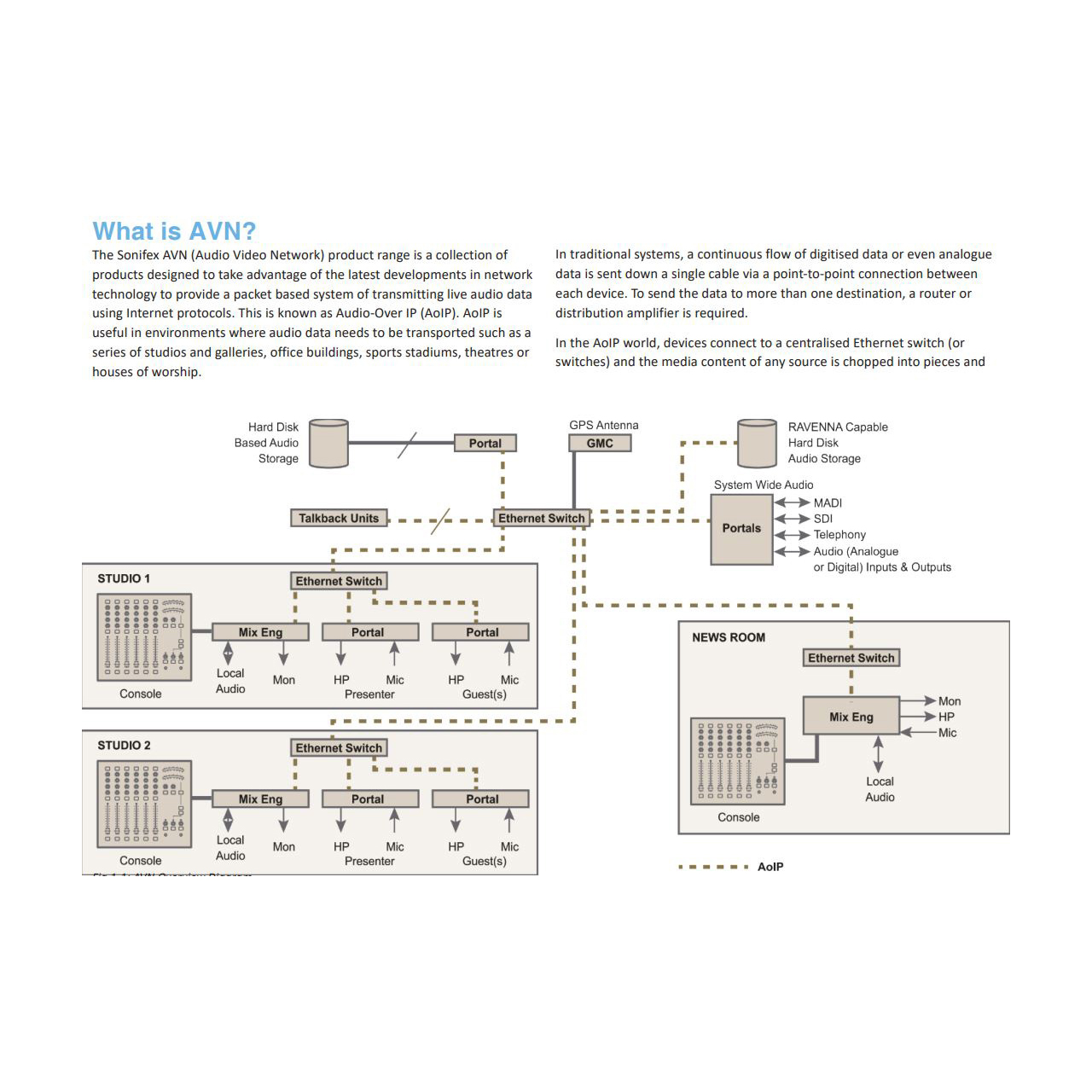

  • Network and AoIP
  • AoIP Standard: Dante
  • Number of Channels: 4 receive, 4 transmit
  • Number of Streams: 2 receive, 2 transmit
  • Sample Rate: 48 kHz
  • Format: Linear PCM, 16, 24 or 32 bit
  • AES67 Support: Yes
  • Connectivity: 2x RJ45 and 2x SFP
  • Speed: 1Gbps or 100Mbps
  • Network Modes: Switched or redundant
  • Dante Domain Manager Ready: Yes

    Mic/Line Inputs
  • Input Impedance (Mic Mode): 2.5kΩ electronically balanced
  • Input Impedance (Line Mode): >10kΩ electronically balanced
  • Preamp Gain (Mic Mode): User selectable 16dB to 76dB in 3dB steps (Ref. +18dBu = 0dBFS)
  • 0dBFS Line-up (Mic Mode): -58dBu @ Max preamp gain, +2dBu @ Min preamp gain
  • 0dBFS Line-up (Line Mode): User selectable +15dBu / +18dBu / +20dBu / +22dBu / +24dBu = 0dBFS
  • Frequency Response (Mic Mode): +0/-0.2dB 20Hz to 20kHz, Ref 40dB gain @ 1kHz
  • Frequency Response (Line Mode): +0/-0.2dB 20Hz to 20kHz, Ref 0dBu @ 1kHz
  • THD+N (Mic Mode): <-90dBFS, -64dBFS, 20Hz - 20kHz, 40dB gain, 20kHz BW
  • THD+N (Line Mode): <-98dBFS, -30dBFS, 20Hz - 20kHz, 20kHz BW
  • Equivalent Input Noise (Mic Mode): 125dB Ref. 76dB preamp gain, Rs = 200Ω
  • Noise (Line Mode): <-100dBFS, 20kHz BW, Rs = 200Ω
  • C.M.R.R.: >60dB @ 1kHz
  • Phantom Power (Mic Mode): +48V
  • High Pass Filter: 12dB/octave, user selectable frequency

    Headphone Output
  • Drive Capability: Drives 150mW into 32Ω to 600Ω headphones
  • 0dBFS Line-up: -20dBFS = +18dBu Ref. Single Dante source, volume pot = maximum, master HP level = 0dB
  • Frequency Response: +0/-0.2dB 20Hz to 20kHz, Ref 0dBu @ 1kHz
  • THD+N: <-107dBFS, -30dBFS, 20Hz - 20kHz, 20kHz BW
  • Noise: <-110dBFS, 20kHz BW

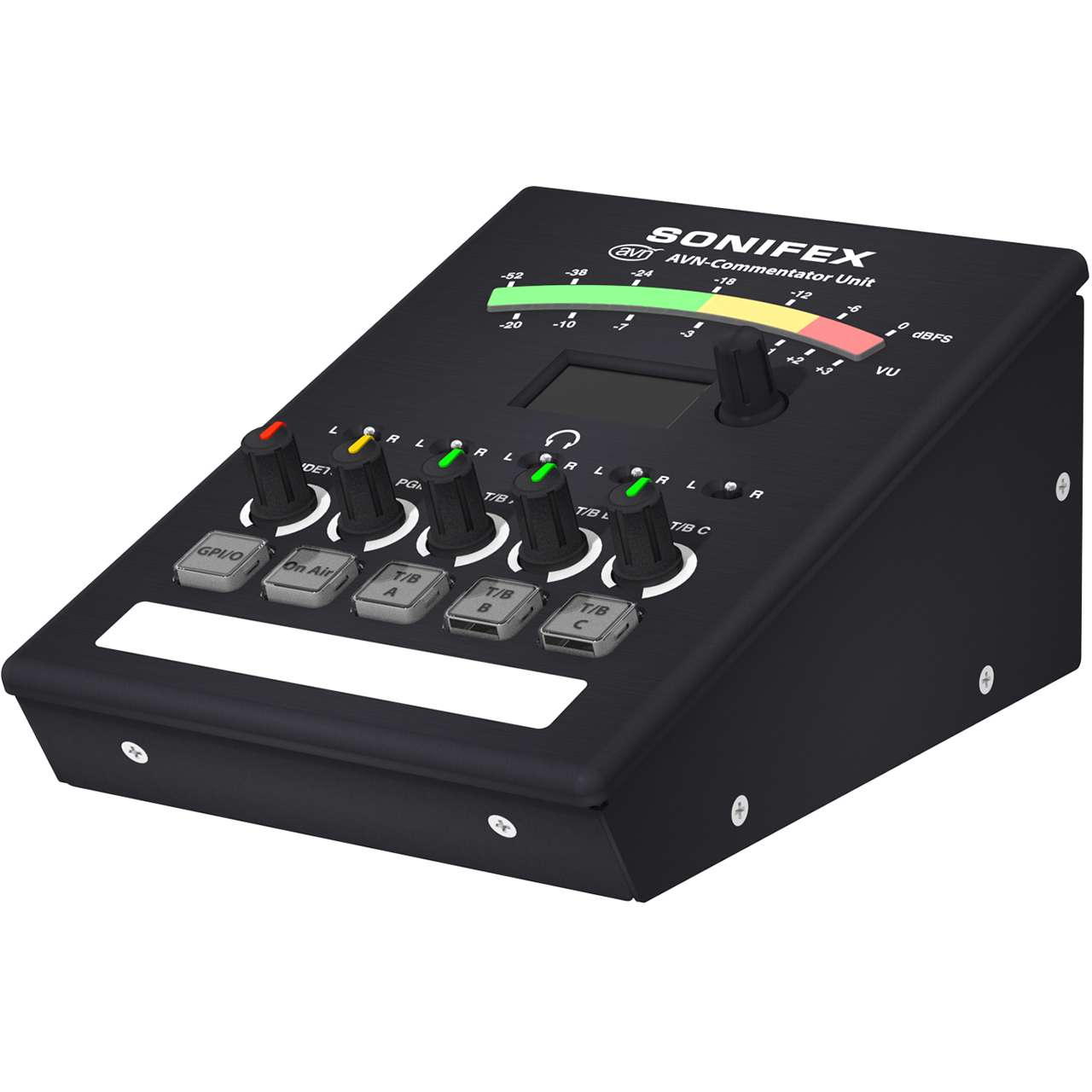

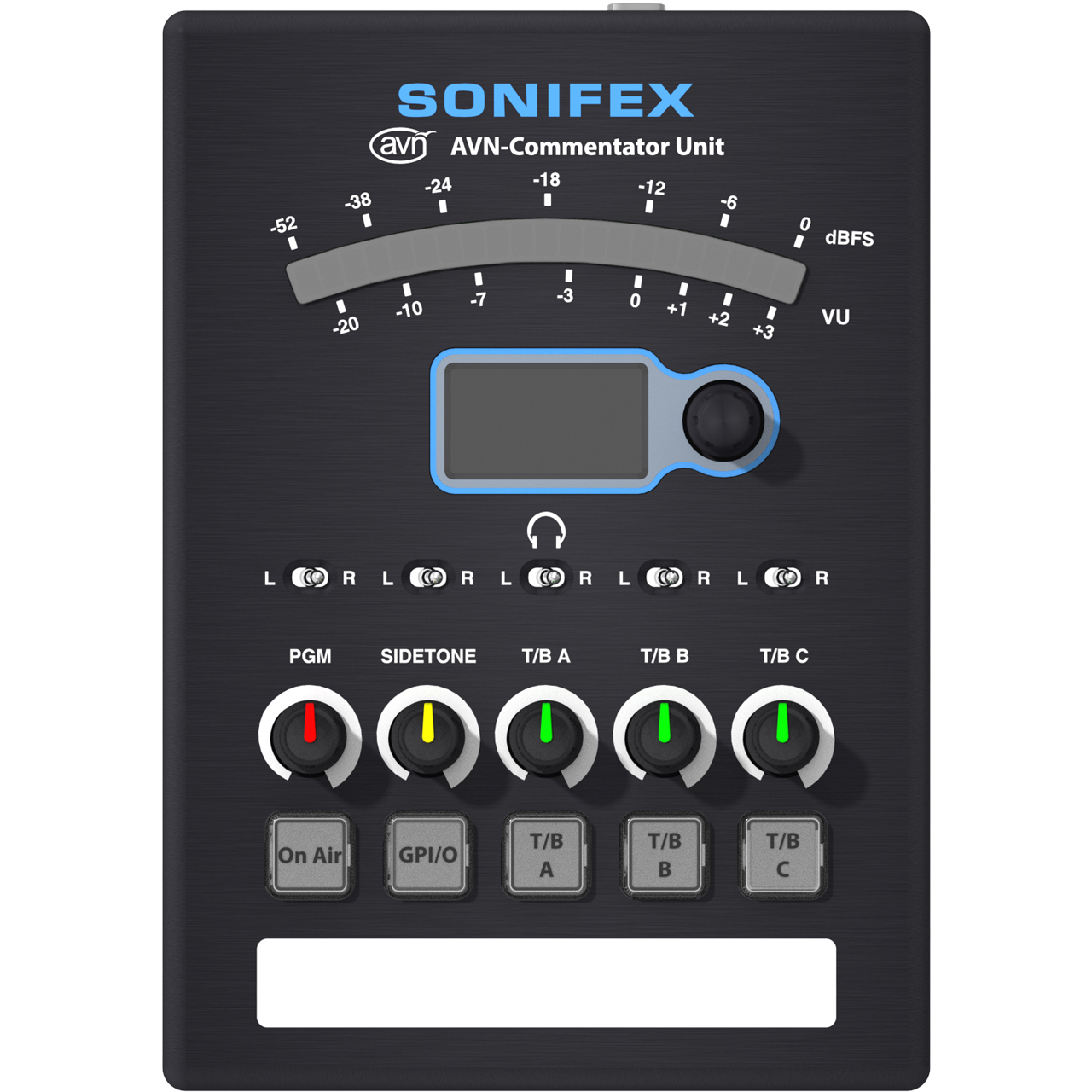

    Main Panel Operational Controls & Indicators
  • Meter: 21 segment display showing output level. Scale selectable (PPM or VU). Brightness selectable. Monitoring point selectable (Pre or Post DSP).
  • Display: 128 x 64 pixel white OLED display showing status, signal presence, HP level and configuration menu.
  • Headphone Monitor Controls: Input source level adjustment potentiometers Headphone channel selection switches
  • Rotary Encoders: 1x robust soft touch rotary encoder for master HP level control, display page and menu navigation
  • Chassis Lighting: Configurable downlight LEDs that are colour adjustable. Defaults to On-Air indication
  • Pushbuttons:
    -5x Illuminated buttons that can be configured to momentary, latching or auto action and selectable colours. Brightness is selectable.
    -1x GPIO button
    -1x On-Air button
    -3x T/B buttons (T/B A, B & C)

    Rear Panel Connections

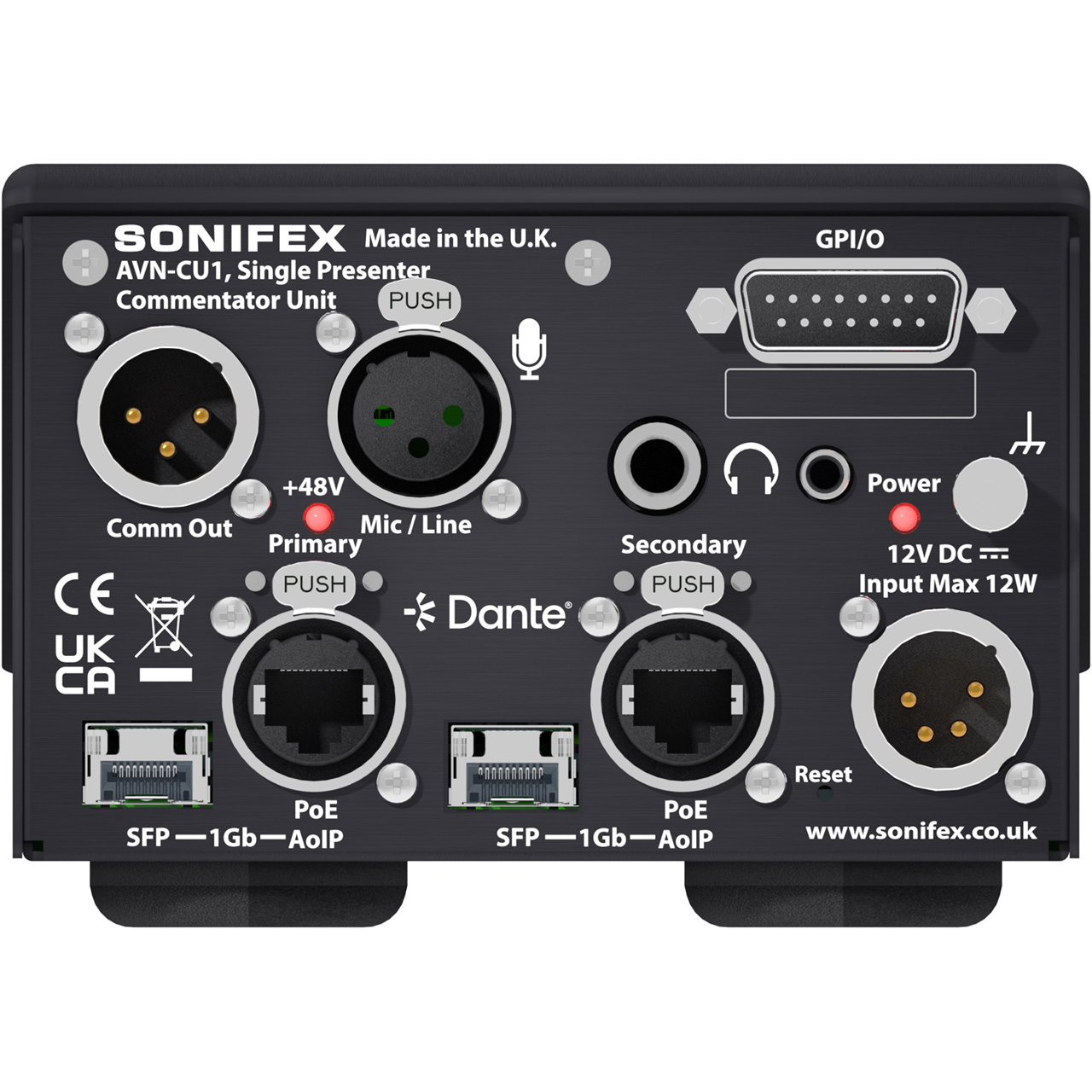

  • Power LED: RJ45 socket (electronically balanced)
  • Headphone Outputs: RJ45 socket (electronically balanced)
  • Microphone/Line Input: 15-way `D'-type socket
  • GPIO Port: Neutrik 4 pin XLR plug, 12VDC, Maximum 12W
  • DC Input: 2x 1Gbps Neutrik EtherCON receptacles with PoE, 2x SFP slots for alternative interfaces
  • Network: 2x 1Gbps Neutrik EtherCON receptacles, with PoE 2 x SFP slots for alternative interfaces

    PoE Power
  • Standard: 802.3af
  • Class: 0
  • PD Power Range: 0.44 W to 12.94 W
  • Max PSE Power Usage: 15.4 W


• Item Includes:

  • 1x Sonifex AVN-CU1 Configurable Dante Commentary Unit


• Warranty:

  • 1-Year Warranty
