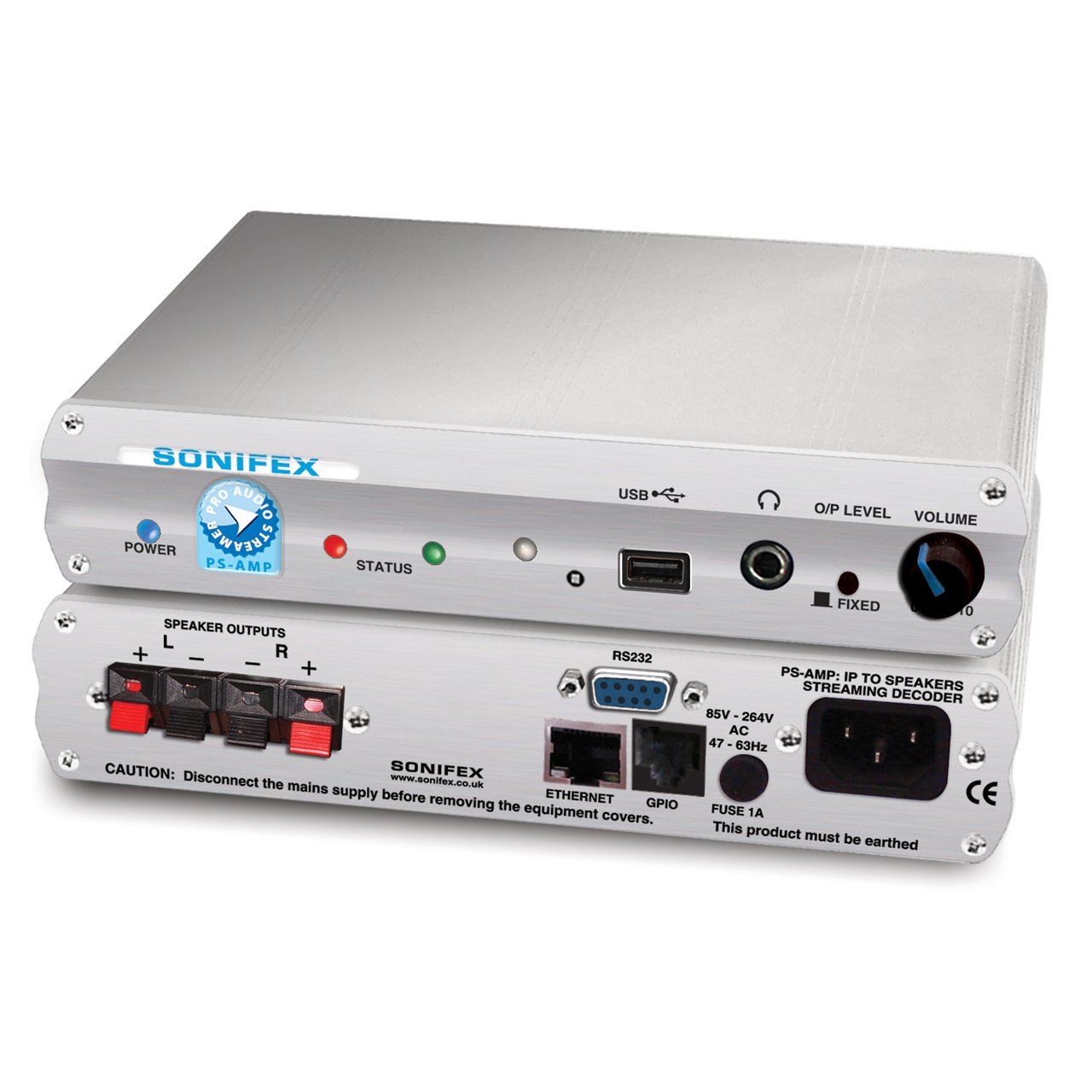

Sonifex PS-AMP IP to Speaker Streaming Decoder - 2x 15W D-Class Amplifiers

PS-AMP - Overview

• Features:

  • Converts Audio Stream to Speaker Outputs
  • Integrated 2x 15W D-Class Amplifier


• Specifications:

  • Technical
  • Analogue Outputs:

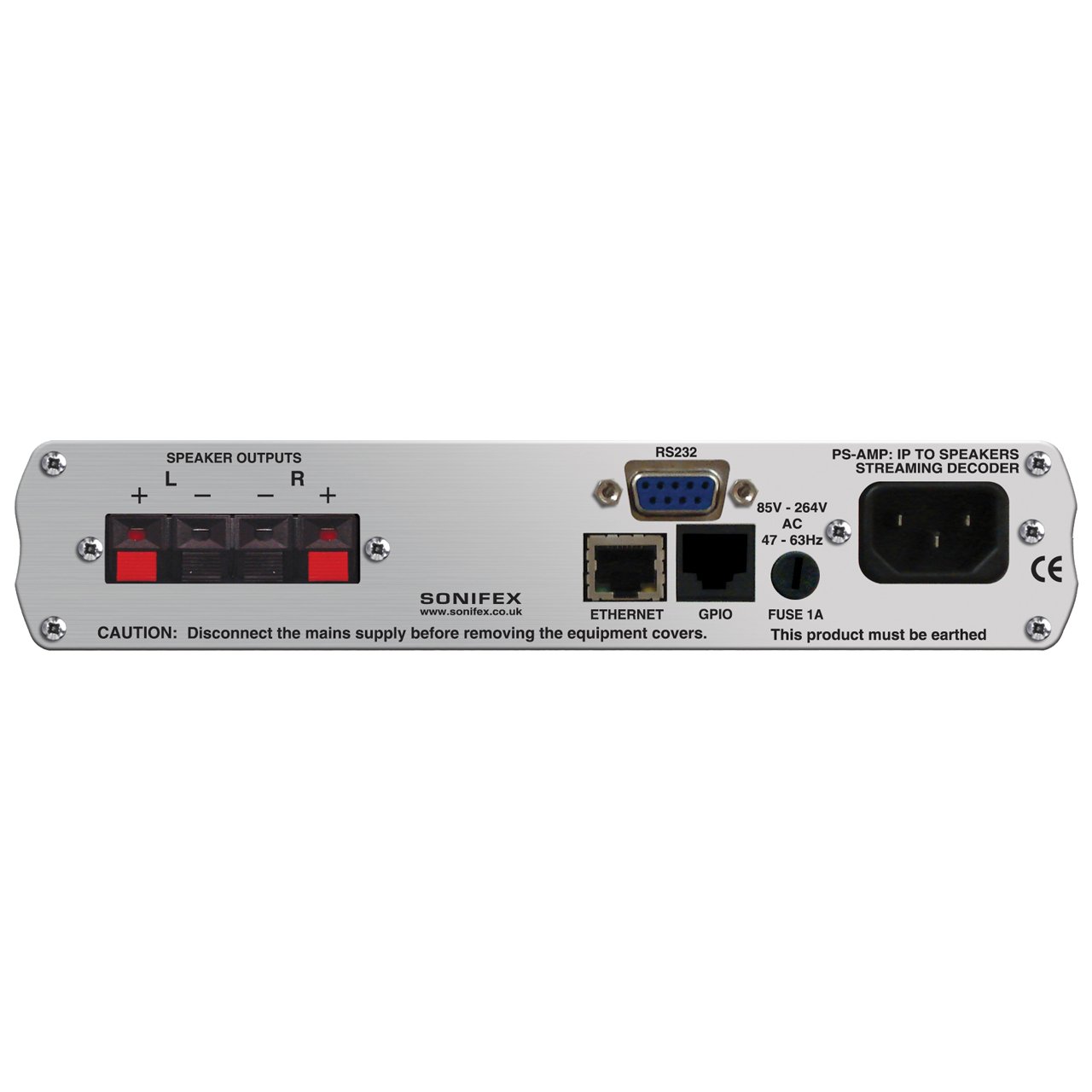

    - 2x speaker connectors (2 each black and red terminals)
    - 1x 1/4 inch (6.35mm) stereo jack headphone socket
  • Headphones Output: Drives 150mW into 32Ω to 600Ω stereo headphones

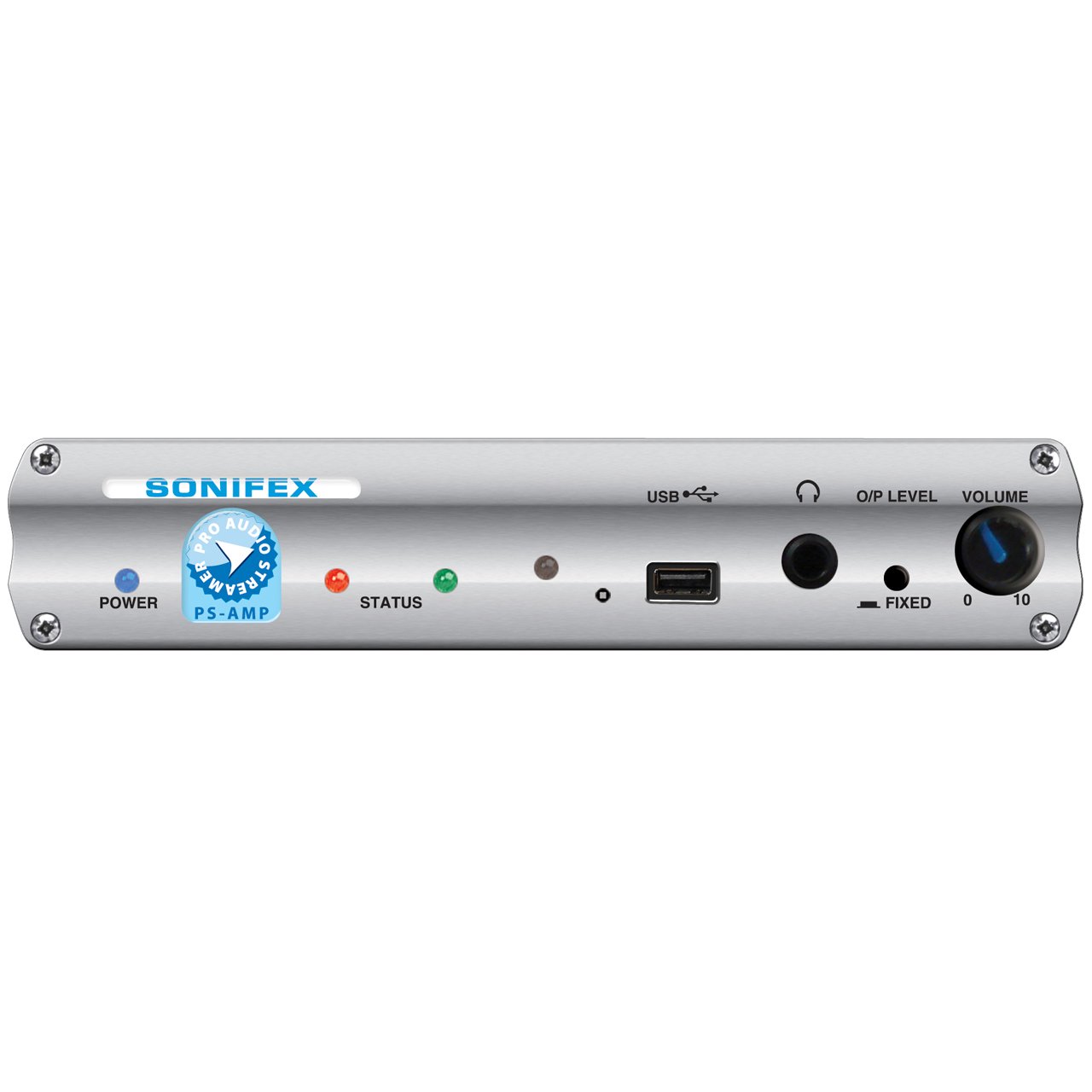

  • Headphone Level Range: -60dB - 18dB via front panel control knob or optional IR controller
  • USB Port: 1x USB A Socket
  • Frequency Response: 20Hz - 20kHz using MP3 at a bit rate of 192kbps and above
  • GPOs (General Purpose Outputs): 2x switchable relay contacts (simultaneously switched) controlled from PS-SEND
  • Serial Port: 1x 9 way D-type socket, used to send control commands and update firmware
  • Ethernet Port: 1x RJ45 socket. Remote control commands can be sent via TCP or UDP as well as firmware updates.
  • IR Remote Receiver: Remote commands can be sent using optional remote control via built in IR sensor
  • Speaker Power: 15W per channel into 8ohm @ 10% THD+N
  • Mains Input: Filtered IEC, 85 - 264VAC, 47 - 63 Hz, 60W max
  • Fuse Rating: Anti-surge fuse 1A 20 x 5mm

    Audio Codec Specifications Decoder:
  • G.711 (U Law/A Law 8kHz to 48kHz sampling rate)
  • WAV (IMA ADPCM+ 16bit PCM uncompressed: 8kHz to 48kHz)
  • MP3 MPEGv1 Layer 3 (32, 44.1 and 48kHz, CBR +VBR +ABR)
  • MP3 MPEGv2 Layer 3 (16, 22.05 and 24kHz, CBR +VBR +ABR)
  • Ogg Vorbis (floor 1)

    Supported Network Transport Protocols
  • RTP - UDP
  • HTTP - TCP
  • Raw UDP
  • Raw TCP
  • SNMP - traps for remote management
  • DHCP, BOOTP, IPZator or AUTOIP - Dynamic IP address resolution
  • SonicIP IP Address readout

    Physical
  • Dimensions (WxDxH): 8.67" x 5.39" x 1.7" (22cm x 13.7cm x 4.3cm)
  • Weight: 1.85 lbs (0.84kg)


• Item Includes:

  • 1x Sonifex PS-AMP IP to Speaker Streaming Decoder


• Warranty:

  • 1-Year Limited Warranty
