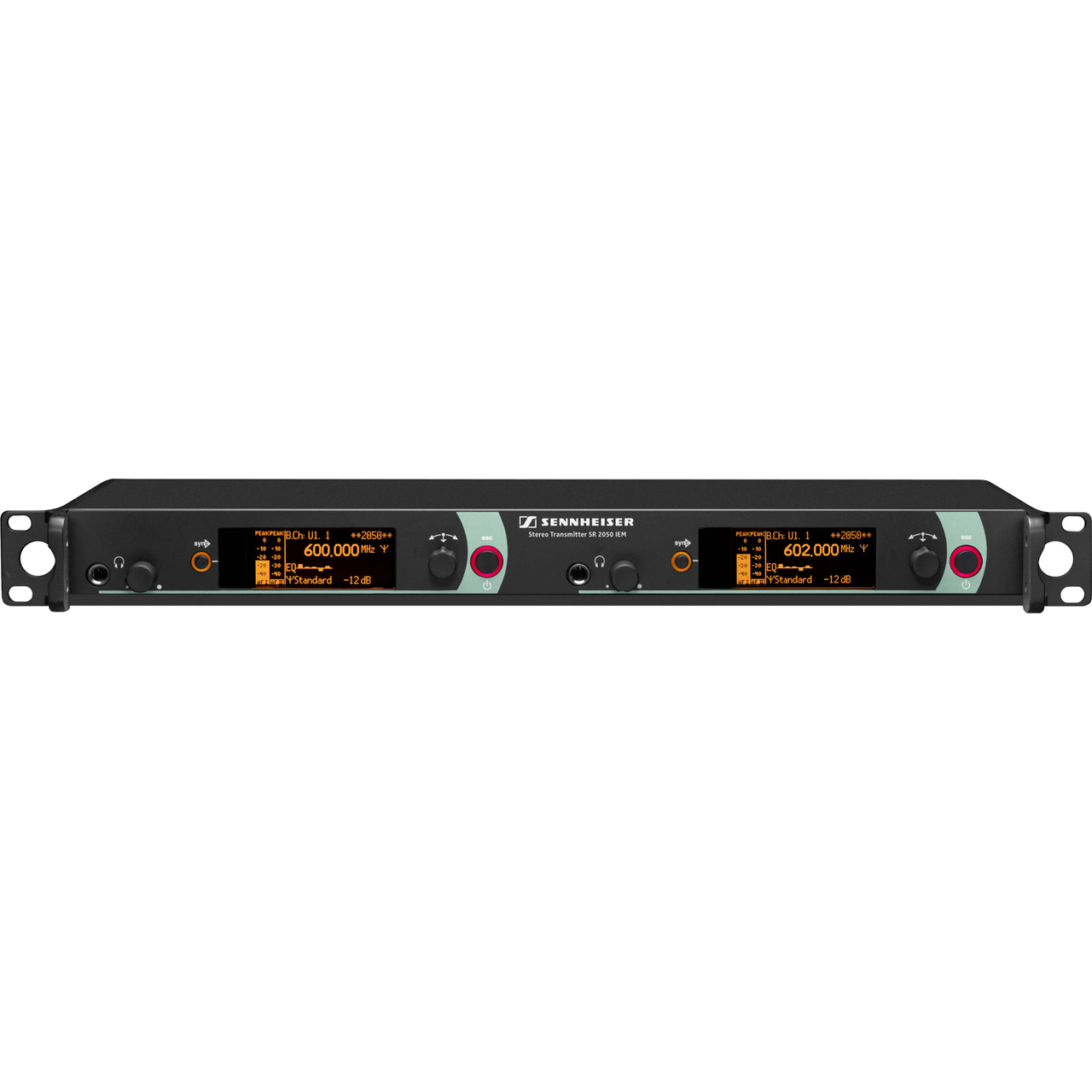

Sennheiser SR 2050XP IEM-GW1 19-Inch 2-Channel Stereo Rack Wireless Transmitter w/Ethernet - 100-240 VAC - 558-608 MHz

508626 - Overview

• Features:

  • Rugged 19" all-metal housing with integrated power supply unit
  • Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • 20 fixed frequency banks with up to 32 compatible presets
  • 6 banks each with up to 32 tunable channels
  • Frequency setting in 25 kHz steps
  • Switchable RF output power for versatile use
  • Enhanced audio frequency response in the bass range
  • Receivers can be configured from the transmitter menu
  • Can be synchronized with the receiver using infrared interface
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Pilot tone transmission for interference-free operation
  • Adjustable headphone connections
  • For universal application due to extensive range of accessories


• Specifications:

  • Frequency ranges Gw: 558 - 626 MHz.
  • Transmission frequencies: up to 3,000 frequencies, tuneable in steps of 25 kHz, 20 frequency banks, each with up to 32 factory-preset channels, 6 frequency banks, each with up to 32 user programmable
  • channels.
  • Switching bandwidth: up to 75 MHz.
  • Frequency stability: ±10 ppm (-10 °C to +55 °C).
  • Antenna output: BNC socket, 50 Ohm.
  • RF output power at 50 Ohm: typ. 10/30/50 mW (Low/Standard/High), switchable.
  • Modulation: wideband FM stereo (MPX pilot tone).
  • Compander system: Sennheiser HDX.
  • Nominal/peak deviation: ±24 kHz / ±48 kHz.
  • MPX pilot tone (frequency/deviation): 19 kHz / ±5 kHz.
  • AF frequency response: 25 - 15,000 Hz.
  • AF input BAL AF IN L (I)/BAL AF IN R (II): 2 x XLR-3/¬" (6.3 mm) jack combo socket, electronically balanced.
  • Max. input level : +22 dBu.
  • THD (at 1 kHz and nominal deviation). < 0.9 %.
  • Signal-to-noise ratio at nominal load and peak deviation: > 90 dB.
  • AF output LOOP OUT BAL L (I)/LOOP OUT BAL R (II): ¬" (6.3 mm) stereo jack socket, balanced.
  • Temperature range: -10 °C to +55 °C (14 °F to 131 °F).
  • Power supply: 100 - 240 V ~.
  • Current consumption: 0.2 A.
  • Dimensions: approx. 217 x 483 x 43 mm (8.54" x 19.02" x 1.69").
  • Weight: approx. 2,700 g (5.95 lbs).


• Item Includes:

  • Sennheiser SR 2050XP IEM Rackmountable Dual Wireless In-Ear Transmitter (GW1: 558 to 608 MHz)
  • 3 x Power Cables (US, UK, EU)
  • 2 x Rod Antennas
  • 4 x Rubber Feet
  • Limited 2-Year Manufacturer Warranty
