VB50MINI - Overview

SmallRig VB50 mini V Mount Battery is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 45W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!

Please note: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Compact and lightweight to be carried around:designed to lighten the burden of the film industry, the VB series are approximately 30% smaller than traditional V-mount batteries!
    • Intelligent BMS chip for efficient and safe use:a built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 45W (Max) USB-C PD fast charging!

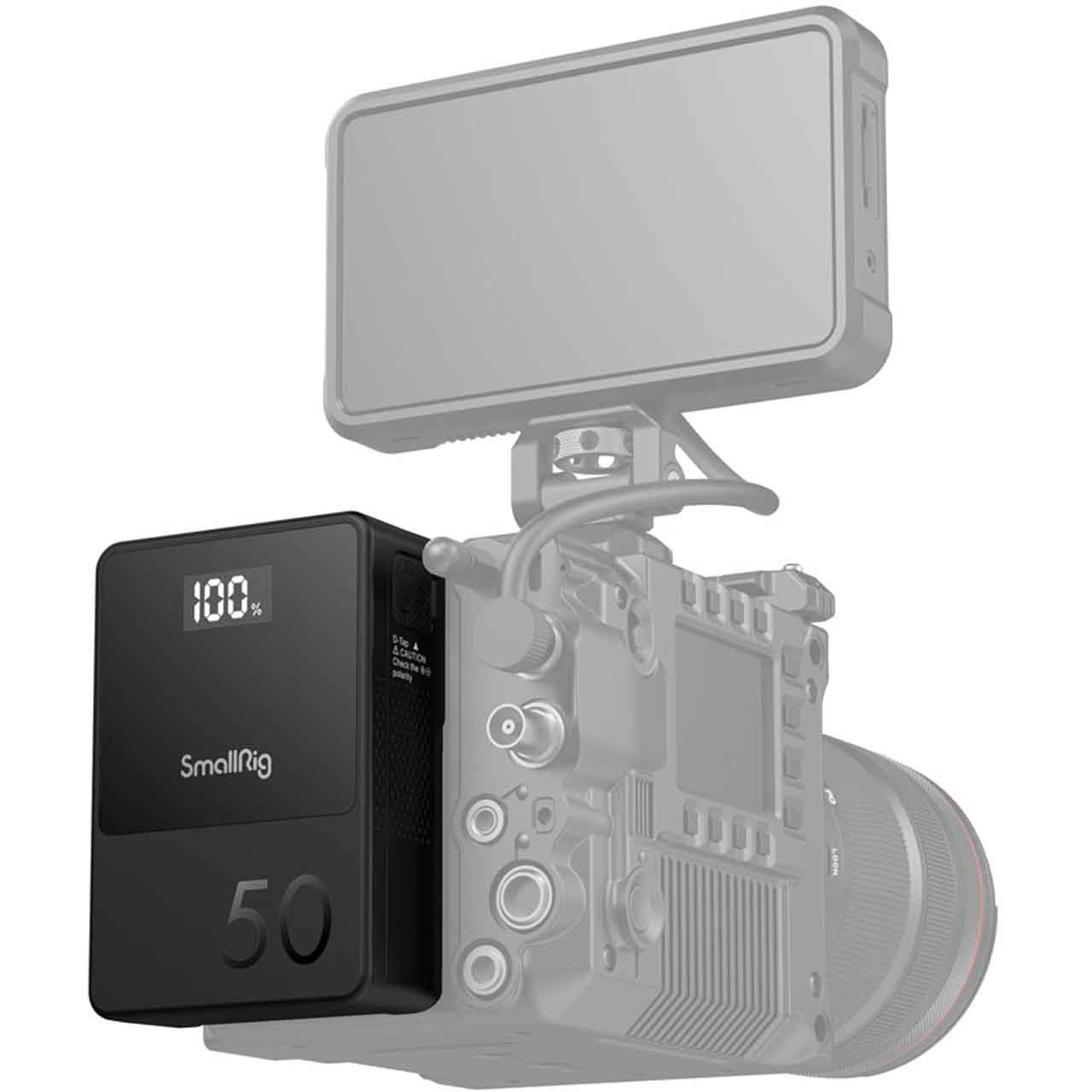

    • Various interfaces for high compatibility: compatible with camera/ camcorder / monitor / wireless video transmitter / video light, etc.
    • Practical OLED display for precise control:keeps track of the battery's working status at all times!
    • Premium li-battery with guaranteed quality and safety: built-in high-capacity premium li-battery, a double guarantee of quality and performance!

  • Specifications:

    • Material: Fireproof PC
    • Capacity: 14.8V 3.4Ah 50Wh
    • Rated Power Discharge: 99W Charge: 65W
    • V Mount / D-TAP Input: 8A (Max)
    • V Mount / D-TAP Output: 14.8V / 14A (Max)
    • USB-A Output:
      QC2.0 / QC3.0 / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A
      QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V /2A
      QC3.0: 4.2-9V / 3A, 9-12V / 2A
      SCP: 4.5V / 5A, 5V / 4.5A
      DCP-1.5A: 5V / 1.5A
      APPLE-2.4A: 5V / 2.4A
    • USB-C Input / Output
      PD3.0: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
      QC2.0/AFC/FCP: 5v/3A, 9V/3A, 12V/2A
      QC3.0: 4.2-9V/A, 9-12V/2A
      SCP: 4.5V/5A, 5V/4.5A
      DCP-1.5A: 5V/1.5A
      PPS: 3.3-21V/#A
      APPLE-2.4A: 5V/2.4A

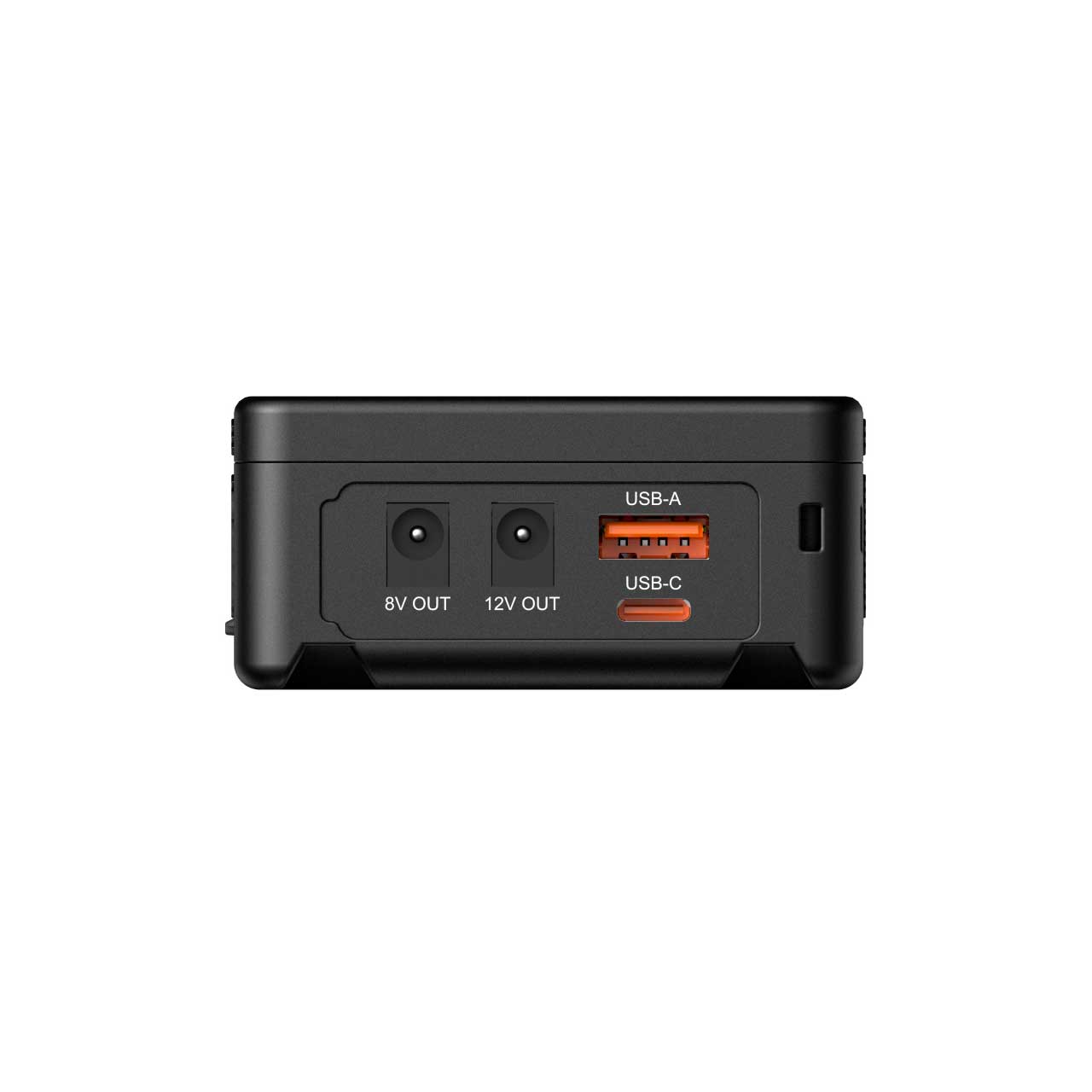

    • DC1 Output: 8V / Max3A
    • DC2 Output: 12V/Max3A
    • Cutoff Voltage: 11V
    • Optional Charging Method: 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W)
    • Product Dimensions: 107.0 x 73.0 x 53.0 mm
    • Net Weight: 550 g ±10 g
    • Package Dimensions: 147.0 x 114.0 x 75.0 mm
    • Gross Weight: 740 g ± 10 g

  • Item Includes:

    • 1x SmallRig VB50 mini Fast Charging Battery
    • 1x Users manual

  • GTIN:

    6941590009001
