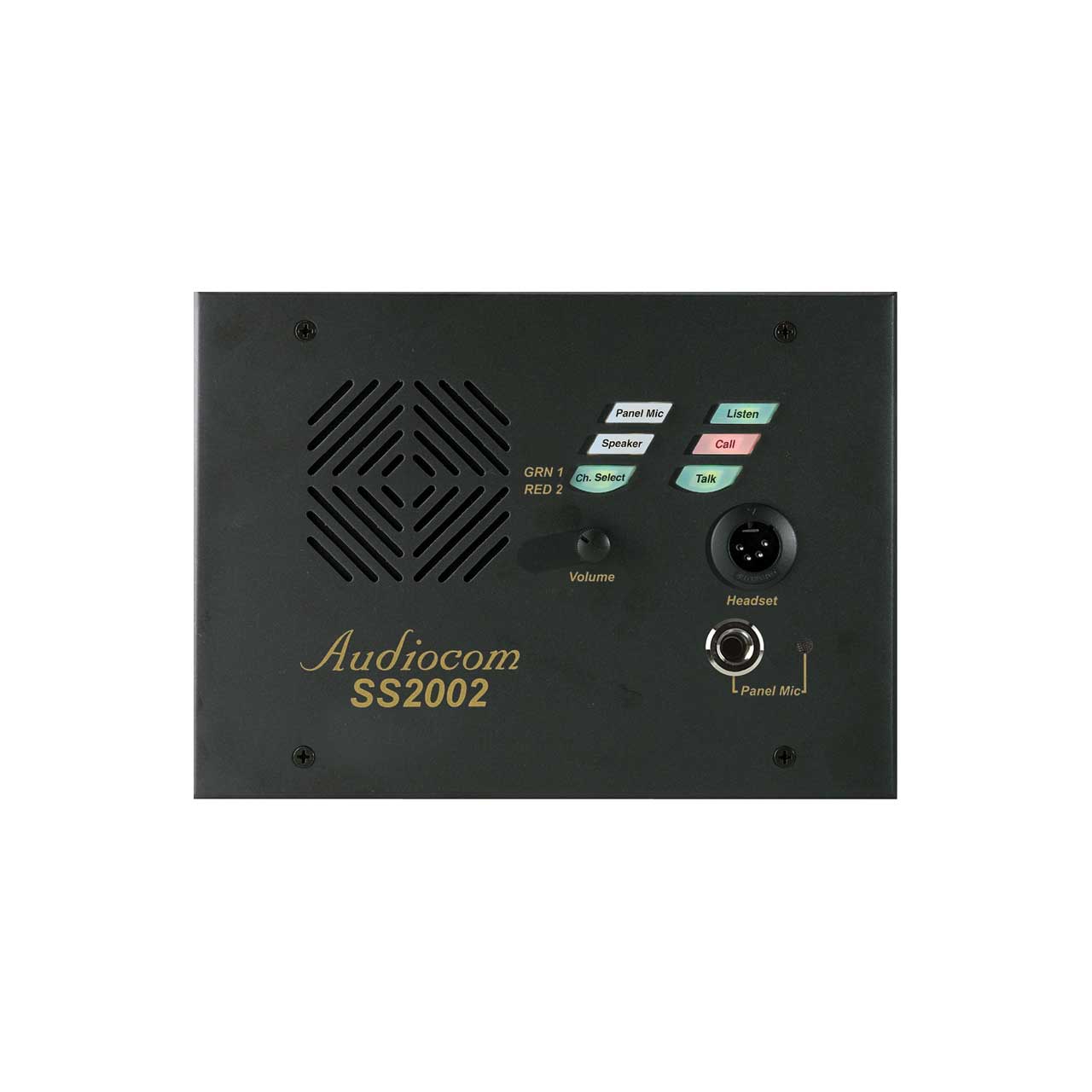

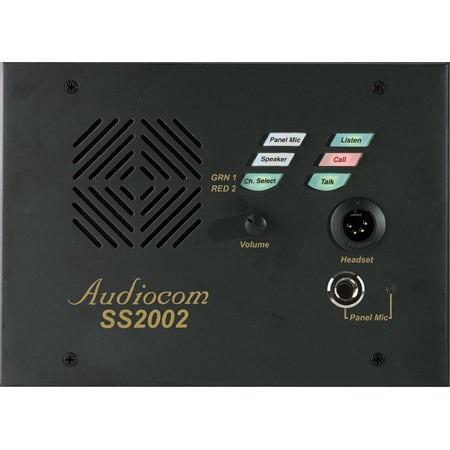

RTS Audiocom SS-2002U 2-Channel Speaker Station with U-Box Enclosure

SS-2002U - Overview

• Features:

  • 2-channel in-wall intercom speaker station with U-box enclosure and full send-receive capability
  • 4-watt speaker
  • Simplified push-type wiring terminal block
  • Internal DIP setup switch control and full sidetone adjustment trim
  • Backlit Channel Select switch
  • Backlit front panel control switches for Talk, Call, Listen, Speaker and Panel Mic
  • Talk key with push-to-talk and hands-free latching operation modes
  • Panel Mic Key switches between built-in electret and optional gooseneck
  • 24VDC phantom power


• Specifications:

  • Frequency Response:
    Send and Receive:
    20 Hz - 20 kHz +/-800Hz, 100mVrms
    Mic Kill/Detect:
    24 kHz +/-800Hz, 100mVrms


  • Gain: 35dB
  • Microphone Input Type: 1 x XLR-4M (Headset Mic), 1 x 1/4" TRS Phone (Gooseneck Panel Mic)
  • Limiter: No
  • Power Output:
    Unbalanced Mode: 1 Vrms, +/-10%
    Balanced Mode: 1 Vrms


  • Speaker: 8 Ohms
  • Panel Microphone Preamp: Yes
  • Program Amplifier: Yes
  • Speaker Amplifier: 4 Watts
  • Input Level: -40dB - +35dB
  • Input Impedance
    Headset Headphones: 150 - 600 Ohms
    Headset Microphone: 50 - 200 Ohms
    Panel Mic(Built-In): 2.2 kOhms
    Panel Mic (Gooseneck): 5 kOhms
    Intercom Channels(Balanced): 300 Ohms
    Intercom Channels(Unbalanced): 200 Ohms
  • Internal Connectors: Push-type wire terminals
  • Internal Controls
    1 x Side Tone Trim
    1 x Mic Kill Receive DIP Switch
    1 x call Signal Method DIP Switch
    1 x Incoming Call Beep DIP Switch
    1 x Microphone Type DIP Switch
    1 x Incoming Call Speaker Beep DIP Switch
  • Front Panel Controls and Indicators
    1 x Channel Select Button
    1 x Panel Mic Button
    1 x Headset Button
    1 x Listen Button
    1 x Call Button
    1 x Talk Button
    1 x Volume Trim

    Power Requirements
    Phantom Power: 24VDC Nominal (12 - 30VDC, 175mA)
    Local Power: 12 - 15VDC, 250mA
  • Dimensions: 8.11 x 3.15 x 6.1"(WxDxH) (206 x 80 x 155mm)


• GTIN:

  0800549427463
