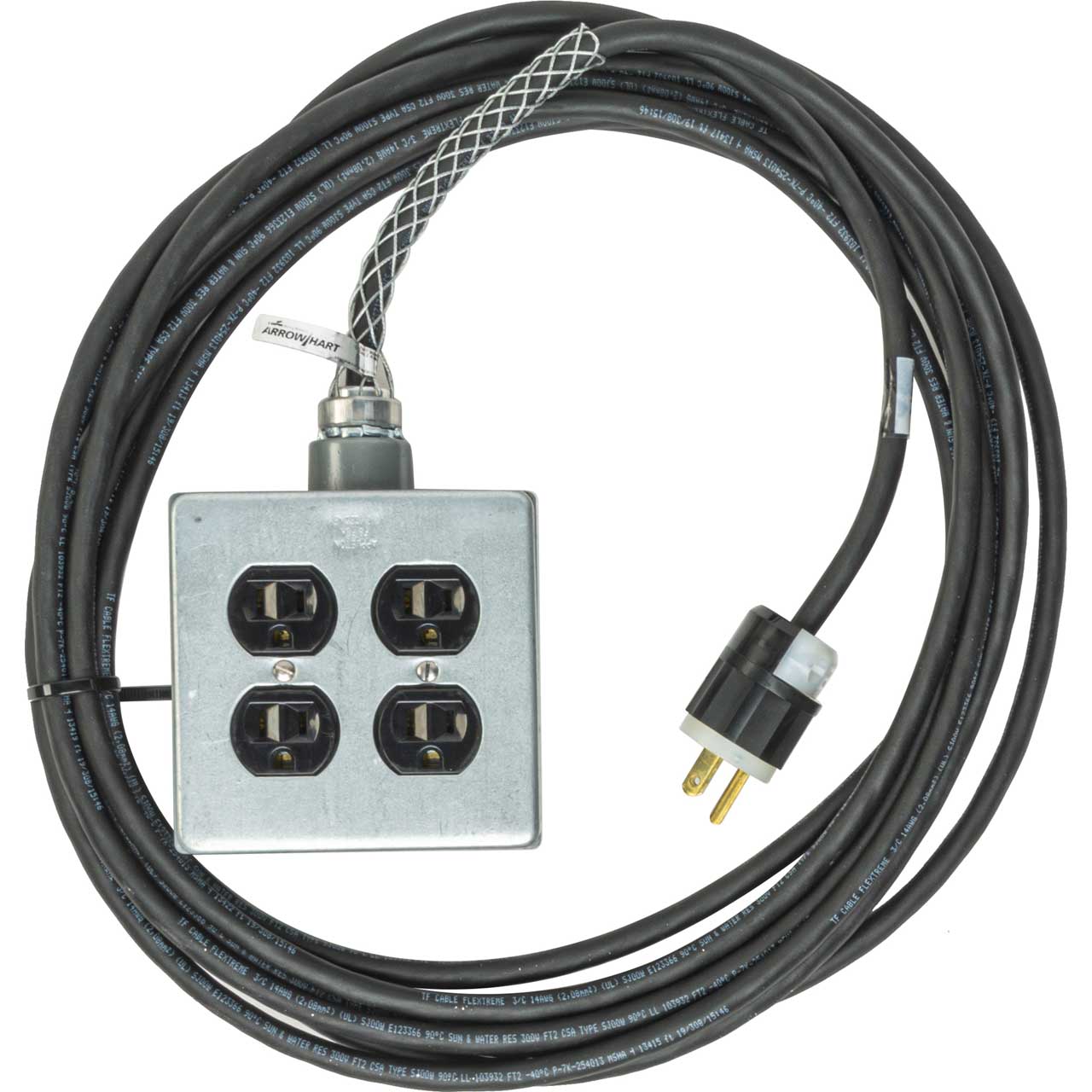

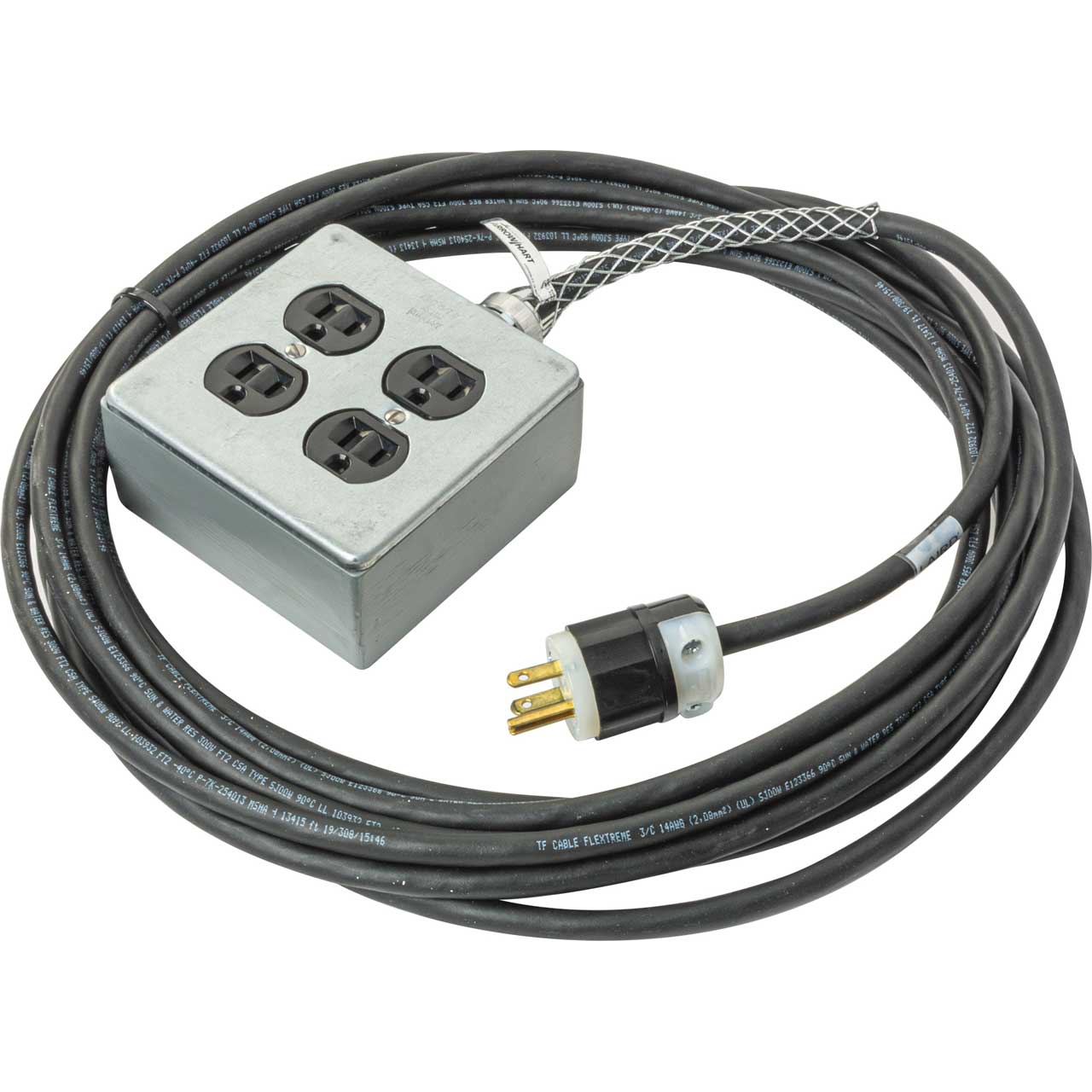

Laird Stage Systems Heavy Duty 15-Amp 12/3 AC Power Extension Cord w/ Quad Box - 25 Foot

SSPC-25 - Overview

• Features:

  • Cast aluminum 4 outlet stage box with basket strain relief
  • Standardized, heavy-duty, rubber-jacketed cable for usage in dry, moist, and wet rooms as well as outdoors
  • Resistant to Oil, ozone, weathering effects, greases, water, UV radiation (sun resistance)
  • Mine Safety and Health Administration (MSHA) approved
  • NEMA Rated


• Specifications:

  Laird PWR-12/3-TP:
  • Conductor Material: Bare Copper Wire
  • Number of Conductors x AWG: 3x12
  • Conductor Insulation: Rubber (EPR)
  • Outer Jacket Material: Rubber (CPE)
  • Current Carrying Capacity: 25 Amps
  • Outer Diameter: 0.425in - 0.476in
  • Nom. Voltage: AC U 300V
  • Temperature:
    •Flexing: -4°F to 194°F (-20°C to +90°C)
    •Static: -40°F to 194°F (-40°C to +90°C)
  • Min. Bend Radius:
    •Flexing: 4.76in
    •Static: 2.85in

    Leviton Connectors:
  • Amperage: 15 Amps
  • Voltage: 125 VAC
  • Body Material: Impact Modified Nylon

    Eaton Outlet:
  • Amperage: 15 Amps
  • Voltage: 125V
  • Body Material: PVC High-Impact Nylon


• Warranty:

  • 1 Year
