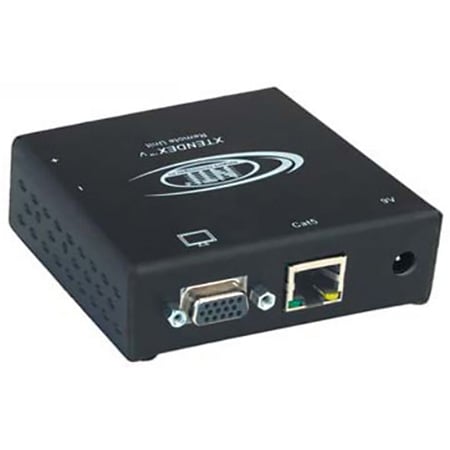

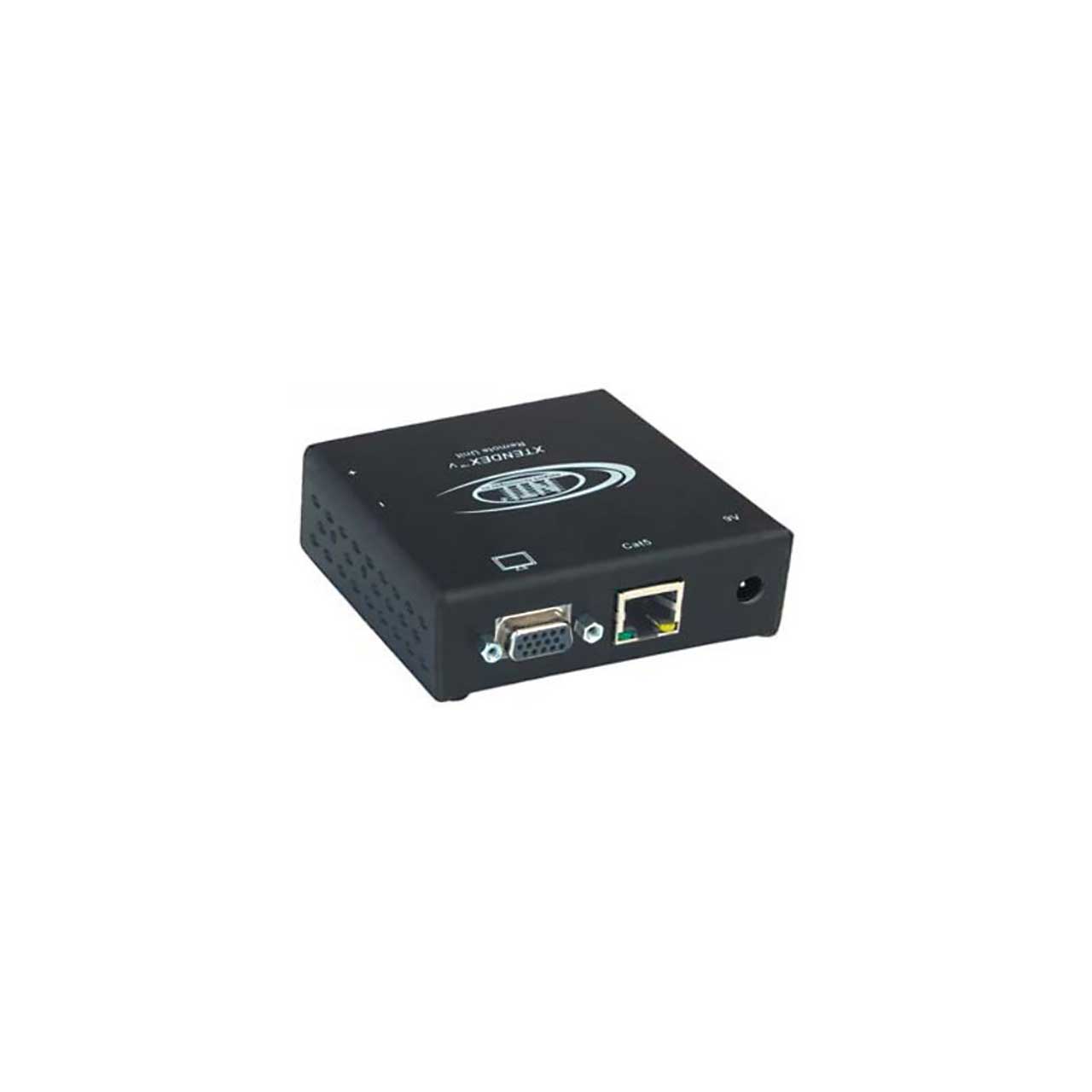

NTI ST-C5V-R-1000SP Remote VOPEX-C5VA-4C1000 Local Unit VGA A/V Splitter/Extender via CAT5 Up To 1000 Ft

ITEM #: ST-C5V-R-1000SP MFG #: ST-C5V-R-1000SP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    ST-C5V-R-1000SP - Overview

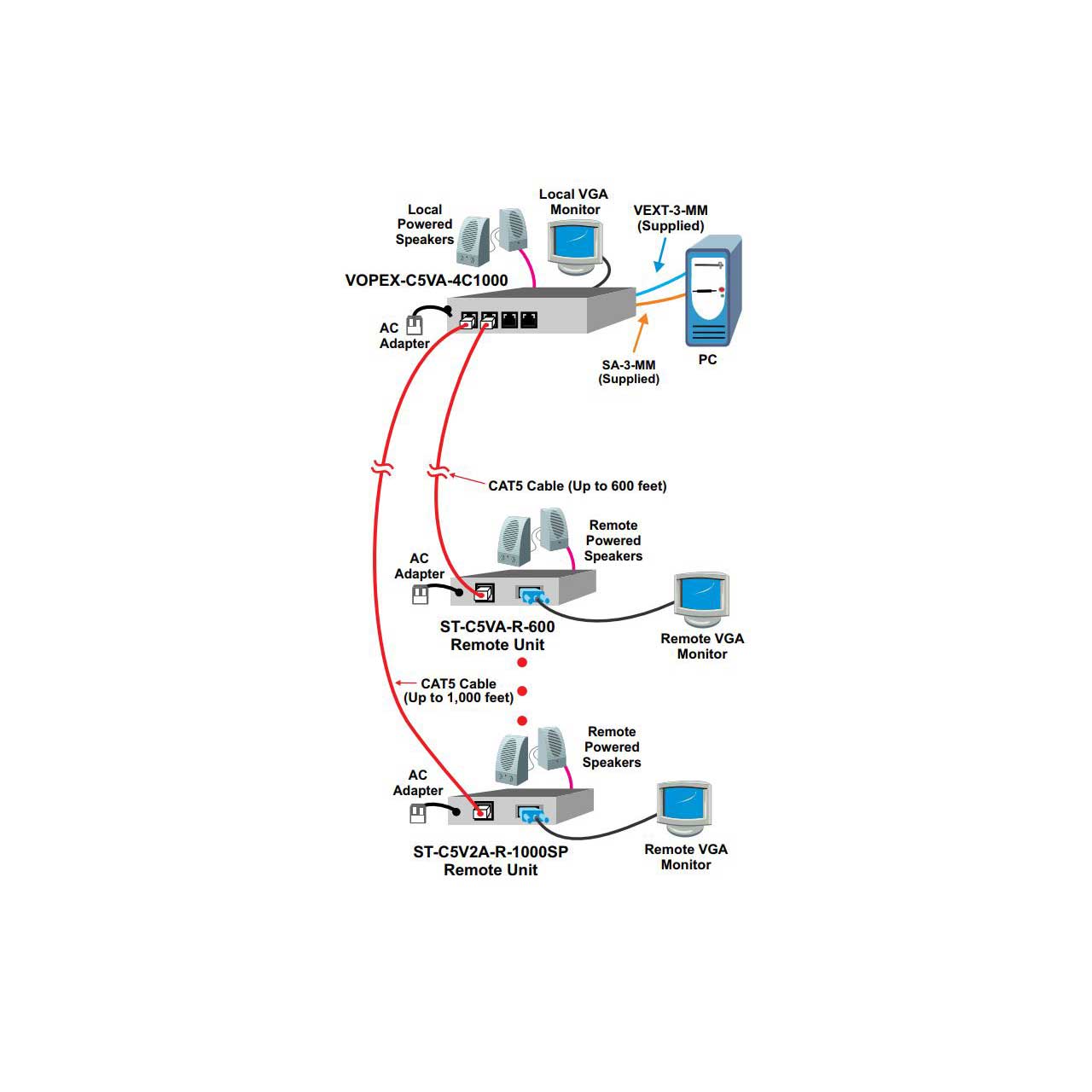

    The VOPEX® ST-C5V-R-1000SP VGA Video Splitter/Extender simultaneously broadcasts high-resolution VGA video from one computer to 4 or 8 remote monitors located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location when using NTI's remote units with audio option. The VOPEX VGA Video splitter/extender system has two components: the VOPEX-C5V(A)-xC1000 VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX® remote unit (ST-C5V(2A)-R-1000SP or ST-C5V(A)-R-600) for each remote monitor. The units are interconnected by CAT5/5e/6 cable.

    • Features:

      • Broadcast real-time VGA video and stereo audio to multiple locations.
      • Supports resolutions up to 2048x1536 using NTI's 1,000' remote units
      • and 1920x1440 using NTI's 600' remote units.
      • Easily expandable. Add remote units as you add monitors.
      • A pure hardware solution-no software conflicts.
      • High quality rugged steel construction with durable powder coat finish.
      • Ideal for digital signage, movie theater lobbies, point of purchase
      • displays, conference centers, airports, and other applications that
      • require multiple displays.
    • Specifications:

      • Input frequency ranges: Horizontal: 15 kHz to 130 kHz, Vertical: 30 Hz to 150 Hz
      • Input impedance: 75 Ohms.
      • Maximum input levels: 1.45 p-p.
      • Video Output: Female RJ45 connectors for CAT5/5e/6 cable to remote units.
      • Output impedance: 75 Ohms.
      • Maximum output level: 1.45Vp-p
      • Frequency response: 20 Hz to 20 kHz, plusmn;1 dB.
      • Signal-to-Noise Ratio (SNR): 76 dBA.
      • Total Harmonic Distortion and Noise (THD+N): 0.017%
      • Stereo crosstalk: -70 dB.
      • Input impedance: 10k Ohms.
      • Maximum I/O levels for audio: 3.1 Vp-p (line level).
      • Dimensions: 4-port (W x D x H): 5.13 in x 3.45 in x 1.08 in; 8-port (W x D x H): 5.13 in x 3.45 in x 1.68 in
      • Operating temperature: 32 to 100°F (0 to 38°C)
      • Storage temperature: -22 to 140°F (-30 to 60°C)
      • Operating and storage relative humidity: 17 to 90% non-condensing RH
