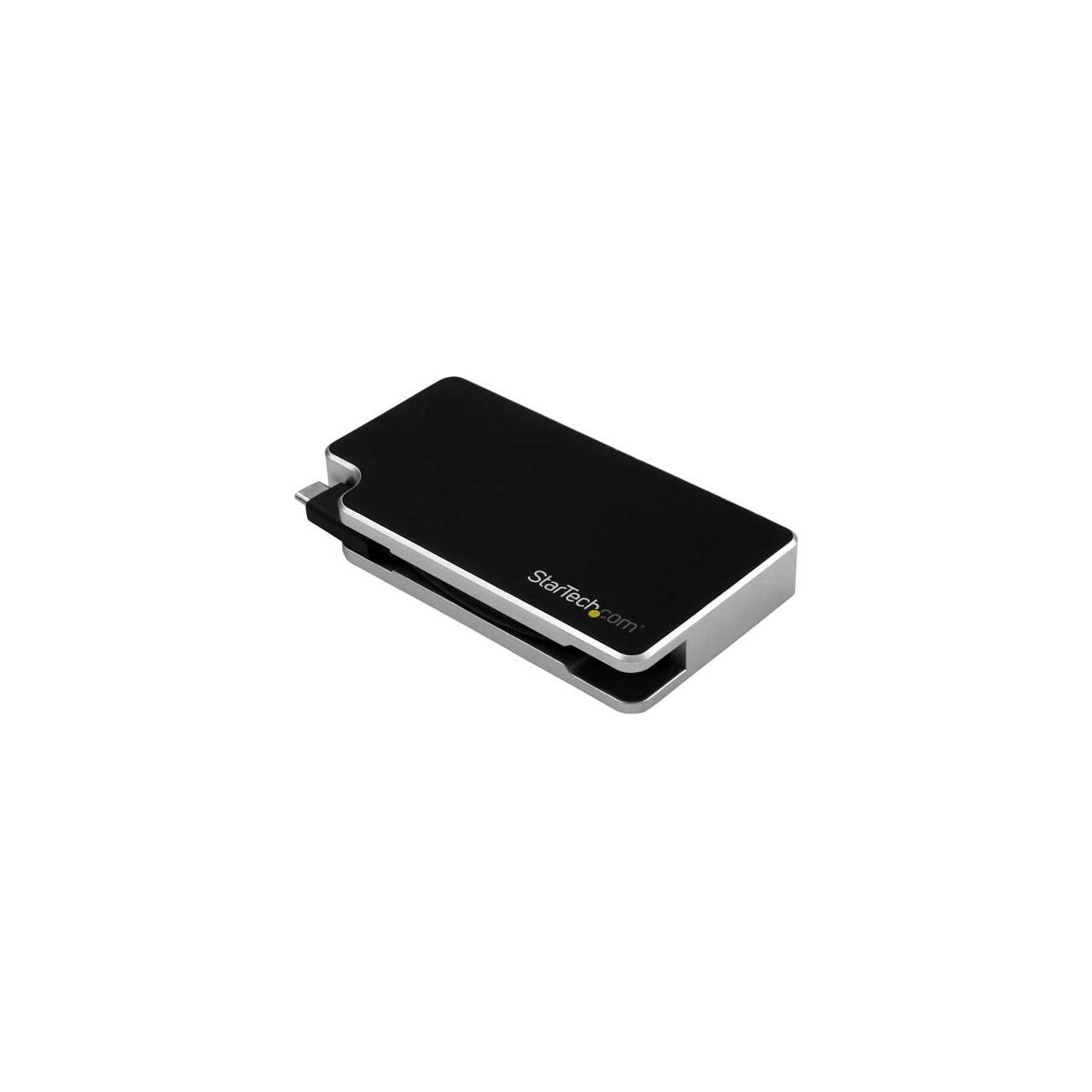

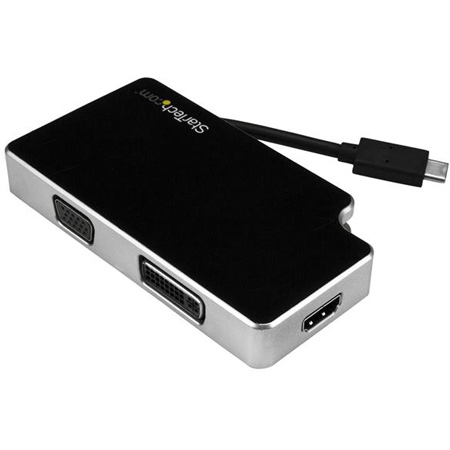

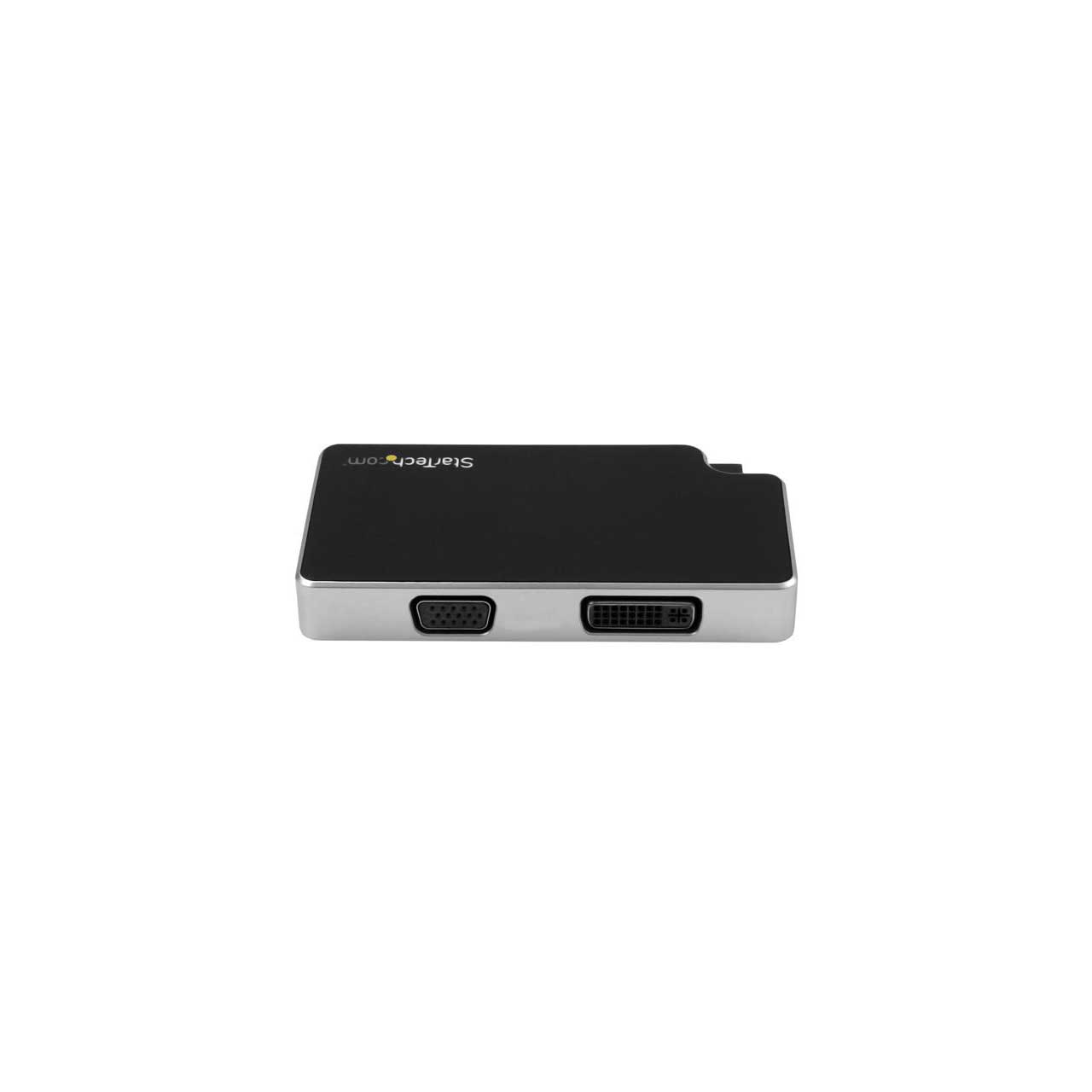

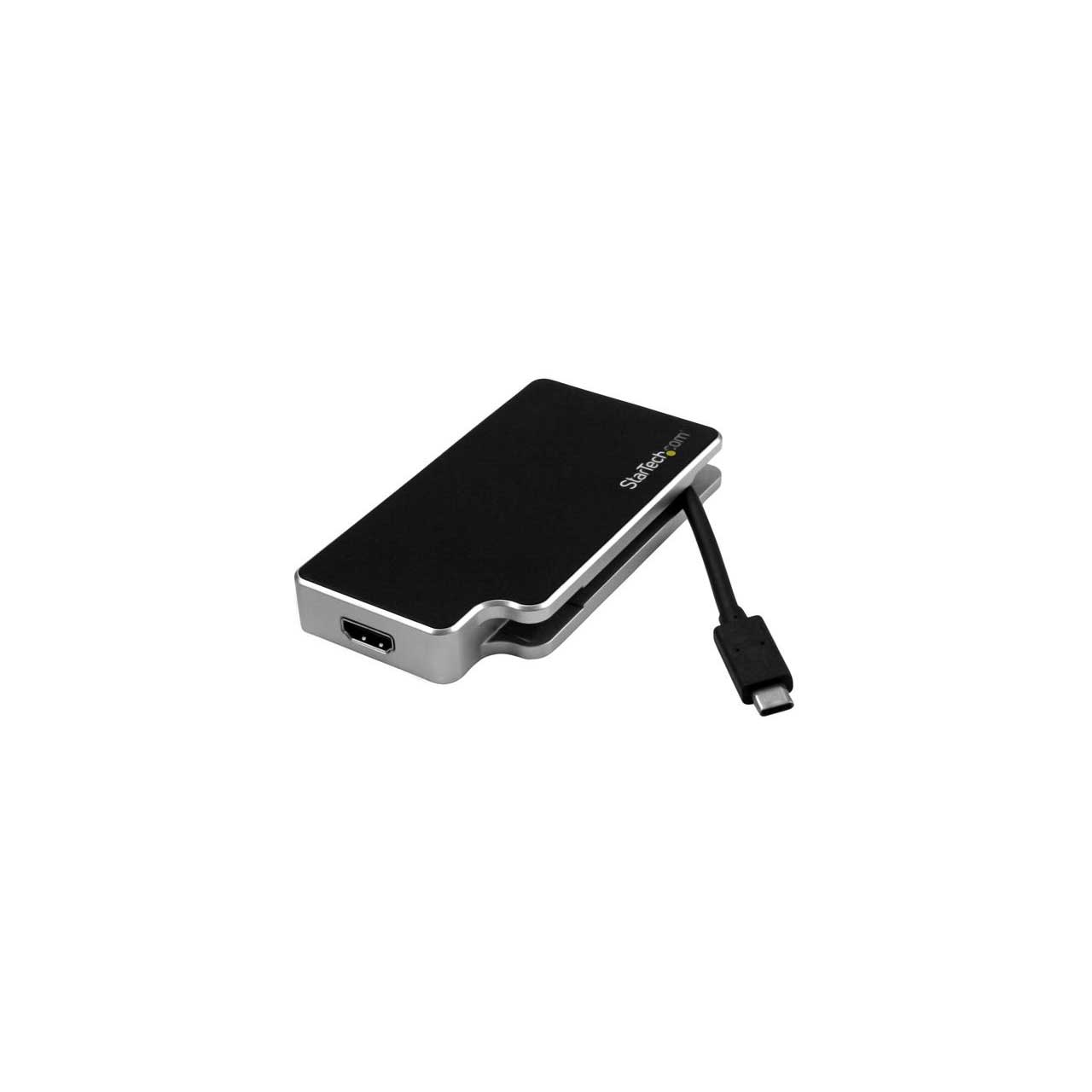

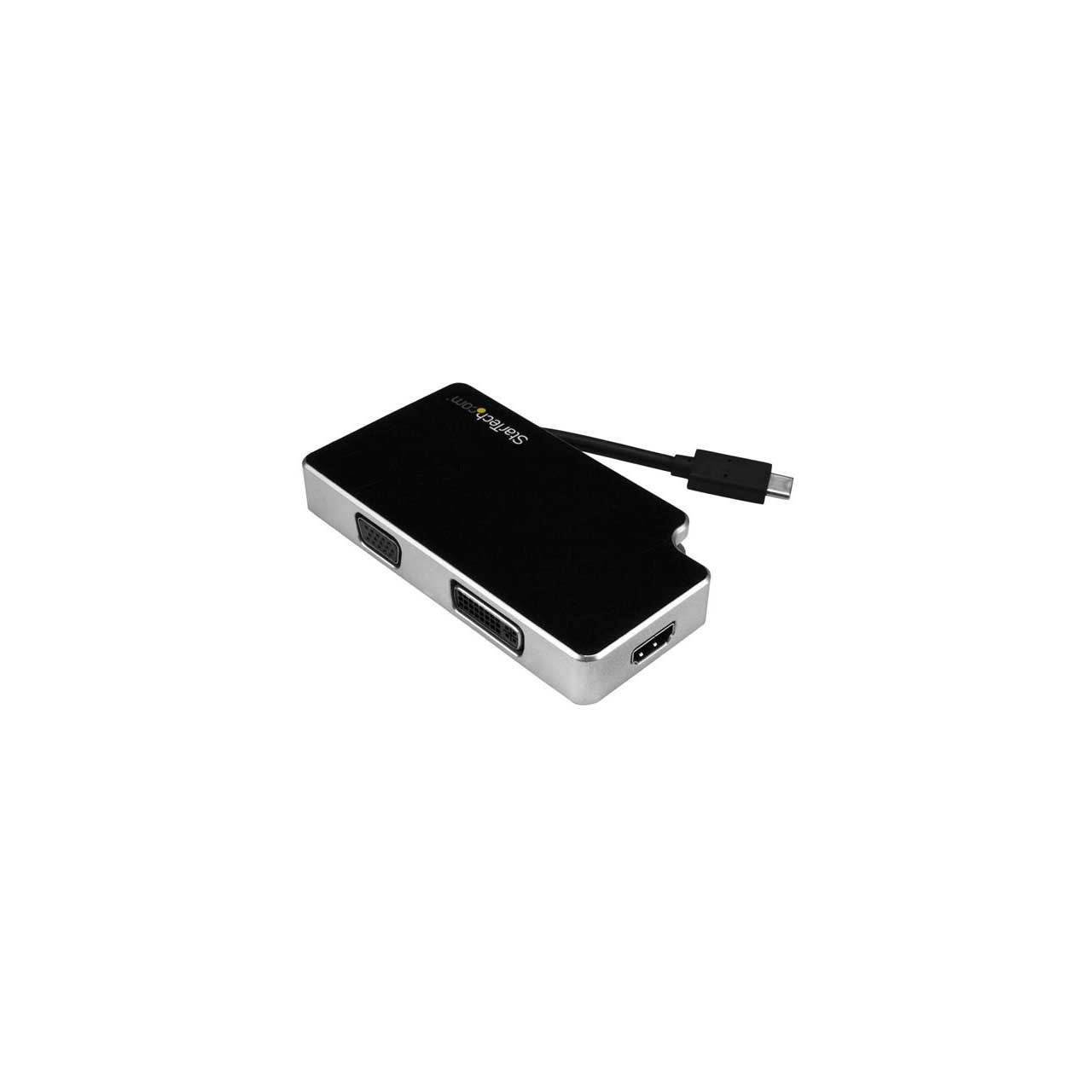

Startech CDPVGDVHDB Travel A/V Adapter: 3-in-1 USB-C to VGA DVI or HDMI - 4K


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    CDPVGDVHDB - Overview

    The CDPVGDVHDB 3-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, or HDMI® display.

    The travel adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.

    Stylish connectivity for your USB-C laptop
    This travel adapter comes with a built-in black USB-C cable and works well with your Dell XPS™, MacBook and any device that supports USB-C DP alt mode.

    All-in-one video connectivity, with travel in mind
    Instead of carrying three separate video adapters in your laptop bag, this 3-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop's USB Type-C port to almost any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.

    With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.

    Innovative, built-in cable manager
    The adapter features a built-in cable fastener. Simply tuck the cable into place along the side of the adapter for quick and secure storage while you’re traveling to ensure the adapter is neatly stored in your travel bag.

    Astonishing picture quality
    The HDMI output on this travel adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support high-definition maximum resolutions of up to 1920 x 1200, so you can still enjoy excellent video quality.

    The travel adapter is compatible with USB Type-C Intel® Thunderbolt™ 3 devices that are capable of outputting a DisplayPort signal.

    The CDPVGDVHDB is backed by a 2-year warranty and free lifetime technical support.

    Note: macOS 10.12.6 or later is required for your MacBook to support this product.
    Your USB-C equipped host laptop must support video (DP alt mode) to work with this adapter. The adapter does not support USB Power Delivery.

    • Features:

      • 3-in-1 adapter - USB-C to VGA, USB-C to DVI and USB-C to HDMI
      • Maximum portability with built-in cable manager
      • Astonishing picture quality with support for UHD 4K
      • Plug-and-play installation
      • Small footprint
      • Lightweight design
      • Compatible with USB Type-C
      • Thunderbolt 3 devices that are capable of outputting a DisplayPort signal
    • Specifications:

      • Hardware
      • Active or Passive Adapter: Active
      • Adapter Style: Adapters
      • Chipset ID: Cypress - CYPD2120-24LQXIT; Cypress - CY7C65217; Analogix - ANX9847FN-AA-R; MegaChips - MCDP2850-BC
      • Converter Type: Travel A/V Adapters
      • Output Signal: HDMI; VGA; DVI-D (DVI Digital)
      • Audio Specifications; HDMI output - 7.1 surround sound
      • General Specifications; Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
      • Maximum Analog Resolutions; 1920 x 1200 @ 60Hz
      • Maximum Digital Resolutions; 3840 x 2160 @ 30Hz
      • Supported Resolutions; HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720
      • DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720
      • Video Revision: DisplayPort 1.2
      • Wide Screen Supported: Yes
      • Connector A: 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
      • Connector B: 1 - VGA (15 pin, High Density D-Sub) Female Output; 1 - DVI-I (29 pin) Female Output; 1 - HDMI (19 pin) Female Output

        Physical Characteristics
      • Accent Color: Black
      • Cable Length: 3.5 in [90 mm]
      • Color: Black
      • Enclosure Type: Aluminum
      • Product Height: 0.7 in [18 mm]
      • Product Length: 4.3 in [110 mm]
      • Product Weight: 2.4 oz [67 g]
      • Product Width: 2.4 in [60 mm]
      • Humidity: 5~95% RH
      • Operating Temperature: 5°C to 35°C (41°F to 95°F)
      • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
    • Warranty:

      • 2 Year
