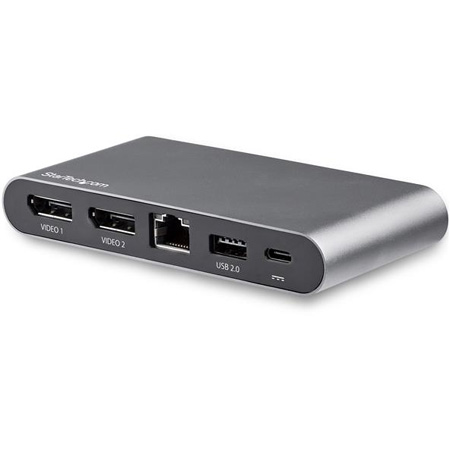

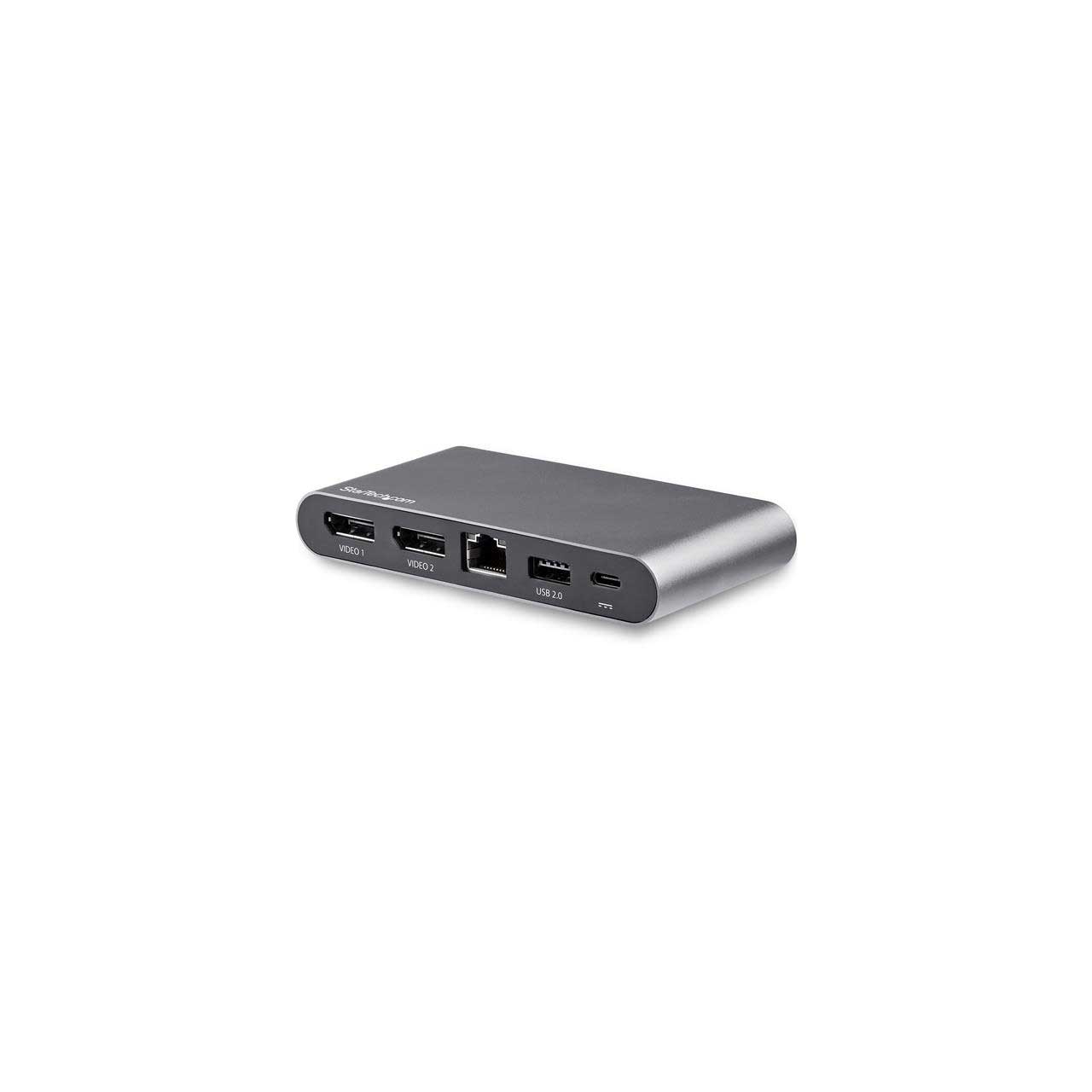

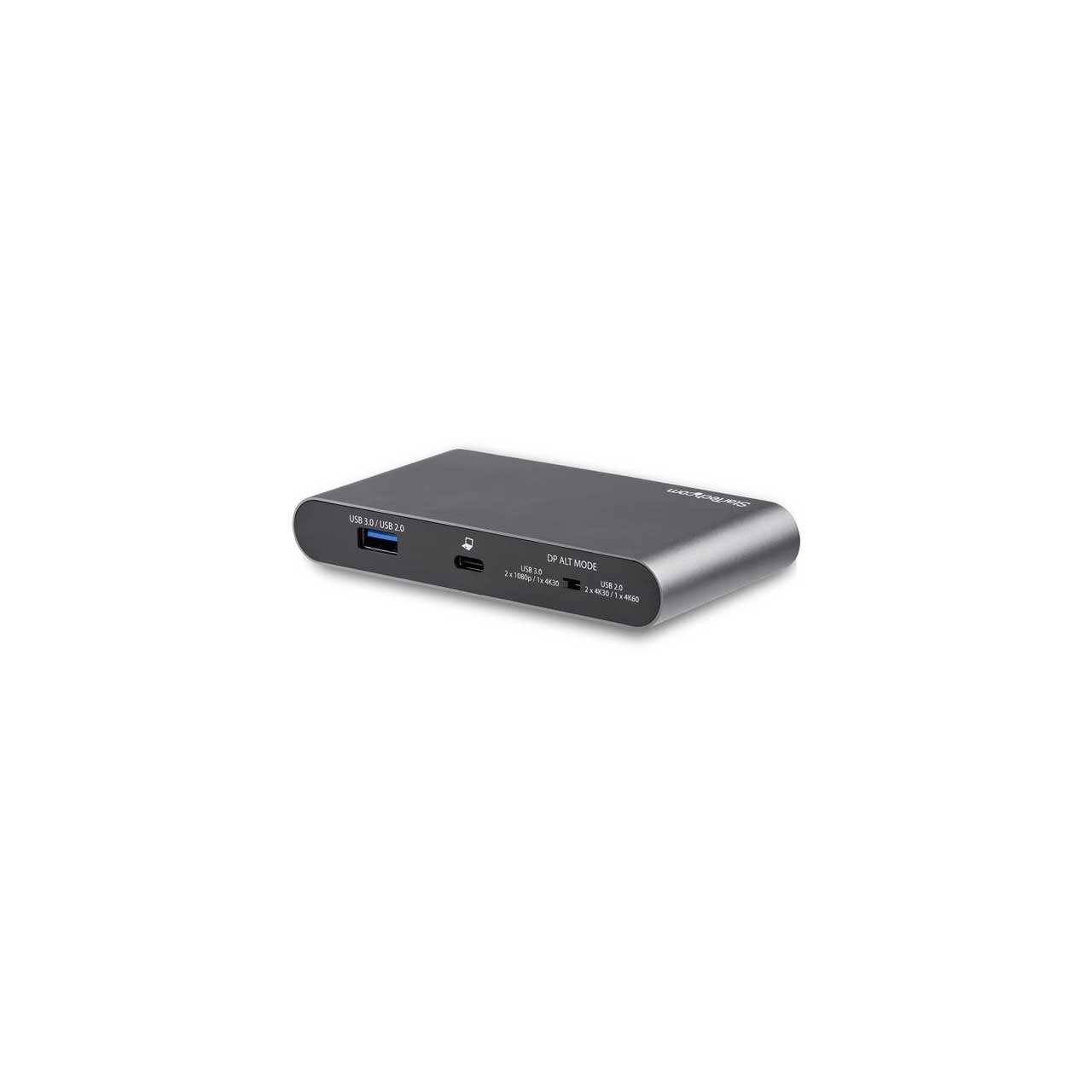

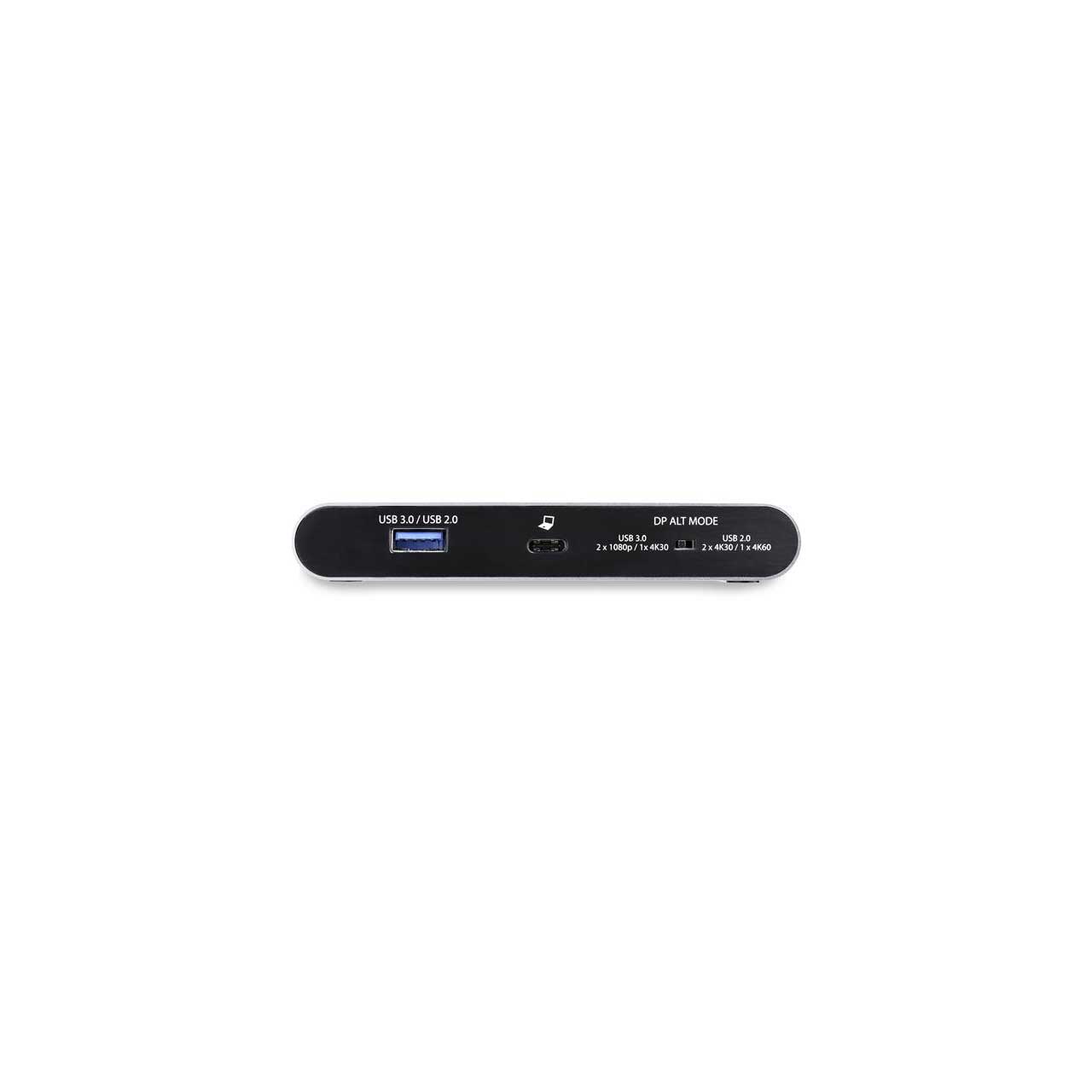

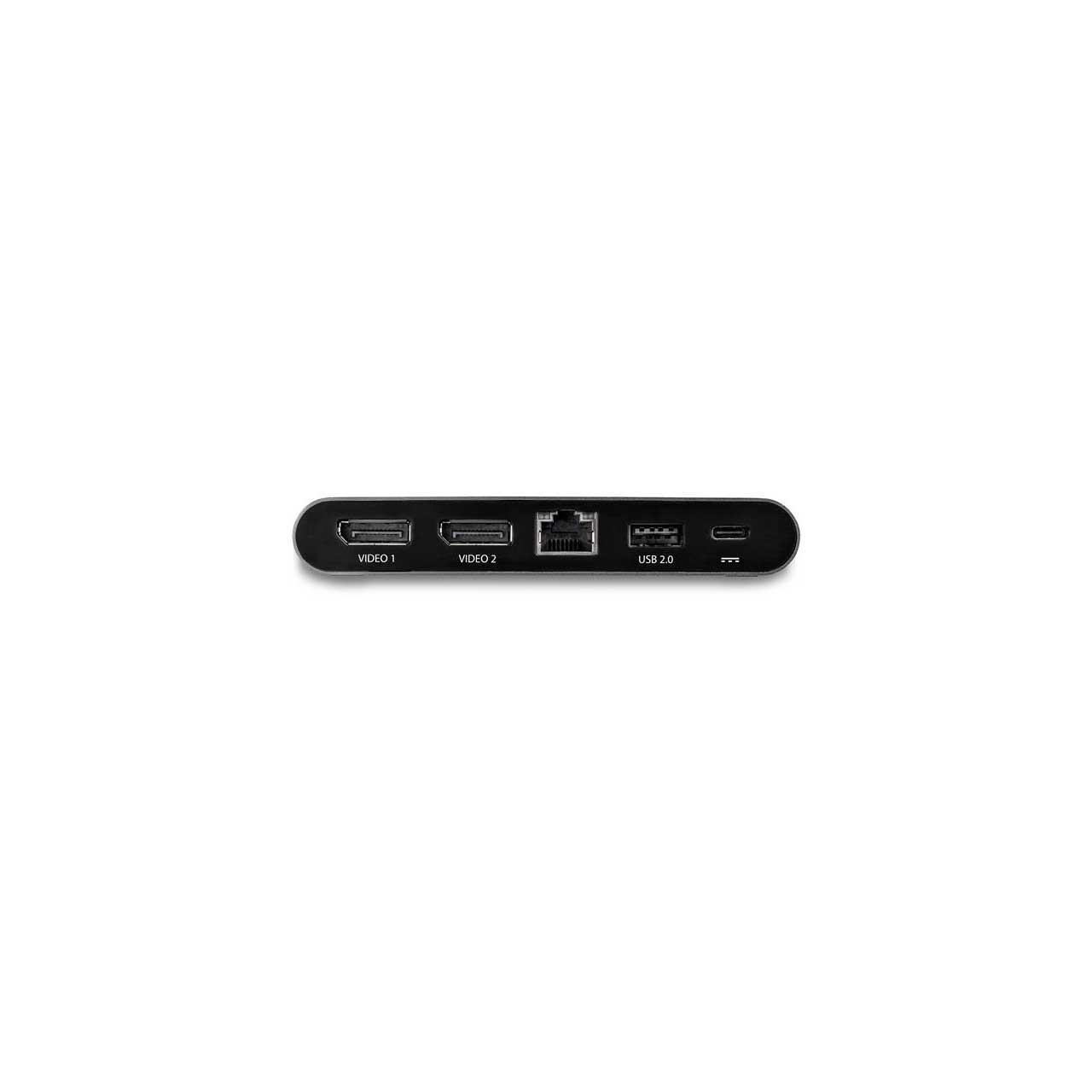

StarTech DK30C2DAGPD USB C Multiport Adapter - Dual 4K DP - Windows

DK30C2DAGPD - Overview

• Features:

  • Create a premium Windows® based workstation with configurable dual 1080p or 4K 30Hz DP monitors
  • Supports Gigabit Ethernet network access and 2 USB-A ports for all your essential connections
  • 100W PD 3.0 pass through with up to 85W for laptop charging.


• Specifications:

  • Compatibility
  • Windows® 7, 8, 8.1, 10, 11
  • Chrome OS

    Connector(s)
  • 1 - Connector Type(s): USB Type-C (24 pin, 5Gbps), USB Type-C (24 pin) USB Power Delivery only, RJ-45, USB Type-A (9 pin, 5 Gbps), USB Type-A (4 pin) USB 2.0
  • 2 - Connector Type(s): DisplayPort (20 pin)

    Environmental
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 0~95% RH (Non-condensing)

    Hardware
  • 4K Support: Yes
  • Fast-Charge Port(s): No
  • Displays Supported: 2
  • Bus Type: USB-C
  • Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1
  • Chipset ID: VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153

    Packaging Information
  • Shipping (Package) Weight: 10,6 oz [300,0 g]
  • Package Length: 8,2 in [20,8 cm]
  • Package Width: 5,7 in [14,5 cm]
  • Package Height: 1,7 in [42,0 mm]

    Performance
  • Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions: Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz. Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz. Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz. Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
  • Type and Rate: USB 3.0 - 5 Gbit/s
  • UASP Support: Yes
  • Auto MDIX: Yes
  • Full Duplex Support: Yes

    Physical Characteristics
  • Color: Black
  • Material: Plastic
  • Product Length: 4,7 in [12,0 cm]
  • Product Width: 2,4 in [60,0 mm]
  • Product Height: 0,7 in [1,9 cm]
  • Weight of Product: 5,3 oz [150,0 g]

    Power
  • Power Source: Bus Powered and Host USB-C Power Adapter
  • Power Delivery: 100W
  • Laptop Charging via Power Delivery: 85W
  • Power Consumption (In Watts): 15W


• Item Includes:

  • 1x Multiport Adapter

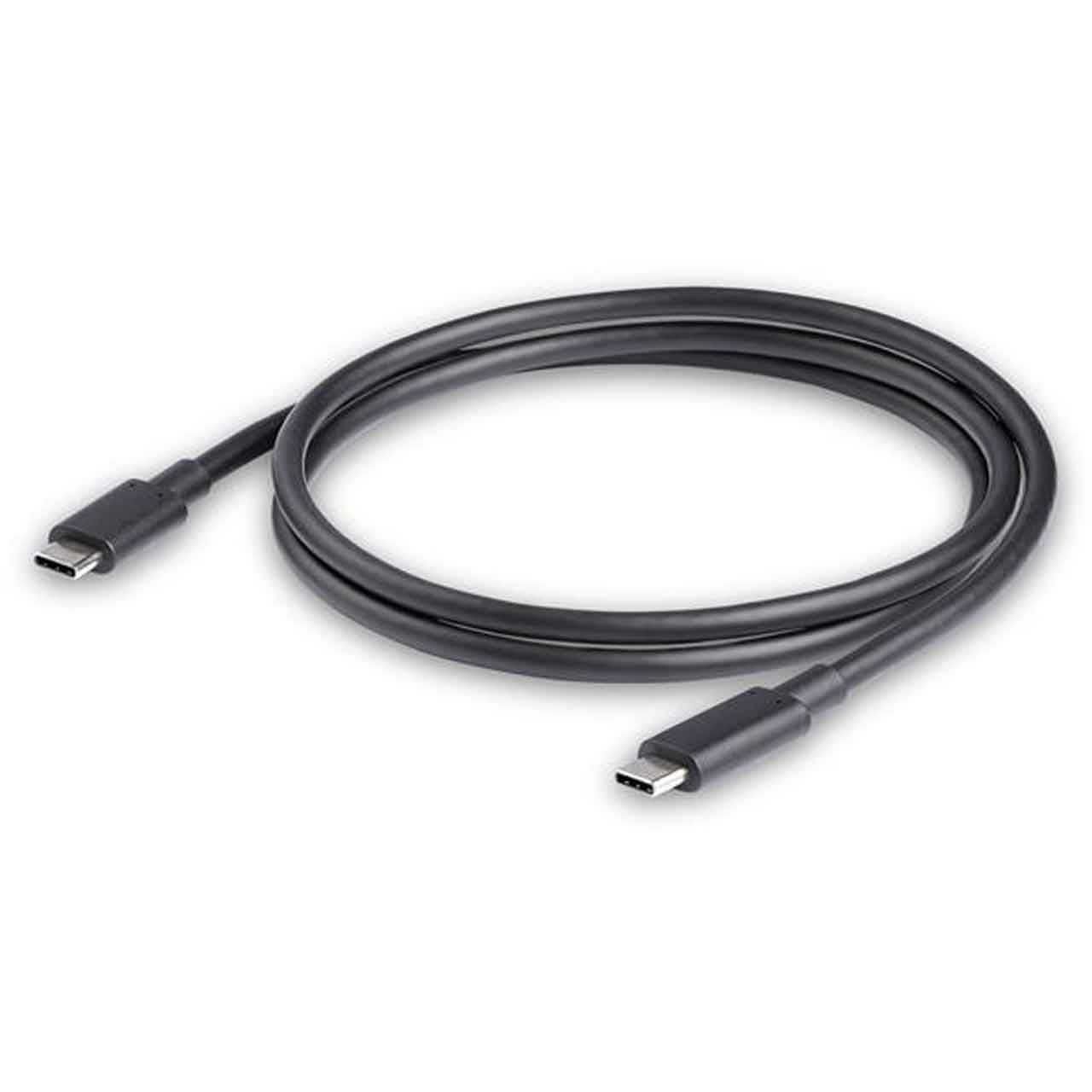

  • 1x USB-C Cable
  • 1x Quick-Start Guide


• Warranty:

  • 3 Years


• GTIN:

  0065030878746
