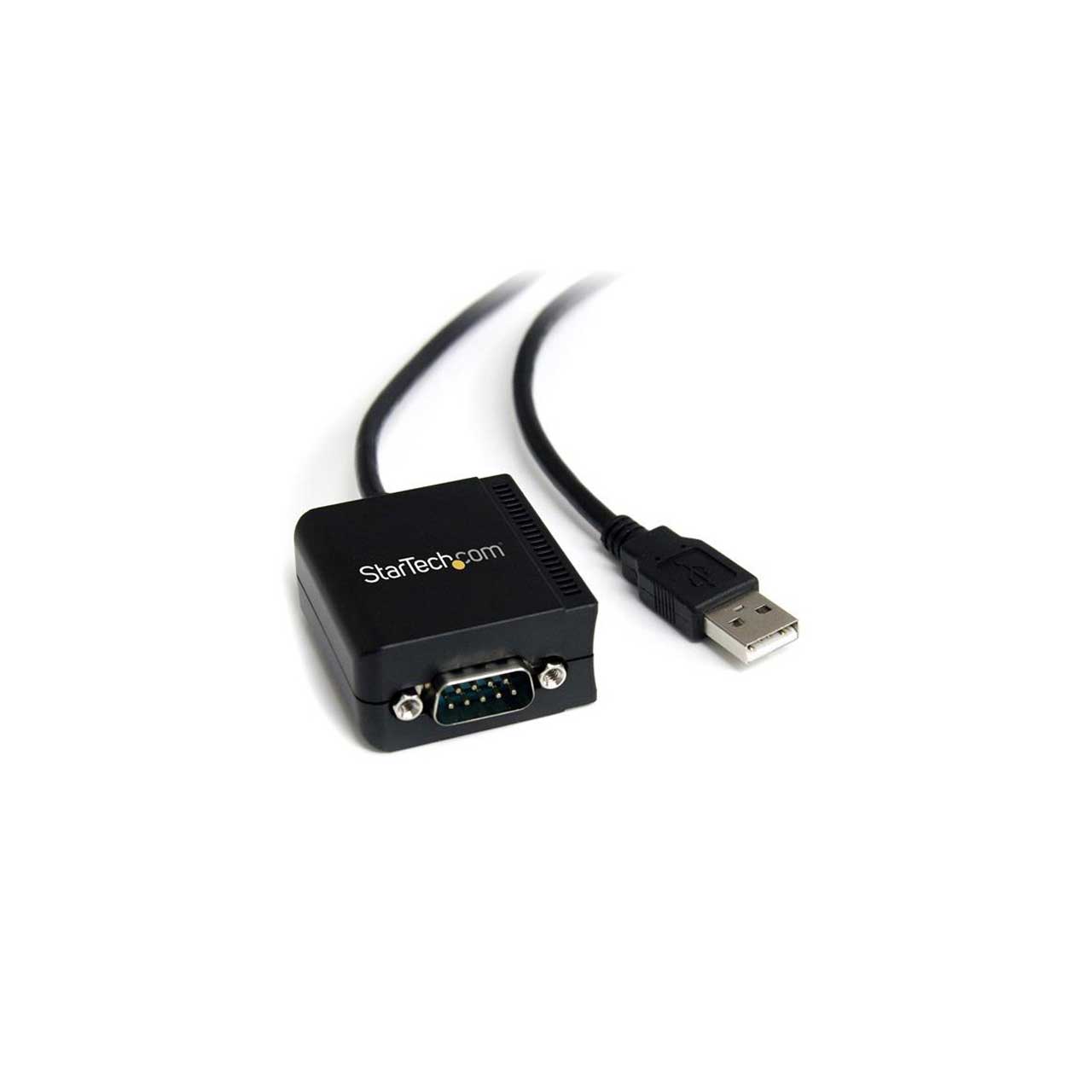

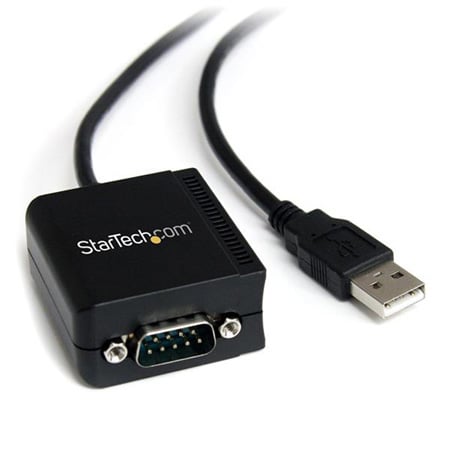

Startech ICUSB2321F 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

ITEM #: ST-ICUSB2321F MFG #: ICUSB2321F

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$42.99

Our Price:

$34.79

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ICUSB2321F - Overview

    The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. Compatibility with a broad list of Operating Systems including Windows, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

    This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

    • Features:

      • Integrated FTDI USB UART Chip
      • Baud Rate up to 115.2Kbps
      • COM Port assignments maintained across reboot
      • Powered by the USB port - no external power adapter required
      • Single cable design for portability
      • Designed to make serial port expansion quick and easy
      • Compatible with Windows, Mac OS and Linux
      • 6-foot cable length for connecting to devices without having to be too close
      • USB to Straight-Through RS232 Serial Adapter

    • Specifications:

      • Warranty: 2 Years
      • Bus Type: USB 2.0
      • Chipset ID: FTDI - FT232RL
      • Interface: Serial
      • Port Style: Cable Adapters
      • Ports: 1
      • Data Bits: 7, 8
      • FIFO: 256 Bytes
      • Max Baud Rate: 115.2 Kbps
      • MTBF: 836981.2 hours
      • Parity: None, Odd, Even, Mark, Space
      • Serial Protocol: RS-232
      • Stop Bits: 1, 2
      • Connector Type(s): 1 - DB-9 (9 pin, D-Sub) Male; 1 - USB Type-A (4 pin) USB 2.0 Male
      • OS Compatibility: Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10; Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016; Mac OS 10.6 to 10.12; Linux 2.4.x to 4.11.x LTS Versions only
      • System and Cable Requirements: One available USB 1.1 (or better) port
      • Power Source: USB-Powered
      • Humidity: 5~95% RH
      • Operating Temperature: 32°F to 131°F
      • Storage Temperature: -4°F to 185°F
      • Cable Length: 6-ft
      • Color: Black
      • Enclosure Type: Plastic
      • Dimensions (H x L x W): 0.9 in x 1.8 in x 1.6 in
      • Product Weight 7.1 oz
      • Shipping (Package) Weight: 0.5 lb

    • Warranty:

      • 2 Years

    • GTIN:

      0065030843485
