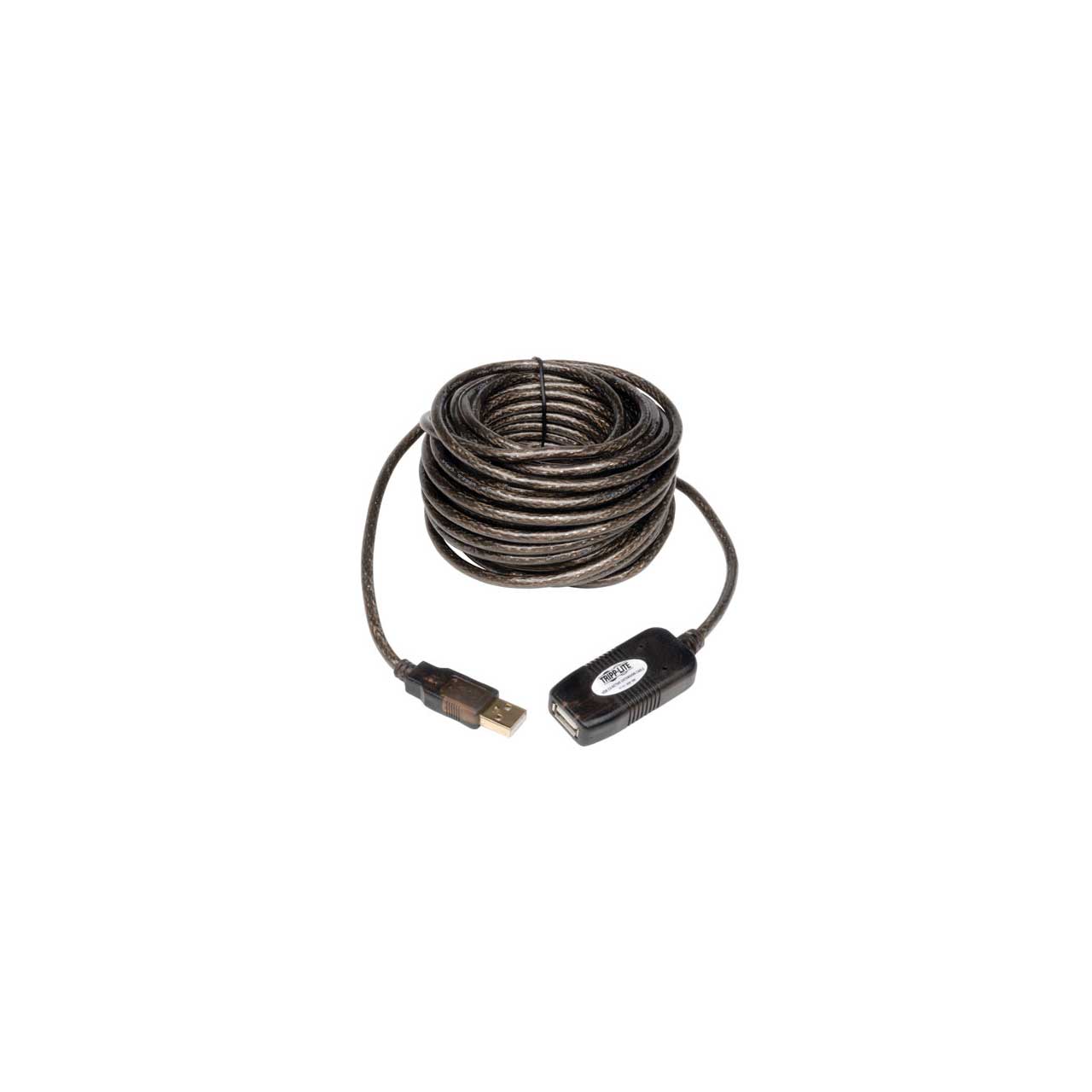

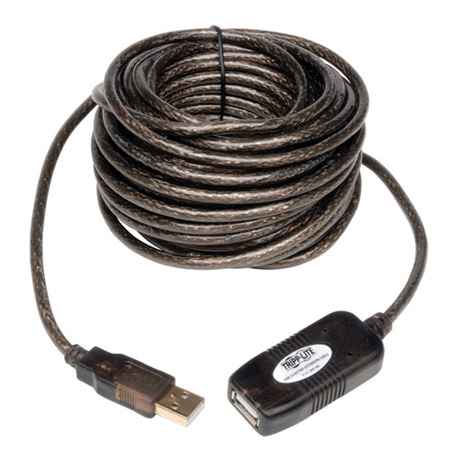

Tripp Lite U026-10M USB 2.0 A/A Hi-Speed Active Extension Repeater Cable - 33ft

ITEM #: TRL-U026-10M MFG #: U026-10M

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$75.44

Our Price:

$31.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    U026-10M - Overview

    Tripp Lite's 10-meter ( 33 ft. ) USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 131ft by daisy chaining up to 4 of these active cables. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard 6' 10' or 15' USB A-B cable to reach the desired distance. The U026-10M provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-10M.

    System Requirements:
    USB 2.0 computer port and USB 2.0 device required to meet USB 2.0 speeds
    External power supply or powered USB hub (such as U222-004-R) required for power applications above 250mA.

    Note: The U026-10M provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-10M.

    • Features:

      • 33ft (10m) USB 2.0 Active Extension Cable, USB-A Male to USB-A Female
      • Full 480Mbps Transfer rate, as well as backward compatible to USB 1.1 ( 12Mbps )
      • Daisy Chain four cables for a total of 131-ft. (39.92 m)
      • Bus Powered - no external power required
      • Compatible with all major operating systems
      • Plug-and-Play; no software to load

    • Specifications:

      • Technology: USB 2.0 (High Speed)
      • USB Cable Type: Active
      • Cable Jacket Color: Black
      • Cable Length: 32.8ft (10m)
      • Shipping Dimensions (H x W x D): 2 x 5 x 6" (5.08 x 12.70 x 15.24cm)
      • Shipping Weight: 0.76lbs (0.34kg)
      • Operating Temperature Range: 28.4° to 125.6°F (-2° to 52°C)
      • Storage Temperature Range: -4° to 132.8°F (-20° to 56°C)
      • Relative Humidity: 20 to 80% RH, Non-Condensing
      • Side A - Connector 1: USB A (Male)
      • Side B - Connector 1: USB A (Female)
      • Product Compliance: RoHS)

    • Item Includes:

      • 1x USB2.0 A/A Hi-Speed Active Extension / Repeater Cable - 33 ft (10M)

    • GTIN:

      0037332173263
