Startech ST424MX 4x4 VGA Matrix Video Switch Splitter with Audio

ITEM #: ST-ST424MX MFG #: ST424MX

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ST-ST424MX

ST424MX - Overview

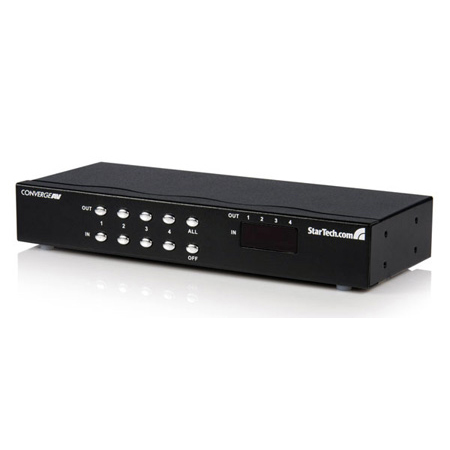

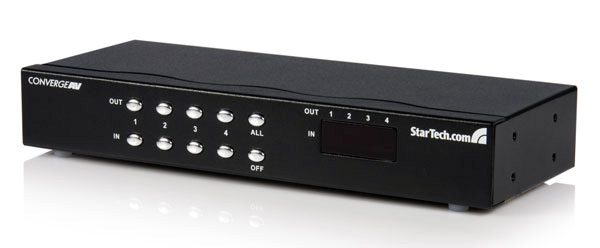

The ST424MX 4x4 VGA Matrix Switcher/Splitter allows users to share up to four distinct VGA inputs (as well as corresponding audio source) between four independent displays or projectors.

Providing convenient push button control, the VGA Matrix Switcher/Splitter allows each of the four input VGA signals and the corresponding audio, to be switched individually meaning that you can have a different source showing on each display or one source showing on both offering maximum flexibility and control.

To ensure optimized VGA distribution and signal management even over longer distance signal transmissions, the ST424MX VGA Matrix Switcher/Splitter features a built-in signal booster that facilitates installation of displays at distances of up to 210ft away from the source device, while maintaining flawless signal integrity.

Designed to provide maximum control while saving space and eliminating clutter, the ST424MX can be used as a standalone solution or rack mounted using the (included) ear-mounts.

Backed by a StarTech.com 1 year warranty and free lifetime technical support.

  • Features:

    • Matrix switching functionality gives you full control of what source is shown on each display with the touch of a button
      Built-in signal amplifier lets you extend your connection by up to 210 feet
      Allows four PC's / Media Players to provide video to four displays / projectors
      Supports cascading with additional units
      Maximum resolution of up to 1920 x 1440 pixels
      65m (213ft) Maximum cable length
      Equipped with easy to use front panel selection buttons
      High video bandwidth (350 Mhz)
      Supports Multi-Sync video types including RGBHV, RGsB, RGBS
      Supports DDC, DDC2, DDC2B
      Audio Frequency Response 20Hz'20KHz

  • GTIN:

    0065030830980
