StarTech SV565UTPU USB VGA KVM Console Extender over CAT5 UTP 500 Ft.
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

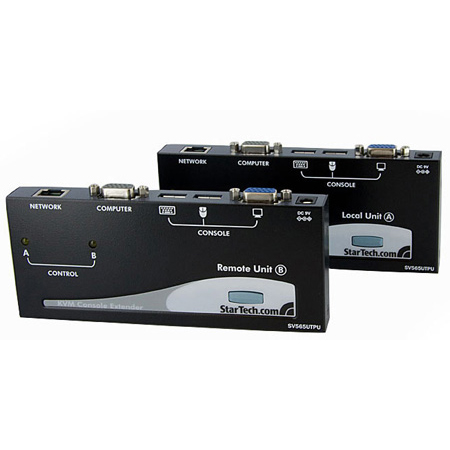

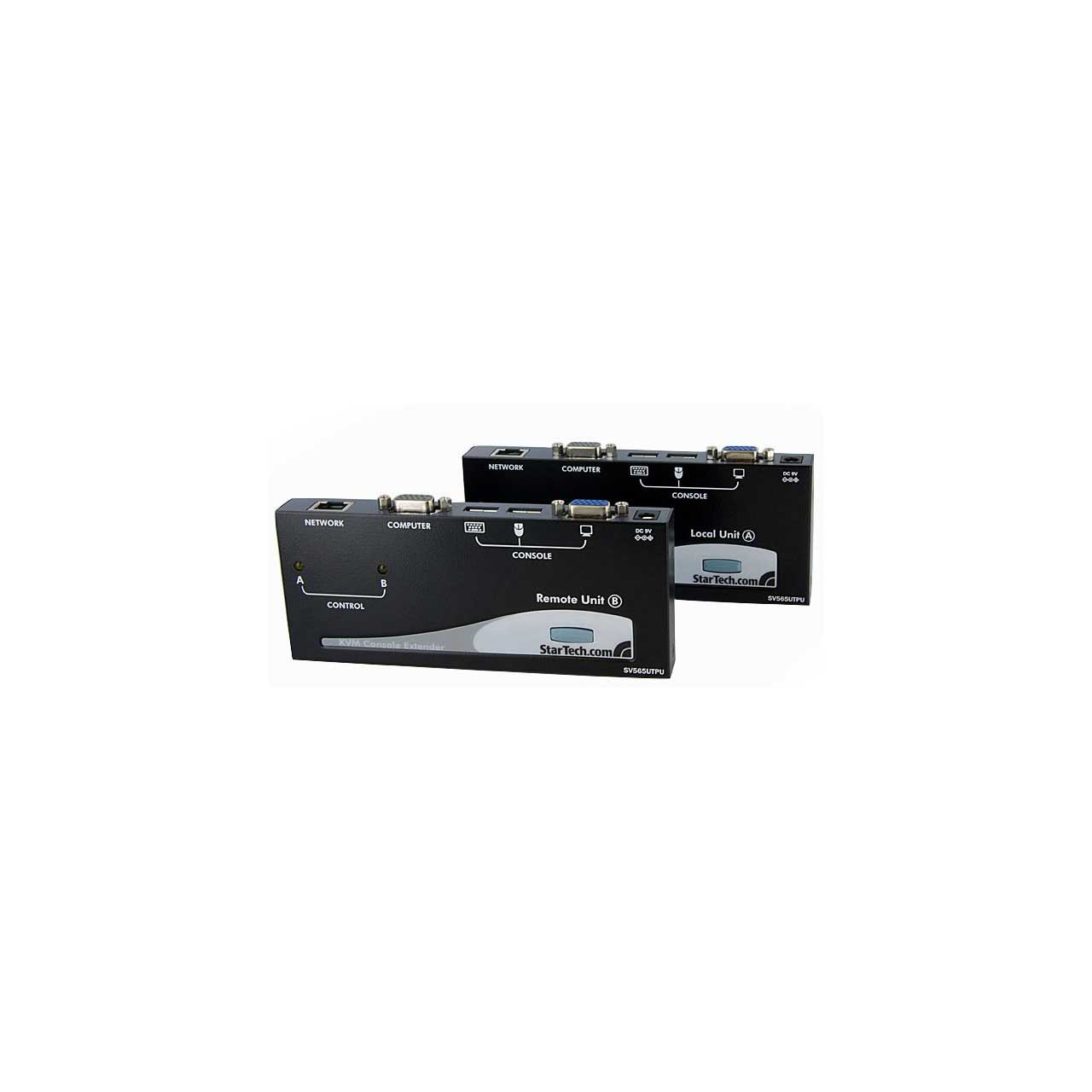

    StarTech SV565UTPU USB VGA KVM Console Extender over CAT5 UTP 500 Ft.


    Item #: ST-SV565UTPU   •   MFG #: SV565UTPU


    List Price:$242.99
    Our Price:$219.99

    free ship
    Direct Ship from manufacturer, contact us for availability
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      The StartTech SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500ft (150m) away. PC connection cables are included with this product for a ready out of the box solution.

      You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

      This product is TAA compliant and backed by a Startech 2-year warranty with free lifetime technical support.

      Monitor computer-controlled equipment in a factory or warehouse
      Use one or more servers in a server room from a remote location
      Control remote machines and security monitoring systems

      • Features

        • PS/2 and USB host PC's supported via the appropriate PS2 or USB KVM cable (USB style included)
        • Can be used with a single computer or connected to an existing KVM switch
        • Easy installation using industry-standard UTP network cable
        • Supports most combo keyboard and mouse sets (including wireless)
        • Intuitive hotkey commands
        • Supporst auto-switching between host and remote users or dedicated control
      • Specifications

        • Hardware
        • Audio: No
        • KVM Ports: 2
        • Number Of Monitors Supported: 1
        • PC Interface: USB
        • PC Video Type: VGA
        • Rack-Mountable: No

        • IP Control: No
        • Max Transfer Distance: 492ft (150m)
        • MTBF: 126000 Hours
        • Supported Resolutions:
          1280x1024 @ 300ft/100m
          1024x768 @ Maximum Cable Length

        • Console Interface(s): 1x VGA (15 Pin, High Density D-Sub) Female, 2x USB Type-A (4 Pin) USB 2.0 Female
        • Host Connectors: 1x VGA (15 Pin, High Density D-Sub) Female
        • Other Interface(S): 1x RJ-45 Female

        • OS Compatibility: OS Independent; No Software Or Drivers Required

          Special Notes/Requirements
        • Note: Product Weights/Measurements And Connector Types Indicate A Single Unit Only (Either Host Or Remote)

        • Center Tip Polarity: Positive
        • Input Current: 0.2A
        • Input Voltage: 100 - 240 AC
        • Output Current: 0.6A
        • Output Voltage: 9 DC
        • Plug Type: M
        • Power Consumption (In Watts): 5.4
        • Power Source: AC Adapter Included

        • Humidity: 0~80% Rh
        • Operating Temperature: 32°F - 104°F (0°C - 40°C)
        • Storage Temperature: -4°F - 140°F (-20°C - 60°C)

          Physical Characteristics
        • Color: Black
        • Product Height: 0.8" (20.3mm)
        • Product Length: 3" (76.2mm)
        • Product Width: 6.1" (154.9mm)
        • Weight Of Product: 21.6oz (612g)

          Packaging Information
        • Package Height: 3.3" (83.8mm)
        • Package Length: 9.8" (248.9mm)
        • Package Width: 11.6" (294.6mm)
        • Shipping (Package) Weight: 3lb (1.3kg)
      • Item Includes

        • 1x Host unit
        • 1x Remote unit
        • 2x 6ft 2-in-1 USB VGA KVM cables
        • 8x Rubber feet
        • 1x Power adapter
        • 1x Instruction manual
      • Warranty

        • 2 Years
      • GTIN:
