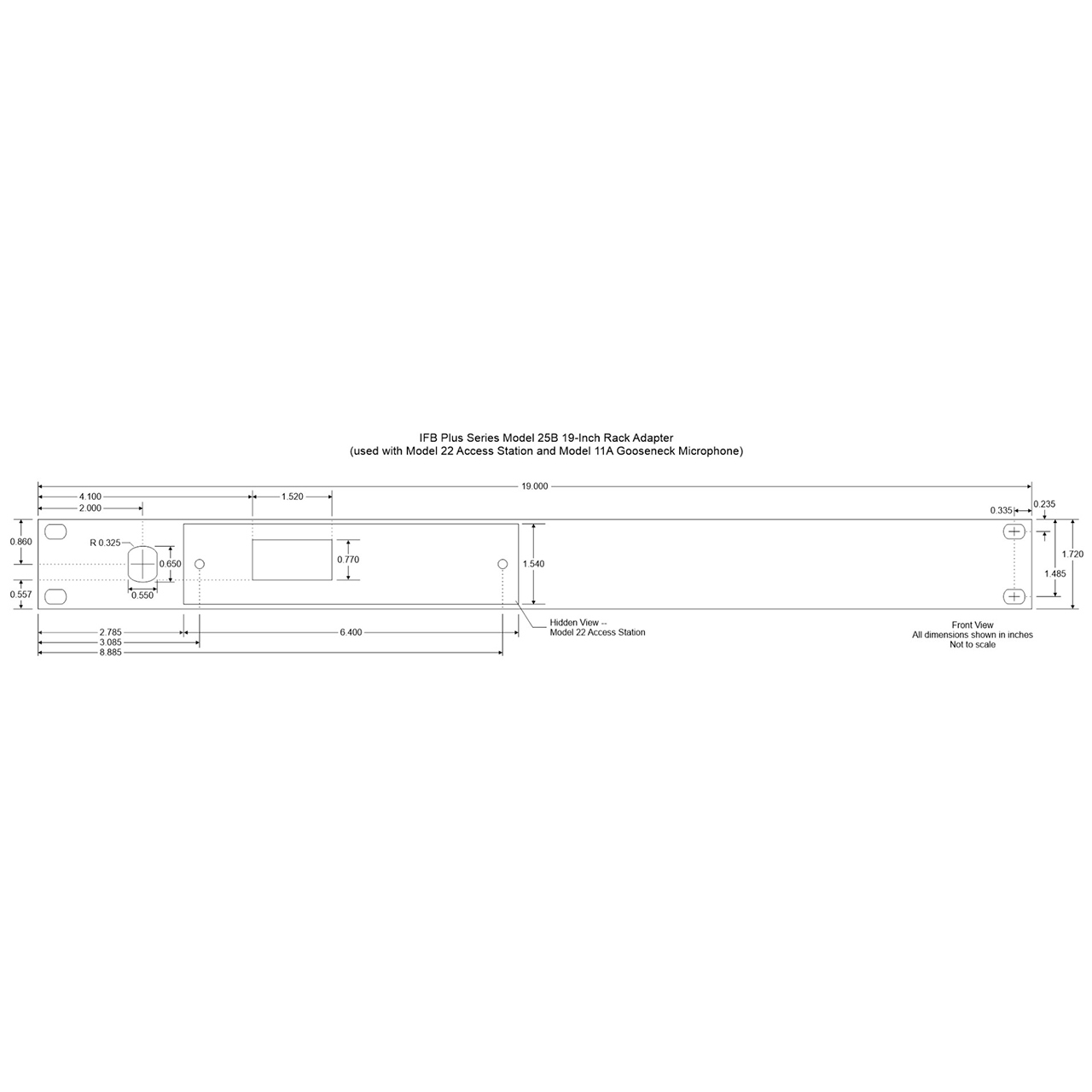

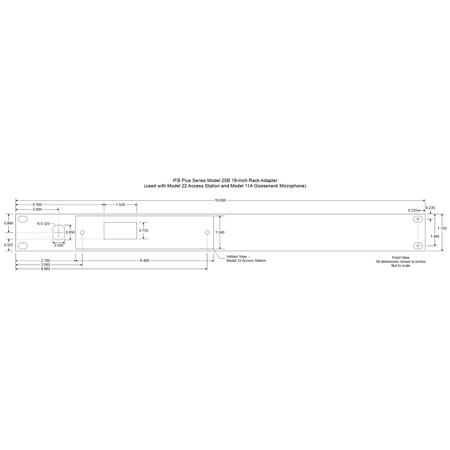

The Studio Technologies Model 25B 19" Rack Adapter allows the Model 22 to be mounted in one space of a standard 19" rack enclosure. Alternately, the Model 22, along with an optional Model 28A Panel Adapter, can be flush mounted in an opening provided in a custom-fabricated enclosure or cabinet surface. The Model 22 interfaces with the Model 2A Central Controller using a 9-conductor interface cable. Power for the Model 22 is provided by the connected Model 2A Central Controller.
Please Note: Image not provided by the manufacturer.
