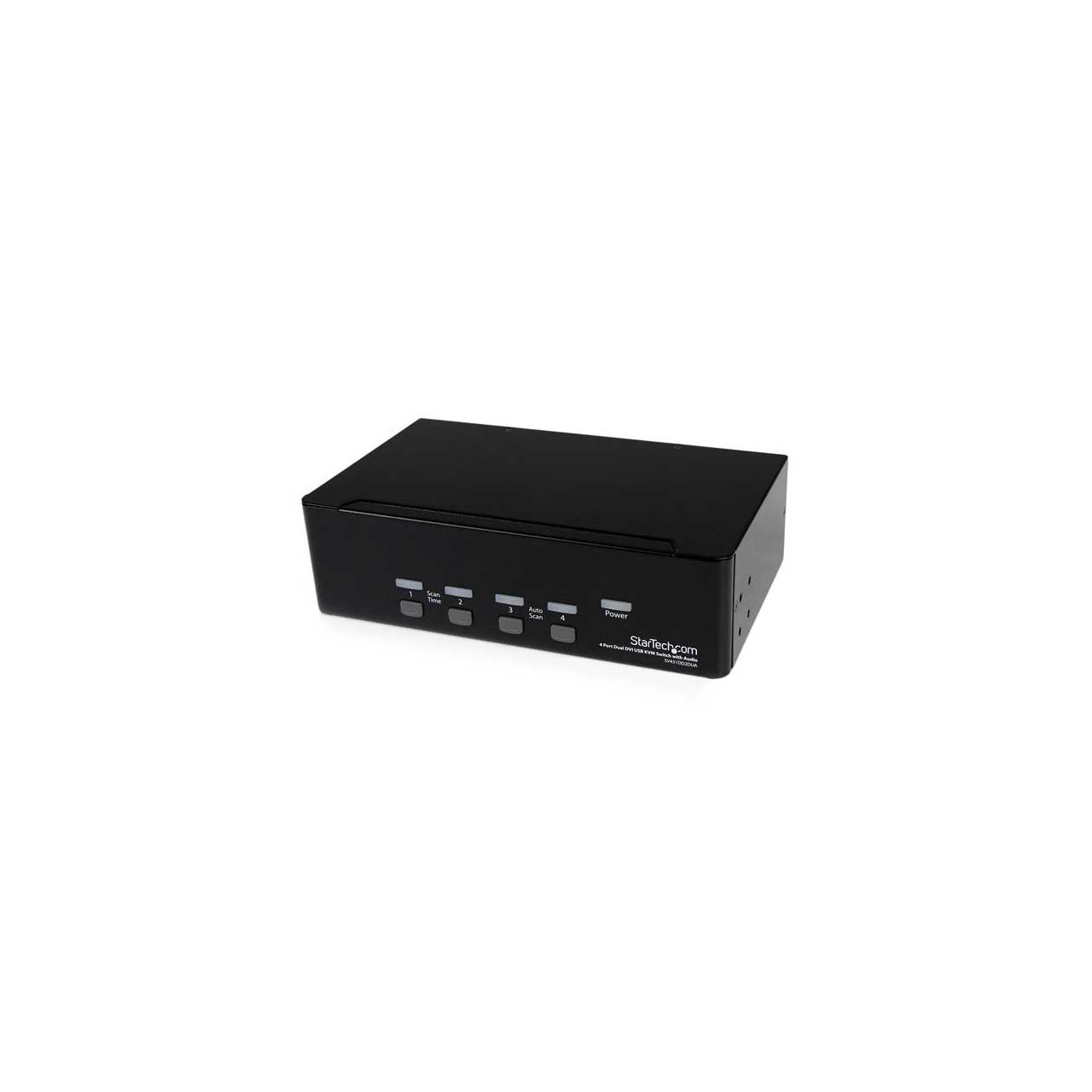

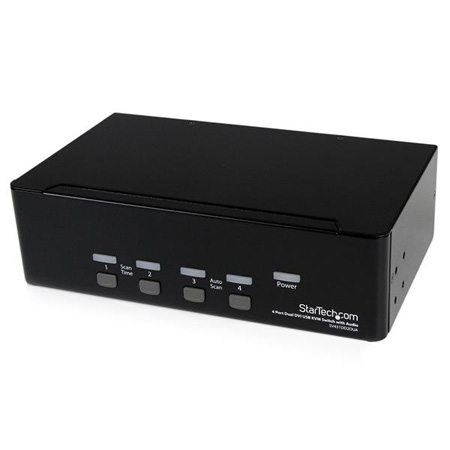

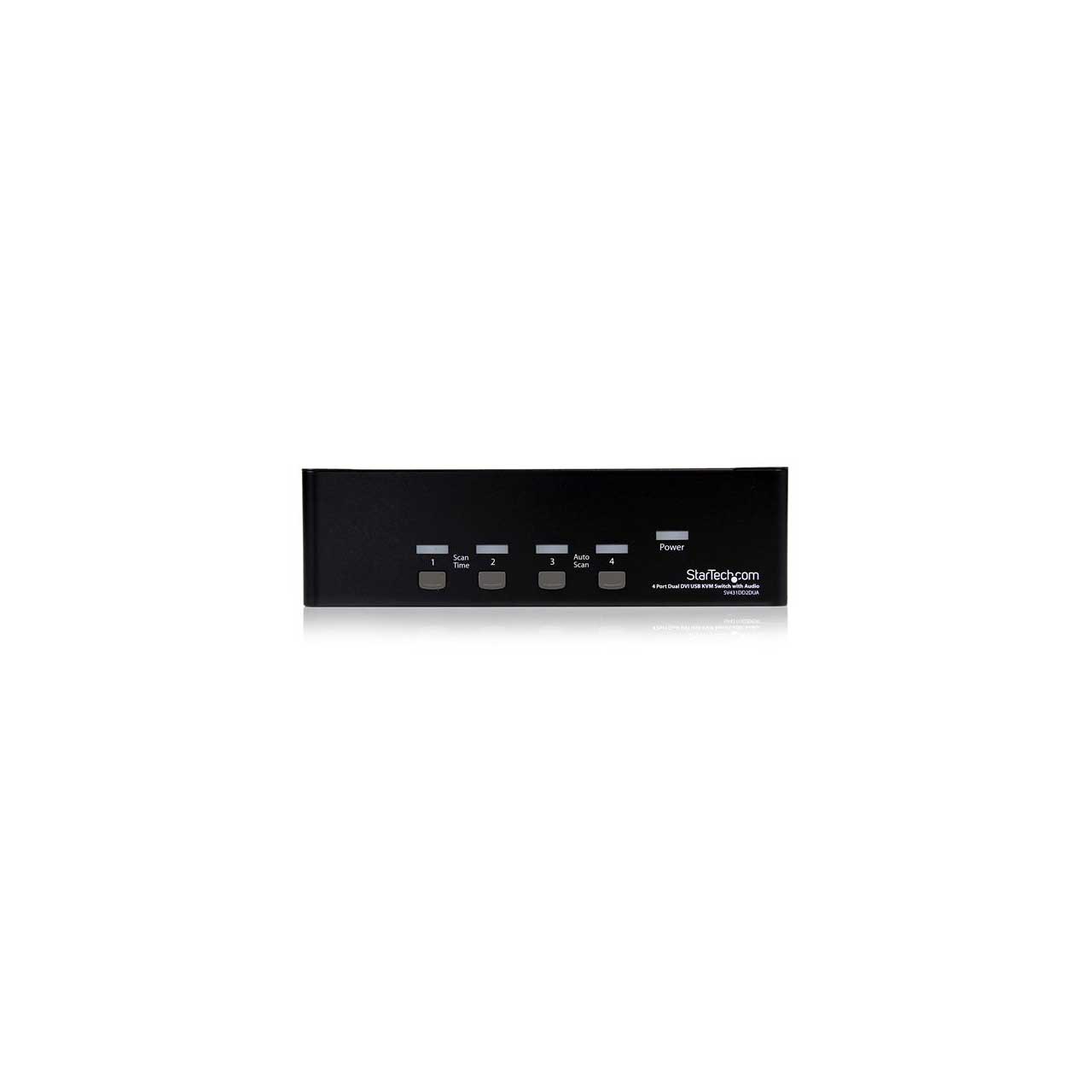

StarTech SV431DD2DUA 4 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub

ITEM #: SV431DD2DUA MFG #: SV431DD2DUA

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$458.99

Our Price:

$348.40

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    SV431DD2DUA - Overview

    The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.

    An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.

    Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.

    • Features:

      • Front panel push-buttons and Hot-key functions for easy switching
      • Supports resolutions up to 2048x1536 (Analog) and 1920x1200 (digital)
      • USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)
      • Audible tone confirms port switching
      • Combined or independent switching of audio ports
      • EDID retention - eliminates hassle when switching between computers as the KVM "remembers" monitor settings
      • Supports all USB-capable operating systems (Windows 98e/SE/ME/2000/XP/Vista/7, Linux, Mac OS, etc.)
      • Rugged, all-metal chassis for use in harsh environments
      • TMDS compliant to support DDC2B emulation and HDCP for digital contents protection
      • Status LED display for easy port status monitoring

    • Specifications:

      • Hardware
      • Audio Yes
      • Cables Included No
      • Daisy-Chain No
      • KVM Ports 4
      • Multi-Monitor Yes
      • PC Interface USB
      • PC Video Type DVI
      • Rack-Mountable Optional

      • Performance
      • DVI Support Yes - Single Link
      • IP Control No
      • Maximum Analog Resolutions 2048x1536 @85Hz
      • Maximum Digital Resolutions 1920x1200 @60Hz
      • Maximum Number of Users 1
      • Port Selection Support Push Button and Hotkeys

      • Connector(s)
      • Console Interface(s) 2 - 3.5 mm Mini-Jack (3 Position) Female
      • 2 - DVI-I (29 pin) Female
      • 4 - USB A (4 pin) Female
      • Host Connectors 4 - USB B (4 pin) Female
      • 8 - 3.5 mm Mini-Jack (3 Position) Female
      • 8 - DVI-I (29 pin) Female

      • Software
      • OS Compatibility OS independent; No software or drivers required

      • Physical Characteristics
      • Color Black
      • Enclosure Type Steel
      • Product Depth 5.1 in [130 mm]
      • Product Height 2.4 in [60 mm]
      • Product Weight 44.2 oz [1253 g]
      • Product Width 8.7 in [220 mm]

      • Indicators
      • LED Indicators 1 - Green - Power
      • 4 - Green - Host Online, Red - Host Selected

      • Power
      • Center Tip Polarity Positive
      • Input Current 0.8A
      • Input Voltage 110 ~ 240 AC
      • Output Current 1.5A
      • Output Voltage 12 DC
      • Plug Type M
      • Power Source AC Adapter Included

      • Environmental
      • Humidity 90% RH
      • Operating Temperature 0°C to 40°C (32°F to 104°F)
      • Storage Temperature -20°C to 60°C (-4°F to 140°F)

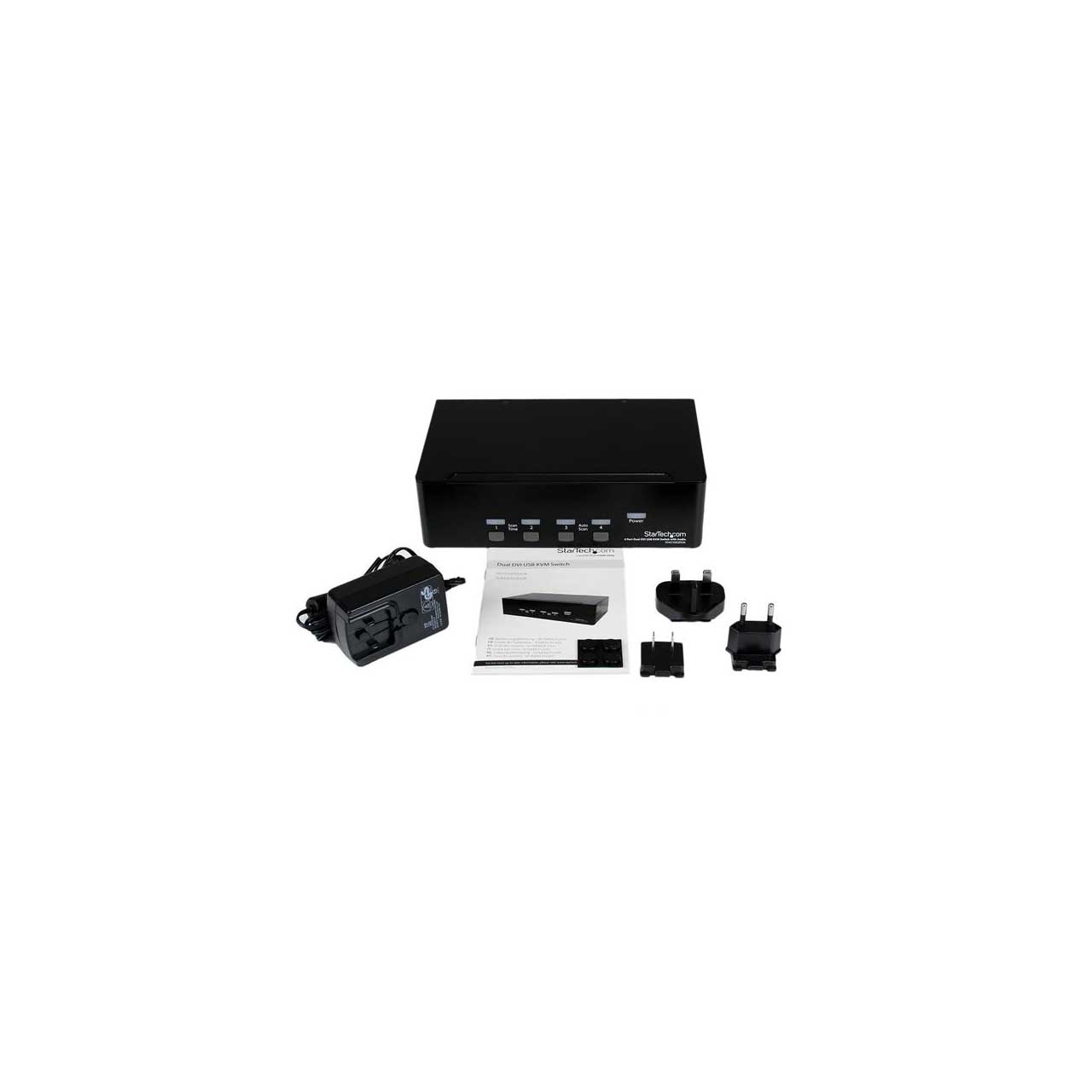

    • Item Includes:

      • 1 - 4 Port Dual DVI USB KVM
      • 4 - Rubber Feet
      • 1 - Universal Power Adapter (US/EU/UK) and AU in Australia
      • 1 - Instruction Manual

    • Warranty:

      • Backed by a StarTech.com 3 year warranty and free lifetime technical support.

    • GTIN:

      0065030835695
