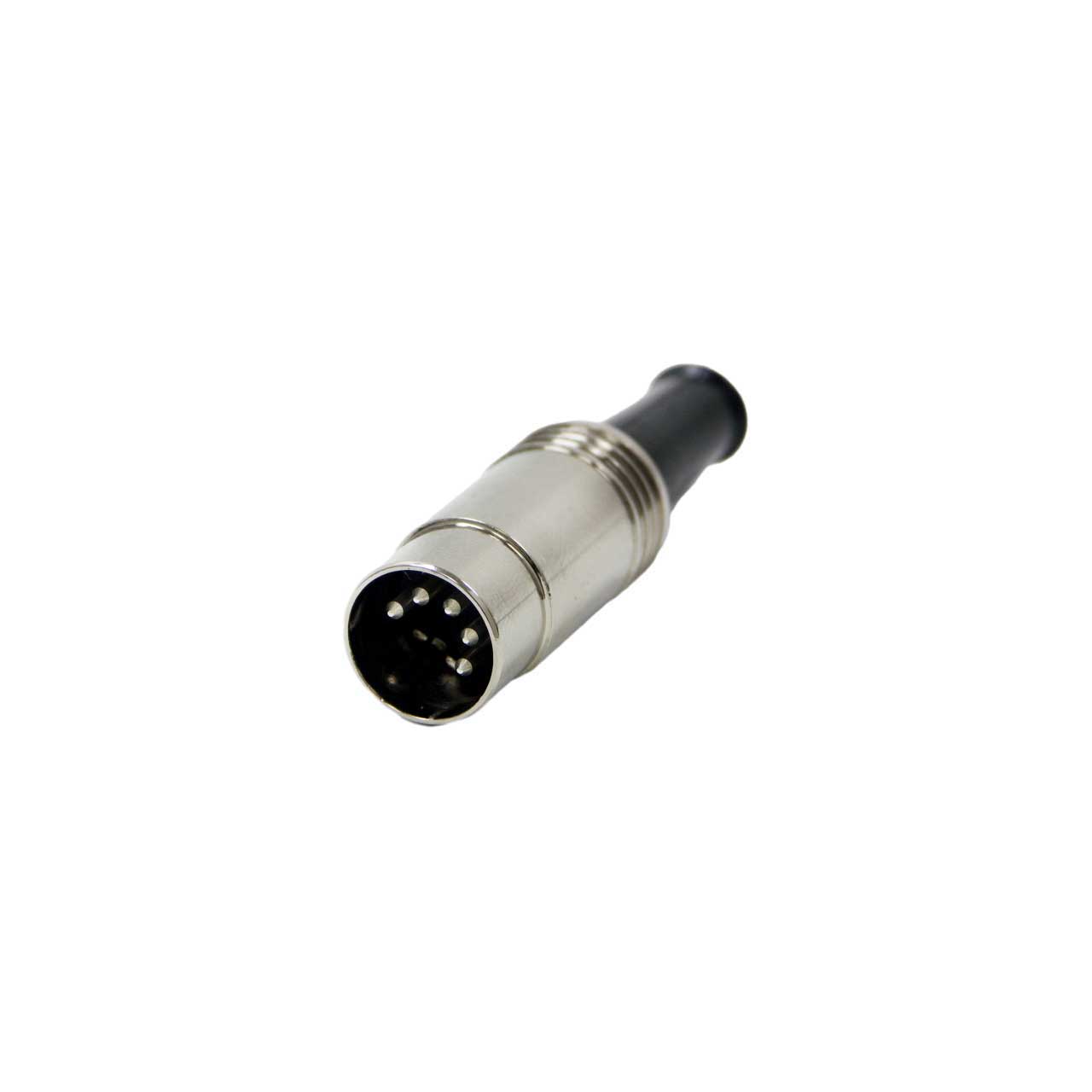

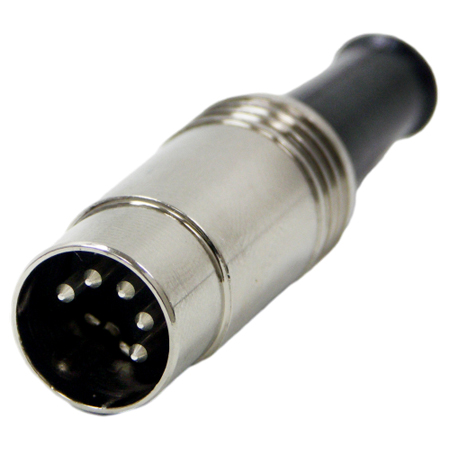

Switchcraft 05BL5MX Circular DIN Connectors 5-Pin Male Plug

ITEM #: SW-05BL5MX MFG #: 05BL5MX

Primary Image
Switchcraft

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

05BL5MX - Overview

Switchcraft 05BL5MX male cord plug with shielded barrel and insulated snaplock plastic body. Two piece metal barrel surrounds pin insert to form an electrical shield. The entire insert assembly is held together by snapping the insulated plastic shell over the assembly. The barrel's special metal tab locks the shell in place. Standard color of plastic shell is gray. All-purpose cable clamp.

  • Specifications:

    • Contact Resistance: Cord Plugs and Receptacles; .010 ohms, contact spring/pin .030 ohms, ground clip/shell. Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts.
    • Dielectric Withstanding Voltage: 500 V (rms)
    • Contact Rating: 5-pin; 3A, 34 V DC
    • Leakage Resistance: 105M (ohm)
    • Recommended Wire Size: 22 wire gauge maximum


  • Item Includes:

    • 1x Switchcraft 05BL5MX Circular DIN Connectors 5-Pin Male Plug
