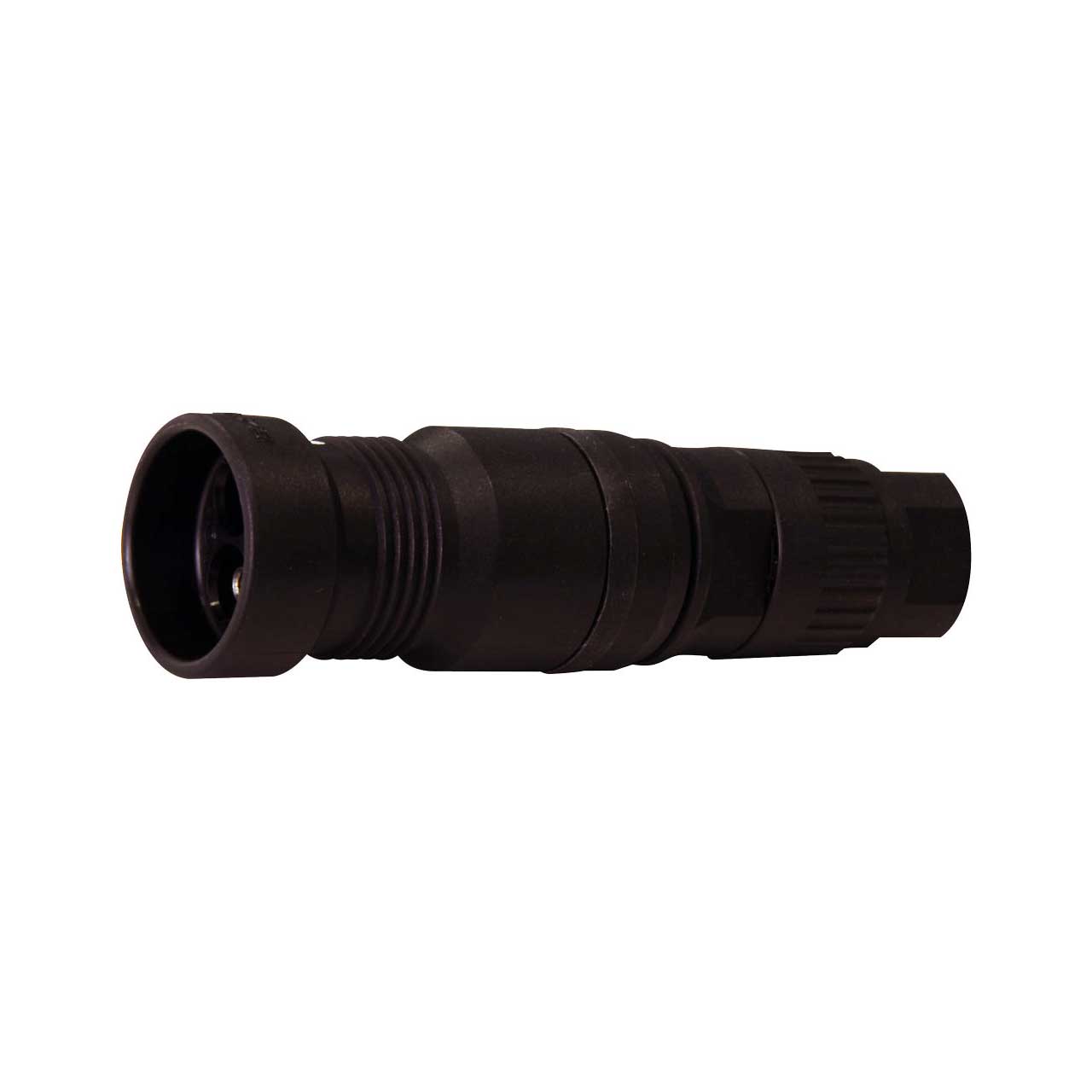

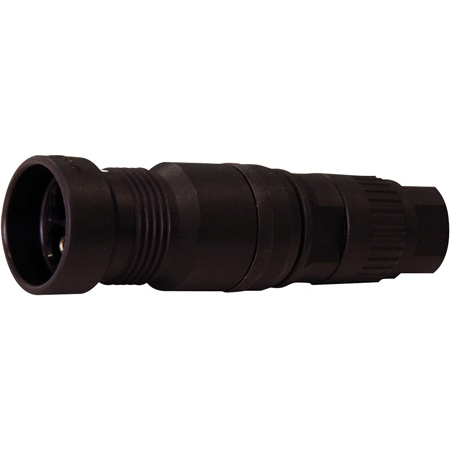

Canare MDF-V4C25HW 4-Channel 4KDIN 1.0/2.3 Cable Mount Connector - Female

ITEM #: MDF-V4C25HW MFG #: MDF-V4C25HW

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$75.90

Our Price:

$59.95

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


MDF-V4C25HW - Overview

Easily Connect 4-Channels of 3G-SDI in One Step!

Unique Canare "4K-DIN" allows you to connect or disconnect 4 of 3G-SDI signals in one easy step. This system is an elegant way to quickly connect 4 channels of 3G HD-SDI signals. Assembled with our new 4 channel, V4-2.5CHW Flexible Coaxial Cable, it allows you to break out to 4 BNC connectors.

The MDM-V4C25HW (Male Connector) is designed to mate with the to the MDF-V4JRU panel mount receptacle. The back side of the panel mount connectors are 4 DIN pass-through for ease of use. The panel mount connector is made to work with all Neutrik D flange panels available on the market today. The MDF-V4JRU will also work with single channel DIN connectors. This panel mount increase your connectivity but not your precious rack space.

Connect the MDM-V4C25HW (Male Connector) to the MDF-V4C25HW (Female Connector) to quickly connect 4 channels in 1 jacket. If used for 4K or for 4 channels of 3G HD-SDI, this system can make quick work of keeping everything in line and organized.

Based on our DIN1.0/2.3 connector, the 4 channel connector uses a similar locking system called "Push, Pull & Lock". Plug and push the connector to secure the connection. A "click" sound is heard when it is locked. To unplug the connector, simply slide the ring backward to disengage the locking system and gently pull the whole connector out of the outlet.

  • Features:

    • 75Ω 4-Channel coax connector with push-pull locking mechanism
    • Based on DIN connector 1.0/2.3
    • Compact, Solid and lightweight nylon resin body
    • Return loss: 20 dB @ 3 GHz
    • MDF-V4JRU accepts MDM-V4C25HW and also DIN 1.0/2.3 plugs
    • The MDF-V4JRU has a Neutrik D Flange footprint
    • Easily breakout to 4 BNC Connectors
