Switchcraft 3502AAU Longbody RCA Male Nickel/Gold

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Switchcraft 3502AAU Longbody RCA Male Nickel/Gold

    Manufacturer: Switchcraft

    Item #: SW3502AAU   •   MFG #: 3502AAU



    List Price:$3.12
    Our Price:$2.91
    Quantity Pricing

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

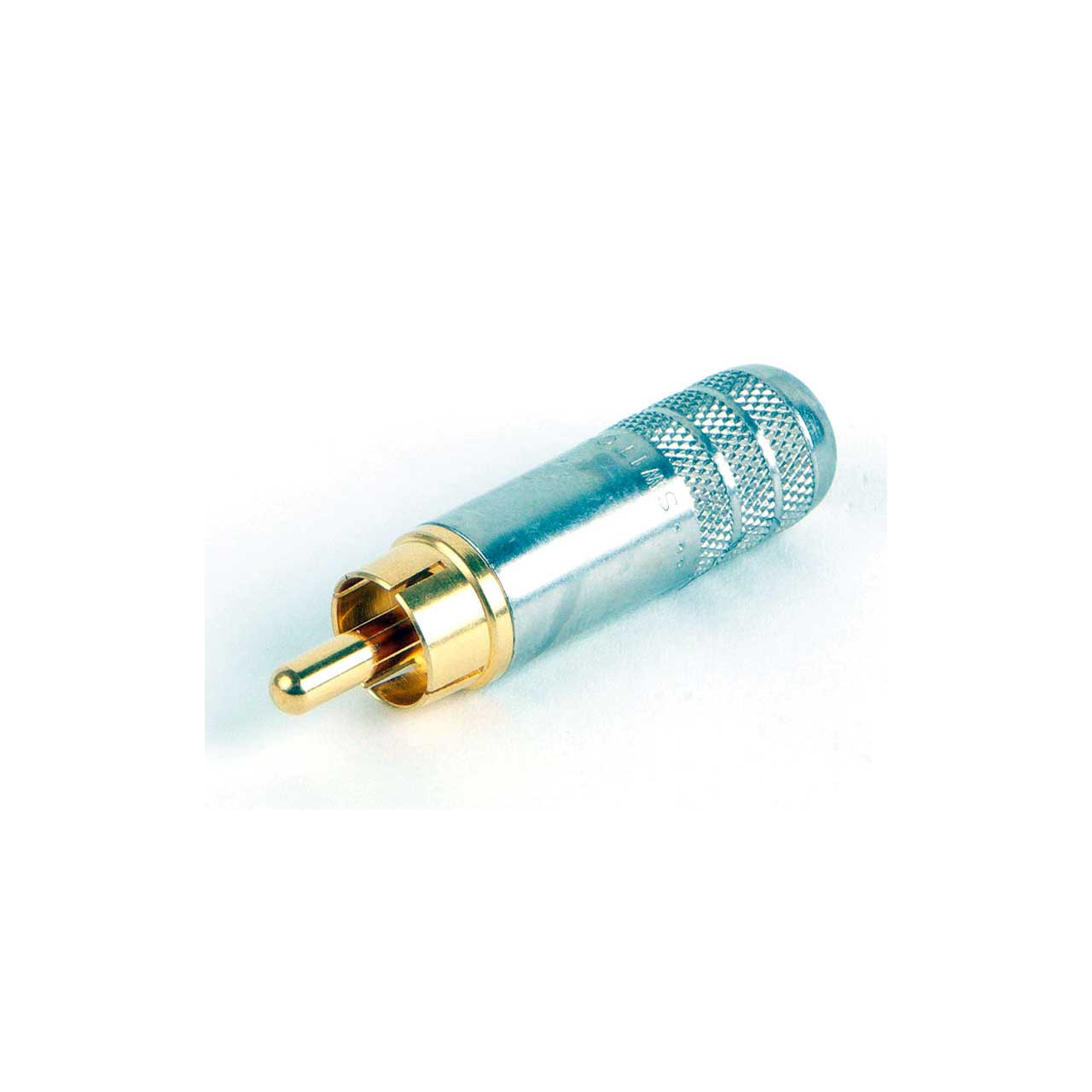

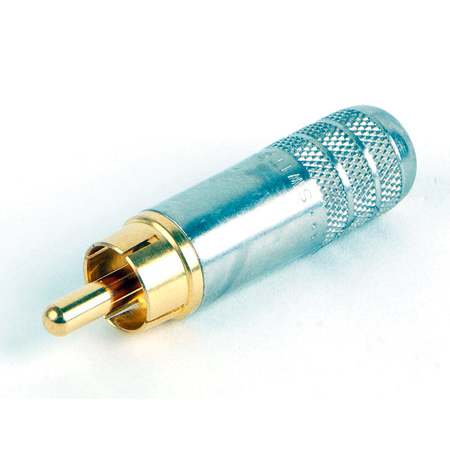

      Switchcraft 3502AAU is a 2 conductor shielded RCA straight plug with a solid pin for a cable up to 0.203" (5.16mm) diameter, with solder cup on center. Long handle & cable clamp, Nickel handle, and Gold plug


      • Specifications

        • Contact Resistance (typical *D.O.M.J.):< 0.020 ohms
        • Dielectric Withstand Voltage: 500V AC (minimum)
        • Insulation Resistance @ 500V DC: 2,000 megohms (minimum)
        • Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum)
        • Working Voltage: 250V AC, 140V DC
        • Current Carry @ Working Voltage (typical *D.O.M.J.): 6.0 AMPS
        • Insert/Withdrawal Force: *D.O.M.J
        • Temperature Range: -40° to + 85° Centigrade
        • U.L. Component Recognition File No.: E118169
        • Life: *D.O.M.J.
        • Maximum Cable Size: .285 inch diameter. *D.O.M.J. - Dependent On Mating Jack

          Materials
        • Pin: Copper alloy; nickel-plated or gold-plated
        • Sleeve: Copper alloy; nickel-plated or gold-plated
        • Handle: Copper alloy; nickel-plated or black epoxy finished
        • Cable Clamp: C.R.S., electrotin-plated
        • Insulator: Rigid plastic
