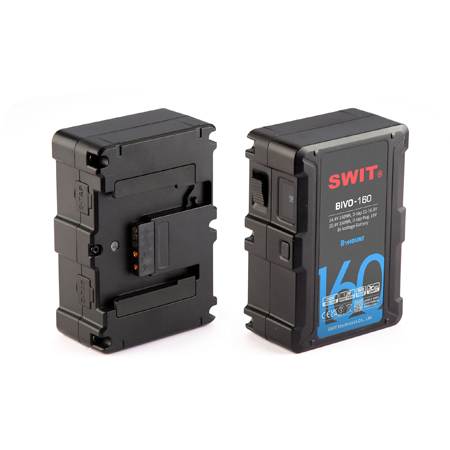

SWIT BIVO-160 14.4V/28.8V Dual Voltage 160Wh B-mount Battery with 200W Power Output for most Cine Cameras/Lights/Gear

ITEM #: SWIT-BIVO-160 MFG #: BIVO-160

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$599.00

Our Price:

$579.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


BIVO-160 - Overview

SWIT BIVO-160 is a 14.4V(10.8-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

160Wh Capacity, 200W Load

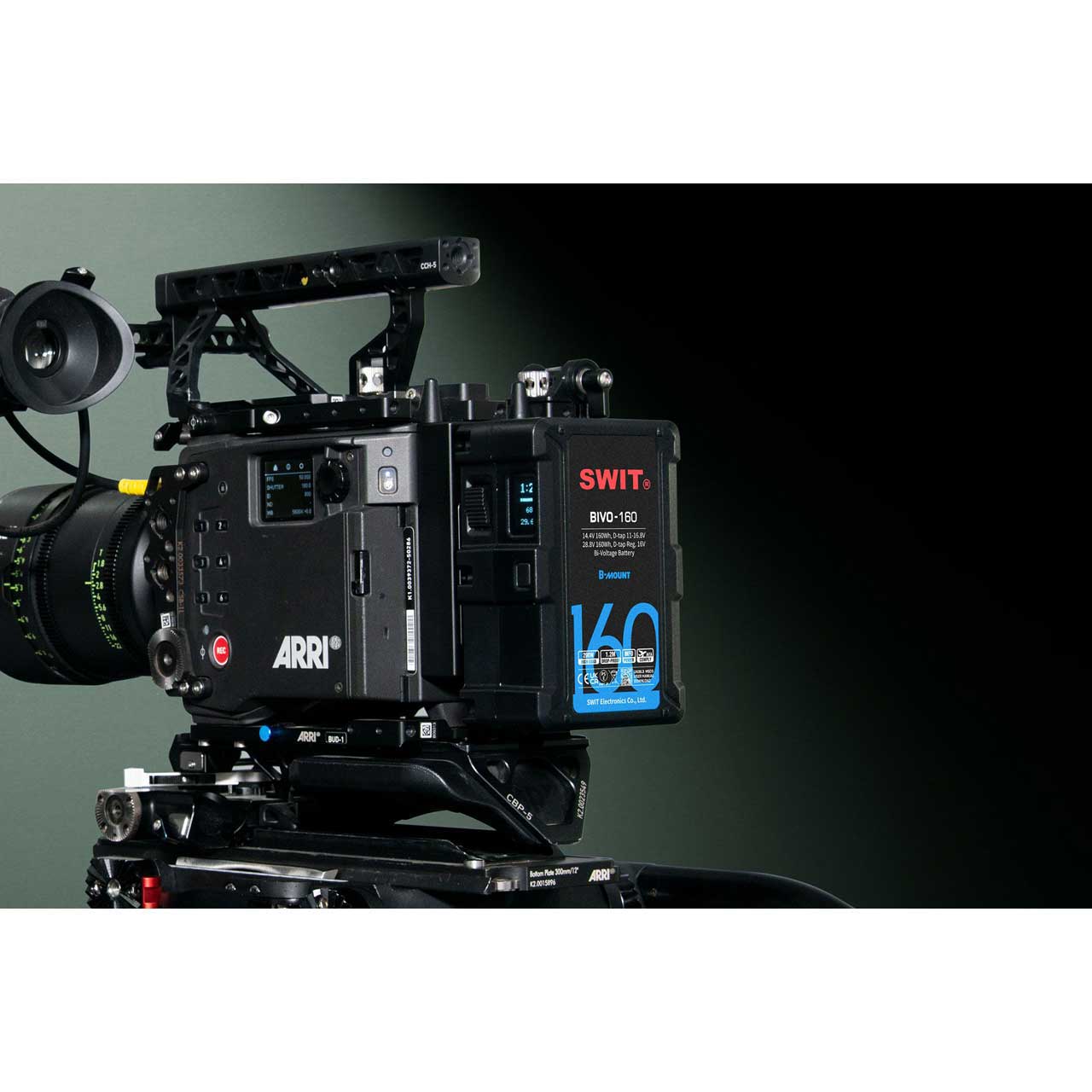

BIVO-160 battery has 160Wh large capacity, run nearly 2 hours on ARRI ALEXA 35 camera. The battery provides at least 200W constant high load for cine cameras and devices.

2x D-tap Power Output
BIVO-160 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage, the D-tap output regulated 16V, to power all kinds of camera-top devices.

OLED Power Info Display
BIVO-160 battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and protection warning code if any abnormal detected.

100W Super Fast Charging
You can charge 4x BIVO-160 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 2 hours 40 minutes to fully charge 4x BIVO-160 batteries.

Built-in Flash light
You can double press the Power Check button to switch on Built-in Flash light on the rear side of the battery, to help you to find B-mount plate in dark production environment. Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.

1.2 meters(3.9ft) Drop-off Proof
BIVO-160 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.

B-Mount Battery Interface: The B-Mount battery interface is an open industry standard endorsed by ARRI. It offers significant advantages over previous systems, including high power and multi-voltage capability, smooth mechanics and universal battery communication.

Cross-compatible with popular on-set camera and lighting equipment from manufacturers worldwide, the B-Mount makes it possible to supply all devices on set with one single battery system.

  • Features:

    • 14.4V/28.8V Bi-voltage B-mount
    • 160Wh high capacity
    • 200W constant high load
    • 33.6V 100W fast charging
    • D-tap 11-16.8V output x2
    • OLED power info display
    • Built-in LED torch
    • Strong 1.2m(3.9ft) drop off proof
    • Multiple circuit protections

  • Specifications:

    • Voltage: 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V)
    • Capacity: 160Wh
    • Constant load: 200W
    • Charging: 33.6V 100W fast charging
    • Mount Type: B-Mount
    • D-tap x2: 14.4V status: 10.8-16.8V out, 200W load, 28.8V status: 16V regulated out, 50W load
    • Charging Temperature: 0-40°C
    • Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
    • Net weight: 2.4lbs
    • Dimensions: 5.7x3.9x2.1in

  • Item Includes:

    • 1x SWIT BIVO-160 14.4V/28.8V Dual Voltage 160Wh B-mount Battery with 200W Power Output for most Cine Cameras/Lights/Gear
