SWIT CW-H150F 500ft Uncompressed HDMI Wireless Transmission System with Sony L-Series Battery Mount
  • SWIT CW-H150F 500ft Uncompressed HDMI Wireless Transmission System with Sony L-Series Battery Mount
  • SWIT CW-H150F 500ft Uncompressed HDMI Wireless Transmission System with Sony L-Series Battery Mount
  • SWIT CW-H150F 500ft Uncompressed HDMI Wireless Transmission System with Sony L-Series Battery Mount
  • SWIT CW-H150F 500ft Uncompressed HDMI Wireless Transmission System with Sony L-Series Battery Mount
  • SWIT CW-H150F 500ft Uncompressed HDMI Wireless Transmission System with Sony L-Series Battery Mount

Questions? Ask a Markertek Expert:
800-522-2025 Email

SWIT CW-H150F 500ft Uncompressed HDMI Wireless Transmission System with Sony L-Series Battery Mount

Item #: SWIT-CW-H150F   •   MFG #: CW-H150F



List Price:$1,680.00
Our Price:$1,625.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

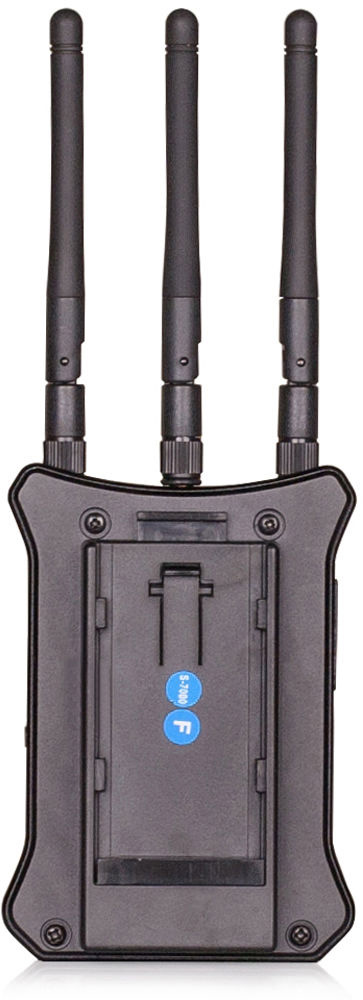

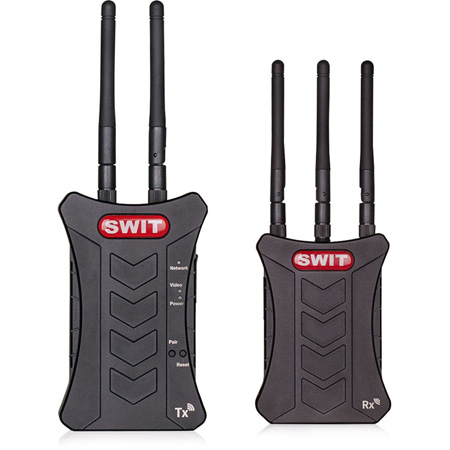

    The CW-H150F from SWIT is a set of wireless video transmission system including one transmitter and one receiver for wirelessly transmitting 1080p60 uncompressed HDMI video signal up to 500ft by using a license-free frequency (5.1GHz-5.9GHz) bands with less than 1ms latency.

    The system features DFS (Dynamic Frequency Selection) Technology that allows it to dynamically select or change the operating frequency to avoid interfering with other systems. The frequency bands are auto selectable and support 4 wireless channels working in one location. Transmitter and Receiver are lightweight and compact in design, which is suitable for mounting on cameras, rig, or gimbals. Both transmitter and receiver can be powered by Sony L seriess batteries via attached battery mount or they can be powered via pole DC input of 6.5-17V.

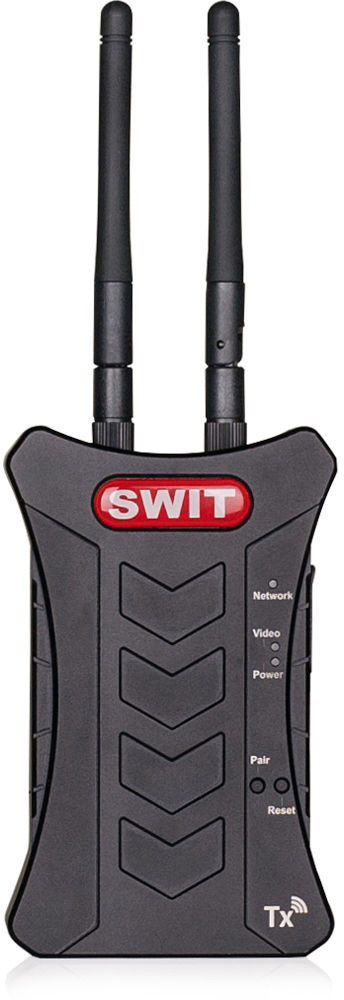

    Transmitter accepts: HDMI input x1

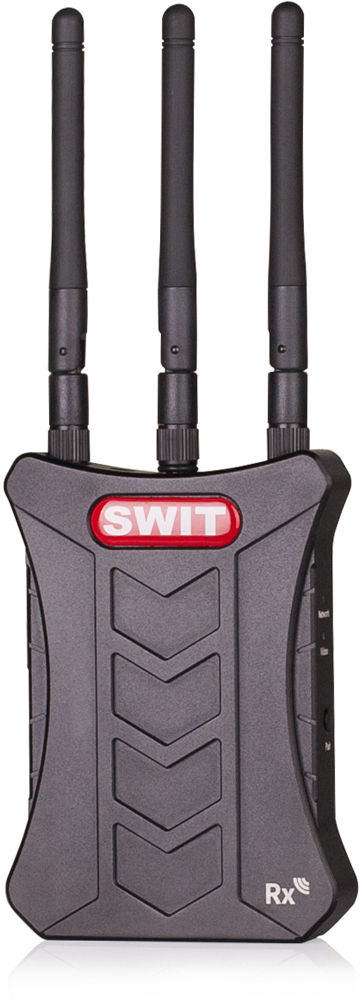

    Receiver supports: HDMI output x1


    • Features

      • 500 ft (LOS) transmission distance
      • Professional WHDI technology
      • DFS(Dynamic Frequency Selection) Technology
      • Uncompressed HDMI signal, 1080p60
      • 2-ch HDMI embedded audio transmission
      • Latency: ≤1 millisecond
      • 5.1-5.9GHz license-free operation frequency
      • system auto configurable frequency bands
      • Multicast - 1 transmitter to multi receivers
      • Less than 63mW radio power
      • AES 256bit encryption
      • Transmitter: 1 HDMI 1.3 input Receiver: 1 HDMI 1.3 input
      • Indicators: video, network, power
      • Sony L series plate
      • All-metal housing, durable
      • Pure hardware connection; Plug and Play

    • Specifications

      • Wireless frequency: 5.1-5.9GHz
      • Radio modules: OFDM 16QAM
      • Operation Frequency: 5.1-5.9GHz
      • Power consumption: ≤6.5W on both transmitter and receiver
      • Input voltage: DC / Battery:6.5-17V for both transmitter and receiver
      • Working environment Temperature: 0°C -+40°C
      • Dimension: transmitter 3.0x5.0x1.4 inch (77×126×35 mm) / receiver 3.2x4.6x1.4 inch (82×118×35 mm)
      • Net weight: transmitter 9.5 oz lb(267g) / receiver 9.5 oz (267g)
