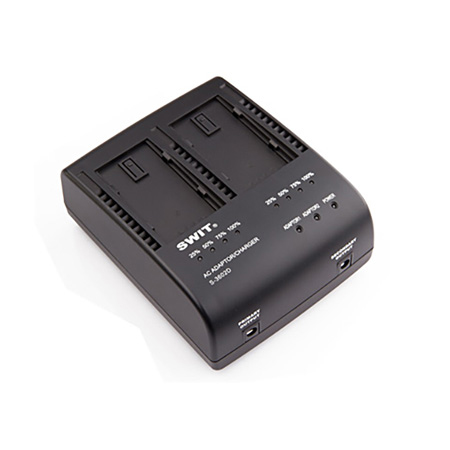

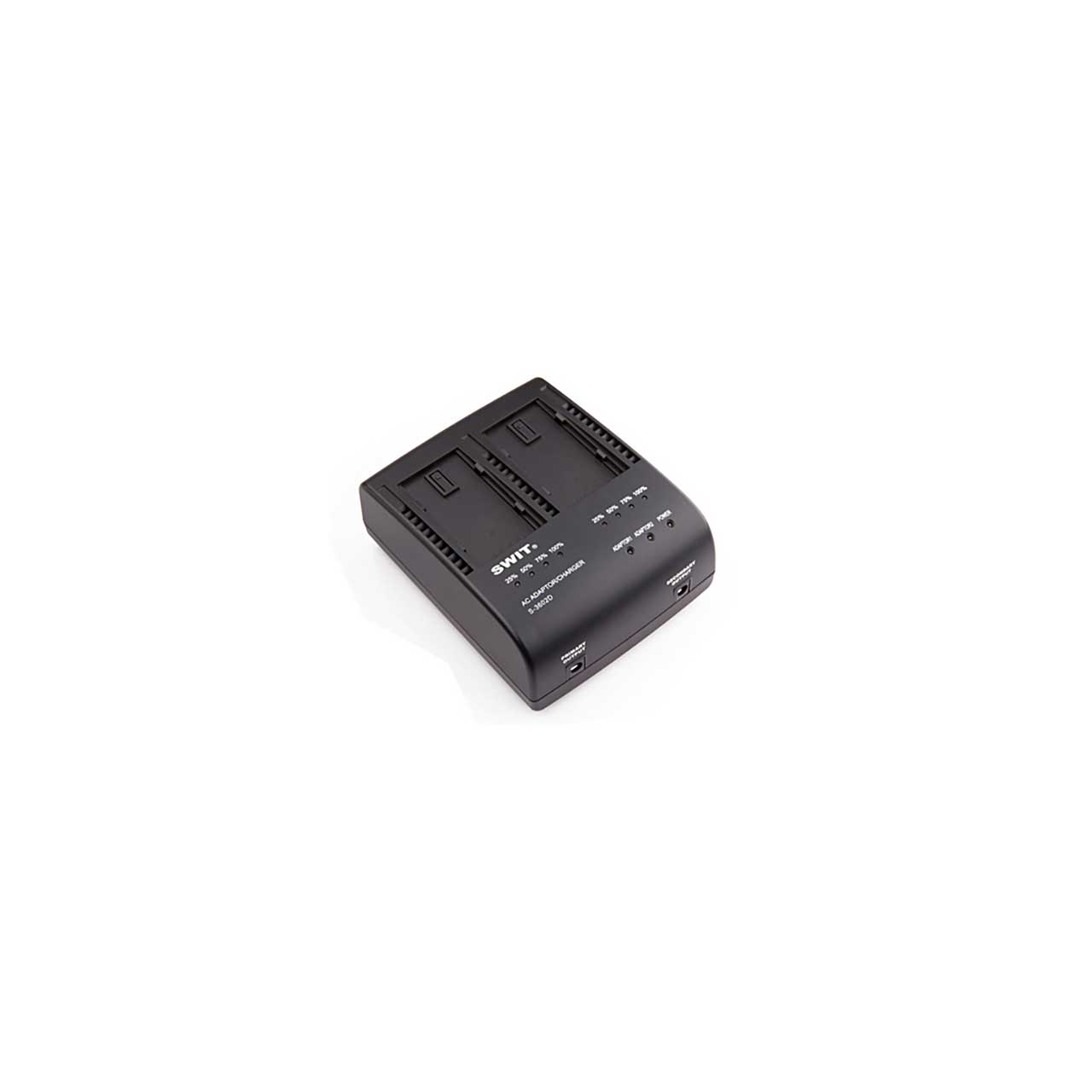

S-3602D is a dual channel charger for SWIT S-8D58 and S-8D62, and compatible with Panasonic VW-VBD58 and CGA series D54, D28 DV batteries.
S-3602D has 2 charging channels, with DC 8.4V, 2A charging output for each channel, and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.
S-3602D has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 4A in total. The package also provides a dummy Panasonic VW-VBD58 / CGA series battery adaptor (S-7500P) for adapting Panasonic DV cameras that use VW-VBD58 or CGA-D54/D28 series batteries, or equipment with the above battery mounts.
