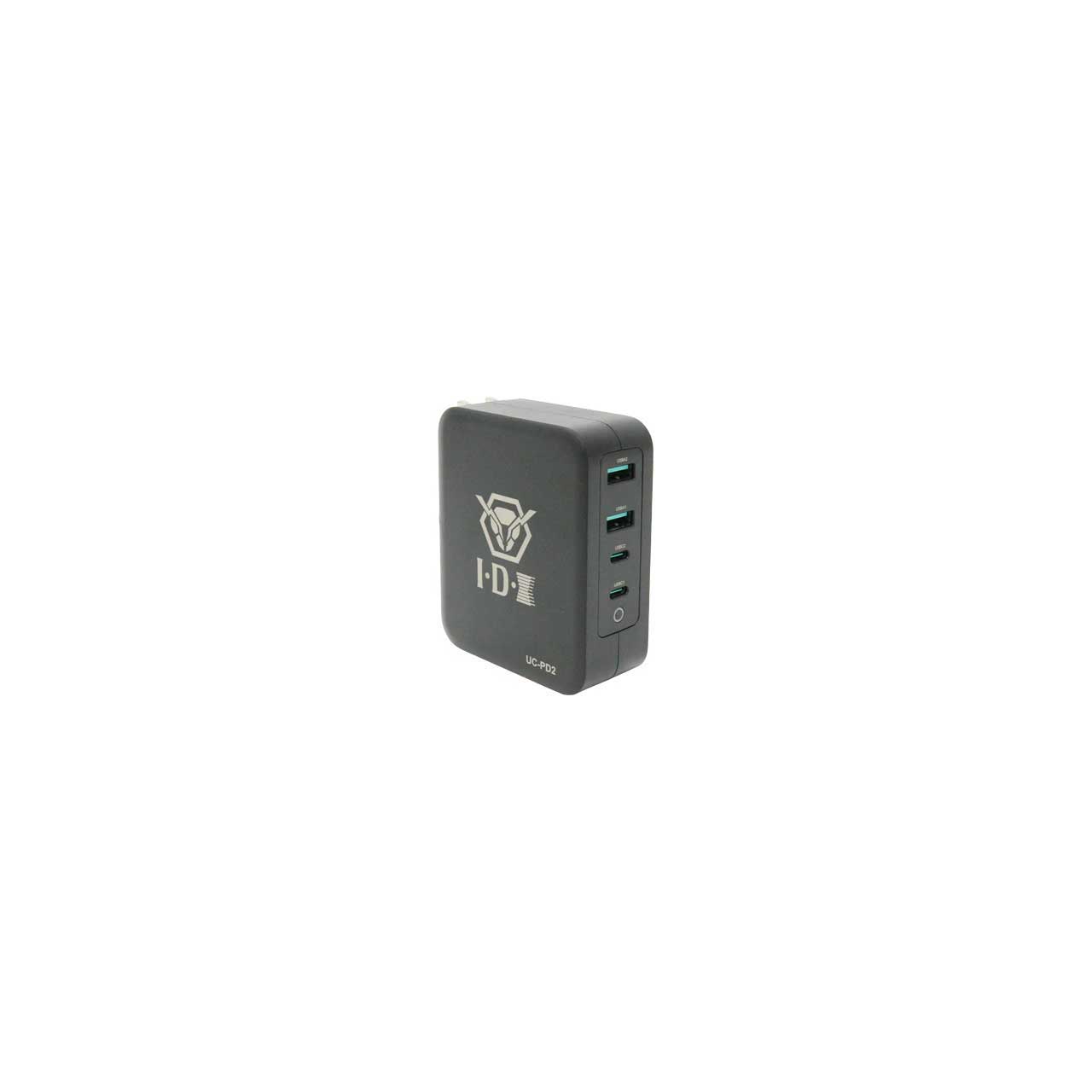

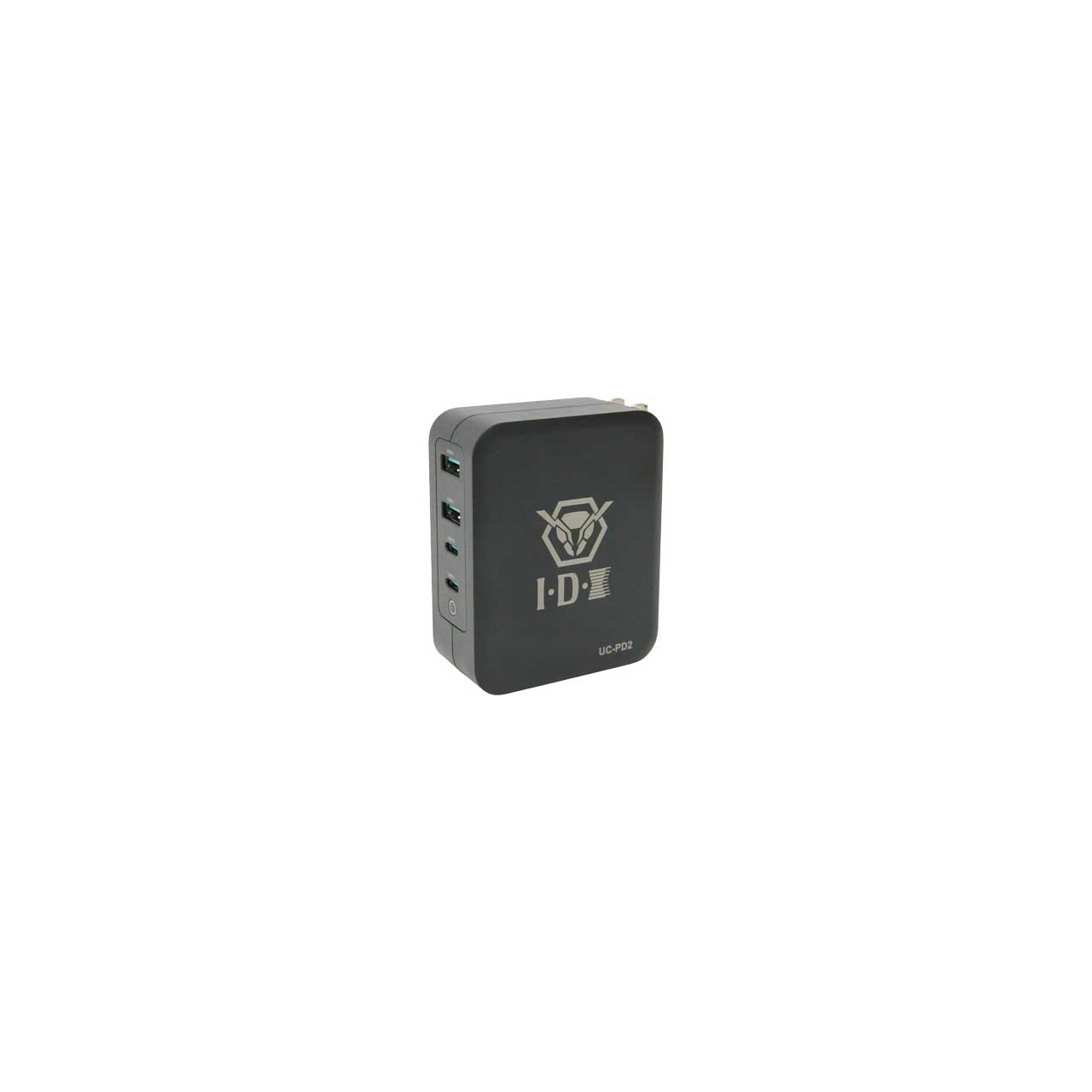

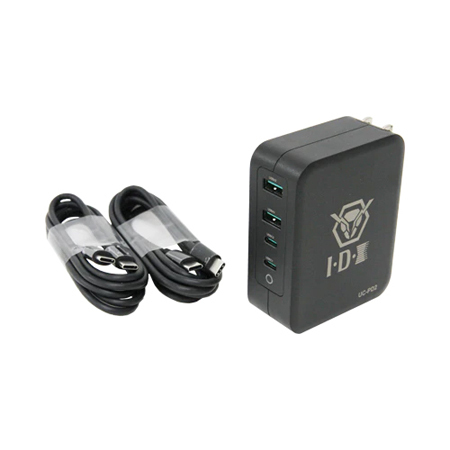

IDX UC-PD2 65 Watt Pocket A/C Adapter & Battery Charger with Two USB-A and Two USB-C

Name: IDX UC-PD2 65 Watt Pocket A/C Adapter & Battery Charger with Two USB-A and Two USB-C
Brand: IDX
SKU: IDX-UC-PD2
Price: 160.00 USD
Availability: InStock

ITEM #: IDX-UC-PD2 MFG #: UC-PD2

IDX

Our Price:

$160.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

UC-PD2 - Overview

IDX introduces a second power delivery system solution for charging batteries such as the DUO-CP Series and ZENITH Series. The IDX UC-PD2 is a small, inexpensive device which can provide power via USB-C terminals. This 65-Watt (Max) charger can charge a DUO-C98P or ZEN-98C in about 130 minutes. The UC-PD2, like the UC-PD1, is also a convenient loca??on/ travel charger and power supply for other devices, such as tablets, smartphones, cameras and other AV/ IT gear equipped with a USB-PD terminal.

Features:
- Pocket size allows easy carrying and charging operation for location and travel

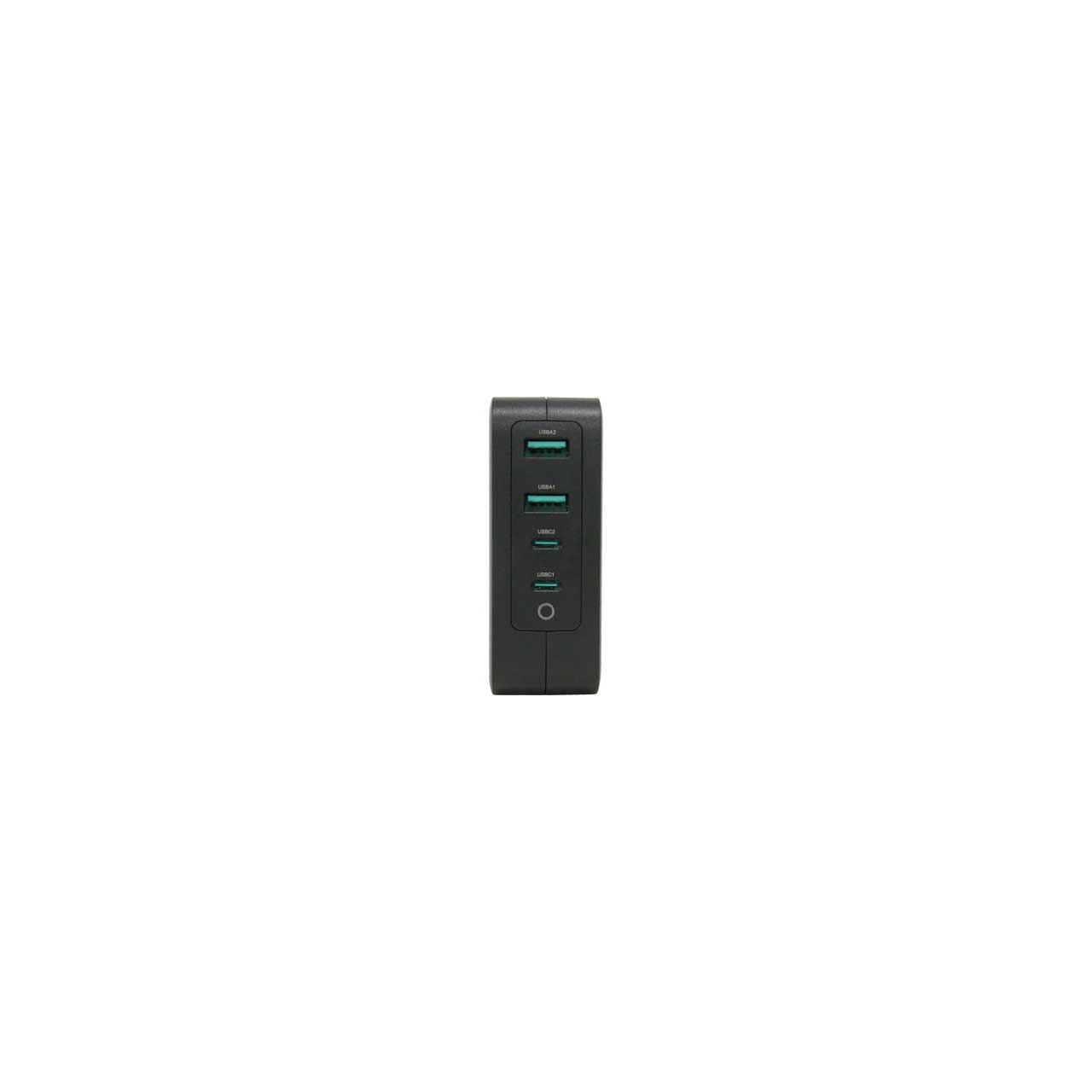

- Four power outputs, two USB-A and two USB-C
- Fast charging with PD 65W, charging time with DUO-C98P is about 130 minutes
- Output voltage switched automatically to match appropriate voltage

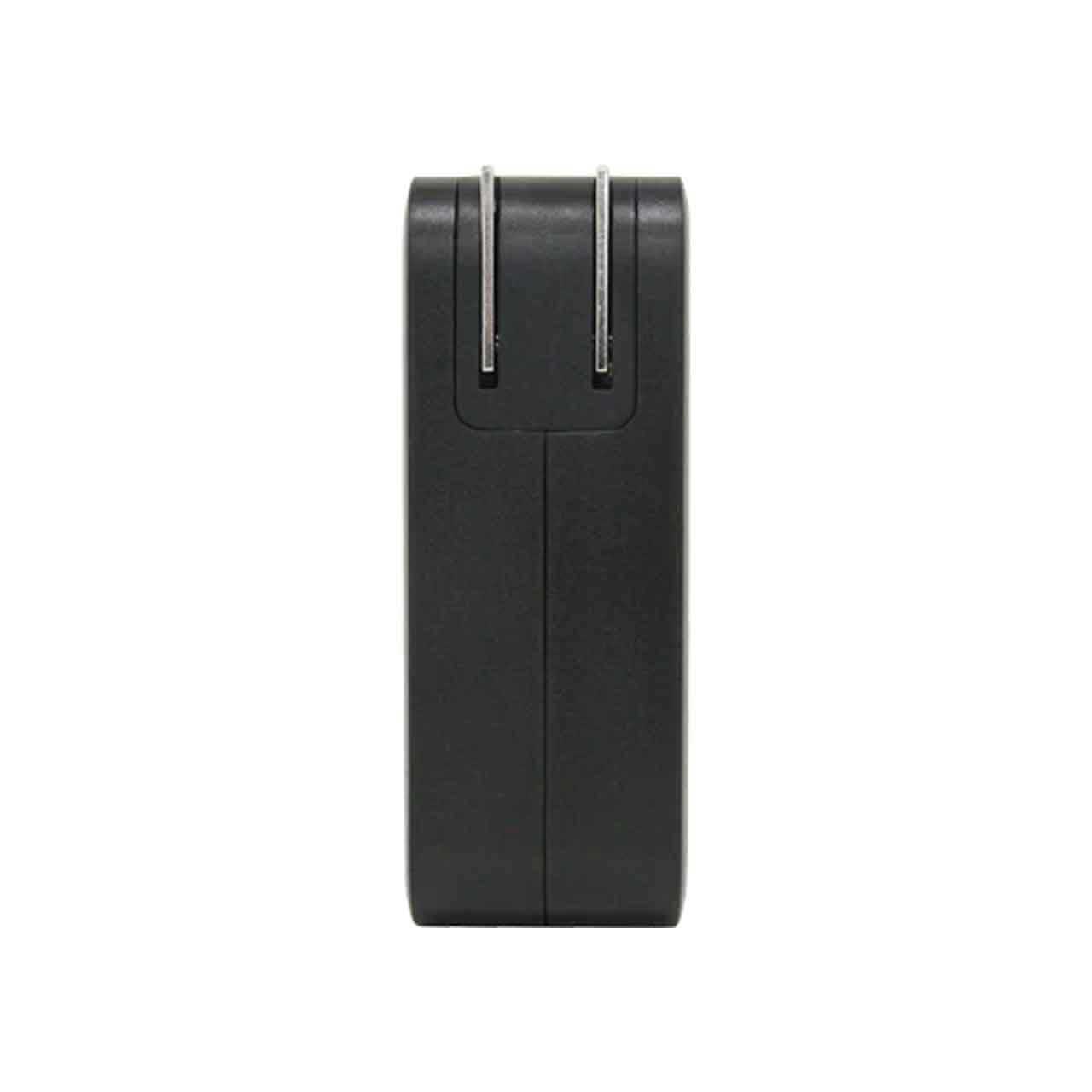

- AC plug can be folded and stored
- Built-in short-circuit, overcurrent, and overvoltage protection
Specifications:
- Input Voltage: AC100V ~ 240V 50/60Hz Automatic
- Output Voltage: USB-C port: DC5V/3A, DC9V/3A, DC12V/3A, DC15V/3A, DC20V/5A, (MAX 100W) USB-A port: Single port: DC5V/3A, DC9V/2A, DC12V/1.5A, Dual port: DC5V/2A + DC5V/2A
- DC Connector: USB Type-C, USB Type-A
- Operating Temperature: 32~77°F
- Protection Circuit: Over-voltage, Over-current, Short circuit
- Dimensions: 2.71(w) x 3.42(H) x 1.26(D) inches
- Cable Length: 59 inches
- Weight: 0.64 lbs
Item Includes:
- 1x IDX UC-PD2 65 Watt Pocket A/C Adapter & Battery Charger with Two USB-A and Two USB-C
