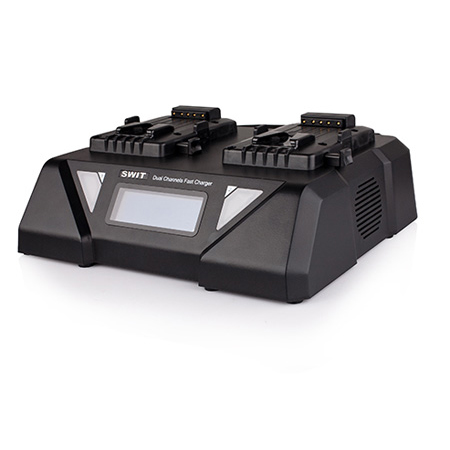

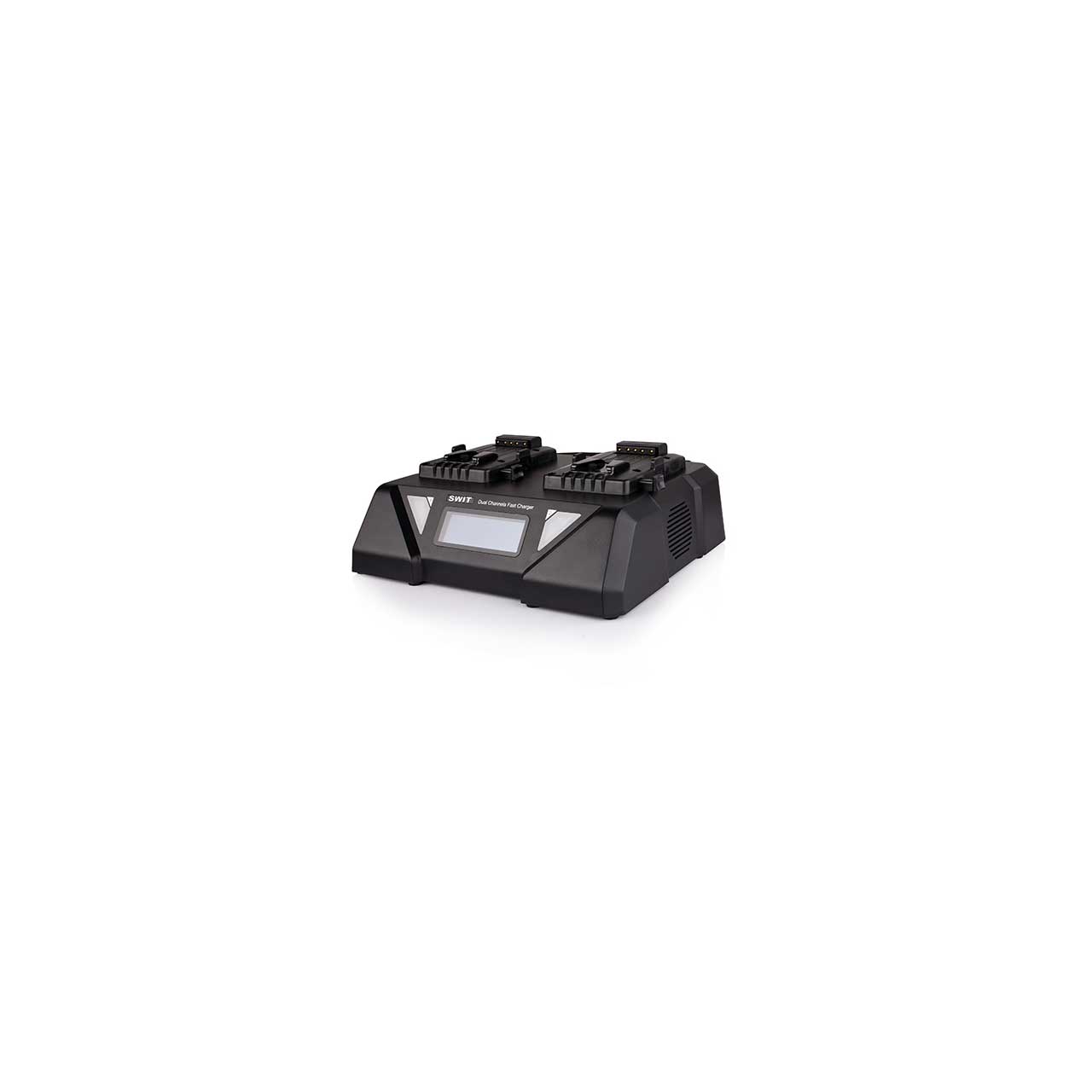

SWIT S-3812S 2-Channel Simultaneous Fast Charger/Adaptor for V-Mount Battery

ITEM #: SWIT-S-3812S MFG #: S-3812S

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$780.00

Our Price:

$750.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    S-3812S - Overview

    The S-3812S is 2-Channel, simultaneous charger/adaptor at Max 6A fast chagring current for SWIT particular battery. The charging speed is quite faster than normal chargers. The following battery models support 6A fast charging: S-8340S, S-8360S, D-8161S/R. For other Sony V-mount and SWIT batteries, the charging current is 3A. The S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR or DC output from attached battery on S-3812S to 4-pin XLR output. By S-7102 (4-pin XLR female to male) cable, the S-3812S can supply 16.8V DC power to the other equipments, Max load 200W/12A.

    When adapting output is under 100W, the S-3812S can still charge battery simultaneously. With the LCD display in the front panel, it gives the user a quick reference information which includes:

    Battery Charging/Discharging status
    Real time capacity and percentage
    Real time Voltage/Current
    Remaining time to fully charged
    Remaining time to fully discharged
    Battery cycle times

    AC-DC Adapting Output
    S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A. When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential). Remark: S-7102 cable is optional purchase.

    Battery-DC Adapting Output
    You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A. Remark: S-7102 cable is optional purchase.

    Remark: Display information is only available for SWIT digital Li-ion batteries: S-8320S; S-8340S; S-8360S & D-8161S/R. For other non-digital batteries, the charger will only display real time voltage and current.

    • Features:

      • V-mount battery charger
      • 2-ch simultaneous charging
      • Identifies battery type and adjusts charging method
      • 6A fast charging for SWIT particular batteries
      • 3A charging for normal batteries
      • LCD display panel for charging status
      • Support AC-DC to 4-pin XLR output (16.8V)
      • Support battery to 4-pin XLR output(16.8V) LCD display charging/adapting information

    • Specifications:

      • Input: AV 120V-240V, 50/60Hz
      • Power consumption: Max 260W
      • Charging Output: DC 16.8V, Max 6Ax2-ch
      • Adapting Output: DC 16.8V, Max 12A
      • Applicable Battery: Fast-charging for SWIT S-8340S and D-8161R batteries and normal charging for Sony V-mlount and SWIT V-Mount batteries
      • Working temperature: 0°C~+40°C
      • Working humidity 10%~90%
      • Dimensions: 11x9.7x3.8inch / 272mmx246mmx97mm
      • Net Weight: 4.0 lbs / 1.85 kg

    • Item Includes:

      • S-3812S charger
      • Power supply

    • GTIN:

      6948193501871
