SurgeX SX2120 Surge Eliminator & Power Conditioner 20As at 120 Volts

Name: SurgeX SX2120 Surge Eliminator & Power Conditioner 20As at 120 Volts
Brand: SurgeX
SKU: SX-2120

ITEM #: SX-2120 MFG #: SX2120

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SX-2120

SurgeX SEQUENCERS SEQ 2RU Rackmount Surge Eliminator & Power Conditioner - 14 Outlets - 20A/120V - 5-15R x10/5-20R x4Our Price: $1,799.00
SurgeX SEQUENCERS SEQ-1U 1RU Rackmount Surge Eliminator & Power Conditioner - 8 Outlets- 20A/120V - 5-15R x6/5-20R x2Our Price: $1,349.00
Tripp Lite PDU1215 15A Rackmount Power Conditioner with 12 Rear Outlets (1-Front)Our Price: $114.00
Dataprobe iBoot-PDU8A-N15 Eight Outlet 15A Fanless Switched PDUOur Price: $539.00

Overview

Reviews

Attachments

Required Accessories

Recommended Accessories

SX2120 - Overview

The SurgeX SX2120 provides guaranteed surge protection and power conditioning for audio, video, broadcast and computer equipment.

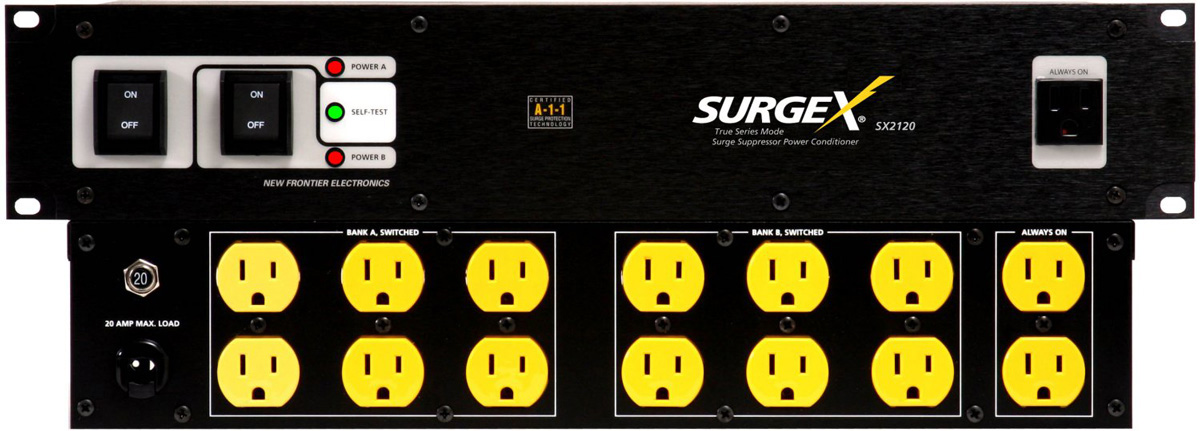

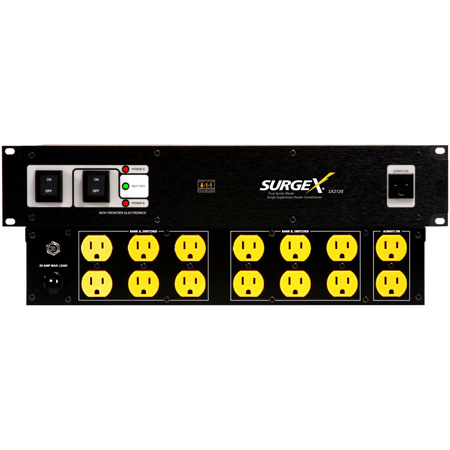

SX2120 surge eliminators are 20-amp load-capable and have 14 industrial grade grounded AC receptacles (2 switched banks of 6; 2 always on) plus a front-panel courtesy receptacle.

The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering for a comprehensive power conditioning solution.

SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances.

Features:
- Magnetic shielding steel enclosure
- 9' grounded 3-wire #12 line cord
- 12 grounded AC receptacles in two switched banks of six on rear panel, 2 receptacles always on
- Front panel courtesy receptacle
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- Two power switches, one for each bank of outputs
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.
Specifications:
- Load Rating: 20 amps @ 120 volts
- Power Requirement (no load): 10 watts
- Surge Let-Through Voltage (6000-volt surge): 0 volts
- UL 1449 Adjunct Classification Test Results:
- 1000 surges, 6000 volts, 3000 amps, B3 pulse;
- Measured suppressed voltage: 170 volts; no failures.
- Federal Guidelines:
- Grade A, Class 1, Mode 1 (CID A-A-55818)
- EMI/RFI Filter, Normal Mode (50-ohm load):
- 40 dB @ 100 kHz; 50 dB @ 300 kHz;
- 50 dB @ 3 MHz; 50 dB @ 30 MHz
- EMI/RFI Filter, Common Mode (50-ohm load):
- 18 dB @ 300 kHz; 30 dB @ 1 MHz;
- 50 dB @ 5 MHz; 50 dB @ 20 MHz
- Maximum Applied Surge Voltage: 6000 volts*
- Maximum Applied Surge Current:
- Unlimited, due to current limiting*
- Maximum Applied Surge Energy:
- Unlimited, due to current limiting*
- Endurance (C62.41-1991 Category B3 pulses):
- 1 kV>500,000; 3 kV>10,000; 6 kV>1000
- Dimensions: 3.5" H x 19.0" W x 10.5" D (8.9 x 48.3 x 26.7 cm)
- Weight: 16 lbs (7.3 kg)
- Temperature Range: 5§ to 35§ C
- Humidity Range: 5% to 95% R.H., non-condensing
- Agency Listings: ETL and cETL (UL 1449, 2nd edition;
- CSA C22.2 No.8-M1986, R2000)
  *1.2 x 50 æs pulse, industry standard combination wave surge, as per IEEE C62.41
