SurgeX SX-AX15E Axess ELITE 1RU Rackmount Power Management System - 8 Outlet - 15A/120v w/IP Remote Control & 9 Ft Cord

ITEM #: SX-AX15E MFG #: SX-AX15E

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,599.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in July.


SX-AX15E - Overview

The Axess ELITE is a complete power management system that provides remote insight and control of the electrical power consumed by an underlying device. It enables the switching of devices in various power modes, each with different power usage characteristics related to device performance. Giving technicians the ability to easily manage their installs remotely and limit service calls.

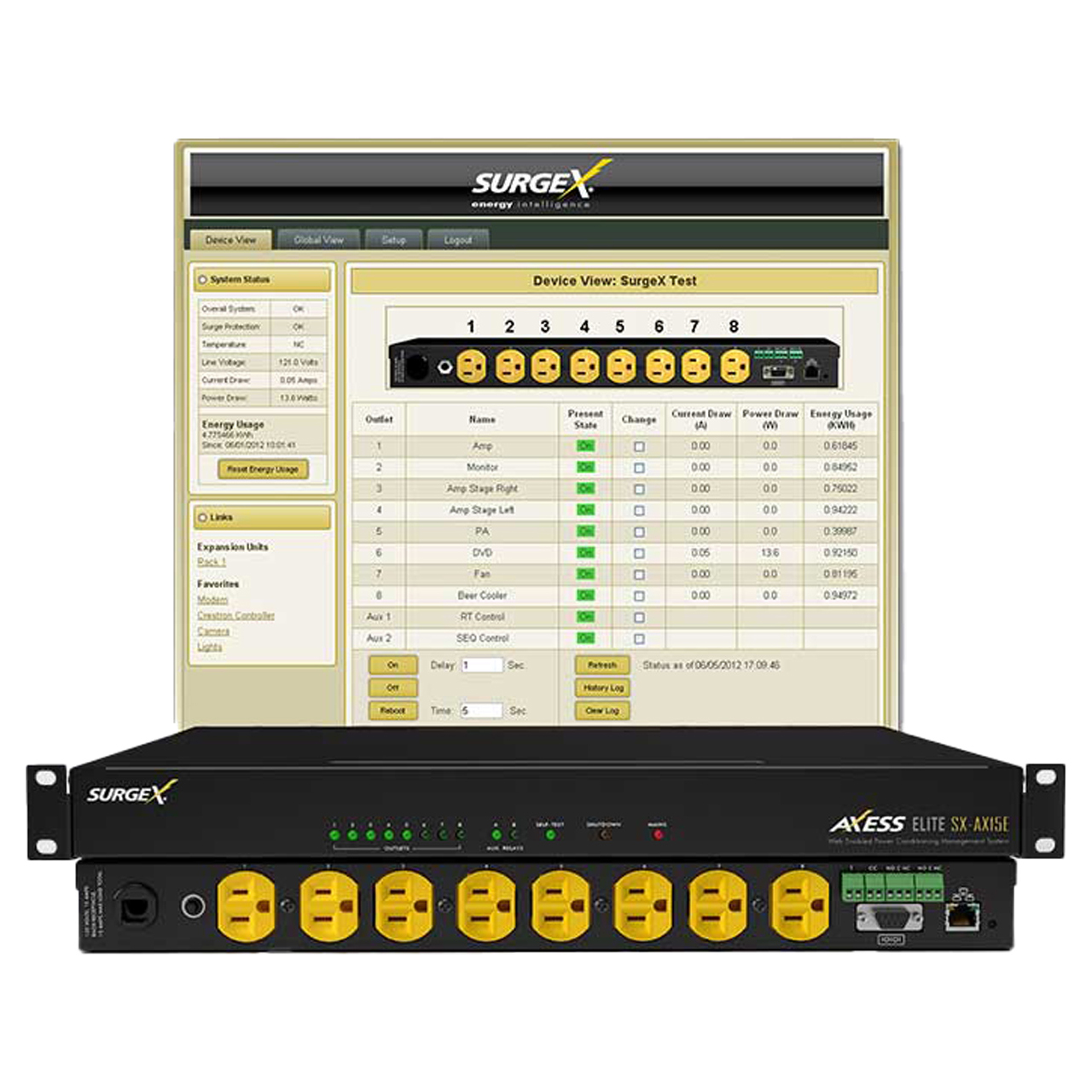

The SurgeX SX-AX15E is a one-rack-space unit in a magnetic shielding steel enclosure. It operates from 120 volts AC and has a 9-foot, grounded, 3-wire #14 line cord. There is also an 8 grounded AC receptacle on the back panel, with all 8 switched.

This unit has remote turn-on capabilities enabled by wired Ethernet, serial, and terminal block connections. Remote turn-on and turn-off is activated by contact closure or software. The SX AX15E has remote control, sequencing, scheduling, measurement, AutoPing, and adjustable trigger functions, and supports wired RS-232 and Ethernet HTTP, Telnet, SNMP, Syslog, SMTP, and SDxP protocols.

This unit can measure voltage, current (per outlet), power (per outlet), energy (per outlet), and temperature, and records events in its internal memory. There are two relay outputs for control and cascading. The SX-AX15E has a load rating of 15 amps at 120 volts, a self-test circuit with visual indicator, and provide EMI/RFI filtering, inrush current elimination and catastrophic over/under-voltage shutdown. It can withstand at least 1000 occurrences of surge pulse voltages up to 6000 volts.

The Axess Elite features Advanced Series Mode® surge protection that eliminates all surge energy to guarantee connected equipment is protected from surges, spikes, electrical transients, and noise without producing harmful ground contamination or common-mode disturbances. It shall withstand at least 1000 occurrences of surge pulse voltages up to 6000 volts with zero let through voltage.

  • Features:

    • IP enabled two-way communication
    • Displays real-time power and energy usage
    • Collects rack temperature, voltage, and current draw measurements
    • Displays a log file for advanced monitoring
    • Non-sacrificial components
    • Advanced Series Mode® surge elimination technology
    • Impedance Tolerant EMI/RFI Filter
    • COUVS® catastrophic over/under voltage shutdown
    • SurgeX ICE® inrush current elimination
    • Magnetic shielding steel enclosure

  • Specifications:

    • Load Rating: 15A
    • Voltage Rating: 120V
    • Power Requirement: 15W
    • Input/Mains Plug Type: 5-15P
    • Input/Mains Cord Length: 9'
    • Number of Receptacles: 8
    • Receptacle Type: 15-15R
    • Surge Let-Through Voltage (6000 Volt Surge): 0 Volts
    • Max Applied Surge:
      Voltage: 6000 Volts*
      Current: Unlimited (due to current limiting)
      Energy: Unlimited (due to current limiting)
    • Endurance (C62.41-1991 Category B3 Pulses): 1 KV> 500,000; 3 KV> 10,000; 6 KV> 1000
    • EMI/RFI Filter:
      Normal Mode (50Ω Load): >20dB 35kHz-50MHz, >30dB 170kHz-20MHz, 25dB@100KHz, 40dB@300KHz, 56dB@3MHz, 30dB@30MHz
      Common Mode (50Ω Load): >10dB 300kHz-50MHz, >20dB 1.5kHz-50MHz, 10dB@300KHz, 18dB@1MHz, 30dB@5MHz, 20dB@20MHz
    • Under-Voltage Auto Shutdown: Adjustable from 80V to 110V, or disabled. Default 80V
    • Over-Voltage Auto Shutdown: Adjustable from 130V to 160V. Default 150V
    • Over-Current Suto Shutdown: Circuit Breaker; Electronic shut-down adjustable from 1A to 20A, or disabled
    • Over Temperature Auto Shutdown: Adjustable from 70 to 100°F, or disabled
    • Network Port: 10/100 Ethernet Connection on Female RJ-45, Auto Neotiating with 10/100/1000 network connections with Link and Activity LEDs
    • Serial Port: RS-232 on female 9-pin D-Subminiature, DCE
    • Temperature Sensor Input: 2x screw terminal
    • BTU/h Max: 120BTU/h
    • Auxiliary Relay Outputs: (2) 3x Screw terminal
    • Contact Closure Input: 3x Screw terminal

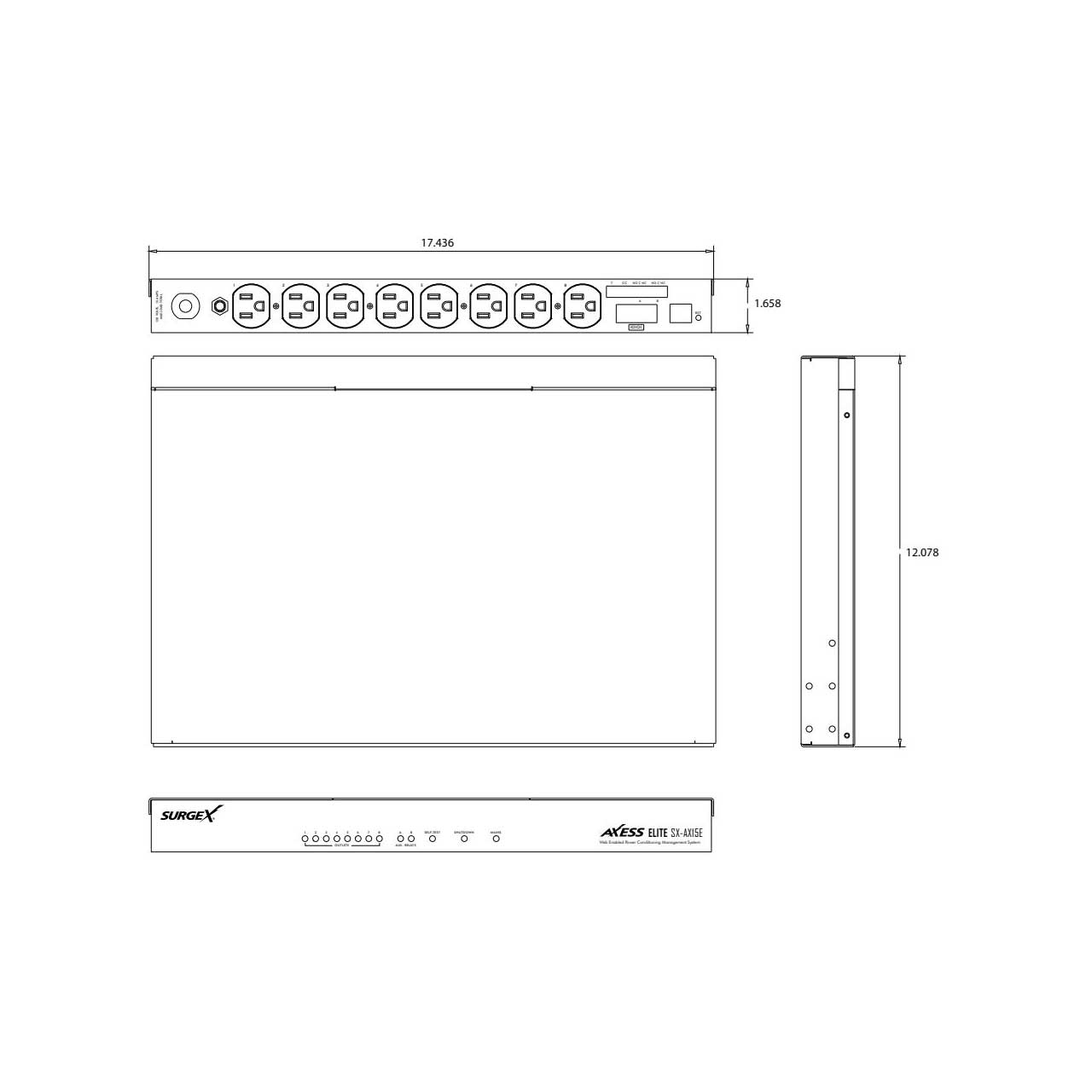

    • Dimensions (WxDxH): 19 x 12.25 x 1.75"
    • Weight: 13Lbs
    • Temperature Range: 41° to 95°F
    • Humidity Range: 5 to 95% R.H, non-condensing
    • Agency Listings:
      Conforms to UL Stds 1283 & 1449
      Certified to CSA Std C22.2 No.8

  • Warranty:

    • Axess ELITE Series - Limited Lifetime Product Warranty and Limited Five (5) Year Connected Protection Warranty - See attached info for further details
