SurgeX SX-DS-151 Compact Solution Surge Suppressor and Power Filter

ITEM #: SX-DS-151 MFG #: SX-DS-151

Free Shipping with Minimum Order Banner

Our Price:


Availability: In Stock
iAvailability Description Popup

    SX-DS-151 - Overview

    Never go unprotected at any level. Even in smaller, cost-conscious applications, power protection is a critical element of an AV system’s foundation. With the new SurgeX Defender Series line of products, power protection doesn’t have to be sacrificed regardless of the budget or size of the system. Developed specifically for everyday applications, the Defender Series provides cost-effective comprehensive power protection and conditioning to increase uptime and ensure equipment functions properly.

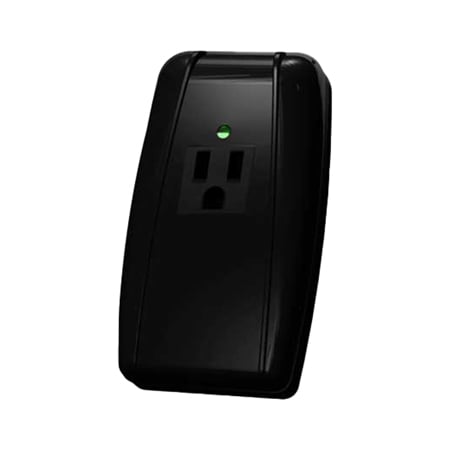

    SurgeX SX-DS-151 is a compact solution surge suppressor and power filter. The SX-DS-151 has a load rating of 15 amps at 120 volts.

    • Features:

      • Lowest amount of let-through energy
    • Specifications:

      • Load Rating: 15A
      • Voltage Rating: 120V
      • Power Requirement (No Load): 1W
      • EMI/RFI Filter:
        Normal Mode (50Ω Load): >20dB 30kHz-50MHz
        Common Mode (50Ω Load): >10dB 1.5kHz-50MHz
      • Under-Voltage Auto Shutdown: No
      • Over-Voltage Auto Shutdown: No
      • Over-Voltage Auto Shutdown: None
      • Over-Current Auto Shutdown: None
      • Network Port: No
      • Serial Port: None
      • Temperature Sensor Input: None
      • Auxiliary Relay Outputs: No
      • Contact Closure Input: No
      • Dimensions (WxDxH): 5.25 x 2.75 x 1.75"
      • Weight: 0.35Lbs
      • Temperature Range: 41° to 95°F
      • Humidity Range: 5 to 95% RH, non-condensing
      • Agency Listings:
        Conforms to UL Stds 1283 & 1449
        Certified to CSA Std C22.2 No.8
