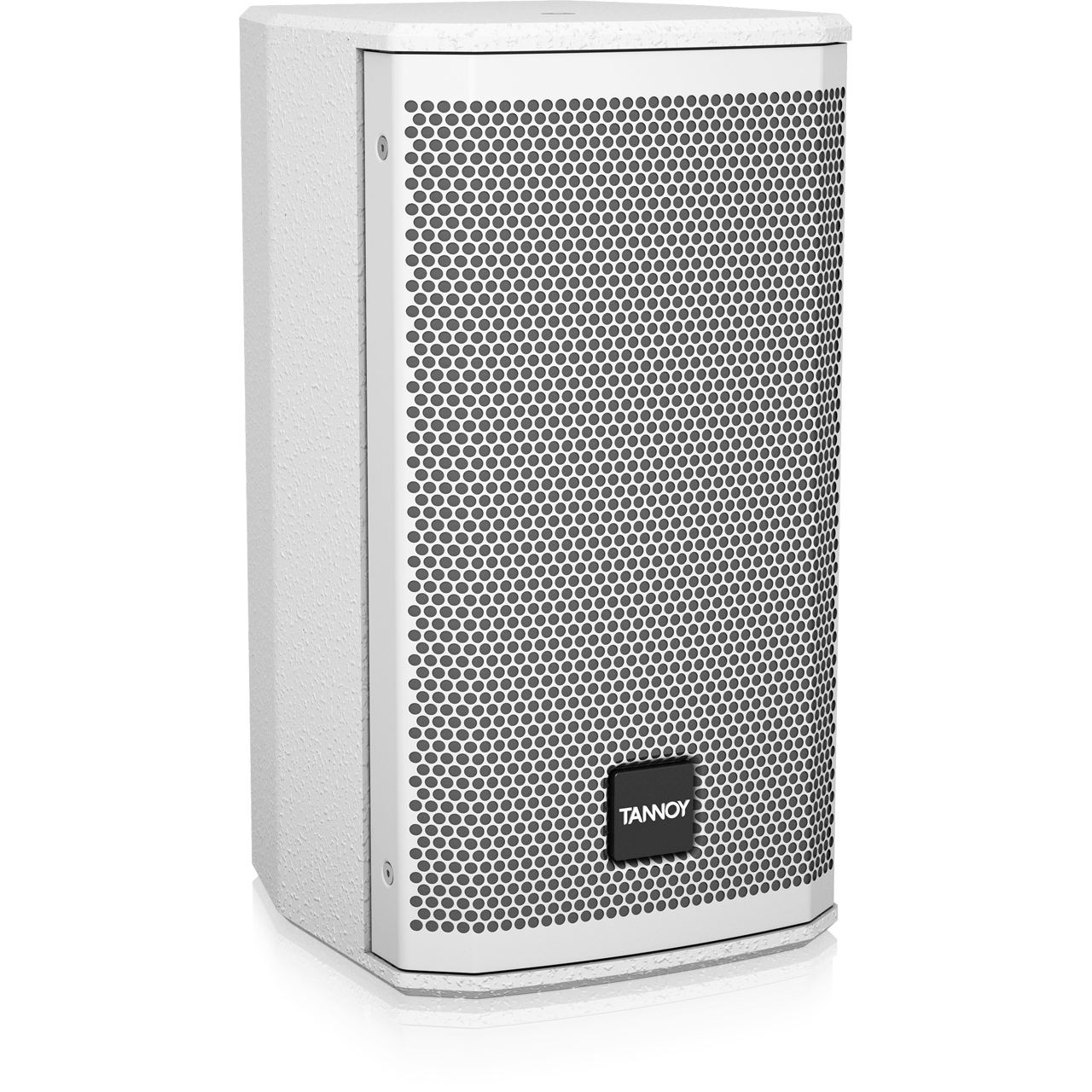

Tannoy TA-VX5.2-WH 5-Inch Dual Concentric Full Range Loudspeaker with Low Frequency Driver - White

TA-VX5.2-WH - Overview

• Features:

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 130W continuous, 520W peak power
  • 5" Dual Concentric full range driver for point source phase coherence
  • 5" low frequency driver for extended bass response
  • Precise 120° H x 90° V dispersion for optimum coverage and forward projection
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt white paint finish

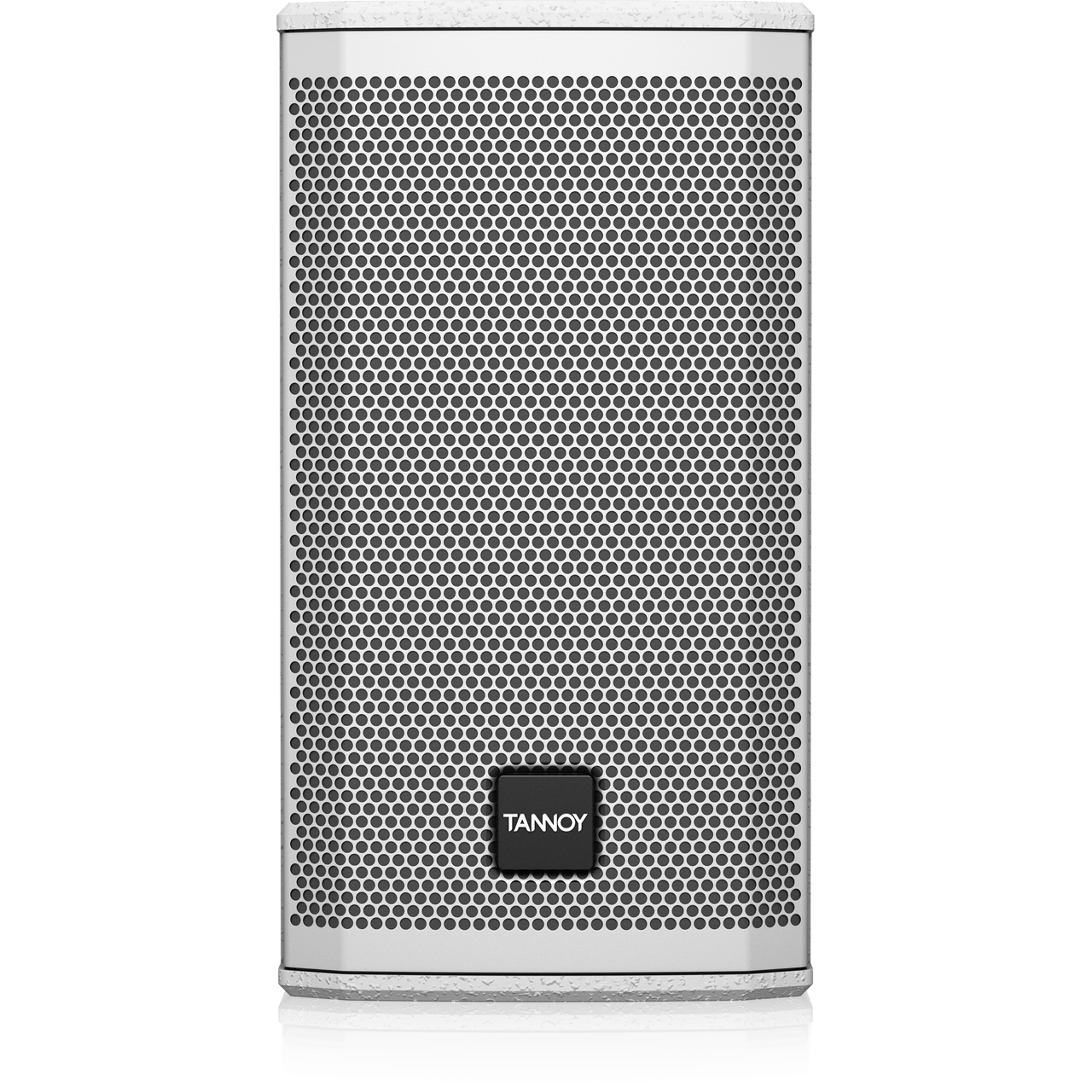

  • Rugged powder coated perforated steel mesh grille
  • M6 pole mount socket for small-scale portable PA
  • Optional horizontal mounting yoke (available separately)
  • 4-pole industry standard twist-lock speaker and barrier strip connectors for input and link output


• Specifications:

  • Frequency Response: 87Hz - 35kHz ±3dB 65Hz - 45kHz -10dB
  • Nominal Dispersion: 120° H x 90° V @ -6dB points
  • Directivity Factor (Q): 7.3
  • Directivity Index (DI): 8.6
  • Passive: 130W continuous, 520W peak
  • Sensitivity: 90dB (1W @ 1m)
  • Passive:
    - 111dB continuous, 117dB peak
    - 8Ω
    - Pins 1+/1- Input, Pins 2+/2- Link
  • Crossover Type: Passive with dynamic HF protection

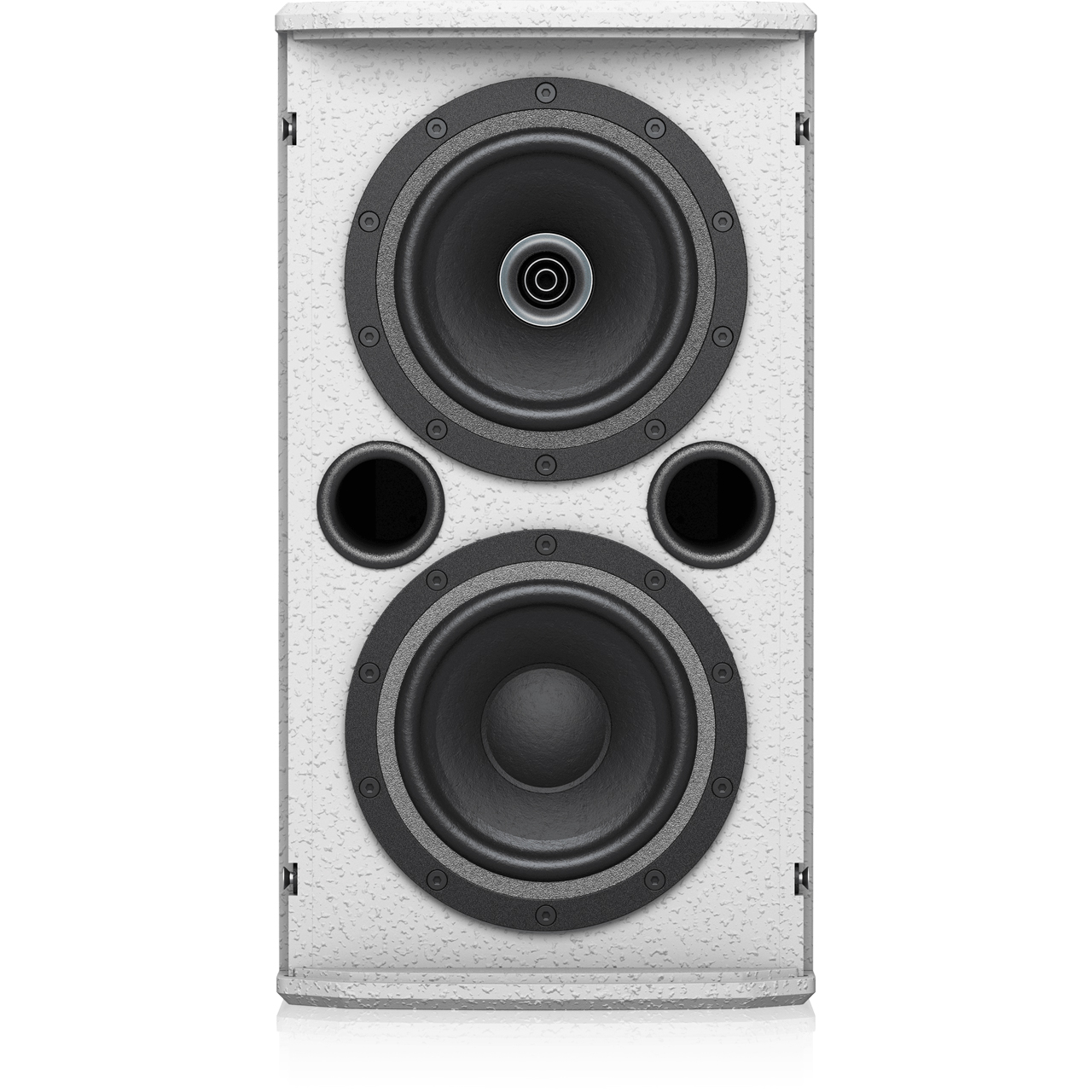

  • Components:
    - 1x 5" (125mm) LF driver
    - 1x 5" (125mm) constant directivity Dual Concentric

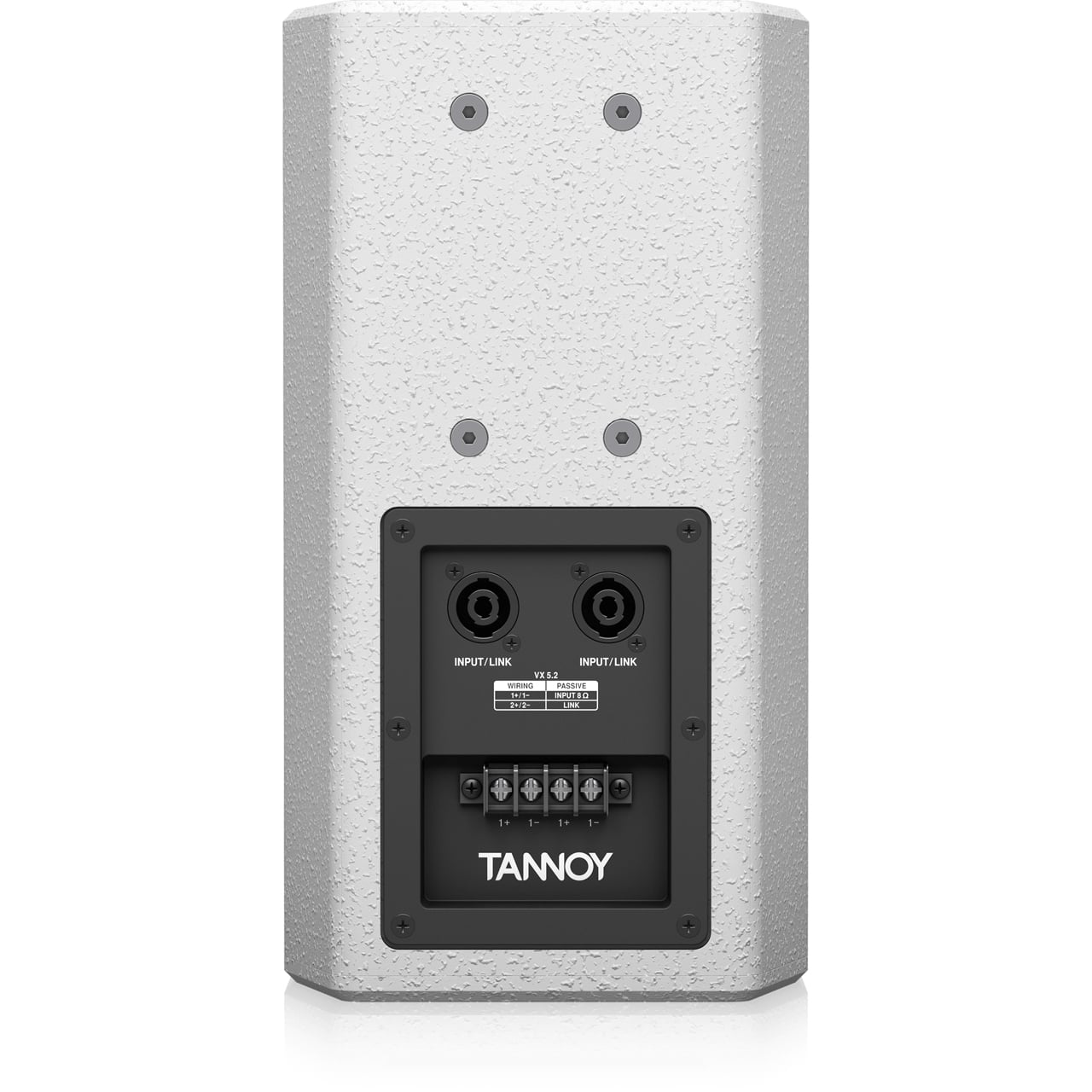

  • Connectors:
    - 2x Industry-standard 4-pole twist-lock speaker connectors
    - 1x barrier strip terminals
  • Dimensions (LxWxH): 7.9" x 7.1" x 13.1" (201mm x 181mm x 334mm)
  • Net Weight: 9.7lbs (4.4kg)
  • Construction: 1/2" (12mm) plywood, vented and internally braced
  • Finish: Semi matt white paint
  • Grille: Powder coated perforated steel


• Item Includes:

  • 1x TA-VX5.2-WH Loudspeaker
