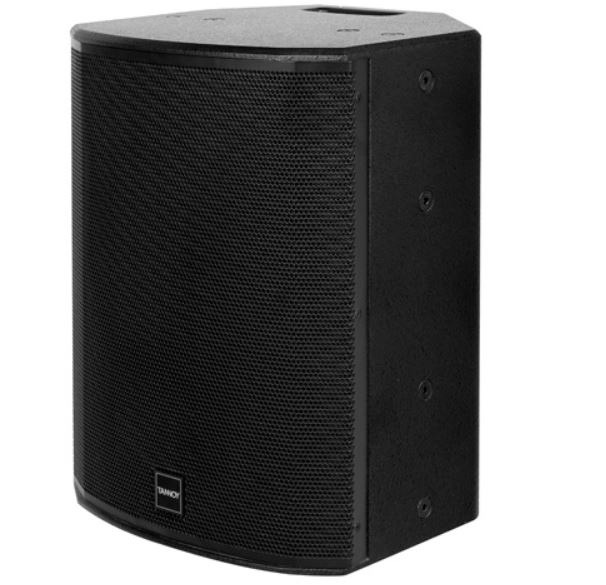

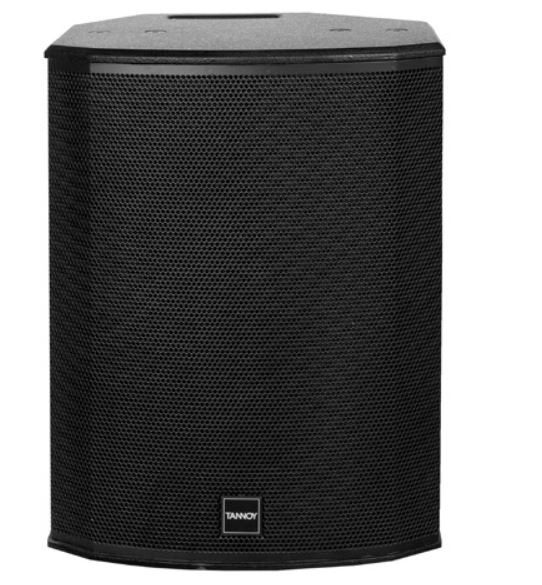

Tannoy VX12 - Passive Installation Loudspeaker - 400 Watt - 12 Inch - Black

8001 6350 VX 12 - Overview

• Features:

  • 305mm (12") Dual Concentric full-range driver
  • Tightly controlled 90 degree dispersion for optimum coverage and forward gain
  • Peak output 126 dB, rec. amp power 400 W @ 8 Ohms
  • Versatile mounting via optional custom designed hardware
  • IntegripT handle ergonomically integrated into top and bottom of cabinet and pole-mountable for optimum portability.

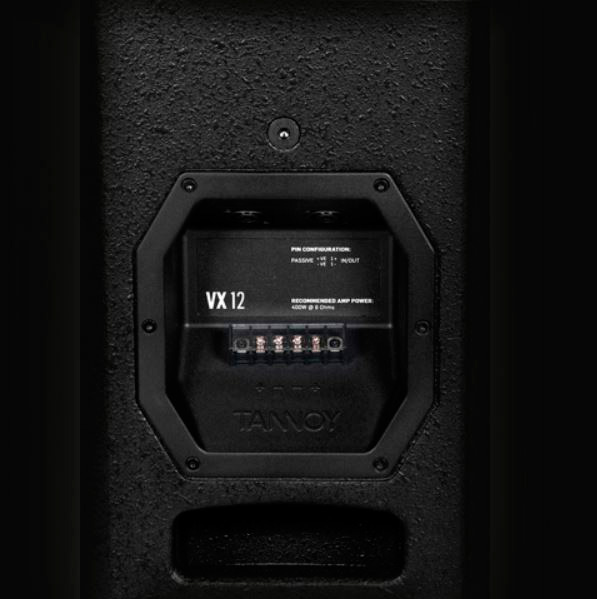

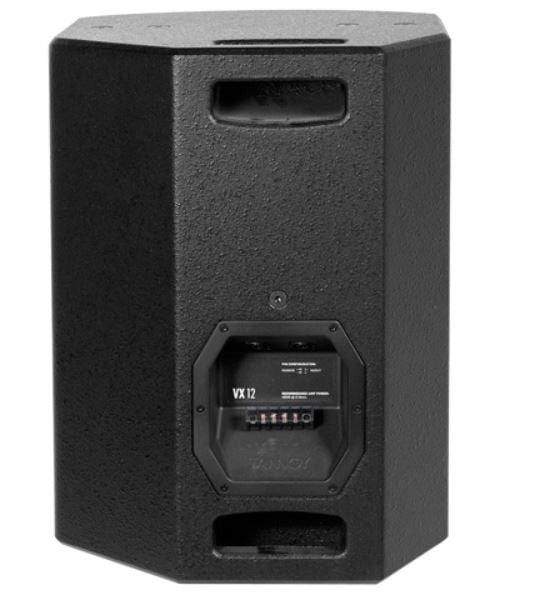

  • Flush-mounted TP with NL4 SpeakON and barrier strip connections
  • Rugged and highly compact birch plywood enclosure
  • Available in black or white textured paint finish - custom colours optional.
  • Available in weather proof specification (optional)
  • Engineered and built in UK
  • Five year loudspeaker warranty


• Specifications:

  • Performance
  • Frequency Response (-3 dB) (1) 70 Hz - 25 kHz
  • Frequency Range (-10 dB) (1) 55 Hz - 38 kHz
  • System Sensitivity (1 W @ 1 m) (2) 97 dB (1 W = 2.83 V for 8 ohms)
  • Dispersion (degrees conical) 90 degrees conical
  • Driver Complement

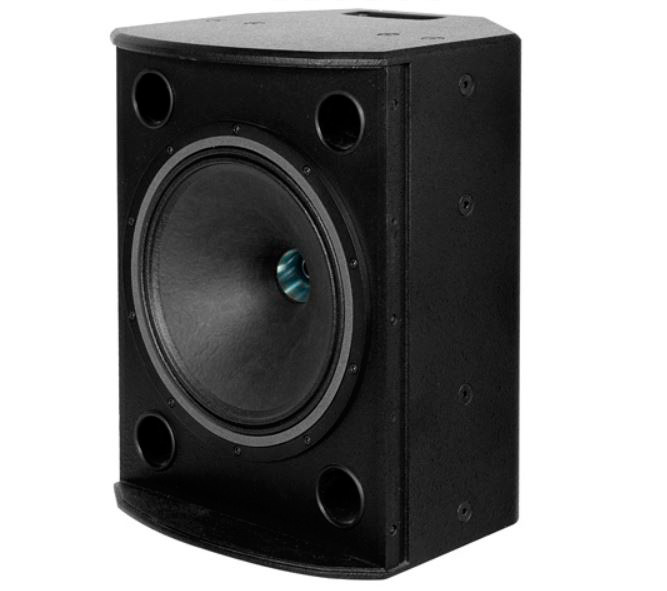

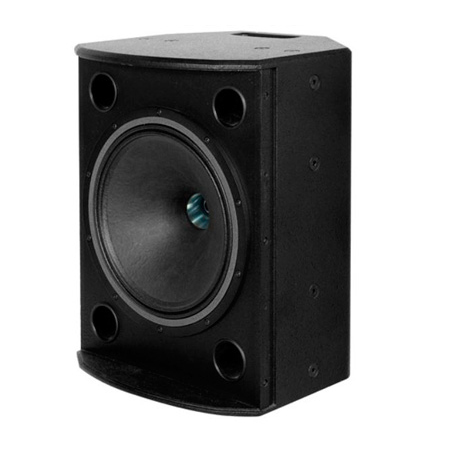

  • 1 x 305 mm (12.00") constant directivity Dual ConcentricT
  • Crossover Passive 1 kHz with HF protection
  • Directivity Factor (Q) 9.6 (averaged 1 kHz to 8 kHz)
  • Directivity Index (DI) 9.8 (averaged 1 kHz to 8 kHz)
  • Rated Maximum SPL (2) Average: 120 dB
  • Peak: 126 dB
  • Power Handling Average: 200 W
  • Programme: 400 W
  • Peak: 800 W
  • Recommended Amplifier Power 400 W @ 8 ohms
  • Nominal Impedance 8 ohms
  • Distortion
  • 10% Full Power (12.65 V)
  • 250 Hz
  • 1 kHz
  • 10 kHz
  • 2nd Harmonic 3rd Harmonic
  • 0.52% 0.58%
  • 2.98% 0.63%
  • 3.58% 0.19%
  • Distortion
  • 1% Full Power (4 V)
  • 250 Hz
  • 1 kHz
  • 10 kHz
  • 2nd Harmonic 3rd Harmonic
  • 0.10% 0.26%
  • 0.81% 0.58%
  • 1.18% 0.03%
    Construction
  • Enclosure 36.4 litre, 15 mm (enclosure) and 18 mm (front) birch plywood, vented and internally braced
  • Finish Textured black or white paint, with custom colours on request
  • Powder coated perforated steel grille, Airnet cloth behind
  • Connectors
  • 2 x Speakon NL4MP and Barrier strip
  • Fittings
  • 8 x M10 Flying inserts (portrait or landscape mounting), 8 x M10 yoke bracket inserts (6mm allen keys)
  • 2 x Integrip carrying handles
  • Blanking plate for optional VTH pole mount
  • Dimensions (H x W x D) 486 x 370 x 360 mm
  • (19.1 x 14.6 x 14.1")
  • Net Weight 17.0 kg (37.5 lbs)
  • Shipped Weight 19.5 kg (43.0 lbs)


• GTIN:

  5035866181506
