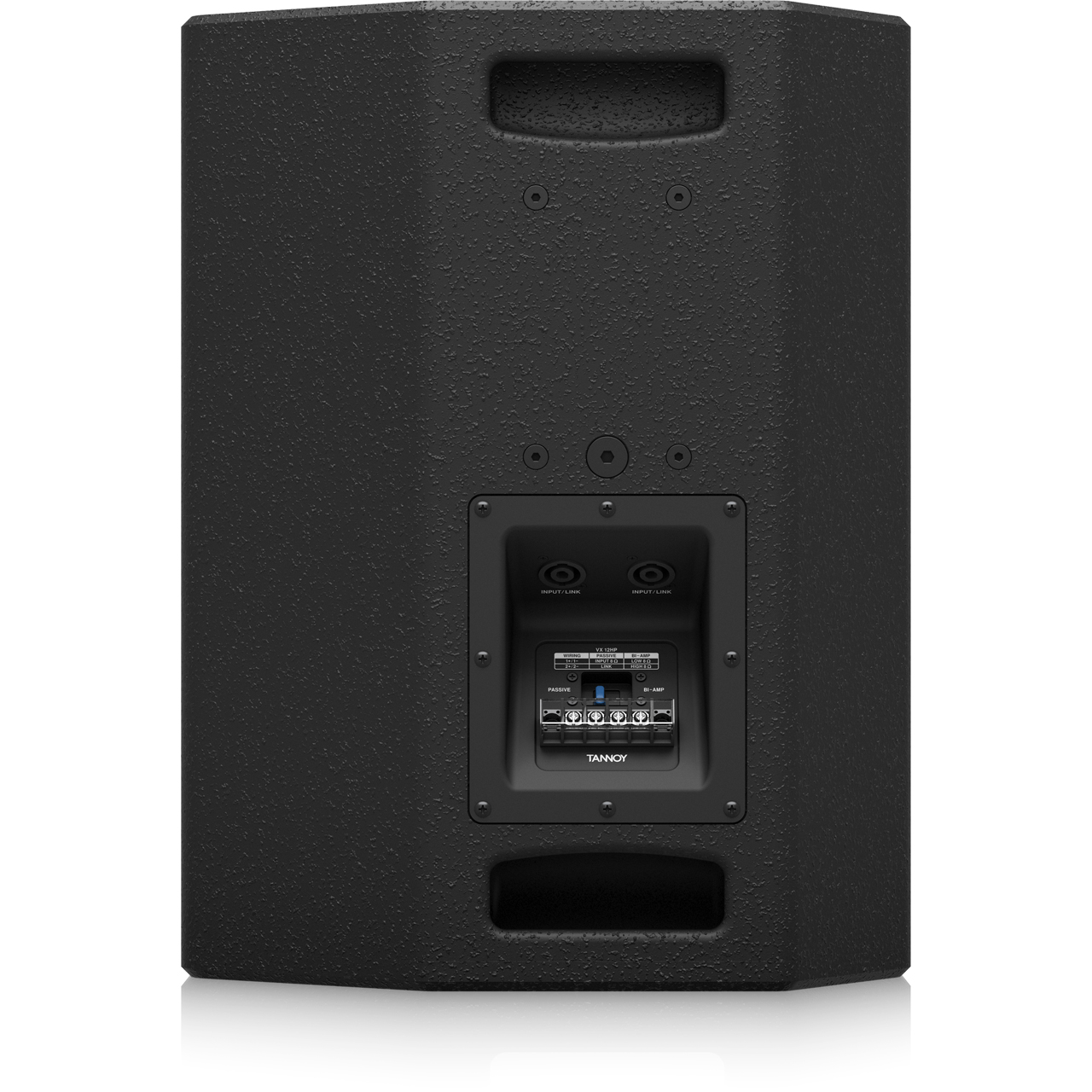

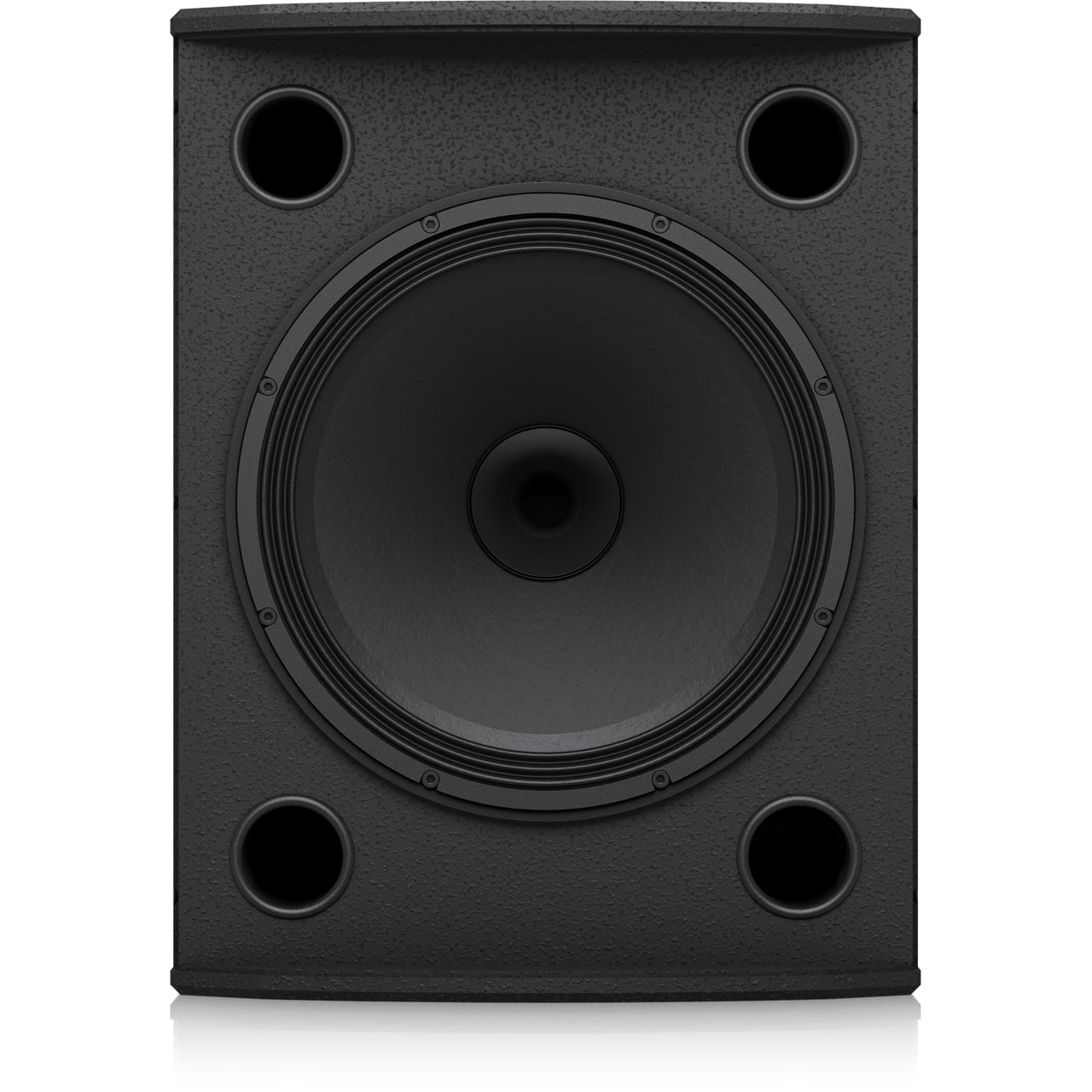

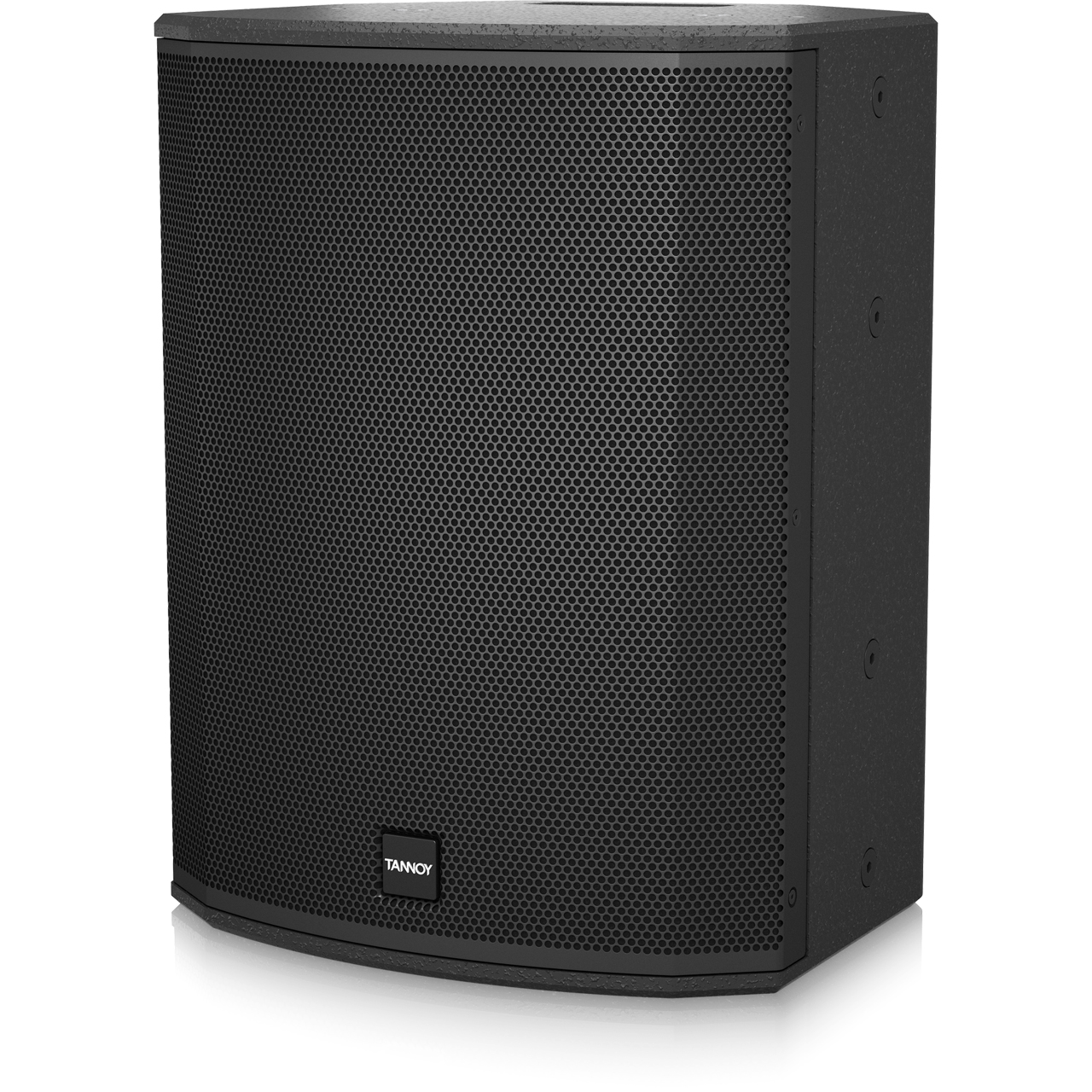

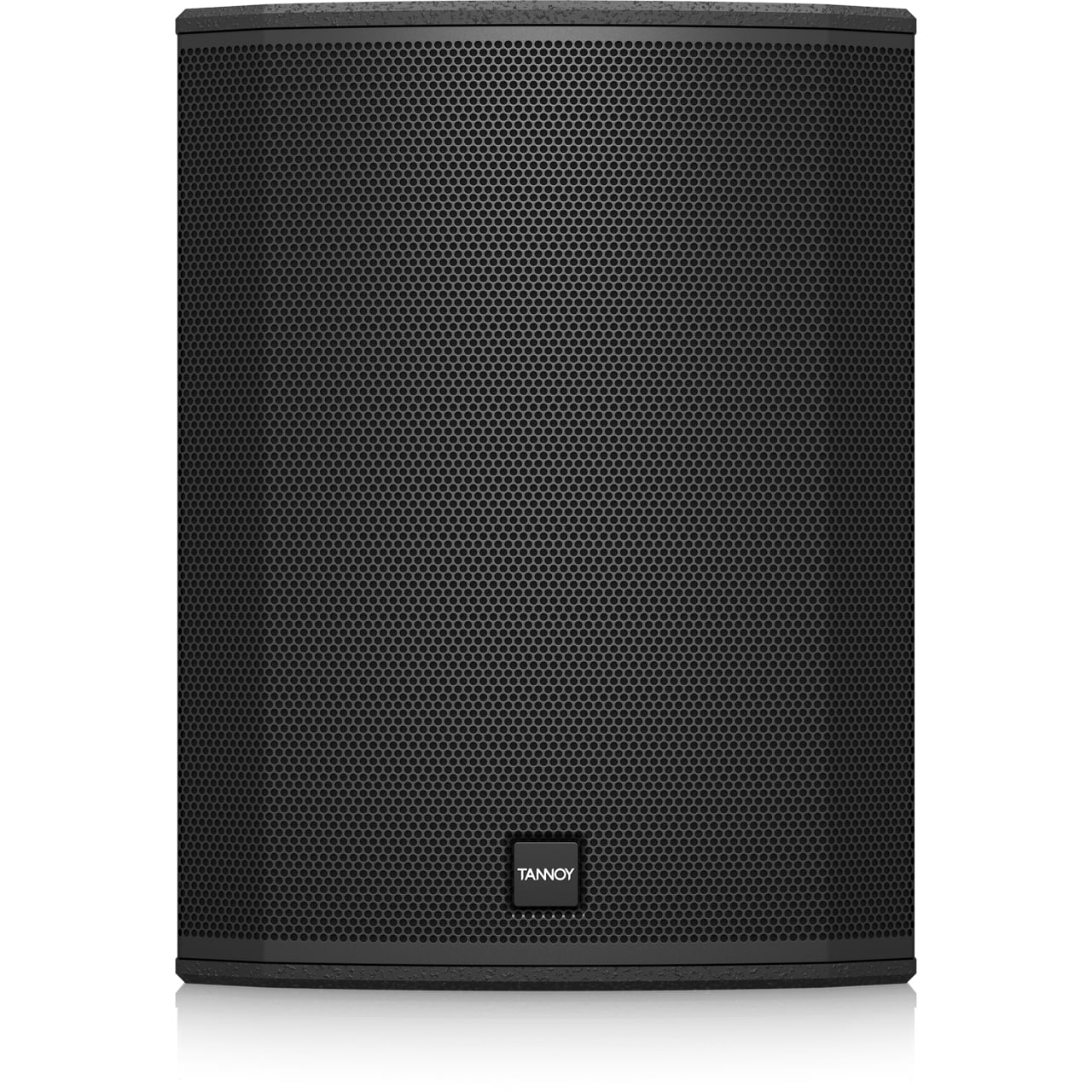

Tannoy VX12HP-BK 12-Inch PowerDual Full Range Loudspeaker for Portable and Installation Applications - Black

VX12HP-BK - Overview

• Features:

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 350W continuous, 1,400W peak power
  • 12" PowerDual full range driver for point source phase coherence
  • Precise 75° dispersion for optimum coverage and forward projection
  • Configurable for bi-amp operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
  • Optional horizontal and vertical mounting yokes (available separately)
  • Integrip handles ergonomically integrated into top and bottom of cabinet
  • 4-pole industry standard twist-lock speaker and barrier strip connectors for input and link output


• Specifications:

  • Frequency Response: 80Hz - 25kHz ±3dB 60Hz - 30kHz -10dB
  • Nominal Dispersion: 75° conical @ -6dB point
  • Directivity Factor (Q): 10.1
  • Directivity Index (DI): 10
  • Passive: 350W continuous, 1,400W peak
  • Bi-Amp:
    - LF: 350W continuous, 1,400W peak
    - HF: 80W continuous, 320W peak
  • Sensitivity: 97dB (1W @ 1m)
  • Passive: 123dB continuous, 129dB peak
  • Bi-Amp:
    - LF: 124dB continuous, 130dB peak
    - HF: 125dB continuous, 131dB peak
  • Passive: 8Ω
  • Bi-Amp: 8Ω, 8Ω
  • Crossover Type: Passive/Bi-amp switchable
  • Components: 1x 12" (305mm) constant directivityPowerDual
  • Connectors:
    - 2x Industry-standard 4-pole twist-lock speaker connectors
    - 1x barrier strip terminals
  • Passive: Pins 1+/1- Input, Pins 2+/2- Link
  • Bi-Amp: Pins 1+/1- LF, Pins 2+/2- HF
  • Dimensions (HxWxD): 19.2" x 14.6" x 14.2" (487mm x 371mm x 361mm)
  • Net Weight: 44lbs (20kg)
  • Construction: 5/8" (15mm) enclosure/3/4" (18mm) front, plywood, vented and internally braced
  • Finish: Semi matt black paint (white optional)
  • Grille: Powder coated perforated steel


• Item Includes:

  • 1x VX12HP-BK Loudspeaker
