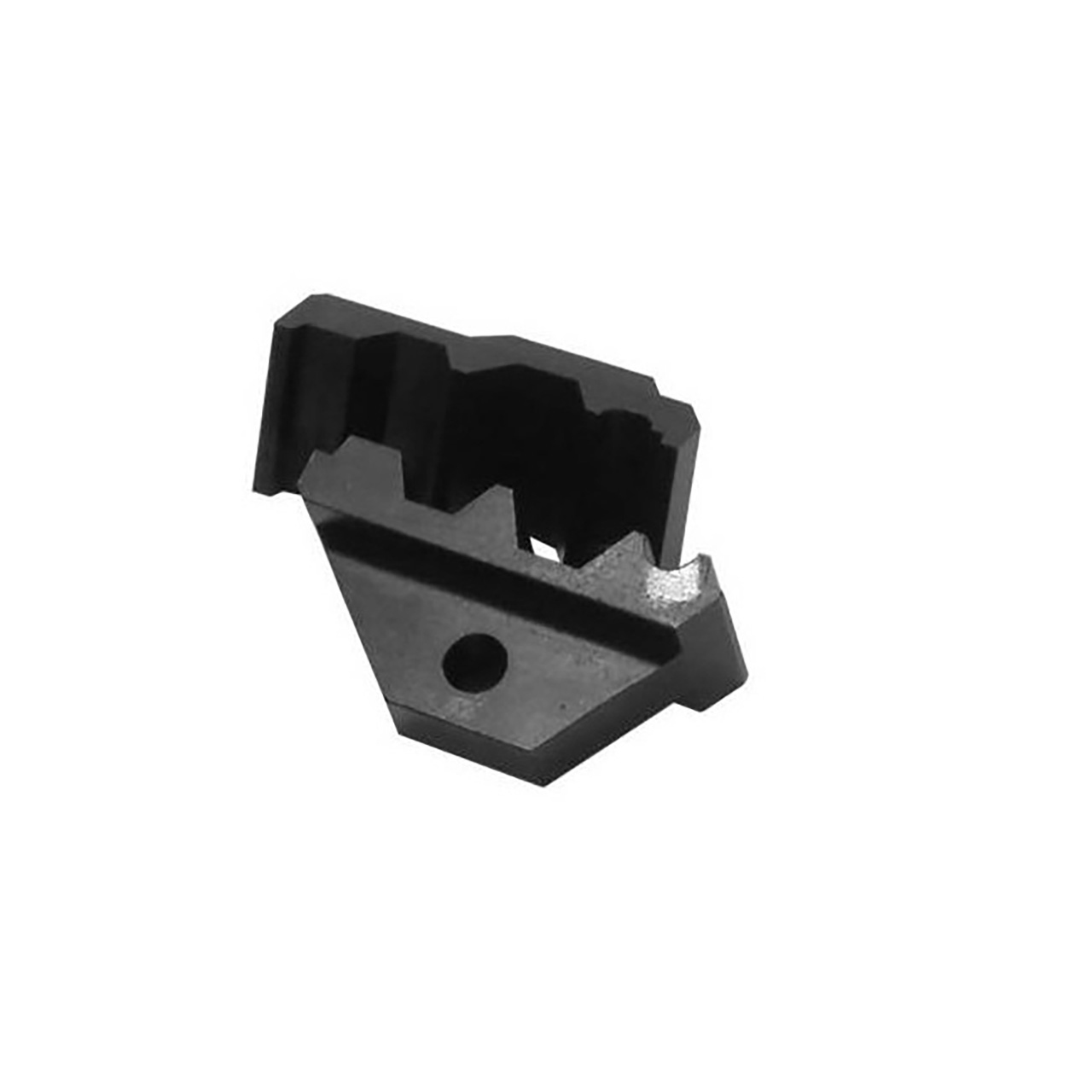

The Canare TCD-3151D is a precision crimp die set designed for use with the Canare TC-1 hand crimp tool. Its purpose is to ensure accurate, reliable crimping of specific Canare coaxial connectors-primarily BP-C31, BP-C51, and related 50-ohm BNC/RCA plug models that require this die geometry.
The removable die module installs into the TC-1 crimp tool. It provides the exact pin-crimp and sleeve-crimp dimensions needed for certain Canare connectors. According to Canare's die specification tables, the TCD-3151D features:
• Pin Crimp #1: 1.92mm
• Sleeve Crimp #1: 8.36mm
• Sleeve Crimp #2: 6.75mm
These dimensions match the mechanical requirements of connectors such as:
• BP-C31 (BNC for L-3D2W/3D-2W cable)
• BP-C51 (BNC for L-5D2W/5D-2W cable)
• BP-LC31 (right-angle BNC for L-3D2W/3D-2W)
