Tascam CA-XLR2d-C XLR Mic Adapter for Mirrorless Cameras - Canon

ITEM #: TCM-CA-XLR2D-C MFG #: CA-XLR2D-C

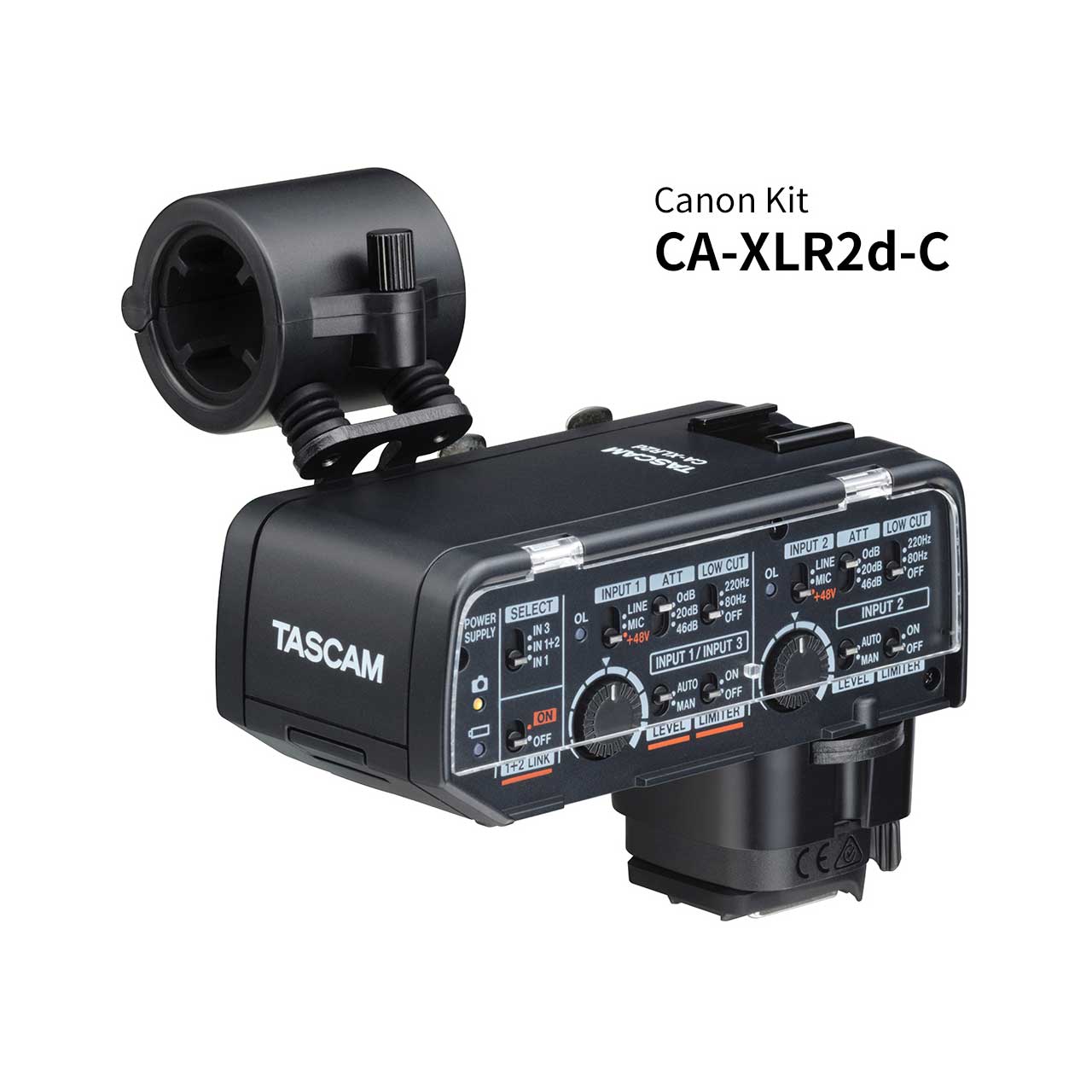

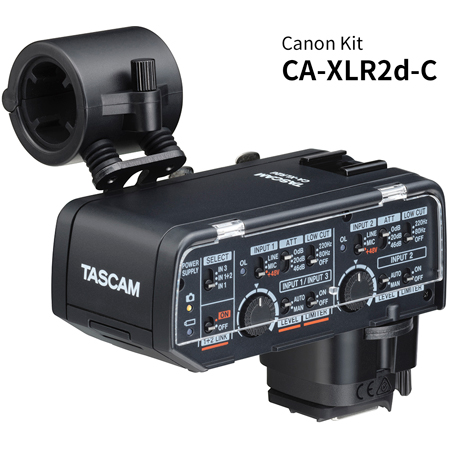

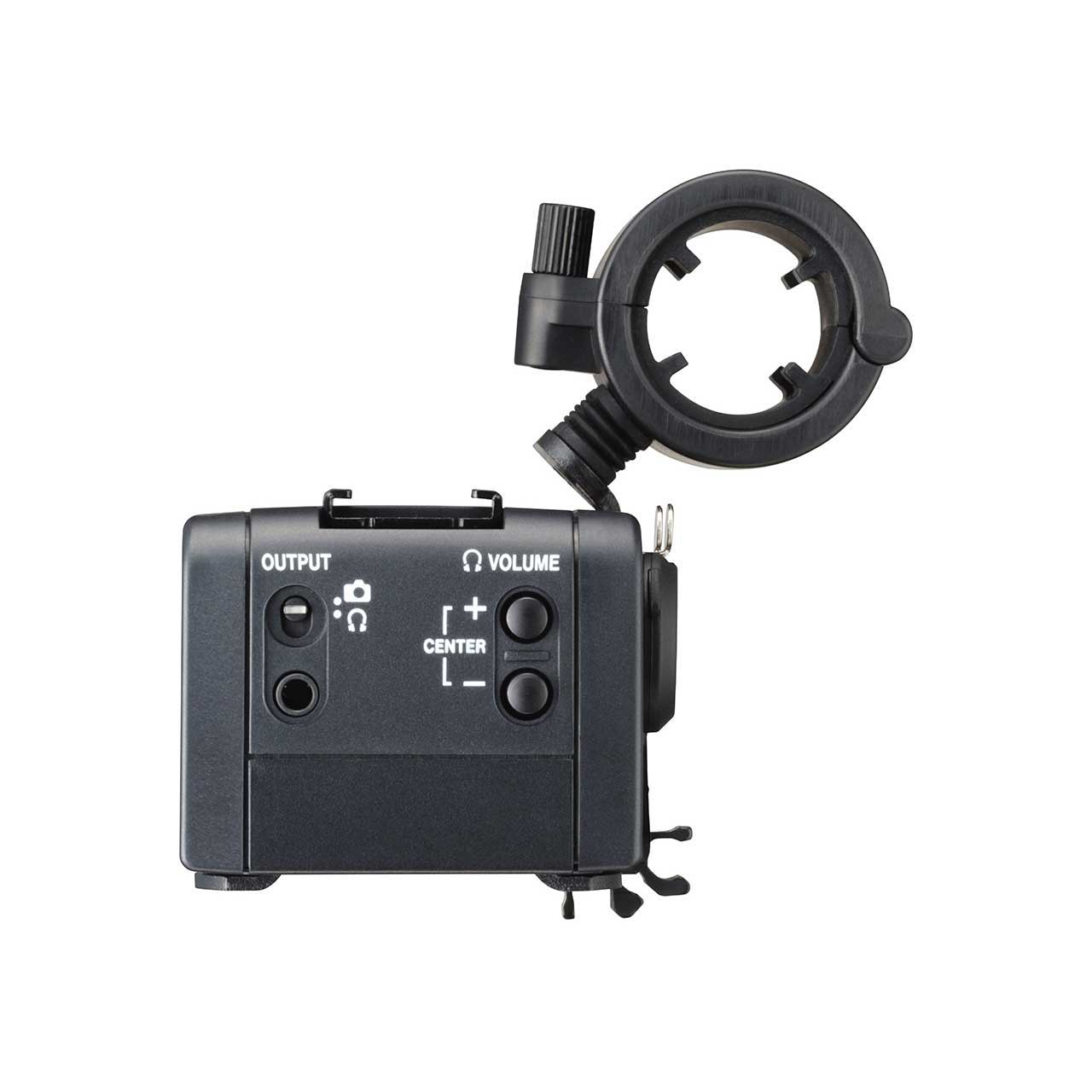

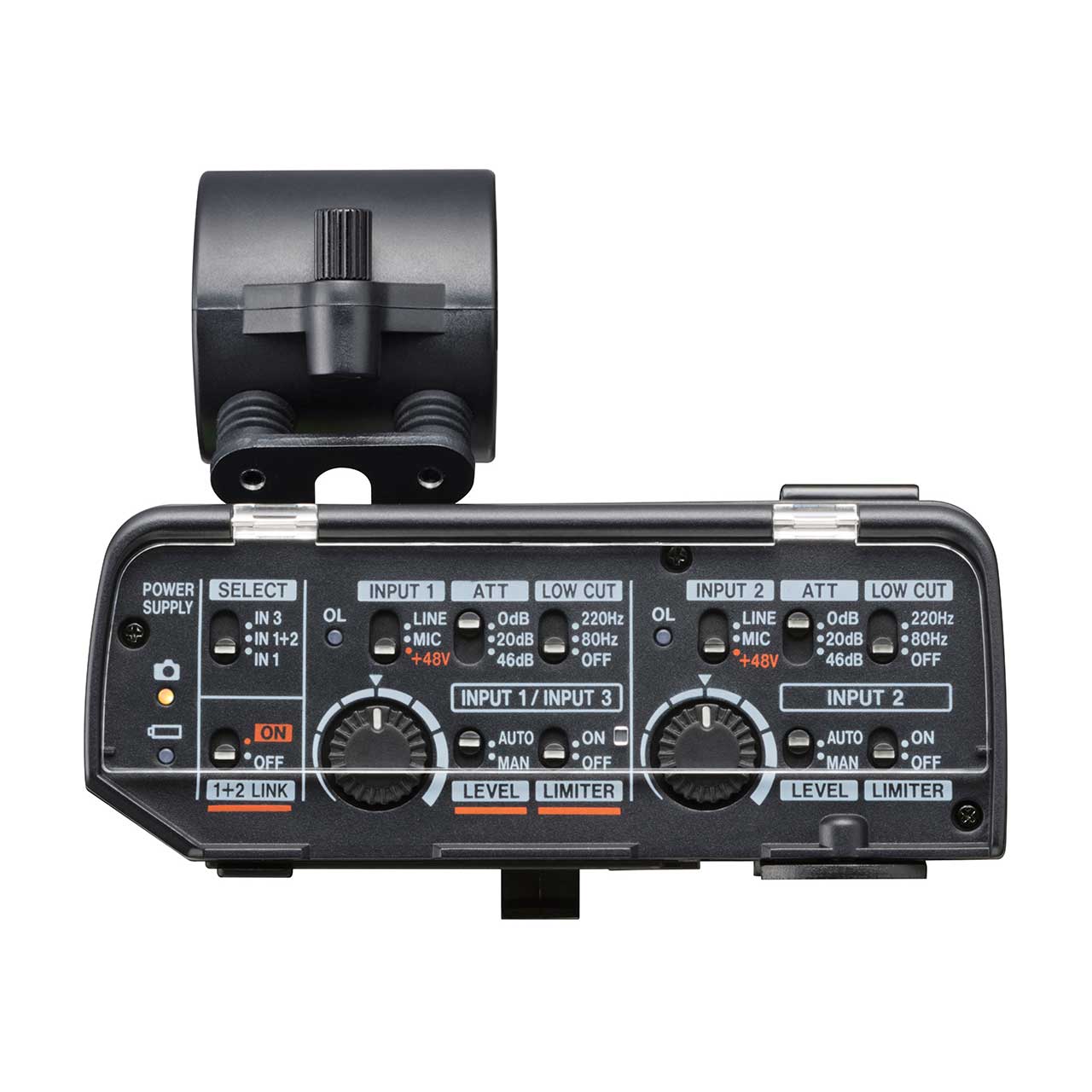

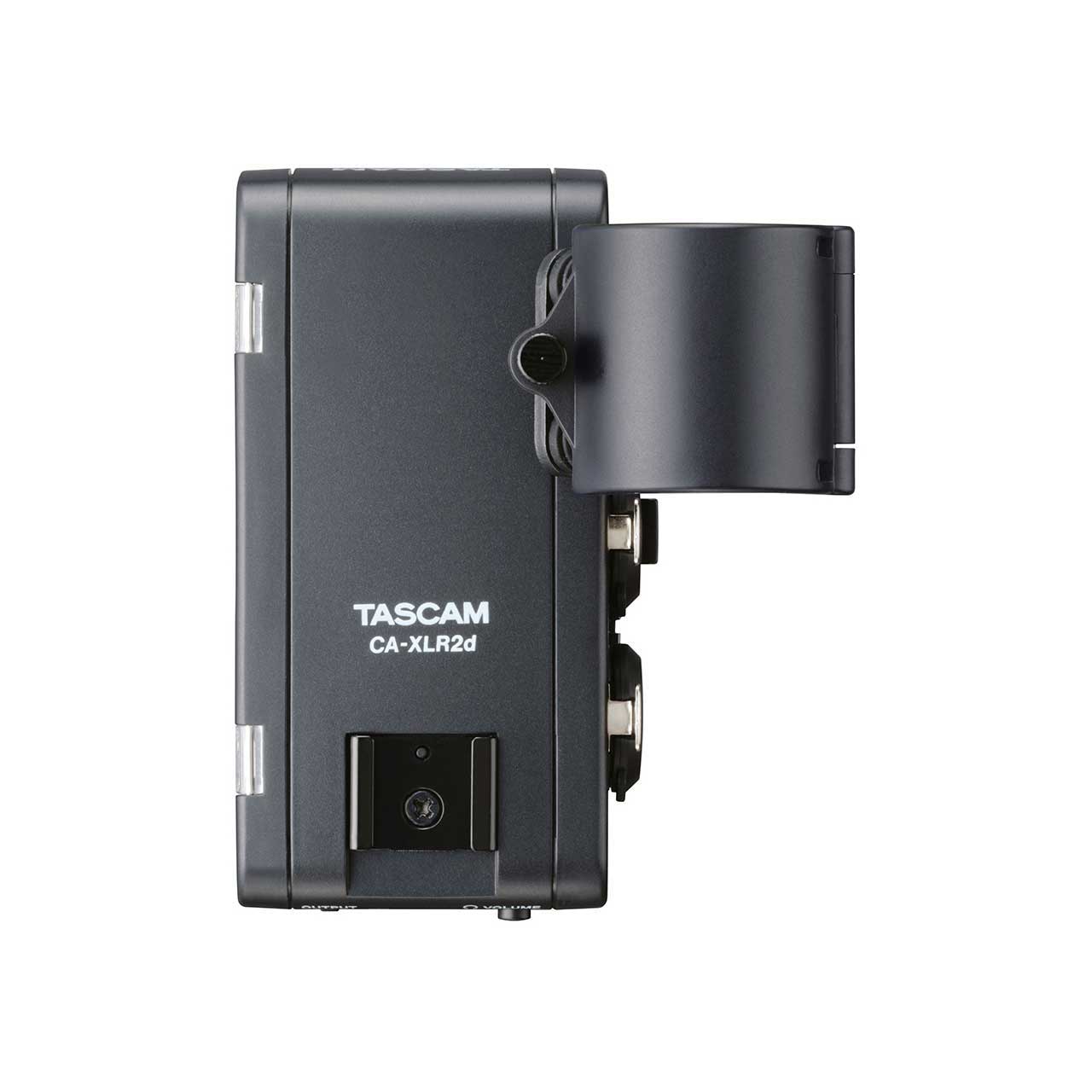

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$699.00

Our Price:

$499.00

Availability: In Stock
iAvailability Description Popup


    CA-XLR2D-C - Overview

    CA-XLR2d is a XLR microphone adapter for mirrorless cameras developed in collaboration with Canon, FUJIFILM , and Nikon. Tascam CA-XLR2d-C's hot shoe connection was designed and evaluated in collaboration with Canon achieving a high-level compatibility with the brand's multi-accessory shoe.

    Select the Best Microphone According to the Application
    Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications.

    Equipped With a High-performance AD Converter, Direct Transmission of Digital Audio to the Camera
    Because of TASCAM know how and premium AD converters, the CA-XLR2d is all about clean, noise-free, professional audio. It enables high-quality audio and smart voice recording utilizing various specialized brands of audio equipment. By transmitting digital audio directly to the camera via an accessory shoe that supports digital transmission, there is no deterioration in sound quality, but it also frees you from the work of synchronizing images and sound in post production. In addition, the CA-XLR2d is driven by the power supply from the camera, so if you connect it to a compatible camera, you can have compact operation without the need for a dedicated power supply.

    High-performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range
    CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.

    Designed For a High Degree of Freedom
    A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.

    Built-in Processing With User-friendly Control and Highest Recording Quality
    CA-XLR2d includes internal processing such as Auto Level, Low Cut Filter, and Limiter, all using convenient switches. The CA-XLR2 also supports the 1+2 LINK function, which allows you to adjust the L-R volume simultaneously when recording in stereo. The premium sound quality is possible because of professional grade 16bit/24bit, 48kHz/96kHz bit rates and sampling frequencies.

    • Specifications:

      • Sampling Frequency: 48k / 96k Hz
      • Quantization Bit Rate: 16 / 24 bit* Fs & Bitrate are synchronized with the settings of the connected camera
      • Number of channels: 2 channels

        MIC inputs (Balanced) - INPUT 1/2 Jacks
      • Connectors: XLR-3-31 equivalent (1:GND, 2: HOT, 3: COLD)
      • 6.3mm(1/4") standard TRS jacks Input (Tip: HOT, Ring: COLD, Sleeve: GND)
      • * Phantom power supported by XLR only

        MIC IN - Input switch set to "MIC"
      • Input Impedance: 2kΩ or higher
      • Maximum Input Level: +6dBu (ATT setting "46dB") 0dBu= 0.775Vrms
      • Minimum input level: -60dBu (ATT setting "0dB") 0dBu= 0.775Vrms
      • Gain range: 66dB

        LINE IN - Input switch set to "LINE"
      • Input Impedance: 10kΩ or higher
      • Maximum Input Level: +24dBu 0dBu= 0.775Vrms
      • Rated input level: +4dBu 0dBu= 0.775Vrms
      • Gain range: 66dB

        MIC inputs (Unbalanced) - Input 3 Jack
      • Connector: 3.5mm(1/8") Stereo mini jack
      • * Support plug-in power
      • Input Impedance: 2kΩ or higher
      • Maximum Input Level: +6dBV (ATT setting "46dB") 0dBV= 1Vrms
      • Minimum input level: -60dBV (ATT setting "0dB") 0dBV= 1Vrms
      • Gain range: 66dB
      • Plug-in power: 2.7V

        Phone / Camera Output (Unbalanced) - OUTPUT Jack
      • Connector: 3.5mm(1/8") Stereo mini jack
      • Output level: 0.29Vrms (Fixed,OUTPUT setting "CAMERA")
      • 0.5Vrms (Output volume setting at maximum OUTPUT "HEADPHONE")
      • Headphone working impedance: 16 to 250Ω

      • Power: 2 AA batteries (alkaline, NiMH or lithium-ion) Supplied through accessory shoe of compatible camera
      • Power consumption: 2.0W (maximum)
      • Dimensions: 88.2(W) x 119.1(H) x 110.0(D)mm (not including protrusions)
      • Operating temperature: 0 to 40°C (32 to 104°F)

        Audio performance
      • Frequency response: 20Hz to 20kHz: +0.5dB/-1.0dB( to digital input,Fs=48kHz), 20Hz to 40kHz: +0.5dB/-1.0dB( to digital input,Fs=96kHz)
      • Mic amp EIN (equivalent input noise): -120dBu or less(150Ω termination, GAIN maximun, A-Weight)
      • Dynamic range: 95dB or higher (22kHzLPF+A-Weight)

    • Item Includes:

      • 1x CA-XLR2d unit (with bottom connector cover)
      • 1x CA-AK1-C accessory shoe mount adapter (with connector cover/attached to unit)
      • 1x CA-AK1-AN cold shoe mount adapter (with interface connector cover)
      • 1x Battery holder (with connector cover) *Separately, two AA batteries are required
      • 1x Mic holder (attached to unit)
      • 1x Quick Guide (including warranty)
      • 1x 3.5mm(1/8") stereo mini cable
      • 1x TASCAM ID registration guide

    • GTIN:

      0043774035175
