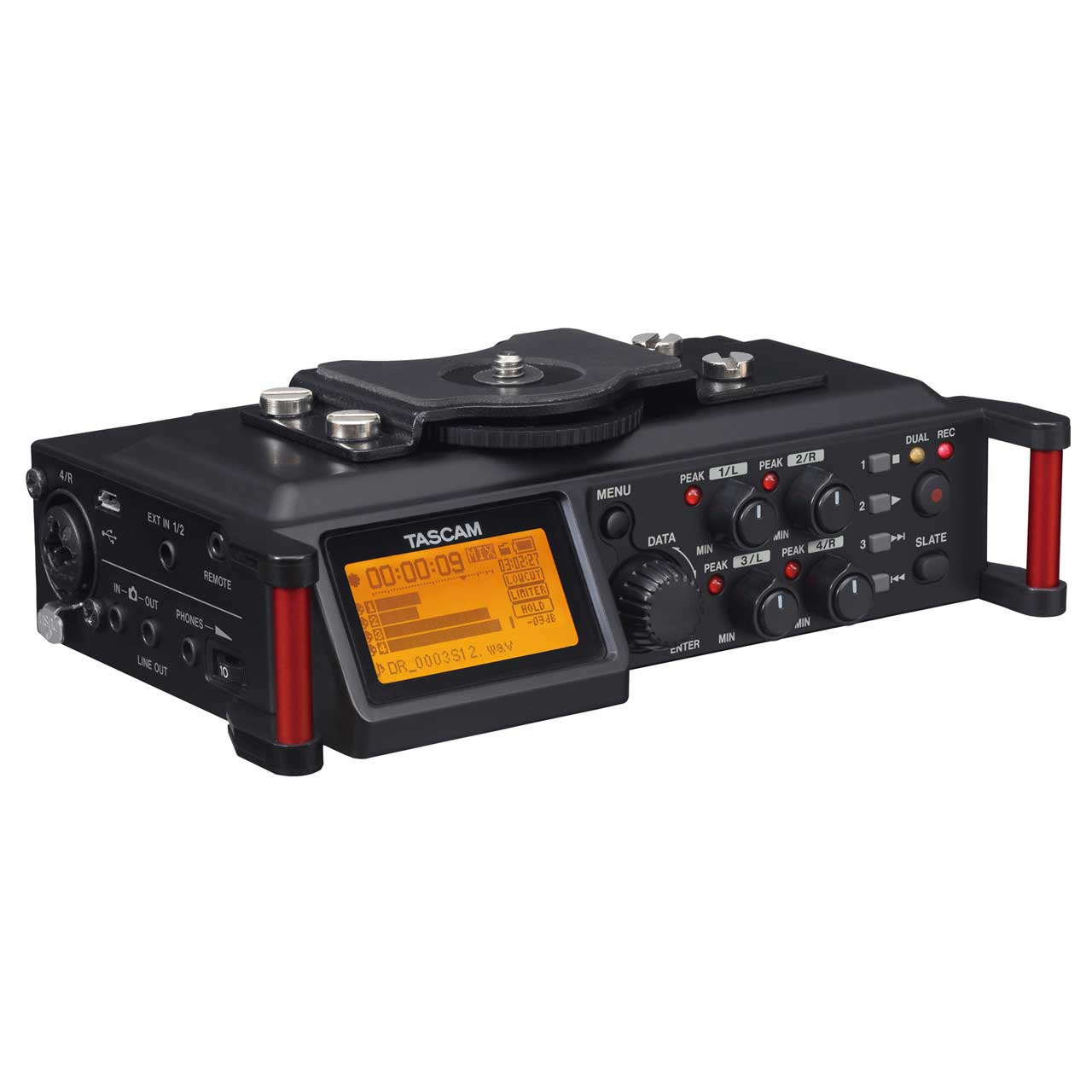

Tascam DR-70D 4-Track PCM Recorder for DSLR Video Production

ITEM #: TCM-DR-70D MFG #: DR-70D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$349.00

Our Price:

$249.00

Availability: In Stock
iAvailability Description Popup


    DR-70D - Overview

    4-Track Audio Field Recorder & Mixer for Audio/Video

    The DR-70D from TASCAM is the ultimate audio recording solution for filmmakers. Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.

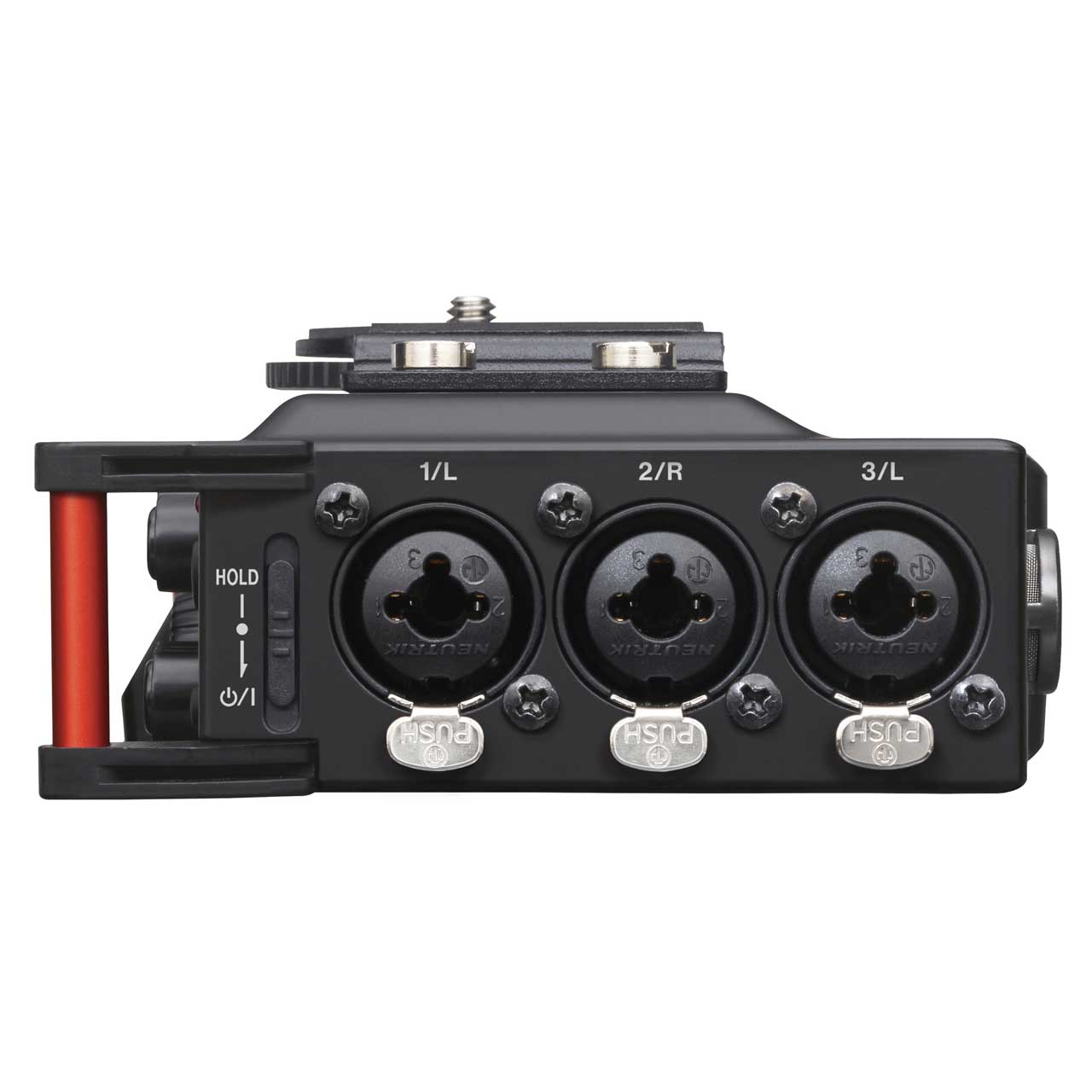

    4 XLR/TRS combo jacks allow a variety of setups
    4 XLR/TRS inputs are built-into the DR-70D. The four-channel design enables combinations of shotgun microphones, lavaliere mics, and the built-in stereo mic to be recorded individually. Channels 1 and 2 can be set to stereo input and channels 3 and 4 can be set to the built-in mics, making a variety of mic configurations possible.

    - MONO/DUAL MONO:Best for recording the audio of a single performer.
    - STEREO/DUAL STEREO:Best for recording with the built-in microphones or a stereo mic.
    - 2MIX/DUAL 2MIX:Creates stereo files of two or more mixed inputs.

    Dual Recording mode can be used to create a backup file that is simultaneously recorded at a different level to prevent clipping when levels exceed the maximum input. The second track is recorded up to 12dB lower as a safety track to prevent distortion - if your input signal overloads, you have a backup that isn't distorted.

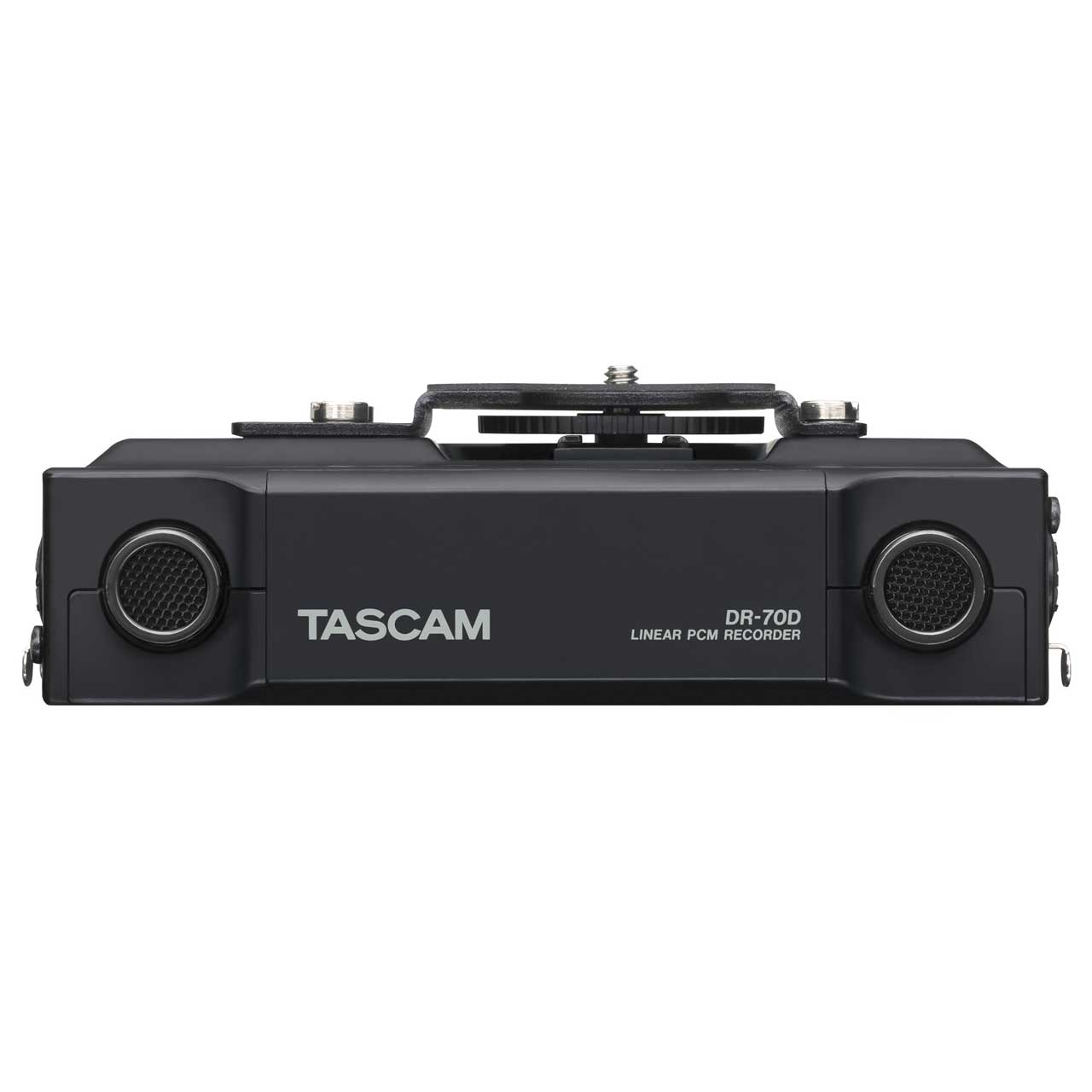

    Two built-in Omnidirectional Microphones
    Two omnidirectional microphones allow easy recording of natural stereo sound without using external mics. Used in combination with one or two other mics, the DR-70D becomes a compact setup for recording interviews and ambient sound at the same time.

    Built-in 4-in/2-out Mixer Enables 4-channel and Stereo Recording
    Each fo the four inputs is sent to a stereo mixer. This allows each input to be recorded individually for post production while a stereo mix is sent to headphones and the camera guide track.

    In addition to being able to adjust pan parameter, each input includes a limiter, a low-cut filter, and a delay to adjust for distances between mics. In addition, a mid-side decoding function enables the use of a MS stereo mics.

    HDDA (High Definition Discrete Architecture) mic preamps
    Microphone preamps do a lot of work to convert your mic-level signals to recordable levels, so they have a big impact on the quality of the audio that is recorded. The DR-70D uses TASCAM HDDA microphone preamps - created through careful selection of parts. An NE5532 op-amp was selected for its outstanding effect on audio quality. Through a mix of discrete architecture and hand-picked components, TASCAM has achieved an equivalent input noise level of -120 dBu.

    Compatibility:
    Windows
    OS - Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
    CPU - Pentium 300MHz or more
    RAM - 128MB or more
    USB - recommended: USB2.0
    Macintosh:
    OS - Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4),
    Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7),
    OS X Mountain Lion(V10.8), OS X Mavericks(10.9)
    CPU - Power PC, iMac, G3, G4 266MHz or more
    RAM - 64MB or more
    USB - recommended: USB2.0

    • Features:

      • Maximum number of tracks recorded simultaneously: (4)
      • Recording formats: 16/24-bit, 44.1k/48k/96k Hz (WAV/BWF)
      • XLR/TRS inputs support +4dBu line level and phantom power (24V/48V)

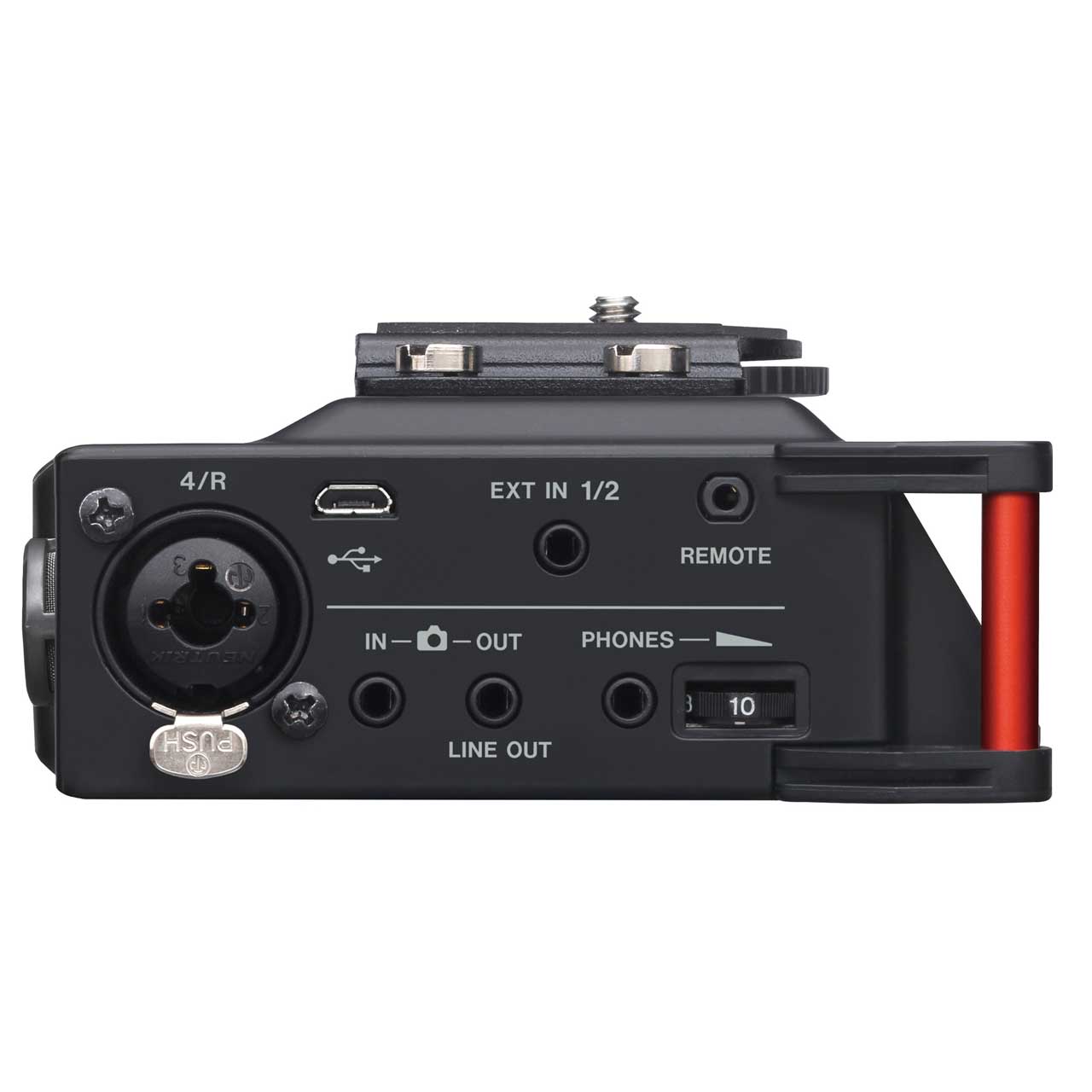

      • CAMERA IN jack allows the DSLR camera audio to be monitored through the DR-70D
      • Tripod mounting threads (bottom), camera screw attachment and a shoe mount that can be attached and removed with a coin (top)
      • Operates on (4) AA batteries, with an optional AC adapter (TASCAM PS-P520U) or USB cable provided with the unit (USB bus power).
      • BP-6AA external battery pack (sold separately) makes operation for even longer times possible
      • Low-cut filter with five settings (40/80/120/180/220 Hz) to be used to reduce unwanted air-conditioning noise and other low-frequency sounds
      • Limiter function can automatically adjust excessive input levels (stereo-linking possible for 1/L and 2/R)
      • Mid-side decoding function enables the use of mid-side stereo mics
      • Slate tone functions (automatic/manual)
      • Dual recording function allows two files to be recorded simultaneously at different levels (second file at between -1 dB and -12 dB)

    • Specifications:

      • Recording media: SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB)
      • Number of channels: 4-channel (stereo x2, mono x4)
      • Recording format: 44.1k/48k/96k Hz, 16/24-bit
      • Frequency response: 20Hz to 20kHz +0.5/-2dB (LINE IN or MIC IN to LINE OUT, Fs 44.1k/48k Hz, JEITA), 20Hz to 40kHz +0.5/-3dB (LINE IN or MIC IN to LINE OUT, Fs 96kHz, JEITA)
      • Distortion: 0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA)
      • S/N ratio: 92dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA)
      • Equivalent input noise: -120dBu or less
      • Power: 4 AA batteries(Alkaline or NI-MH), USB bus power, Dedicated AC adapter (TASCAM PS-P520U, sold separately), Dedicated external battery pack (TASCAM BP-6AA, sold separately)
      • Dimensions: 169(W) x 55.2(H) x 106.5(D)mm (with the top adapter attached)
      • Weight: 625g(including battery), 530g(not including batteries)
