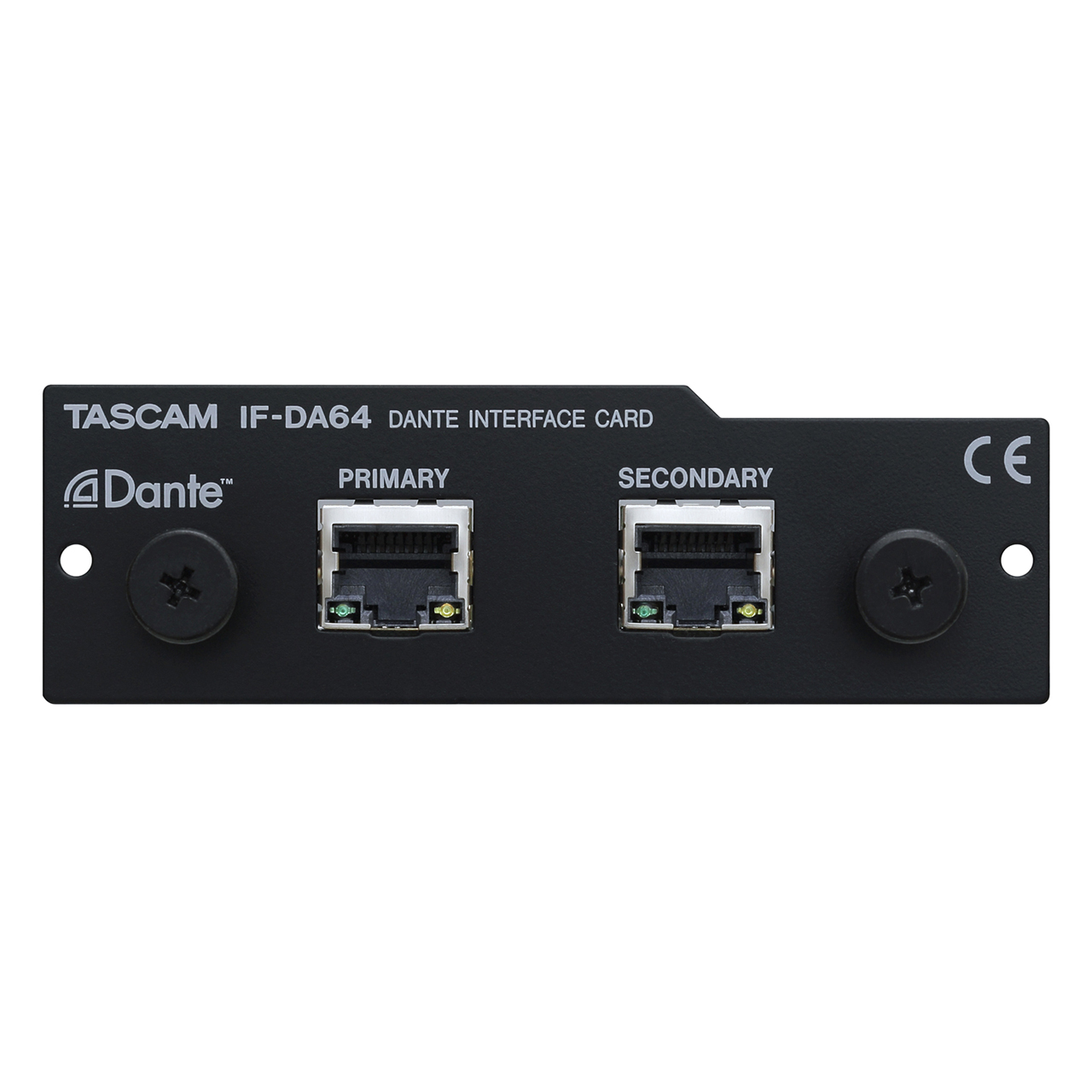

Tascam IF-DA64 64-In/64-Out Dante Interface Card For TASCAM Sonicview 24XP & 16XP Mixer - DA-6400 & DA-6400dp Recorders

IF-DA64 - Overview

64-In/64-Out Dante Interface Card

• Features:

  • Up to 64-in/64-out (48kHz/44.1kHz) or up to 32in/32out (96kHz/88.2kHz) Dante inputs and outputs
  • Redundancy (primary/secondary)
  • RJ-45 connector
  • Compatible with the TASCAM Expansion Slot system


• Specifications:

  • Sampling Frequency:
    - 44.1k/48kHz: 64 channels max.
    - 88.2k/96kHz: 32 channels max.
  • Connector: RJ-45
  • Transmission Protocol: Dante
  • Gigabit Ethernet Standard: 1000BASE-T (IEEE 802.3ab)
  • Cables: Category 5e or faster
  • Dimensions (HxWxD): 1.34" x 4.21" x 6.17" (34mm x 107mm x 156.8mm)(including protrusions)
  • Weight: 4.9oz (139g)


• Item Includes:

  • 1x IF-DA64
  • 1x Owner's Manual with Warranty


• GTIN:

  0043774032068
