Tascam RX-BT10MKII Compact Stereo Bluetooth Receiver With Balanced XLR and Unbalanced RCA Outputs

ITEM #: TCM-RX-BT10MKII MFG #: RX-BT10MKII

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$419.00

Our Price:

$319.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RX-BT10MKII - Overview

Easily add Bluetooth 5.1 connectivity to your setup!

The Tascam RX-BT10MKII Bluetooth receiver is the professional solution for integrating Bluetooth audio into any installation. With Bluetooth 5.1 Class 1, both balanced and unbalanced outputs, an extendable antenna, customizable Bluetooth device naming, and the option to connect a remote pairing button, the RX-BT10MKII delivers versatility and reliable performance in spaces ranging from small rooms to large venues.

Add Bluetooth to Any System with Ease
The RX-BT10MKII is the easy way to add Bluetooth connectivity to any setup. With Bluetooth 5.1 output class 1, it delivers a stable connection over long distances-up to 100m in ideal conditions. The front-panel receiver antenna ensures reliable reception so you don't have to worry about signal sensitivity.

*Actual range may vary depending on the environment, device class, and local radio wave conditions.

Output Options

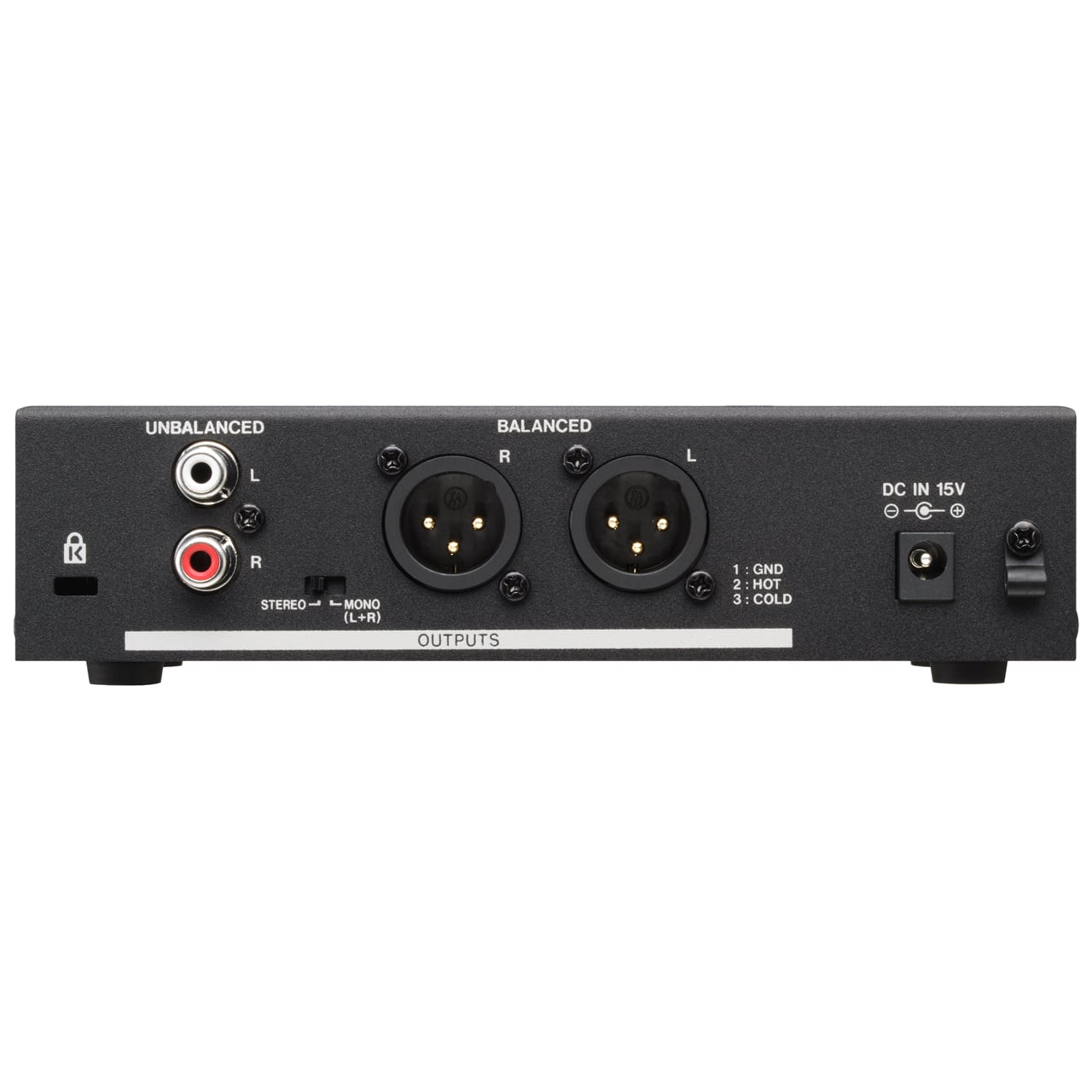

With both balanced and unbalanced outputs, this unit integrates seamlessly into any setup. Choose between balanced stereo XLR or unbalanced stereo RCA connections, and use the rear-panel stereo/mono switch to maintain a full stereo field or sum the signal as needed.

Compact and Built to Last
Built for durability, the RX-BT10MKII features a rugged metal enclosure that stands up to the demands of any installation. Its compact size makes it easy to integrate into a variety of setups. Mounting points on the top and bottom panels enable the RX-BT10MKII to be attached to practically anything, plus a bracket kit for mounting on a shelf or under a desk is included. Designed for reliability, long-lasting performance in any environment is a guarantee.

On the Go
Lightweight and easy to carry from gig to gig, the RX-BT10MKII is perfect for hotel setups, classrooms, and mobile events. Flawlessly add Bluetooth connectivity to existing systems, while the balanced XLR output ensures a reliable, professional-grade connection in any environment.

  • Features:

    • Bluetooth 5.1 (Class 1) for long distance and high stability connection
    • XLR balanced outputs
    • Compact and rugged metal enclosure
    • Customizable Bluetooth device name
    • A unique Bluetooth ID is assigned to each device for easy identification
    • Bluetooth antenna and pairing button are extendable, allowing placement in an optimal position
    • Switchable mono/stereo output
    • RCA unbalanced output
    • Euroblock terminal to add a remote pairing button
    • Bluetooth paring button
    • Bracket kit for mounting on a shelf or under a desk included
    • Rack mountable
    • AC adapter (PS-M1524) included

  • Specifications:

      Input - Bluetooth
    • Version: 5.1
    • Output Class: 1 (about 100m unobstructed transmission range*)
    • Supported Profiles: A2DP, AVRCP
    • Supported Codecs: SBC, AAC
      *Transmission distance is estimated. The transmission distance may vary depending on the surrounding environment and radio wave conditions. Different Bluetooth transmission output classes have connection compatibility, but they might be connected using the shorter maximum transmission distance. For example, if a smartphone that is Class 2 (10m unobstructed transmission range) is connected to this unit, which is Class 1 (100m unobstructed transmission range), the unobstructed transmission range of the smartphone will be applied.

      Outputs - LINE OUT (UNBALANCED)
    • Connectors: RCA pin jacks
    • Maximum Output Level: +6dBV
    • Nominal Output Level: -10dBV
    • Output Impedance: 100Ω or less

      Outputs - LINE OUT (BALANCED)
    • Connectors: XLR (balanced)(1: GND, 2: HOT, 3: COLD)
    • Maximum Output Level: +14dBu
    • Nominal Output Level: -2dBu
    • Output Impedance: 100Ω or less

      Audio Performance
    • Frequency Response: 20Hz - 20kHz: +0.5dB/-1dB
    • Distortion (THD+N): 0.04% or less (1kHz, maximum output level)
    • S/N: 90dB or more (1kHz, 22kHz LPF, A-weighted)
    • Channel Separation: 100dB or more

      Other
    • Power:
      - Specialized AC Adapter (PS-M1524)
      - Input Voltage: AC 100V - 240V (50/60Hz)
      - Output Voltage: DC 15V
      - Output Current: 2.4A
    • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
    • Operating Humidity Range: 5% - 85% (without condensation)
    • Power Consumption: 1.7W
    • Dimensions (WxHxD, excluding protrusions): 6.73" x 1.77" x 2.87" (171mm x 45mm x 73mm)
    • Weight: 1.17lbs (530g)

  • Item Includes:

    • 1x RX-BT10MKII
    • 1x AC adapter (TASCAM PS-M1524)
    • 1x Cable for AC adapter (JAPAN/USA/EUROPE)
    • 2x Brackets
    • 6x Attachment screws
    • 1x Euroblock Plug (for pairing button)

  • Warranty:

    • 1 Year Limited Warranty
