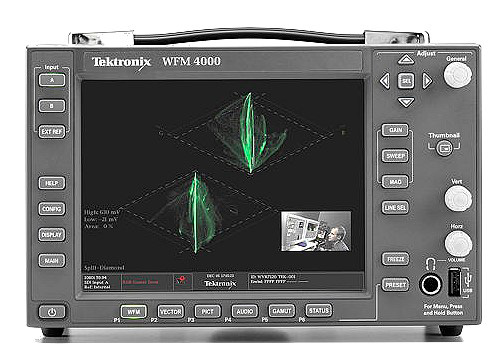

Tektronix WFM4000 SD-SDI Waveform Monitor with two Passive Loopthrough Inputs

ITEM #: TEK-WFM4000 MFG #: WFM4000

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TEK-WFM4000

WFM4000 - Overview

SD-SDI Waveform Monitor with two Passive Loopthrough Video Inputs, one AES/EBU Audio Input, 16 CH of Embedded Audio Support, and Power Option "A0" (North American). The WFM5000 and WFM4000 waveform monitors offer uncompromised monitoring quality with sharp CRT-like traces, patented Gamut displays, Picture thumbnail, Display freeze and an Error log for 10,000 events for efficient content compliance verification.

These portable video waveform monitors weigh less than 3 kg. and provide an ideal solution for basic video and audio monitoring needs in a convenient 3RU half-rack short depth form factor, suitable for space-constrained environments. Both models support options to accept power from a 12 VDC source, a battery or a 100-240 VAC converter. Both models come standard with support for 8 channels of Embedded Audio and 1 input for 2 channels of Digital AES audio.

  • Features:

    • TandemVu display - Streamline the camera set up process with TandemVu. This patented display allows the user to overlay the Waveform & Vector or Waveform & Lightning displays, plus Picture Thumbnail, in a single full tile display.
    • Gamut displays - Simplifies maintaining compliance across formats and color spaces using the exclusive Tektronix Diamond, Split Diamond, and Arrowhead displays.
    • Exclusive Push Button Thumbnail Picture Feature - Enables quick identification of source content and improved efficiency, no menu navigation required. Helps ensure you are monitoring the correct source
    • Video & Audio session screens & status displays - Simplify monitoring tasks with at-a-glance information.
    • AES audio inputs - Enables monitoring of discreet or embedded digital audio without the need for additional equipment.
    • Passive Loop-through for HD/SD-SDI (WFM5000) and SD-SDI WFM4000 inputs - Allow for monitoring the true signal in the path. Does not disrupt the signal flow if the unit is turned off.
