    PHSXTAGC-IP - Overview

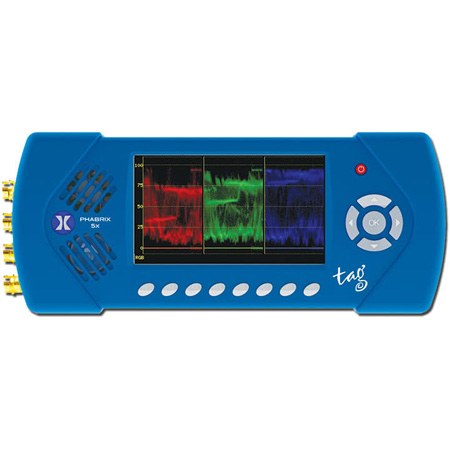

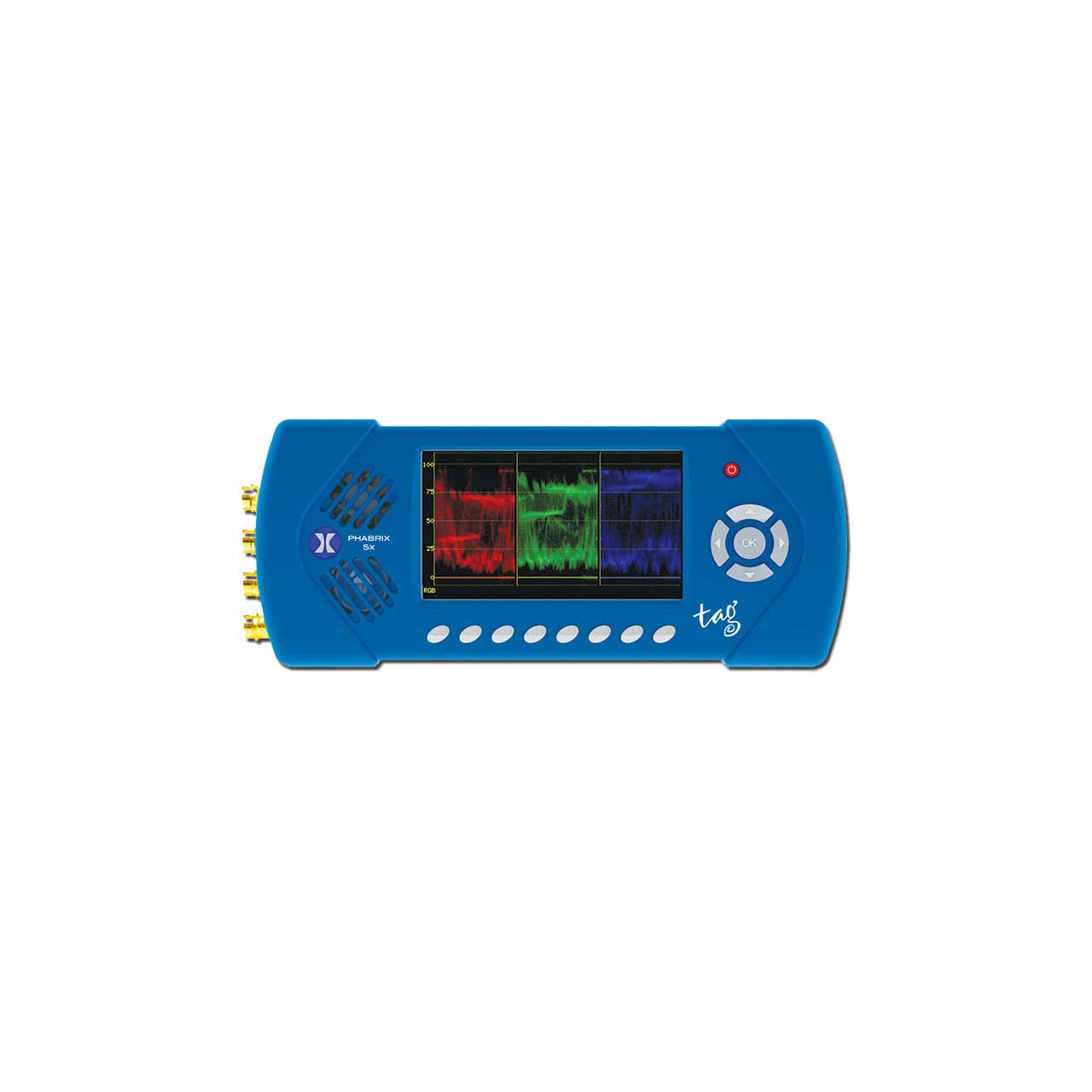

    The Phabrix PHSXTAGC-IP Sx TAG with its SFP, SDI and analog I/O offers incredible versatility in a handheld device. It is ideal for IP, 3G/HD/SD-SDI, optical SDI, HDMI and Analog test & measurement as well as AES eye analysis, for applications demanding true mobility and ease of use.

    It provides support for SMPTE ST 2110-20/30/40 encapsulation/decapsulation with ST 2059 PTP, SDP and NMOS as well as SMPTE ST 2022-6 encapsulation/ decapsulation, using 10GE IP SFP+ modules developed by Embrionix.

    Extensive Video Toolset
    With simultaneous signal generation and analysis, its built-in core toolset includes a multi-format waveform, vectorscope and video display, plus data view and VANC/ANC inspector. Over 350 formats are supported for compliance monitoring. Signal generation offers 32 test patterns, including pathological.

    Hybrid IP And SDI
    The Sx TAG'S versatile SFP handles 3G/HD/SD-SDI, optical SDI, IP, HDMI and analog composite formats. Comprehensive support is provided for modern broadcast IP systems with encap/decap of ST 2110-20/30/31/40 with IP to SDI gateway, ST 2059 PTP, AMWA NMOS IS-04/IS-05, as well as ST 2022-6.

    AV Delay Generation And Analysis
    AV Delay Generation and Analysis offers an end-to-end solution for the measurement of Audio to Video differential delay through a broadcast system. The tool provides a realtime update of the differential delay between the video content and the selected audio channel pair to measure the propagation (latency) or pipeline delay.

    Ultra Portable, Rugged Design
    The Sx TAG offers great mobility with a lightweight, rugged aluminium case with integral, high quality screen for instrument display and video monitoring. The generator/ analyzer operates via rechargeable lithium battery for up 2 hours, and can also be powered by the mains to offer flexible operation around facilities.

    TAG Analyzer/Generator/Monitor + IP (PHSXTAGC + PHSXO-IP + PHSFP-10SR-IP multi-mode only)

    • Features:

      • Portable hybrid IP, SDI + Analog generation, analysis & video/audio monitoring
      • Advanced, hybrid IP/SDI toolset
      • Ultra-portable, rugged design
      • Ease of use

    • Specifications:

      • Monitor Details
      • Display resolution: 480 x 272 pixels auto scaling
      • Display type: 16:9 24 bit color TFT
      • Display size: 95 x 54 mm
      • Processing: All digital

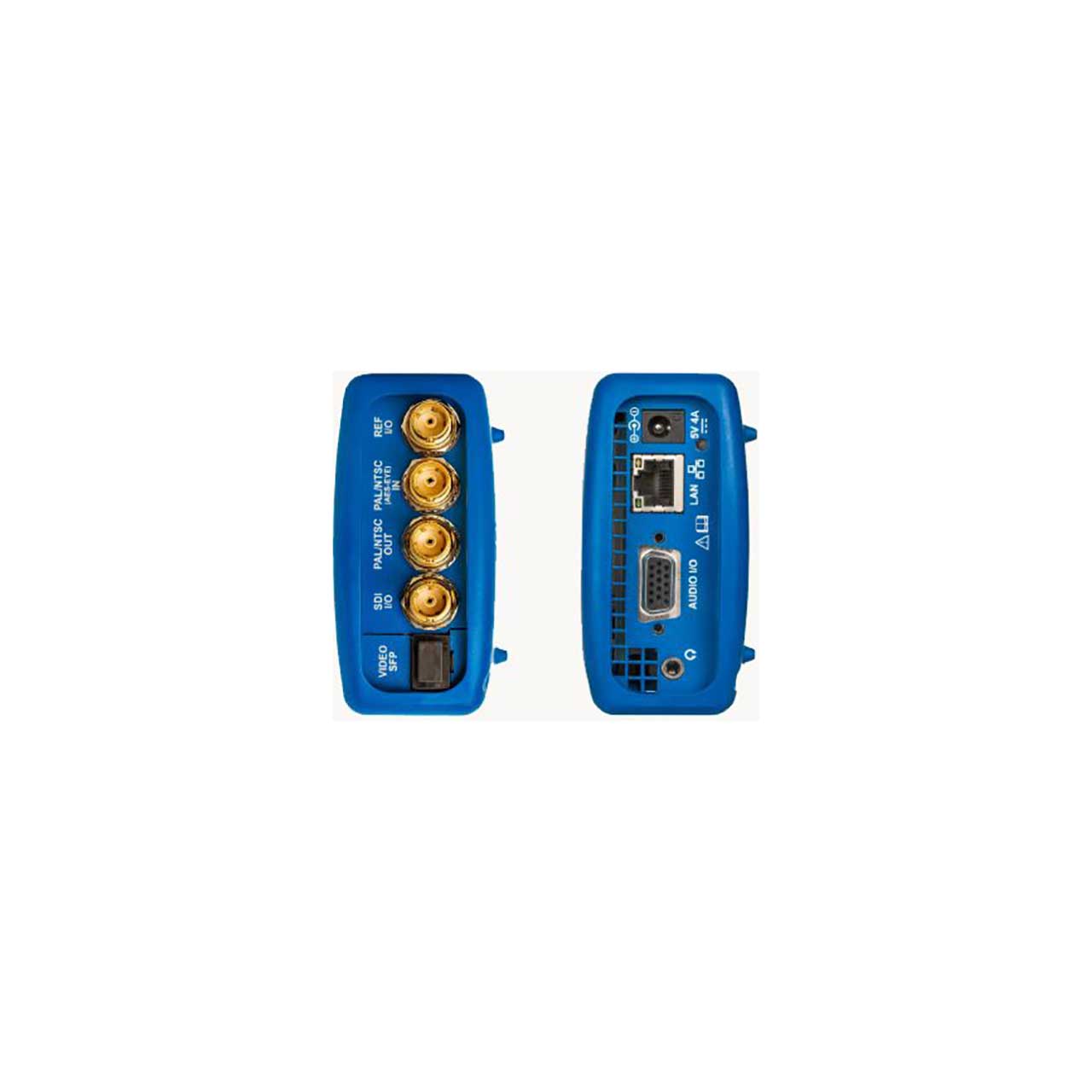

        SDI Video Input/Output
      • SDI Format: SD-SDI, HD-SDI, (3G-SDI Option)
      • SDI Input/Output: 1 x 75 Ohm BNC
      • EDH: Yes (SD-SDI)

        Reference Input/Output
      • Genlock: Bi/Tri/SDI with cross lock
      • Ref Generator: Bi-level PAL/NTSC +/- 5ppm
      • Generator timing: 0 to 1 Frame WRT reference source

        Composite Video Input/Output
      • Composite formats: PAL / NTSC
      • Composite input: 1 x 75 Ohm BNC
      • Composite output: 1 x 75 Ohm BNC

        SFP Input/Output
      • Interface: Single Tx, Single Rx or Transceiver (Non-MSA)
      • Module types: SDI Fibre or SDI Coaxial.

        Audio
      • Internal speaker: 0.5 watts
      • Audio DAC: 24 bit stereo
      • Headphone socket: 3.5 mm with auto line out
      • Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
      • Metering: 16 channel PPM with phase indication
      • AES output: 75 ohm AES Pair via 15-way D-type
      • AES input: 75 ohm AES Pair via 15-way D-type
      • Analogue output: Balanced stereo pair via 15-way D-type
      • Analogue input: Balanced stereo pair via 15-way D-type

        General
      • Navigation panel: 5 menu keys, 8 custom select
      • Integral battery supply: 1-2 hours lithium polymer
      • Internal storage: 2 GB
      • Remote control: Web Browser Interface
      • Ethernet: Web server, Remote control (TCP/IP Sockets)
      • Carry case: included
      • AC power supplier: included (uninversal)
      • Security Kensington lock fitting
      • Weight: 900g
      • Size: H: 92mm W: 225mm D: 42mm
      • Note: Lithium batteries do lose charge over time. PHABRIX offers a battery replacement service
