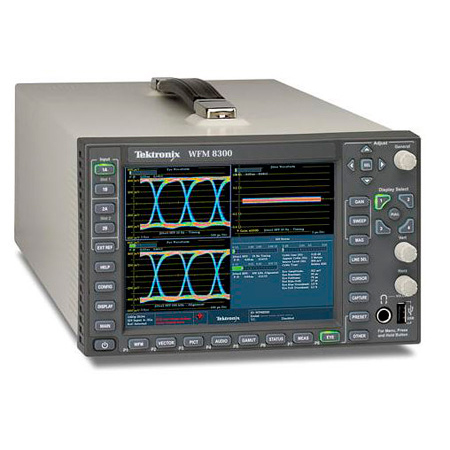

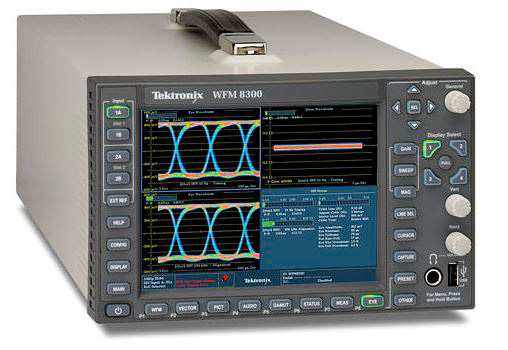

Tektronix WFM8300 Advanced 3G/HD/SD Waveform Monitor and Analyzer
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tektronix WFM8300 Advanced 3G/HD/SD Waveform Monitor and Analyzer

    Manufacturer: Tektronix

    Item #: TEK-WFM8300   •   MFG #: WFM8300


    Our Price:$20,400.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    Advanced 3G/HD/SD Waveform Monitor and Analyzer,2 SDI Inputs (3G-SDI, HD-SDI and SD-SDI support on the same inputs-auto detect); includes HD-SDI, SD-SDI, Dual-Link signal formats, simultaneous input monitoring (SIM), advanced data analysis, and audio/video delay measurement (requires an audio option). The WFM8200 and WFM8300 Waveform Monitors are ideal for multi-format environments, providing flexible options and field-installable upgrade kits to monitor diverse video types, including 3 Gb/s SDI, Dual Link, HD/SD SDI and Composite Analog Video.

    They support any combination of video and audio format options, so these instruments excel in multi-format environments and evolve with your needs to protect your investment.

    • Features

      • Video/Audio/Data Monitor and Analyzer – All in One Platform
      • WFM8300 and WFM8200 come standard with auto-detection of HD/SD-SDI and multiple Dual Link video formats
      • Optional capabilities include 3G-SDI (Level A and Level B) formats support (Opt. 3G), composite analog video support (Opt. CPS), as well as analog and digital audio (Opt. AD) and Dolby E, Dolby Digital Plus, and Dolby Digital audio (Opt. DPE) decoding and monitoring
      • WFM8300 also comes standard with Simultaneous Input Monitoring capability, ANC Data Inspector, and numerical/graphical display of A/V delay for analog, digital audio (Opt. AD), and Dolby (Opt. DPE)
      • Multiple Input Mode allows monitoring of 2 to 4 SDI inputs simultaneously (4-input mode requires Opt. 2SDI)
      • Superior Physical Layer Signal Integrity Analyzer
      • Most accurate 3G-SDI jitter waveform display and eye pattern display in the waveform series and patented cable length measurement (WFM8300 Opt. PHY with Opt. 3G or WFM8200 Opt. PHY3 with Opt. 3G)
      • Most comprehensive eye pattern measurements including eye amplitude, rise/fall time, and overshoot/undershoot measurements as well as Tektronix jitter waveform display (WFM8300 Opt. PHY or WFM8200 Opt. PHY3)
      • Field-upgradeable HD/SD-SDI eye pattern input module to full 3G-SDI and HD/SD-SDI support with the purchase of an upgrade key (WFM830UP Opt. 3G or WFM820UP Opt. 3G)
      • Black Picture and Tektronix-patented Frozen Picture Detection
      • Tektronix-patented Timing and Lightning Displays
      • New Tektronix-patented Spearhead Display and Luma Qualified Vector (LQV™) Display Facilitate Precise Color Adjustment for Post Production Applications (Opt. PROD)
      • Tektronix patented Diamond and Arrowhead Displays for Gamut Monitoring
      • Most Comprehensive Audio Monitoring (Opt. AD or Opt. DPE)
      • Multichannel Surround Sound*1 display and flexible Lissajous display
      • Audio Loudness monitoring to ITU-R BS.1770-2 (Opt. AD or DPE)
      • Comprehensive Dolby metadata decode and display (Opt. DPE)
      • Dolby E Guard Band meter with user-defined limits (Opt. DPE)
      • Most Comprehensive ANC Data Monitoring
      • Simultaneous CEA708/608 Closed Caption monitoring; Teletext and OP47 subtitle monitoring
      • Detect and decode ANC data including AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC, and ANC TC ARIB STD-B35/B37/B39, TR-B22, and TR-B23 support
      • Most In-depth Digital Data Analysis Helps Quickly Resolve Difficult Content Quality and Reliability Issues (standard WFM8300 or WFM8200 with Opt. DAT)
      • Unmatched Display Versatility
      • FlexVu™, the most flexible four-tile display, tailors to various application needs to increase productivity
      • Standard and user-definable Safe Area Graticules facilitate editing and format conversions tasks, reducing the need for reworks
      • Active Format Description (AFD) detect, decode, and automatically adjusted graticule on picture display enable easy identification of aspect-ratio related issues
      • Unmatched Usability
      • CaptureVu® advanced video frame data capture simplifies troubleshooting and equipment setup
      • 32 instrument presets for quick recall of commonly used configurations tailored to engineers or operators
      • Front-panel USB port enables easy transfer of presets, captured video frame data, screenshots, and error log
      • Front-panel headphone port enables quick verification of selected audio pair
      • Intuitive menu structure and context-sensitive help
      • Extensive alarms, status reporting, and error logging
      • Bright, crisp, high-resolution LED backlight display
      • SNMP and Ethernet remote interface capabilities and GPI control facilitate centralized monitoring and control
