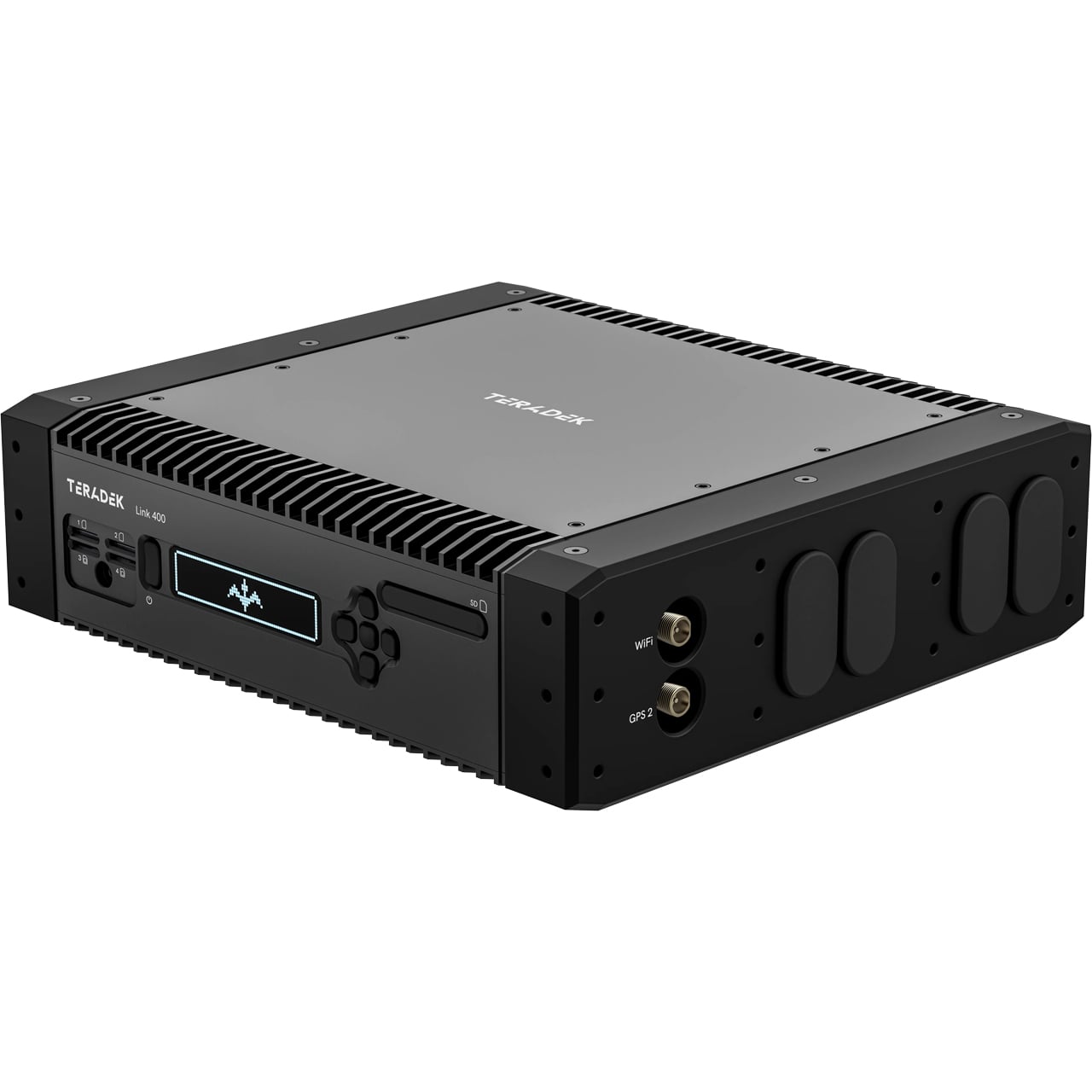

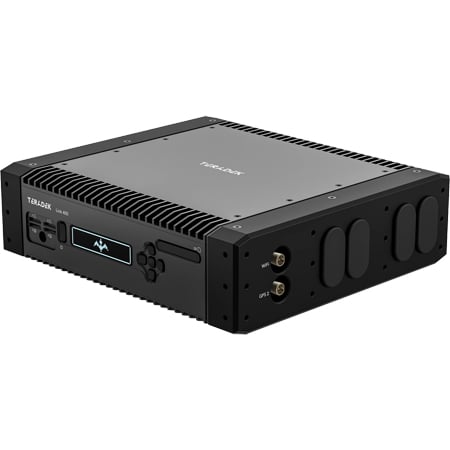

Teradek 10-2891 Link 400 4x 5G Bonded Celluar Hotspot with Multi-WAN Connectivity & External Antennas

ITEM #: TER-LINK-400EXT MFG #: 10-2891

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$7,490.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


10-2891 - Overview

A high-performance data bonding hotspot designed to turn weak signals into a powerhouse connection!

Built for Critical Connectivity
Stop letting "dead zones" dictate your productivity! Designed as a rugged multi-WAN bonding hotspot - Teradek Link 400 aggregates cellular, satellite, and wired networks into one stable connection. Built on Teradek's proven architecture, it delivers reliable high-throughput connectivity for demanding deployments and integrates easily into mobile command environments, aircraft, and OB Van vehicles for dependable field connectivity.

Tactical Connectivity for Public Safety
When the mission is critical, your network can't be a liability. Link provides first responders with rugged, high-speed connectivity built for the toughest environments. By bonding global LTE networks, Link keeps command centers, field units, and drone teams connected even when local infrastructure fails.

Quad-Modem Power
The 400 series utilizes four high-speed modems working in tandem. This isn't just a backup; it's true data bonding that maximizes throughput and provides rock-solid redundancy.

Total Connectivity
Built specifically for low-signal environments, this unit aggregates traffic across different ISPs to deliver the fastest, most stable speeds possible.

Tailored to Your Tech
Choose the hardware that fits your environment.

External or Internal
• Internal Antennas: Teradek 10-2891-I is perfect for a streamlined, "grab-and-go" mobile setup.
• External Antennas: Teradek 10-2891 is ideal for permanent installs or boosting signals in the most challenging remote locations.

Please Note: Link 400 does not come with antennas. These must be purchased separately. Antennas should not be attached directly to the Link. We recommend using the Antenna Extension Kit to attach your external antennas.

  • Features:

    • 4x or 8x Global 5G Modems Options: Maximize throughput across multiple carrier networks

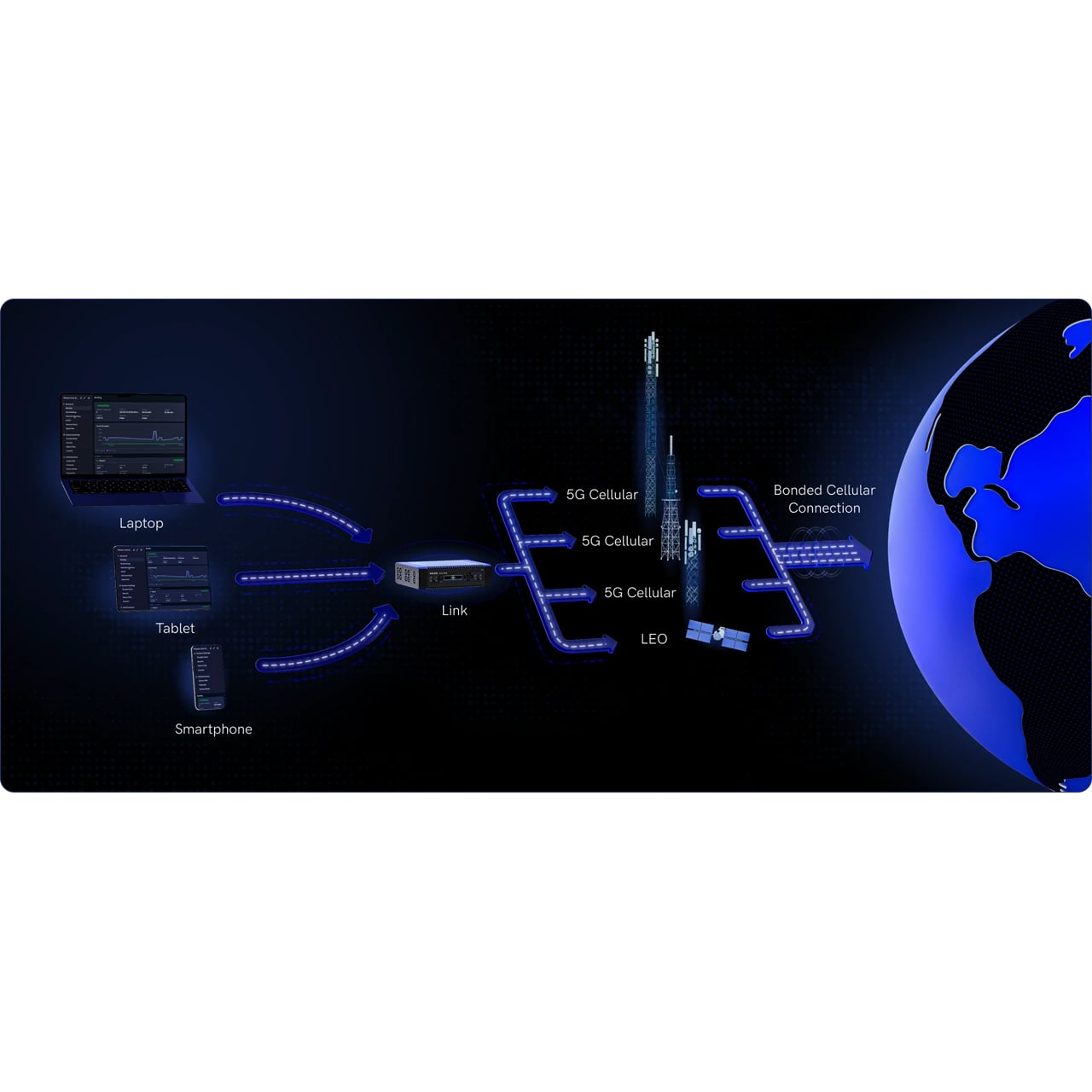

    • Bonded Multi-WAN Aggregation: Combine connections into one resilient data pipeline
    • Carrier-Agnostic Architecture: Choose your preferred providers in one device
    • Cloud-Based Management: Monitor and manage deployments remotely
    • Wide-Range DC Power Input: Deploy in vehicles, aircraft, or fixed installations
    • Low Swap Rugged Design: High performance without added bulk

  • Specifications:

      Protocol Support
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Remote Control: Teradek Cloud, Private SDK, API

      Interfaces

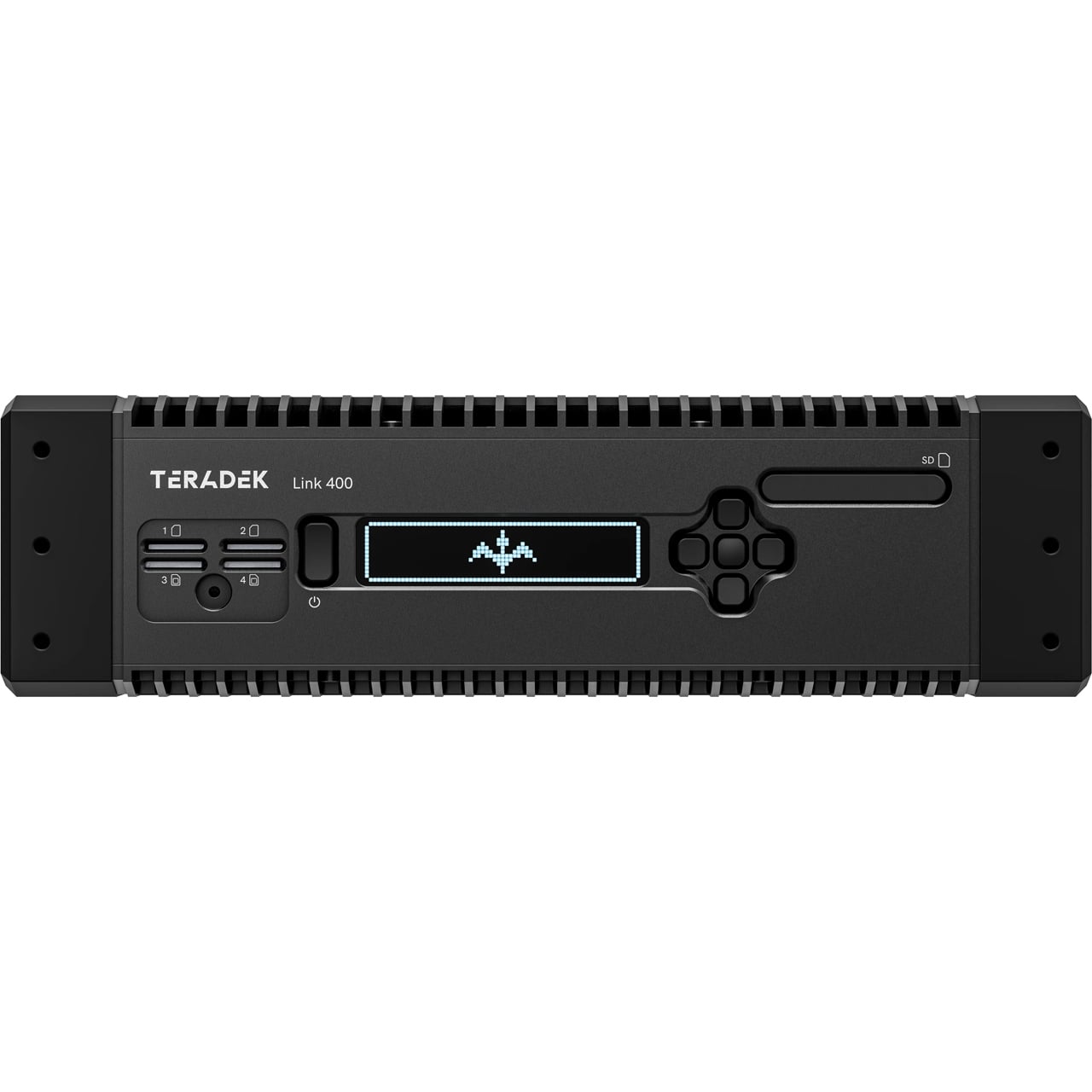

    • Configuration Interfaces: Teradek Cloud for remote device management Feature-rich web UI for configuration and control OLED Status Display with Nav control buttons
    • Switches: On/Off soft power button
    • Status LEDs: RJ45 indicators
    • Recording Storage: Full size SD card for file upload to Teradek Cloud

      Network

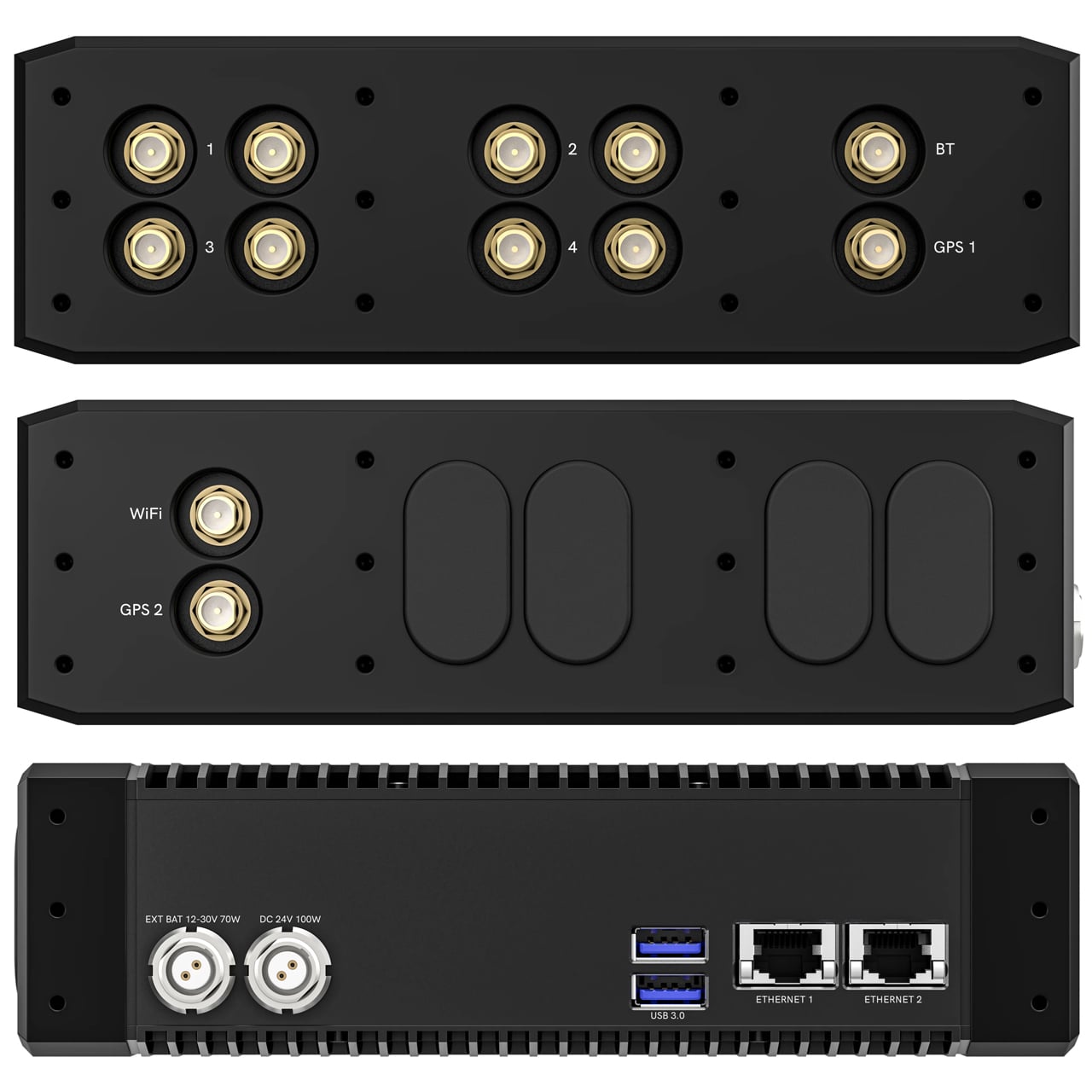

    • Ethernet: 2x 1Gbps Ethernet Ports
    • Modem: 4x Internal Node 5G Modems (CBRS supported)
    • USB: 2x USB-A for file upload to Teradek Cloud
    • WiFi:
      - 2x2 2.4GHz MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain
      - 2x2 5GHz MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain
      - Frequency Range: 2.412GHz - 2.472GHz, 5.180GHz - 5.825GHz
    • Encryption: 802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

      Power
    • Power Input: 2-pin locking connector - 24V, 100W
    • Battery: 2-pin locking connector - 12V - 30VDC, 70W
    • Nominal Power Consumption: 20W Nominal; 36W Max

      Physical
    • Dimensions (HxWxD): 2.13" x 7.64" x 6.93" (54.2mm x 194mm x 176mm)
    • Weight: 3.29lbs (1494g)
    • Construction: Milled Aluminum with ABS antenna covers (where applicable)
    • Mountability: 100mm x 100mm and 140mm x 140mm Vesa pattern (M3 screw) M3 perimeter mounting points for permanent mounting

      Environmental
    • Operating Temperature: 14°F - 122°F (-10°C - 50°C)
    • Storage Temperature: -40°F - 194°F (-40°C - 90°C)
    • Operating Humidity: 5% - 95%
    • Storage Humidity: Max. 90%

  • Item Includes:

    • 1x Link 400
    • 1x AC-DC 24V 120W Power Supply
