Techflex CCP2.00 - 2 Inch - Min 1-3/4 Inch OD and Max 2-1/2 Inch OD - 200 Ft Spool - Gray

ITEM #: TFX-CCP200GY-200 MFG #: CCP2.00GY

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TFX-CCP200GY-200

CCP2.00GY - Overview

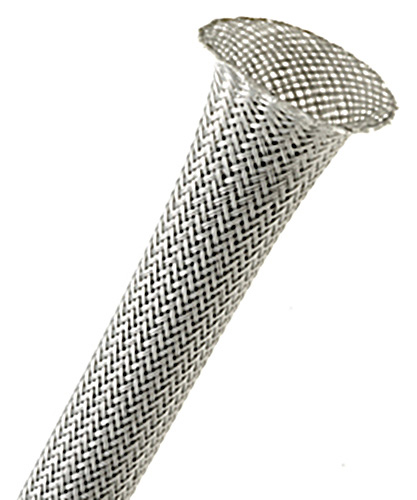

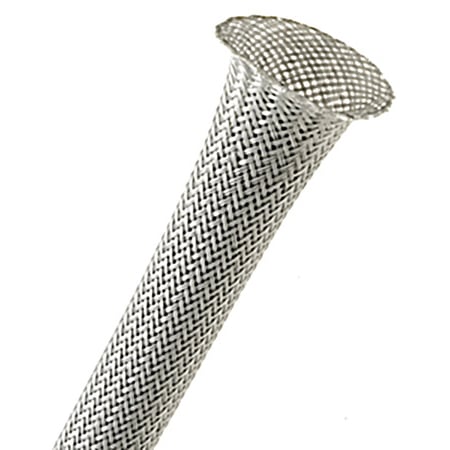

By adjusting the physical characteristics of the polyethylene terepthalate filaments, the engineers at Techflex have produced a product with the same specifications as our PET sleeving with the unique advantage of being able to cut the material with ordinary scissors and still maintain an extraordinarily fray-resistant end without the addition of chemical binders or adhesives.

Flexo Clean Cut is ideal for field installers and other situations where access to a hot knife is impossible. Clean Cut's fray resistant properties allows frequent expansion of the cut end without unraveling. When cut with a hot knife, Clean Cut produces a clean, smooth and virtually frayless end.

Clean Cut is braided for maximum coverage while still allowing enough expansion for easy installation over plugs and connectors.

  • Specifications:

    • Physical Properties
    • Monofilament Thickness (ASTM D-204): 0.008
    • Flammability Rating: UL-94
    • Recommended Cutting: Hot Knife/Scissor
    • Colors: 2
    • Wall Thickness: 0.024
    • Tensile Strength - Yarn (ASTM D-2265) lbs.: 6
    • Abrasion Resistance: Medium
    • Specific Gravity: 1.38
    • Moisture Absorption % (ASTM D-570): 0.1 - .2
      Hard Vacuum Data (ASTM E-595 at 10-5 torr)
    • TML: 0.19
    • CVCM: 0.00
    • WVR: 0.16
    • Smoke D-Max (ASTM E-662): 56
    • Outgassing: Medium
    • Oxygen Index (ASTM D-2863): 21
      Operating Temperatures
    • Minimum Continuous: -94°F
    • Maximum Continuous (MIL-I-23053): 257°F
    • Melt (ASTM D-2117): 482°F
      Other Information
    • Halogen Free: Yes
    • RoHS: Yes
    • SVHC: None
    • UL/CSA: Yes
