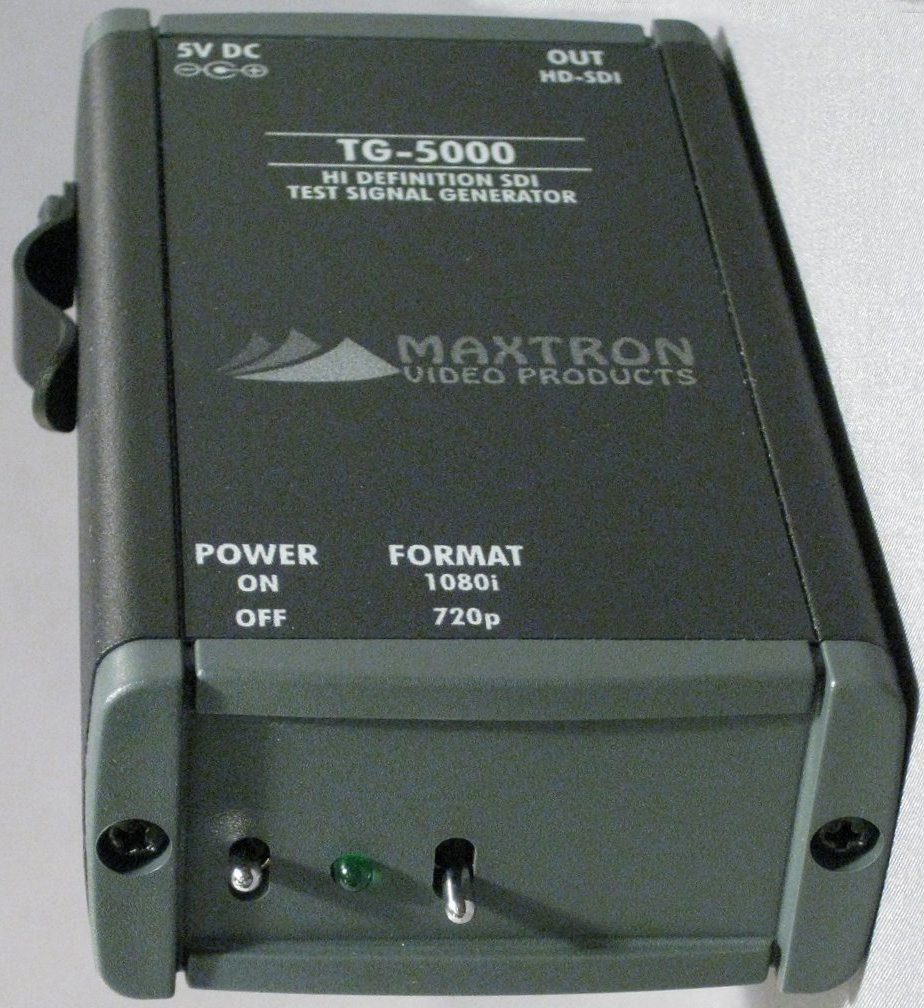

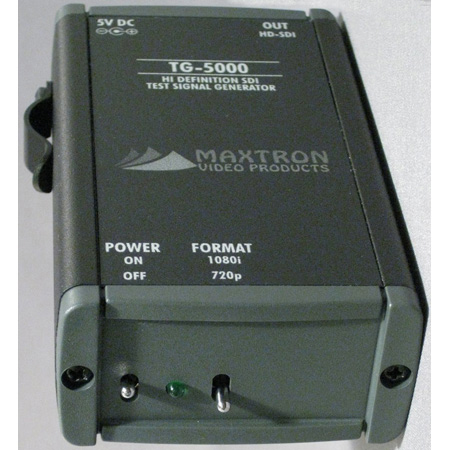

Maxtron TG-5000AB HD-SDI Pattern Gen with Audio & Internal Li-Ion Batt - Li-ion Battery Included

ITEM #: TG-5000AB MFG #: TG-5000AB

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$795.00

Our Price:

$659.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    TG-5000AB - Overview

    To answer the demands for a cost effective HD-SDI pattern generator Maxtron introduces the TG-5000 testpattern generator. The TG-5000 is a very low-cost HD-SDI generator which supports both the 720p and1080i HD formats 59.94Hz frame rates. These two formats are the only formats used by broadcast facilitiesin the US and Canada. The TG-5000 provides the latest SMPTE recommended HD test pattern - the RP 219-2002 HD color barsignal. The pattern is native 16:9 aspect and consists of both 75% and 100% color bars, a white strip, and alinear ramp. The output conforms to SMPTE 292M at a signal level of 800mv into 75 ohms. Mechanically the TG-5000 is very sturdily built and comes in a conveniently small package. It won't roll offthe bench or hide under a monitor. The package size is 4 x 2.5 x 1.25 inches.

    PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

    • Features:

      • SMPTE 292M compliment output 720p or 1080i at 59.94 New SMPTE color bars - RP 219-2000 Full 20-bit pattern generation Designed for Portable and Bench applications Extremely small size - about the size of a deck of cards 100-240VAC to 5V DC power supply included
