Tieline TLR6200-16D Gateway-16 with Dante - 16 Mono / 8 Stereo Multi-Channel IP Audio Codec

TLR6200-16D - Overview

A Powerful DSP-based 1RU IP Codec

• Features:

  • Analog, AES3: Support for AES67, plus AES3 (AES/EBU) and analog I/O options.
  • HTTP Streaming: Support for Icecast or Shoutcast HTTP streaming
  • SIP and IP Intercoms: SIP EBU Tech 3326, 3368, and EBU Tech 3347
  • Dual AoIP Ports: Stream AoIP from dual ports
  • SD card: SD card slot for firmware upgrades, storage and SDIO
  • Alarms: Silence Detection, PSU Failure, Lost connection, Temperature, AES Input, AES Reference, SNMP and more
  • Dual Internal Power Supplies: Dual power supplies provide backup if one fails
  • Dual Ethernet Ports: Connect using different Telcos for diversity using SmartStream PLUS redundant streaming
  • Module Compatible: Module slot for future hardware innovations
  • Multi-Unicast: Support for multiple simultaneous multi-unicasts over compatible IP networks to up to 80 endpoints
  • Simultaneous Multicast: Support for multiple simultaneous multicasts over compatible IP networks to unlimited endpoints
  • Phase-locked streaming mode: Up to 8 channels of digital phase-locked multichannel audio, including 6 channel (5.1 or 6.0), 8 channel (7.1 or 8.0), and 4 channel phase-locked surround sound streams.
  • Internal SSD Storage: Internal Storage supports record, store and forward use cases for network syndication applications
  • Expanded Backup Options: Multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you're always on the air.


• Specifications:

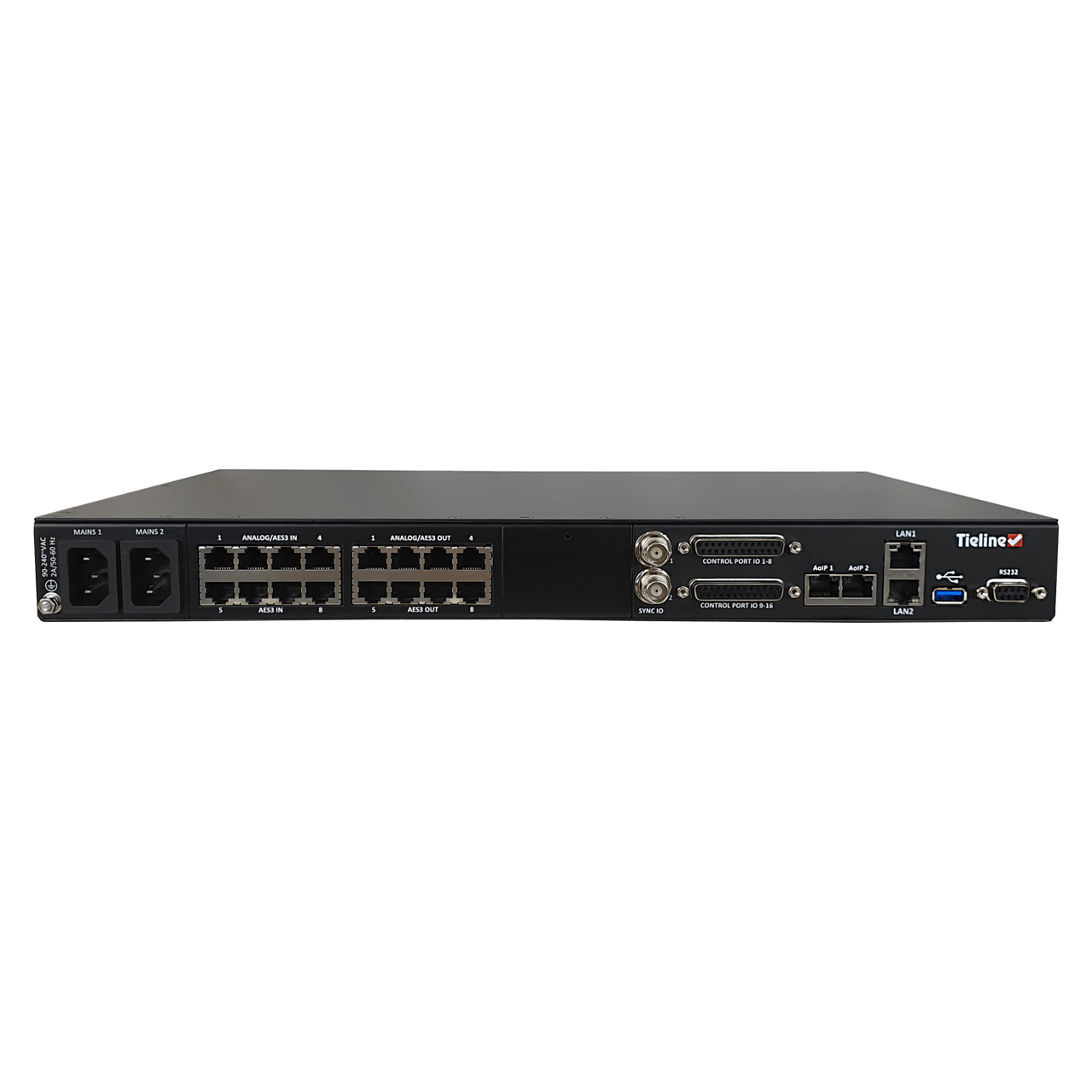

  Input and Outputs
  • RJ45 Analog Inputs 1-4/AES3 Inputs 1-4: Shared analog stereo line inputs 1-4, or stereo AES3 digital inputs 1-4
  • RJ45 Analog Outputs 1-4/AES3 Outputs 1-4: Shared analog stereo line outputs 1-4, or stereo AES3 digital outputs 1-4
  • RJ45 AES3 Inputs 5-8: Stereo AES3 digital inputs 5-8
  • RJ45 AES3 Outputs 5-8: Stereo AES3 digital outputs 5-8
  • Gigabit LAN Ports: 2x Gbit Ethernet ports for IP streaming over WANs (16 bidirectional mono or 8 bidirectional stereo)
  • Gigabit AoIP Streaming Ports: 2x Gbit Ethernet ports for AES67/ ST 2110-30/ ST 2022-7; Optional WheatNet-IP or Dante streaming via AoIP1
  • Front Panel USB 2.0 Host Port: Supports USB to LAN or USB Wi-Fi for control only
  • Rear Panel USB 3.0 Host Port: Supports USB to LAN for Control only

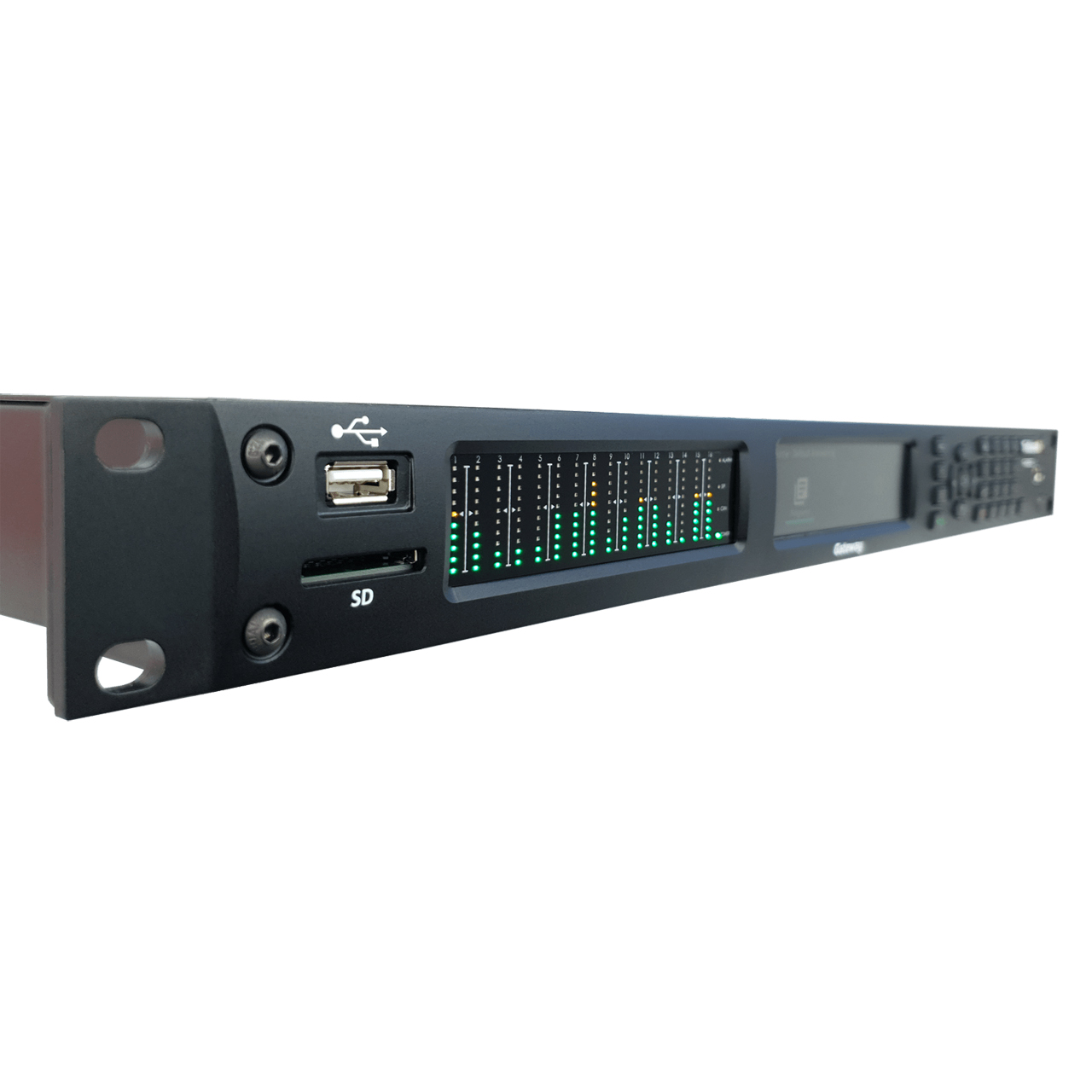

  • Front Panel Headphone Output: 1x 6.35mm (1/4") headphone Jack
  • Front Panel SD Card Slot: Full size push-pull SD card slot for firmware upgrades
  • BNC Sync Input/Output: 2 configurable input/output BNC sync connectors (Wordclock, AES3 Input, AES11id, PTP Sample Clock, and Fixed)
  • Control Port In/Out: Dual DB-25 Control Ports support 16 CMOS control inputs and 16 opto-isolated solid-state relay outputs
  • Analog Input Impedance: > 10k ohm
  • Analog Output Impedance: < 30 ohm balanced
  • Clipping Level: Nominal output level +4dBu with maximum output + 24dBu
  • A/D & D/A Converters: 24 bit
  • AES3 (AES/EBU): 24 bit inputs with support for sample rates from 32kHz to 192 kHz[1]; 24 bit outputs
  • Frequency Response: 20Hz to 22kHz
  • Total Harmonic Distortion: <0.002% at +22dBu unweighted
  • Signal to Noise Ratio: >100dB at +24dBu, unweighted, 20Hz - 20kHz
  • Crosstalk: < -95dB between adjacent channels

    Data and Control
  • Configuration and Connectivity: HTML5 Toolbox Web-GUI, Cloud Codec Controller (CCC)
  • Serial (DB-9): RS232 up to 115kbps with or without CTS/RTS flow control can be used as a proprietary data channel
  • Software Logic I/Os (SLIO): 16 hardware GPIOs, plus 3 virtual inputs, 48 logical outputs, and 64 WheatNet or Livewire Logic Inputs/Outputs, 64 Ember + GPIOs
  • ISDN: Optional via module slot; 2 B channels supported

    Encoding and IP Streaming
  • Encoding Formats: Tieline Music, Tieline MusicPLUS, Opus, G.711, G.722, MPEG Layer 2, MPEG Layer-3 LC-AAC, HE-AAC, HE-AACv.2, AAC-LD, AAC-ELD, 16/24 bit aptX Enhanced algorithm, MPEG audio technologies licensed by Fraunhofer IIS
  • Uncompressed IP: Linear PCM16/24 bit 32kHz, 44.1kHz, 48kHz, 96kHz sampling
  • IP Sample Frequencies: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz, 96kHz
  • Phase-locked Surround Sound Channels: Stream 4, 6 and 8 digital channels in phase-locked mode to deliver live content in both stereo and surround sound formats
  • Asymetric encoding: Supports asymetric multi-format encoding
  • Multicasting: Support for Multicast and Multi-multicast (8-16) streams over compatible IP networks
  • Fuse-IP: Bond IP interfaces to aggregate data

    Advanced Networking
  • VLAN Tagging: IEEE 802.1Q,802.1p
  • Quality of Service (QoS): Support for DiffServ (DSCP)
  • Synchronization: IEEE 1588-2008(PTPv2)
  • Multicasting: IGMP v2 and v3 and IGMP v3 SSM
  • SAP: SAP v2 (Session Announcement Protocol) as defined in RFC 2974

    General

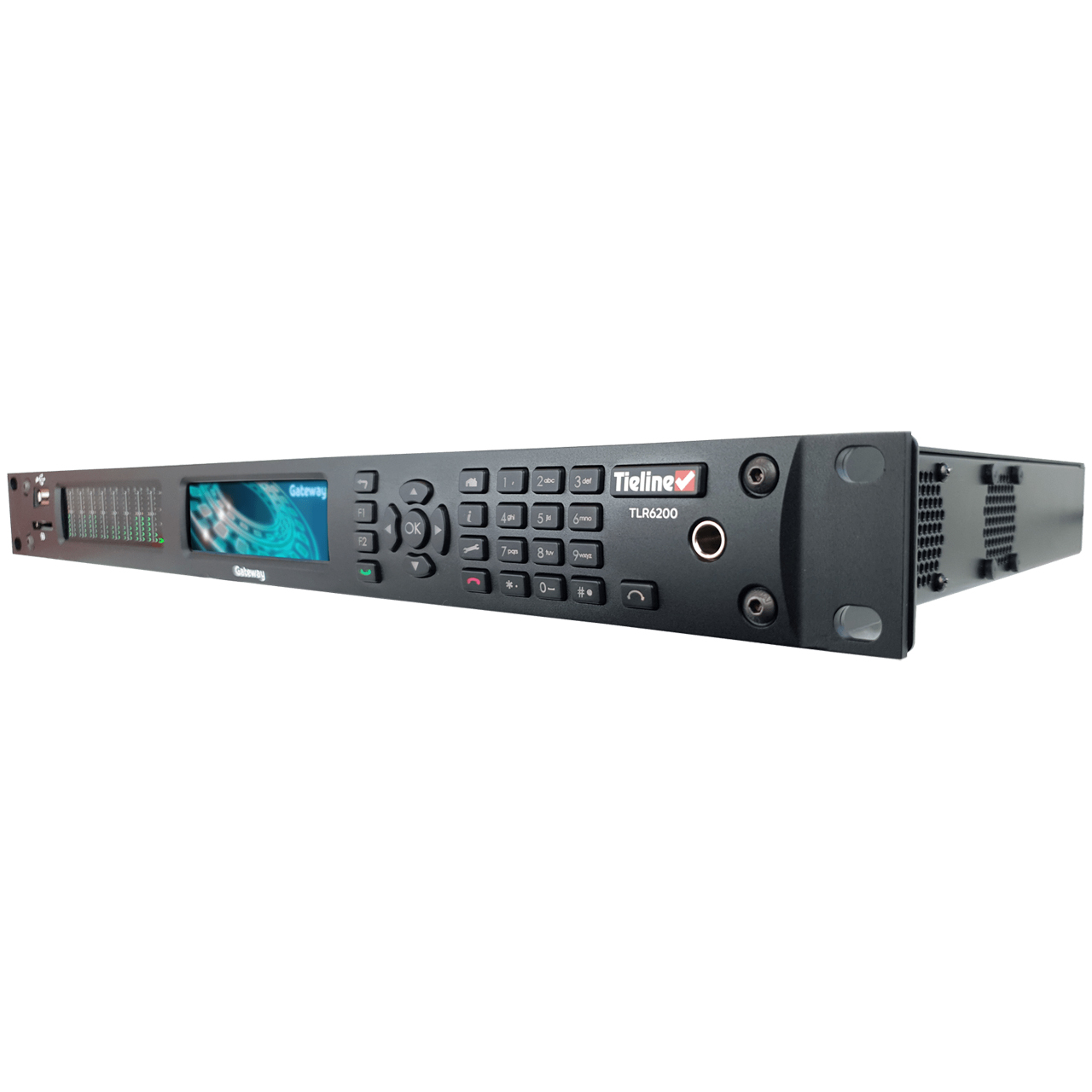

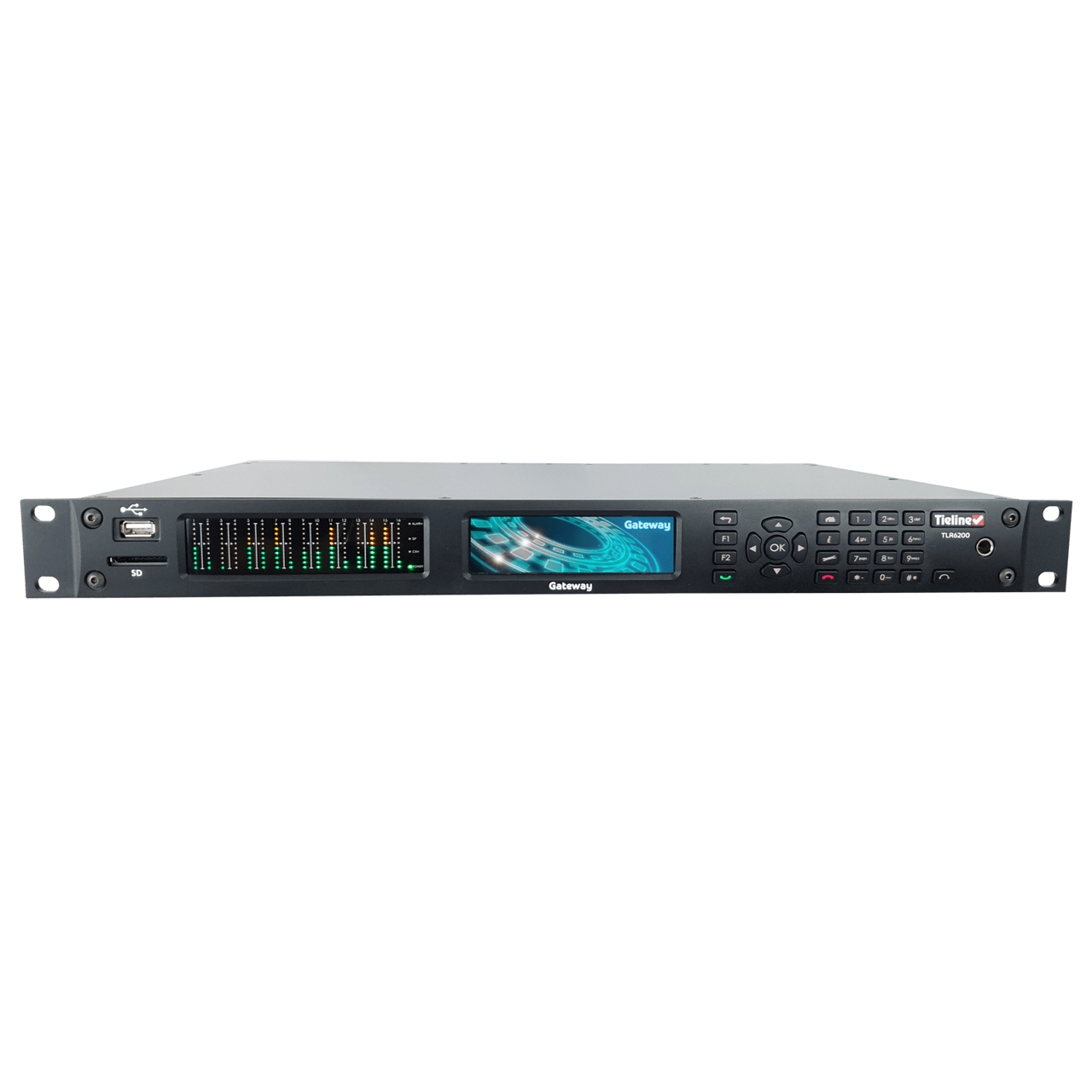

  • Display: 24-bit Color LCD Screen (480 x 128 pixels)
  • Keypad: 26 button silicon keypad
  • Navigation: 5 navigation and selection buttons
  • Size: 1U x 19" Rackmount
  • Dimensions (WxHxD): 16" x 4" x 22" (406.4mm x 101.6mm x 558.8mm) excluding rear connectors
  • Weight: 9lbs (4kg)
  • AC Power: Dual AC 90-240V IEC power inlets; 2A 50-60Hz
  • Nominal Power: 30W
  • Maximum Power: 45W
  • Inrush Current (cold start): 60A 230 VAC (per PSU) ; 30A/115VAC (per PSU)
  • Operating Temperature: 32°F - 113°F (0°C - 45°C)
  • Humidity Operating Range: 10% ≥ RH ≤ 90% (32°F - 113°F, 0°C - 45°C), non-condensing


• Item Includes:

  • 1x TLR6200-16D


• Warranty:

  • 2 Year Limited Warranty
